Introduction

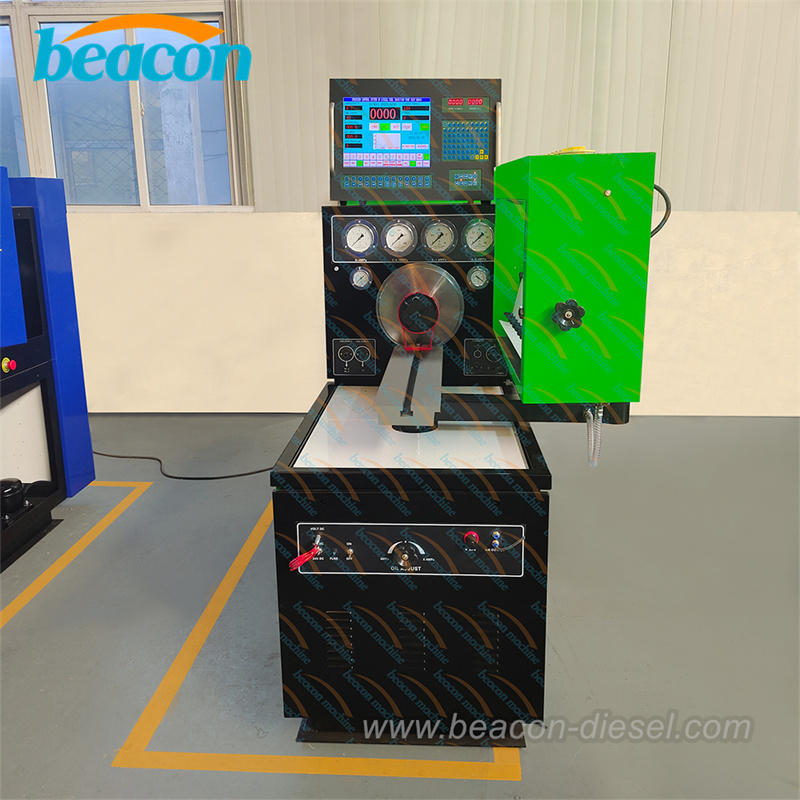

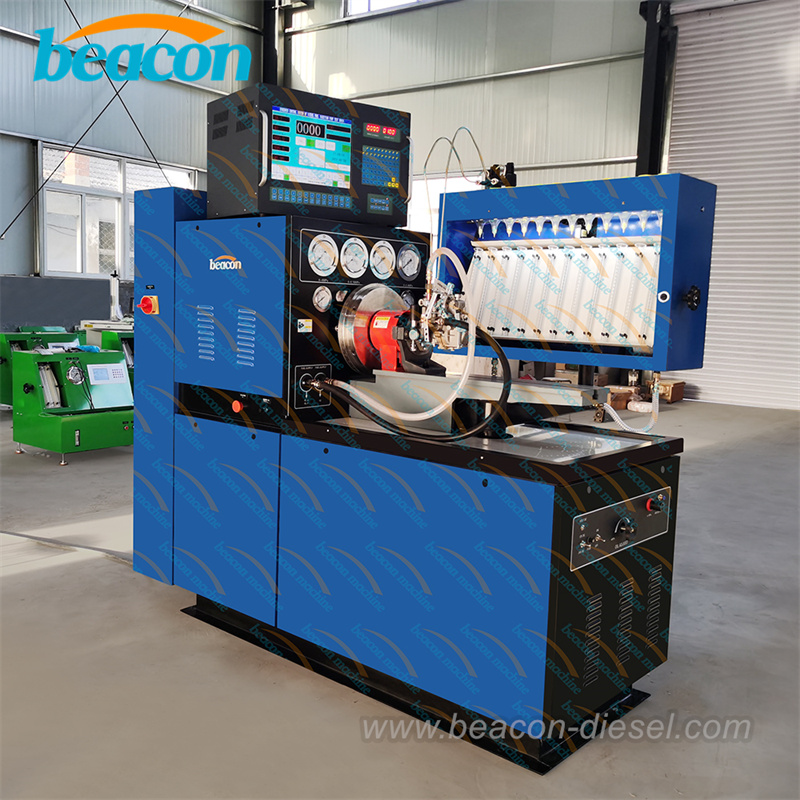

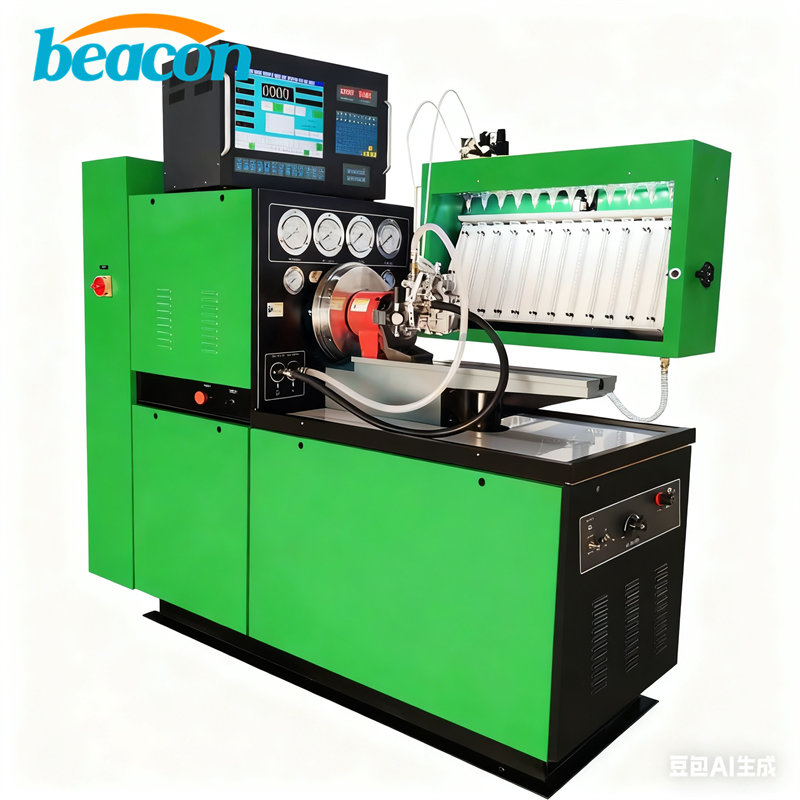

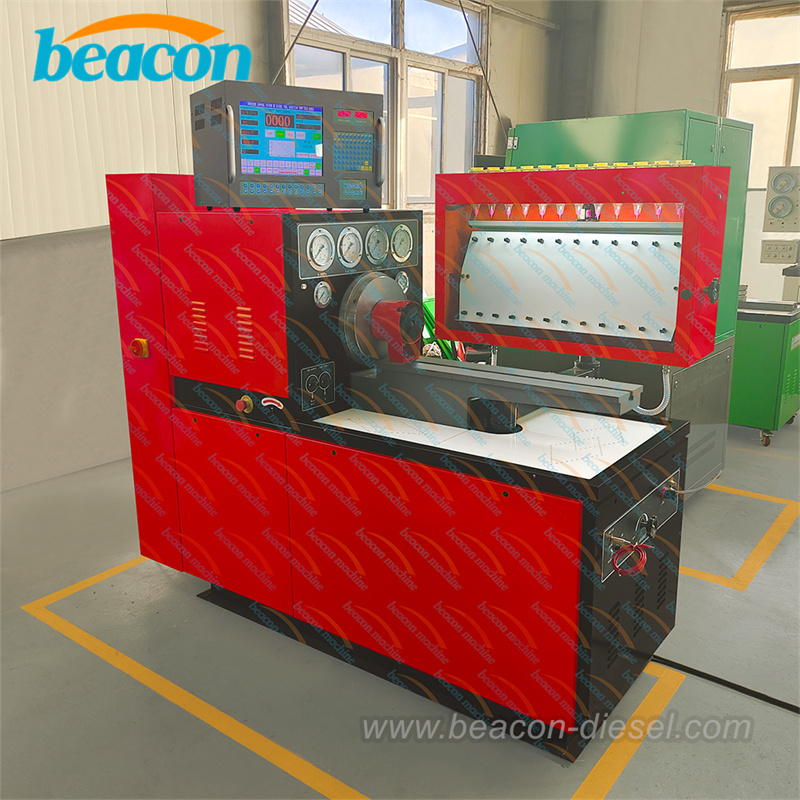

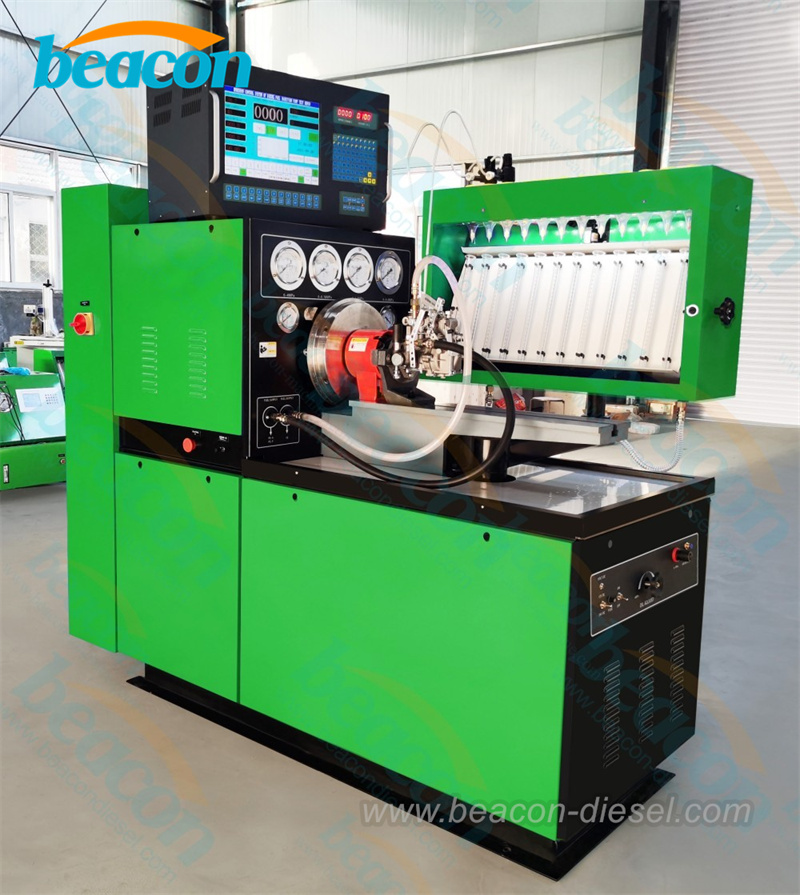

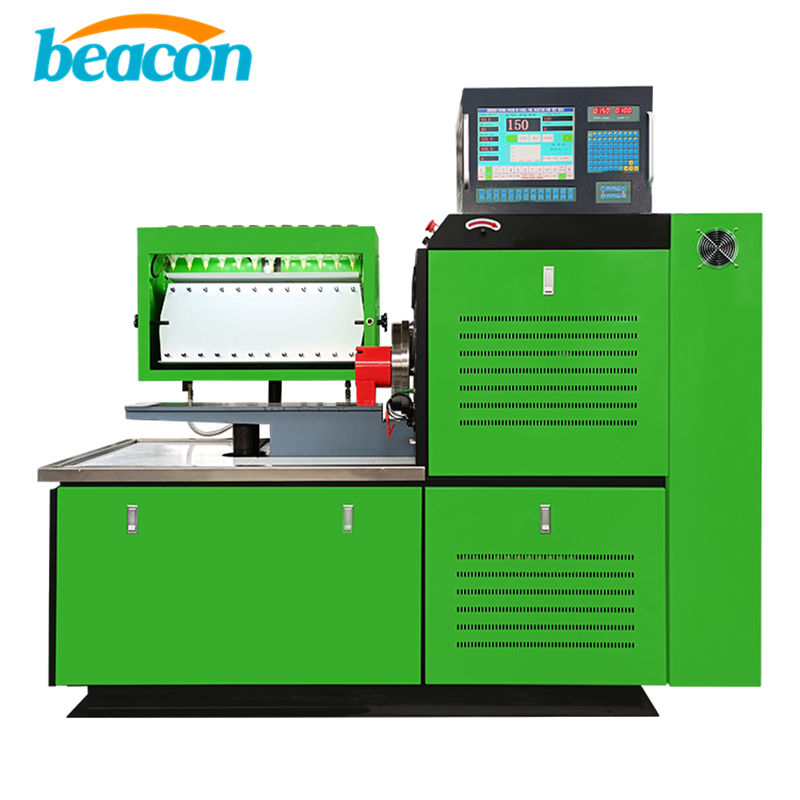

BC3000: High-Precision Diesel Injection Pump Test Bench

The BC3000 Diesel Injection Pump Test Bench is a professional-grade, high-performance solution designed for the accurate testing and calibration of all conventional mechanical diesel fuel injection pumps, including both in-line and distributor (VE) pumps up to 12 cylinders.

Built on a robust cast iron base (optional) and utilizing a high-quality frequency conversing device, the BC3000 delivers ultra-low-noise, exceptional stability, and superior reliability. It is the essential equipment for modern diesel service workshops requiring precise and efficient pump maintenance.

Key Performance Features

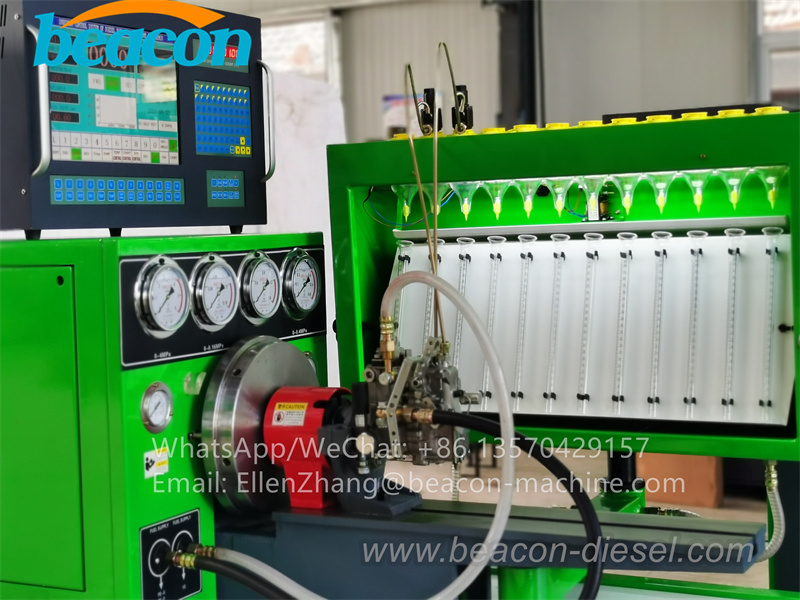

Comprehensive Testing: Perform detailed measurements of cylinder delivery, oil supply interval angle, governor adjustment, and electromagnetic valve testing (12V/24V).

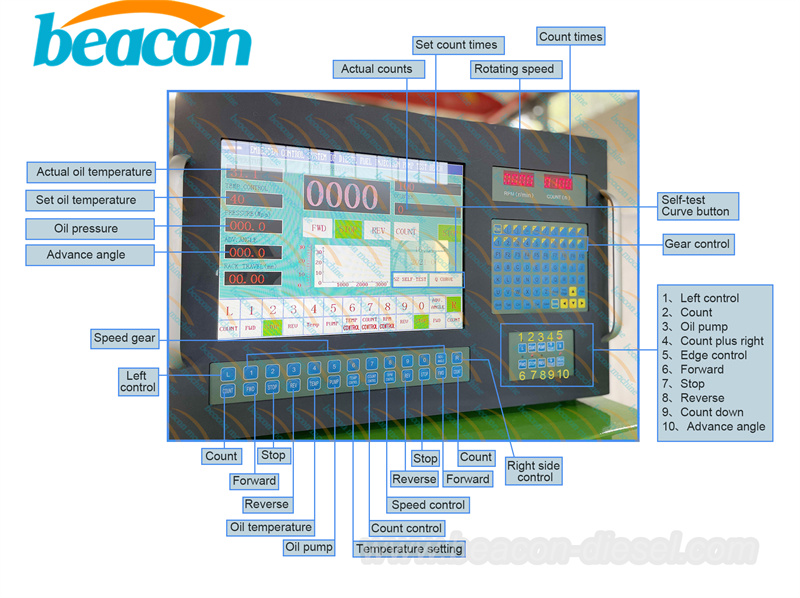

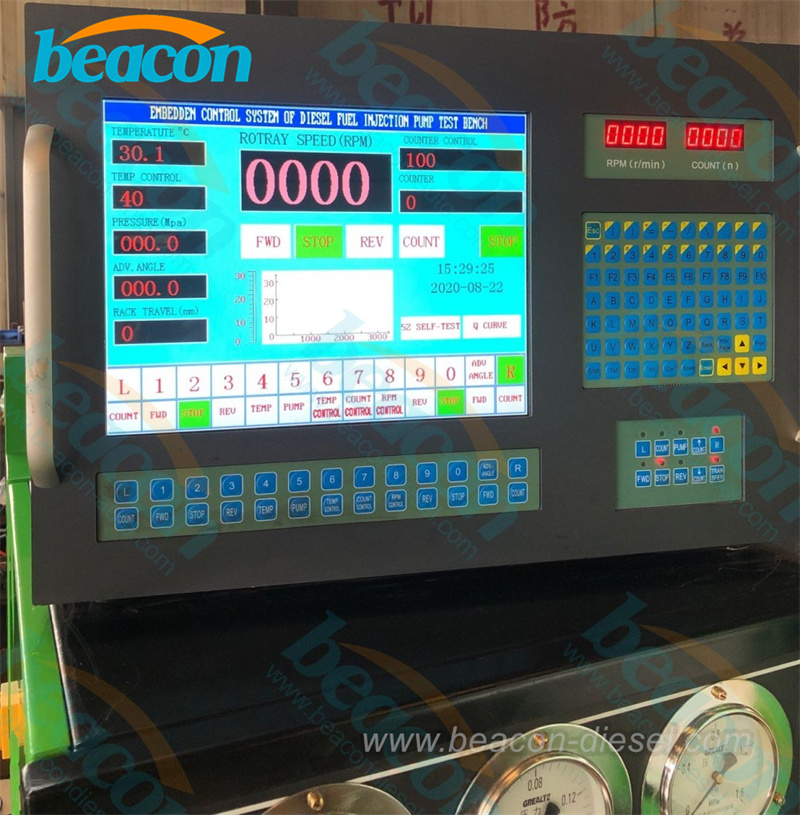

Digital Control: Features a user-friendly human-machine interface with digital controlling for RPM, oil temperature ($40pm2^{circ}text{C}$), and pressure, ensuring repeatable and accurate results.
High Versatility: Ready to test pumps up to 12 cylinders and supports an adjustable speed range from 0 to 4000 rpm.
Modular Options: Enhance your testing capabilities with optional functions like forced cooling, oil lubrication, and checking the advance angle of the advance device for maximum operational flexibility.

Choose the BC3000 for a reliable, comprehensive, and high-precision testing solution that enhances your workshop's diagnostic and repair capabilities.

View the test bench for the digitally controlled 12psb diesel mechanical pump

parameter

Parameter	Specification
Voltage	$380text{V}/220text{V}$
Power Output	$11text{kW}/15text{kW}/18.5text{kW}/22text{kW}$
Motor	AC motor / Converter
Transmission	Converter
Speed Range (RPM)	$0-4000$
Shaft Height (mm)	$125$
Number of Cylinders	$12$
Number of Presting	$10$
Programmer for Speed	Yes
Test Oil Temperature	$40pm2^{circ}text{C}$
Strokes Counting	$50-9999$
Feeding Pump Motor	$1.1text{kW}$
Standard Injector	ZS12SJ1
Volume of Test Oil Tank (L)	$40$
Small Graduated Cylinder (ml)	$45$
Large Graduated Cylinder (ml)	$150$
Flow Meter	LZB-10
DC Power Supply	$12text{V}/24text{V}$
High Pressure of Feeding Test Oil	$ge4text{MPa}$
Low Pressure of Feeding Test Oil	$>0.4text{MPa}$
High Pressure Gauge for VE Pump	$0-1.6text{MPa}$
Low Pressure Gauge for VE Pump	$0-0.16text{MPa}$
Dimension (L×W×H m3)	$2.05times1.16times1.7$
Weight of Testing Bench (KG)	$800$
