Beacon BC200 Common Rai Diesel Fuel Injector Test Bench With BIP Function CRDI Calibration System

Beacon BC200 Common Rai Diesel Fuel Injector Test Bench With BIP Function CRDI Calibration System To test common rail injector

Quick Order

Introduction

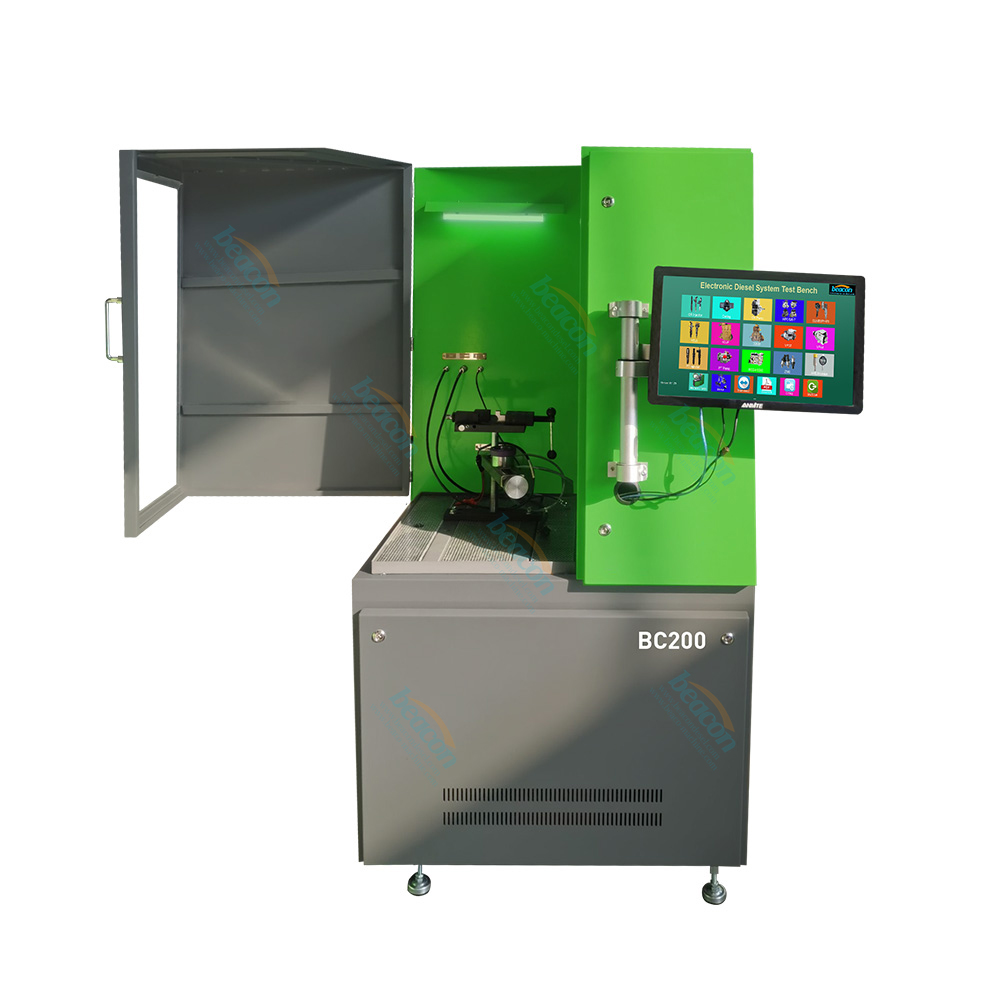

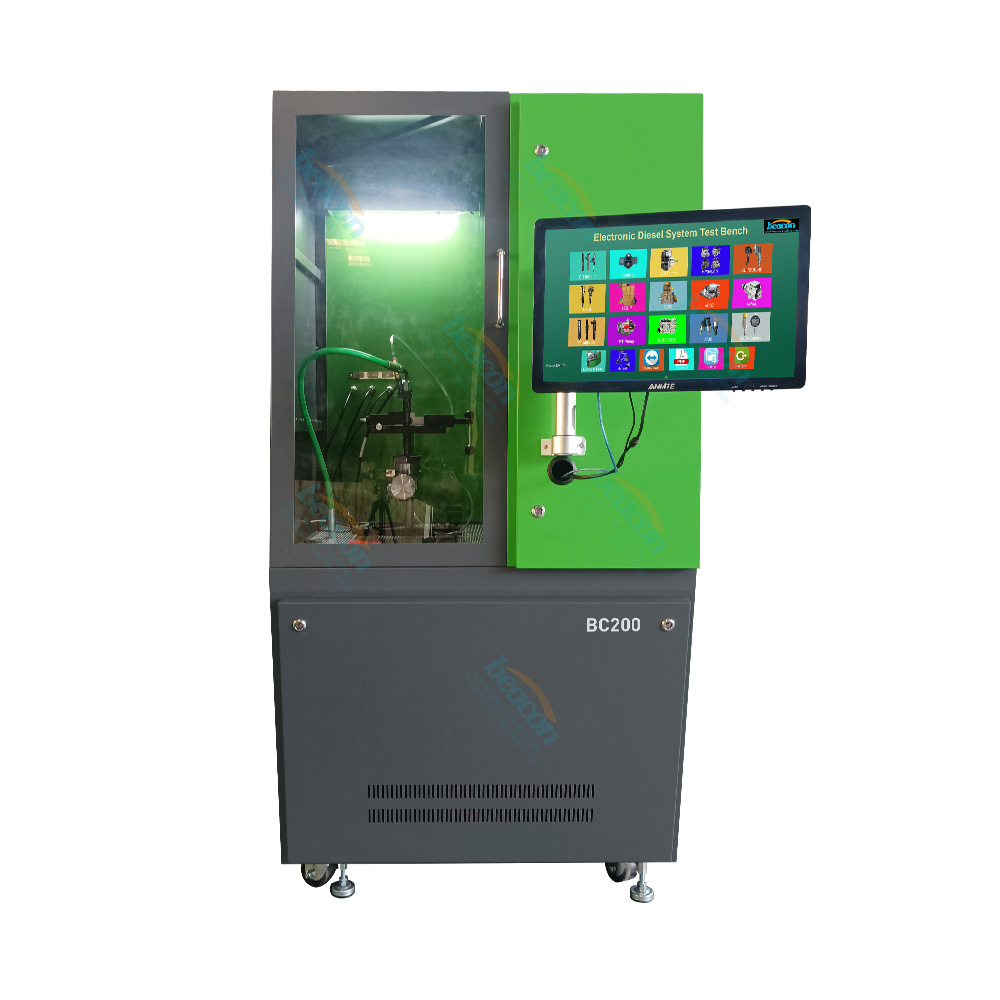

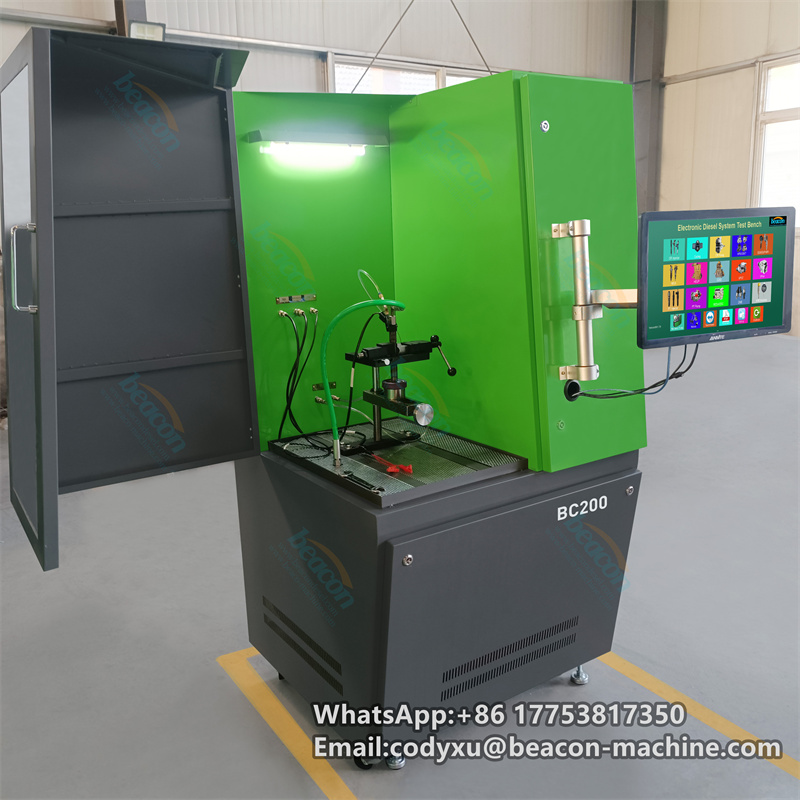

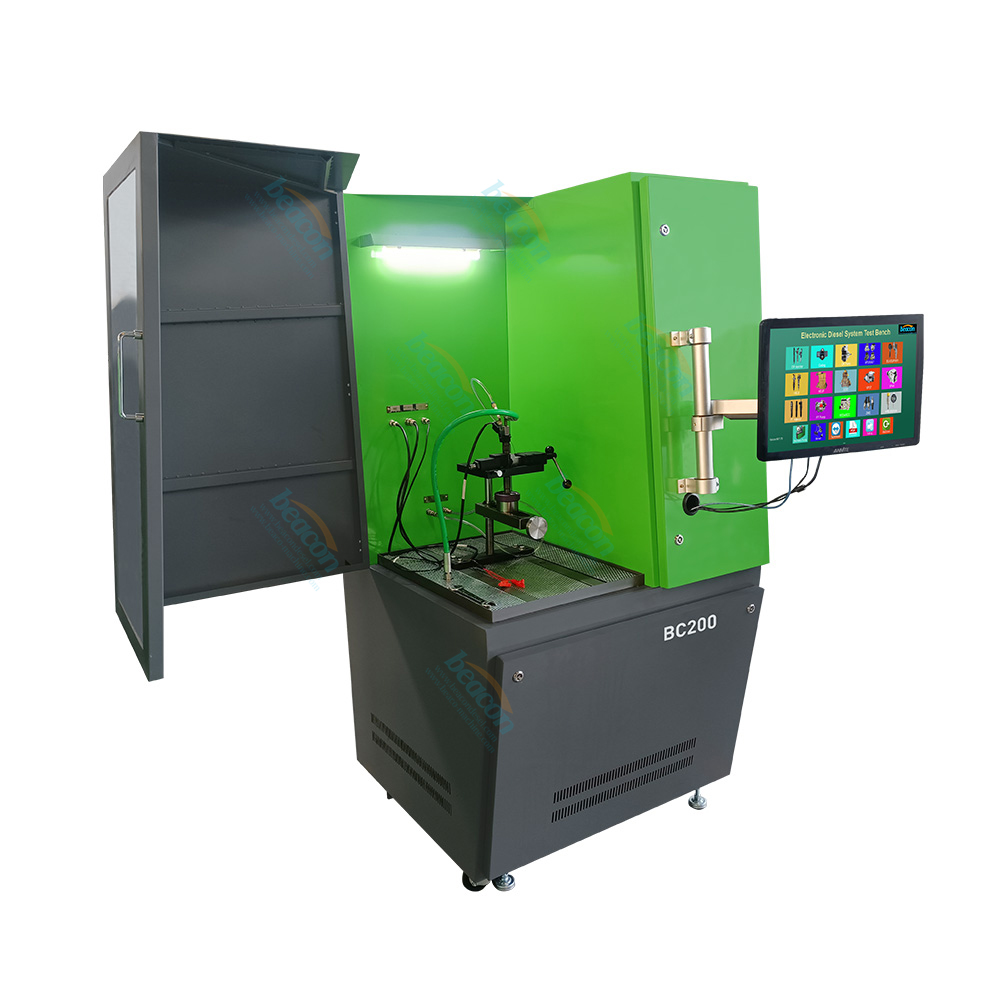

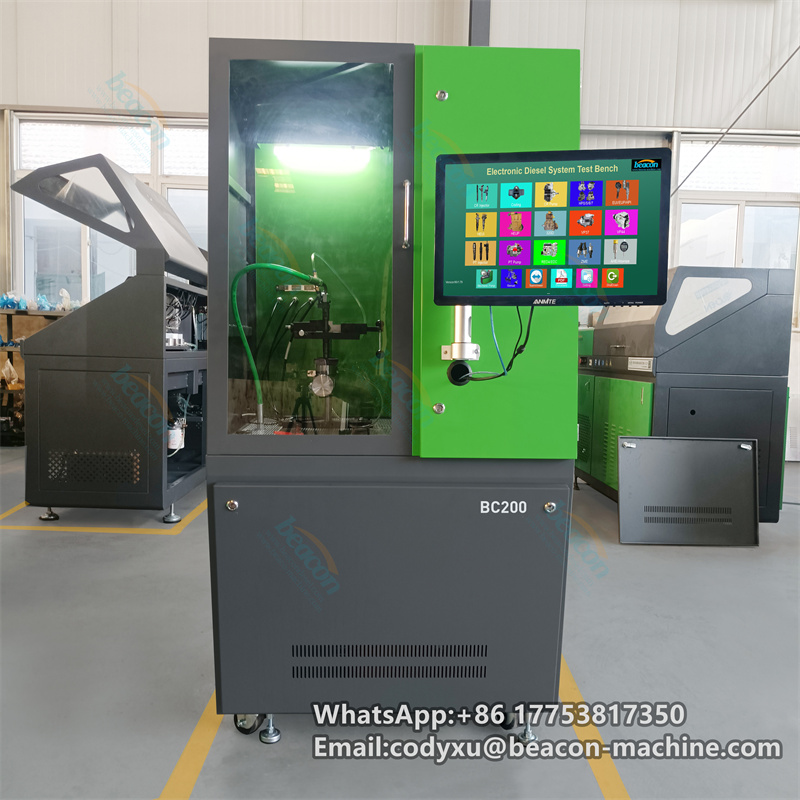

Beacon BC200 Common Rai Diesel Fuel Injector Test Bench With BIP Function CRDI Calibration System

Introduction

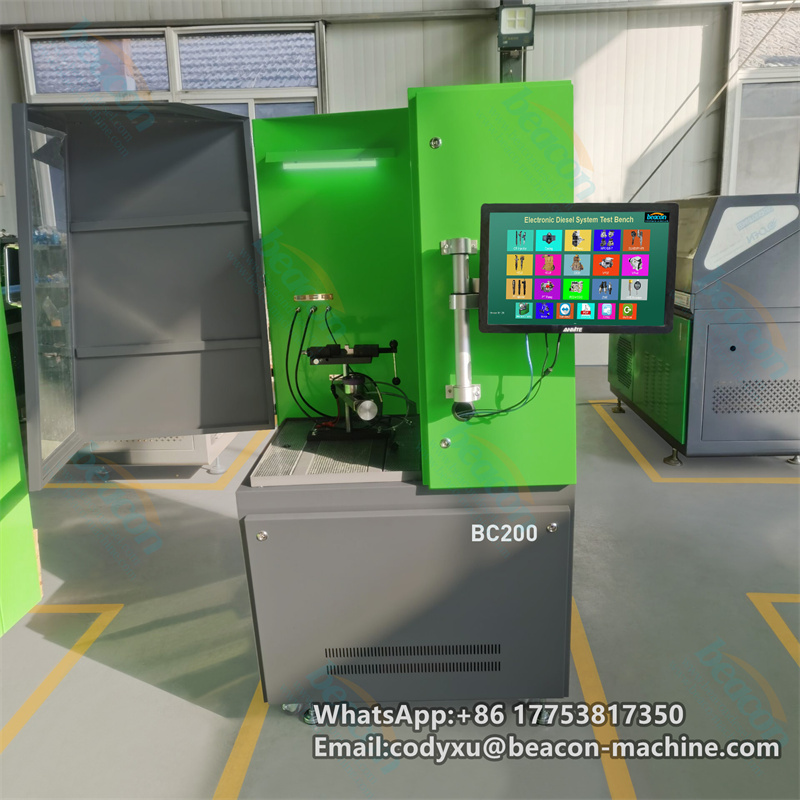

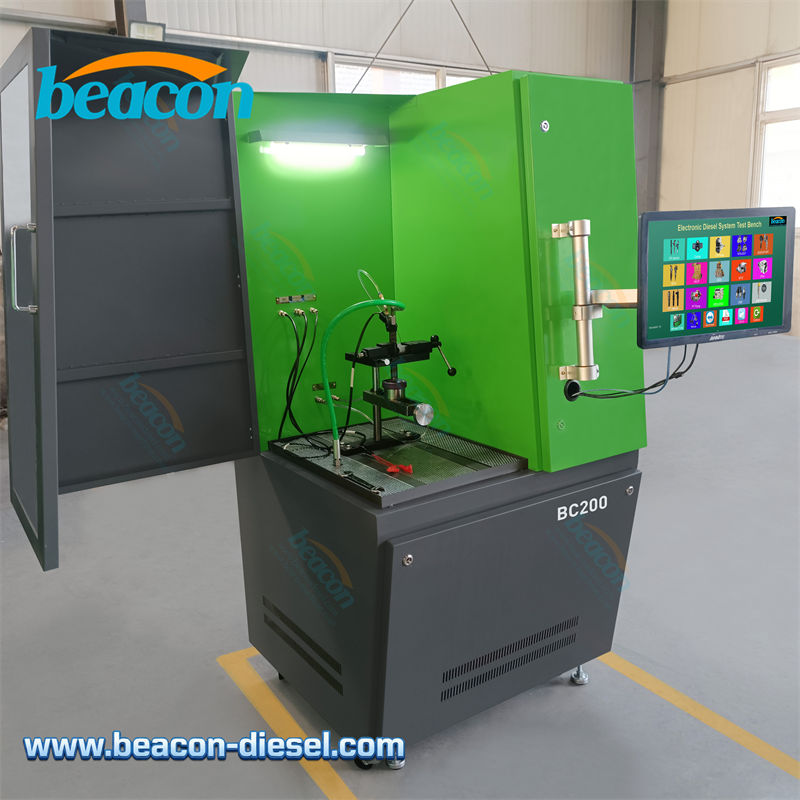

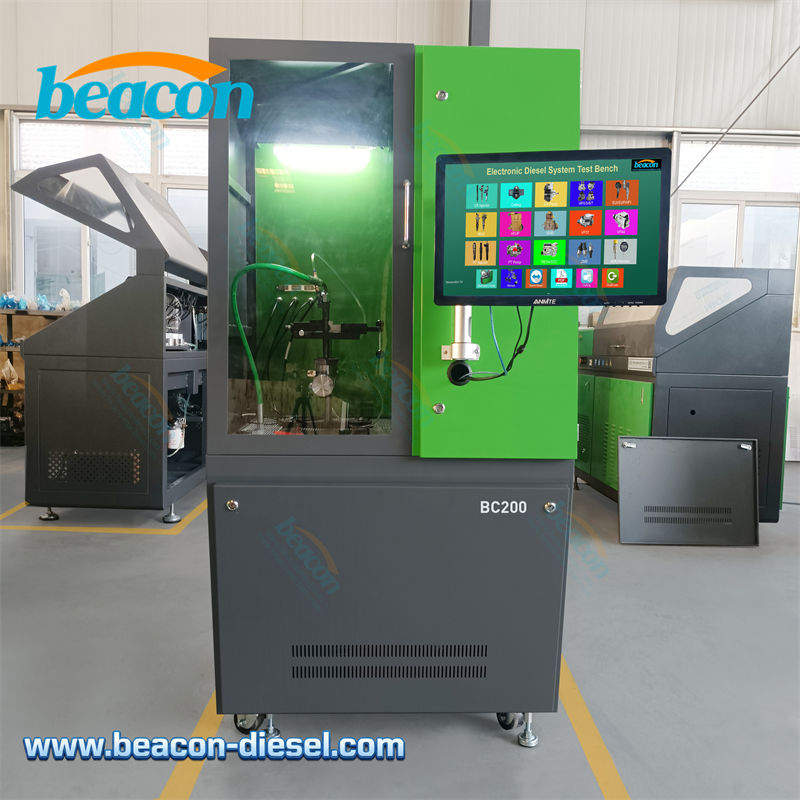

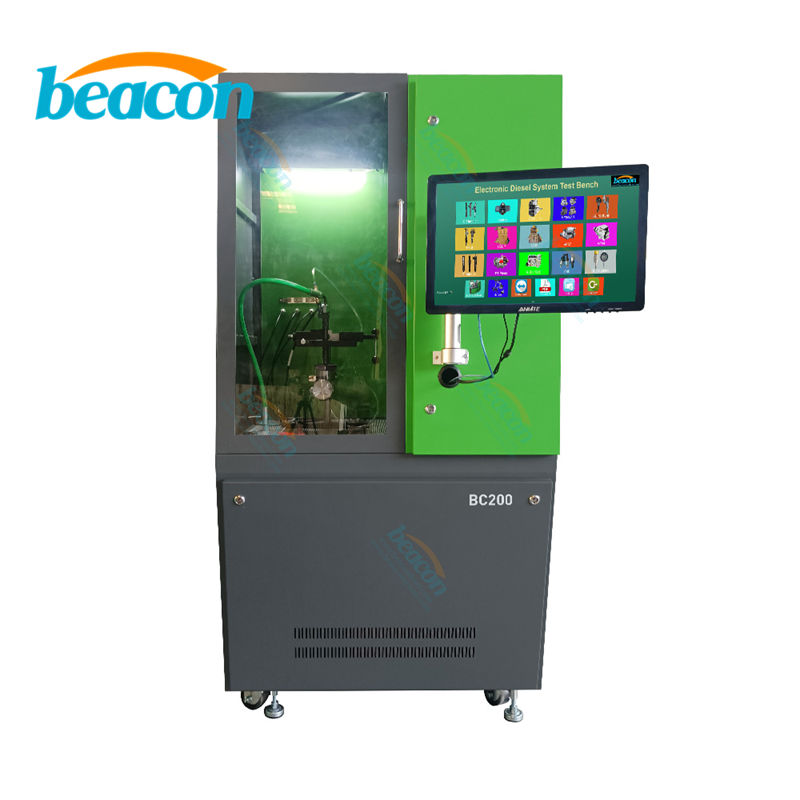

BC200 COMMON RAIL DIESEL INJECTOR TEST BENCH is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH(DENSO) original common rail pump to provide 0~1600 bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect.It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.Advanced technology, steady performance, precise measurement and convenient operation.


Main function
1.Controlled by industrial computer in real time, Windows operating system.
2.Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3.More than 400 kinds of injectors data can be searched and used.
4.It is installed BOSCH(DENSO) common rail pump to provide 0~1600 bar for denso rail.
5.Rail pressure can be tested in real time,
6.Provide pressure overload protect by DENSO rail.
7.Pulse and frequency of the injector can be adjusted.
8.Injection time can be settled.

Function
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2.Test 1 piece of injector.
3.Test the pre-injection of common rail injector.
4.Test the max. oil quantity of common rail injector.
5.Test the cranking oil quantity of common rail injector.
6.Test the back flow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8.Test the seal performance of common rail injector.

9.Data can be searched and saved.

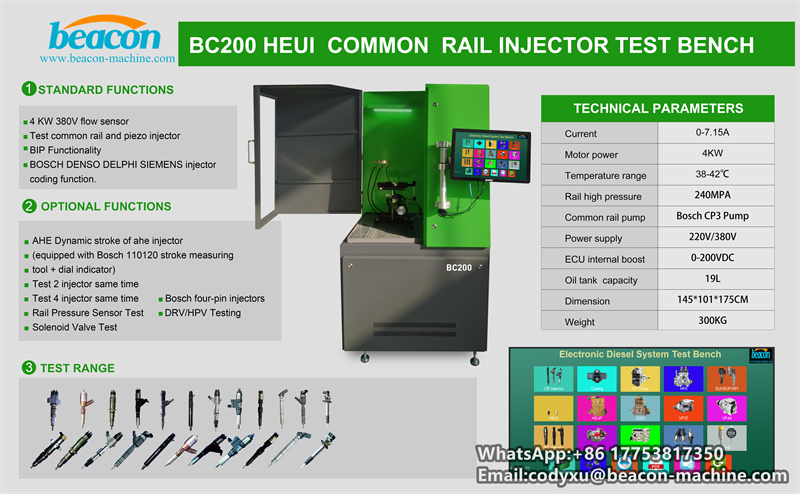

parameter

Current:0-7.15A
Motor power:4KW
Temperature range:38-42℃
Rail high pressure:240MPA
Common rail pump:Bosch CP3 Pump
Power supply:220V/380V
ECU internal boost:0-200VDC
Oil tank capacity:19L
Dimension:145*101*175CM
Weight:300KG

*Test data from Beacon laboratory
