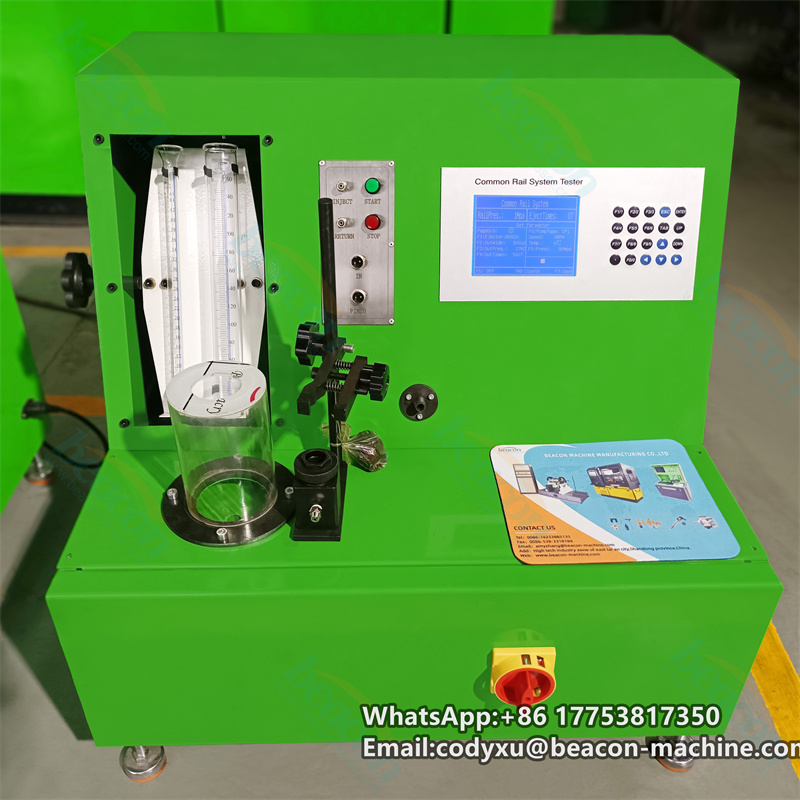

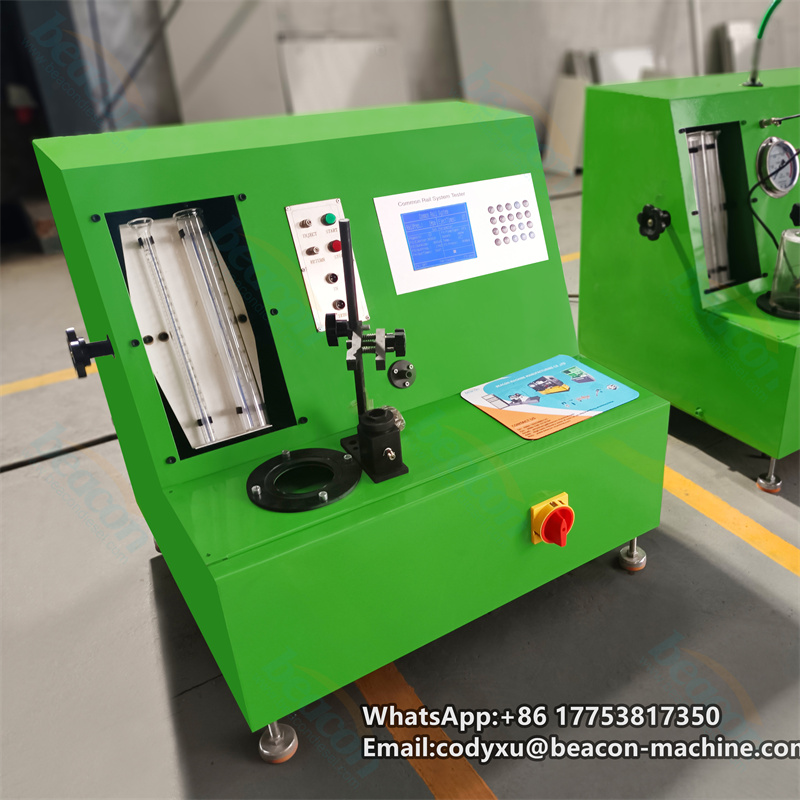

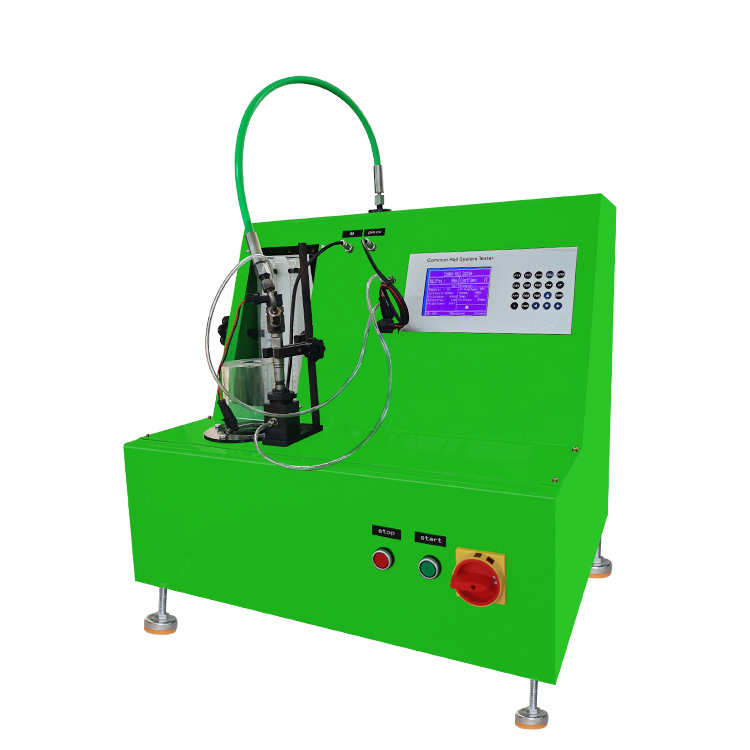

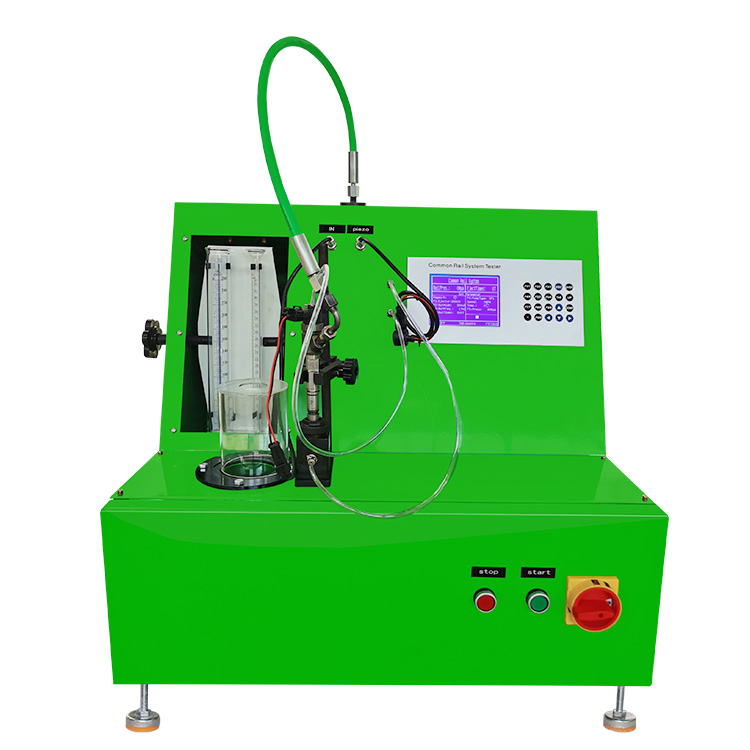

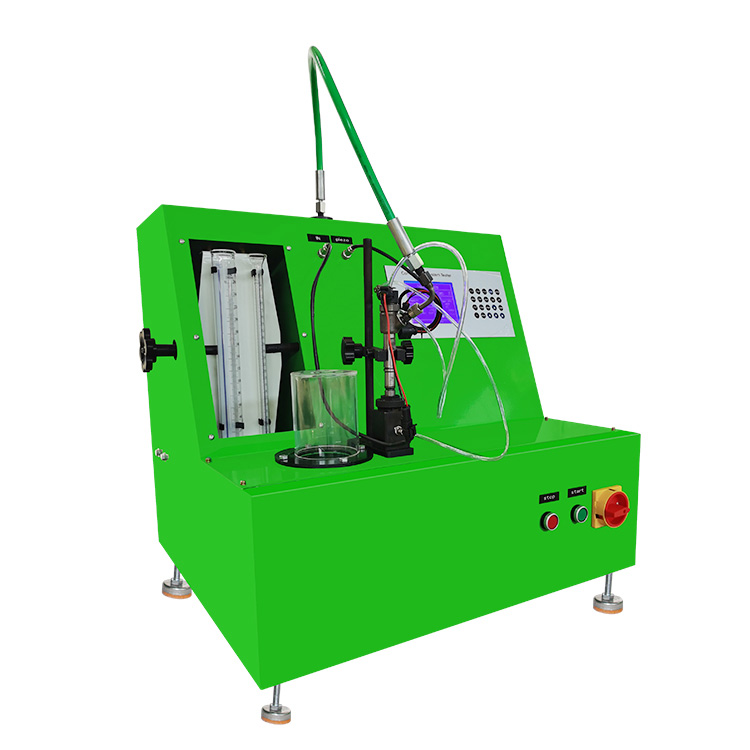

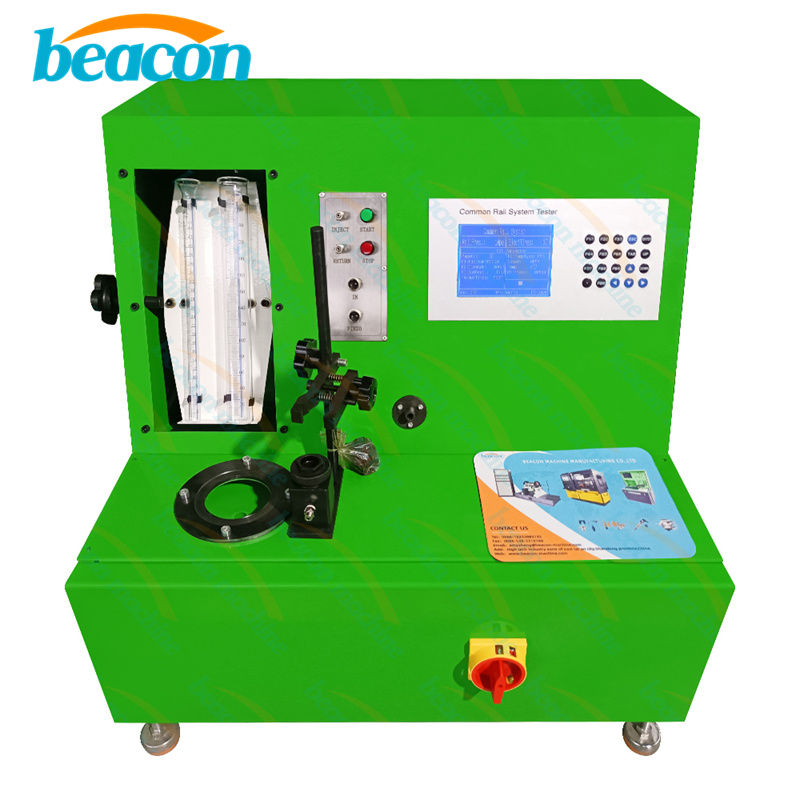

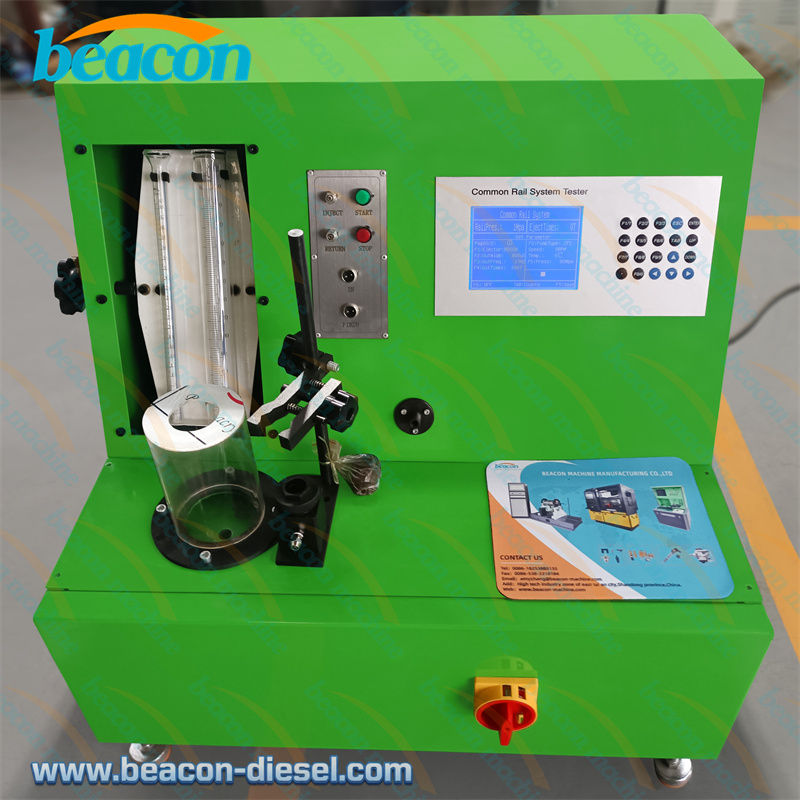

Beacon EPS100 Common Rail Piezo Injector Tester Diesel Injector Nozzle Testing Machine

Beacon EPS100 Common Rail Piezo Injector Tester Diesel Injector Nozzle Testing Machine Used for automotive maintenance and piezoelectric common rail injector testing

WhatsApp: +8618661335350

Tel / Wechat: +8618661335350

Email: beacondiesel@beacon-machine.com

Quick Order

Introduction

EPS100 common rail injector test bench, pressure controlled automatically, display the frequency and pluse at the screen.It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology and piezo injector steady performance, precise measurement.

Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)

CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.

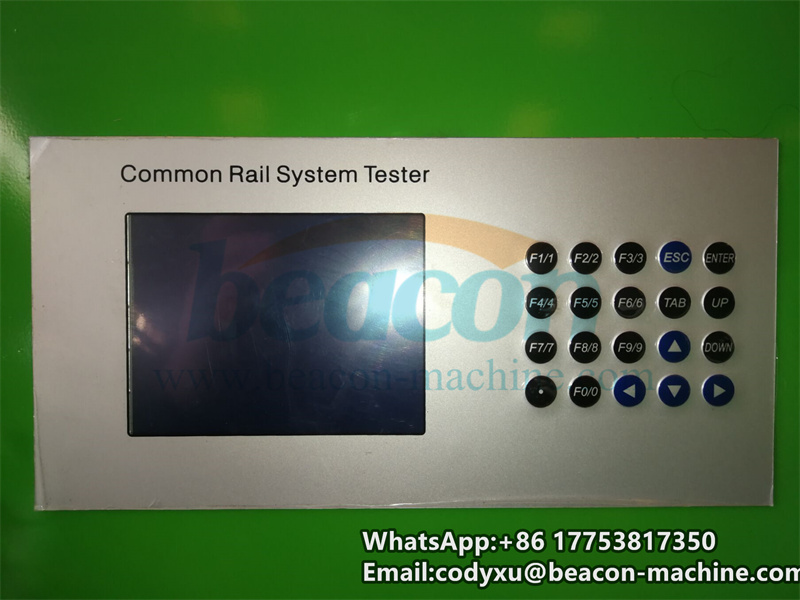

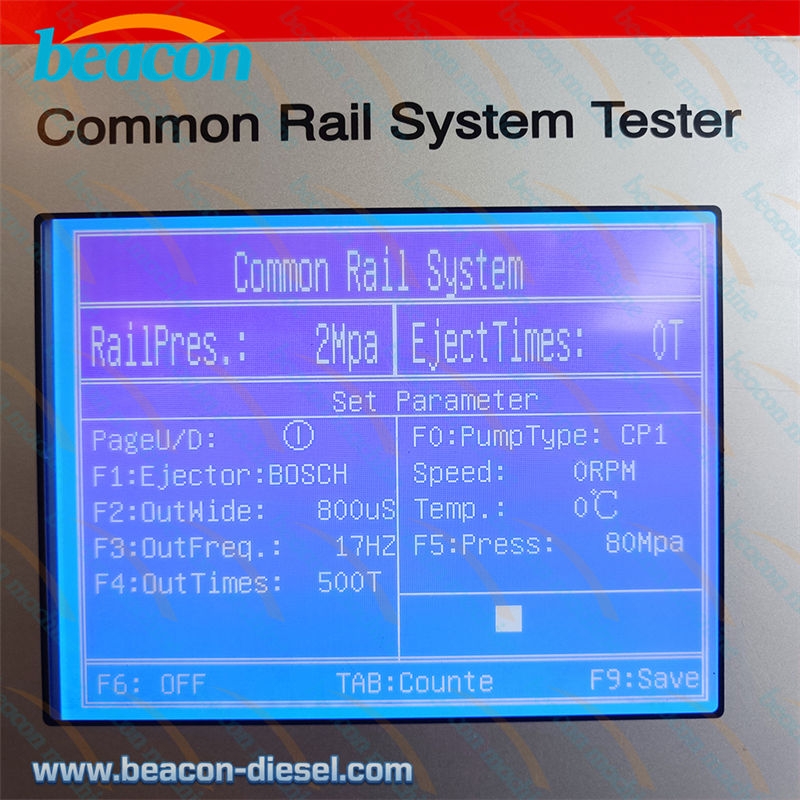

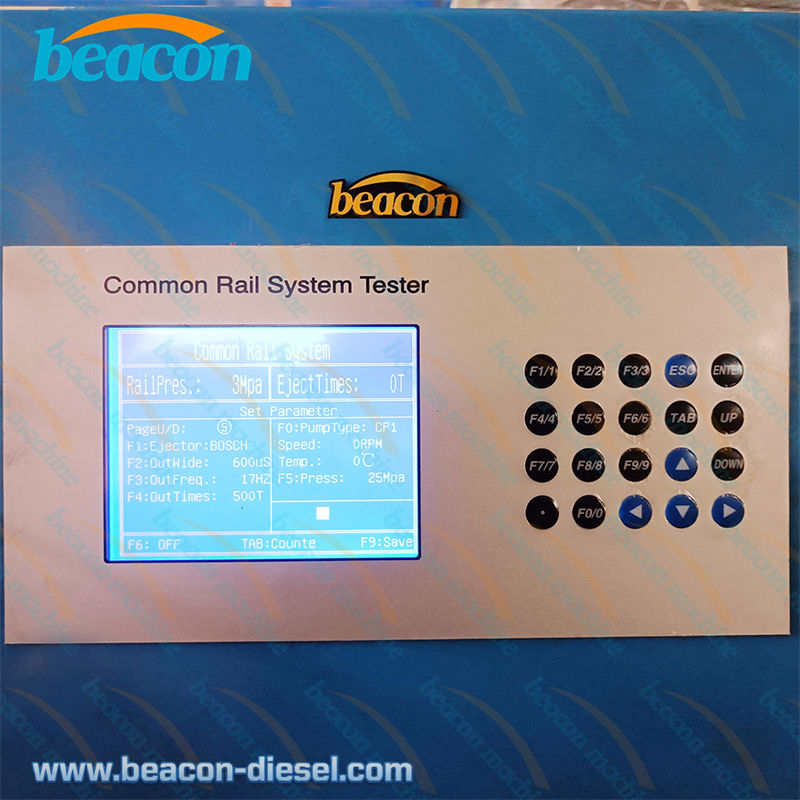

2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 700 kinds of injectors data can be searched and used.

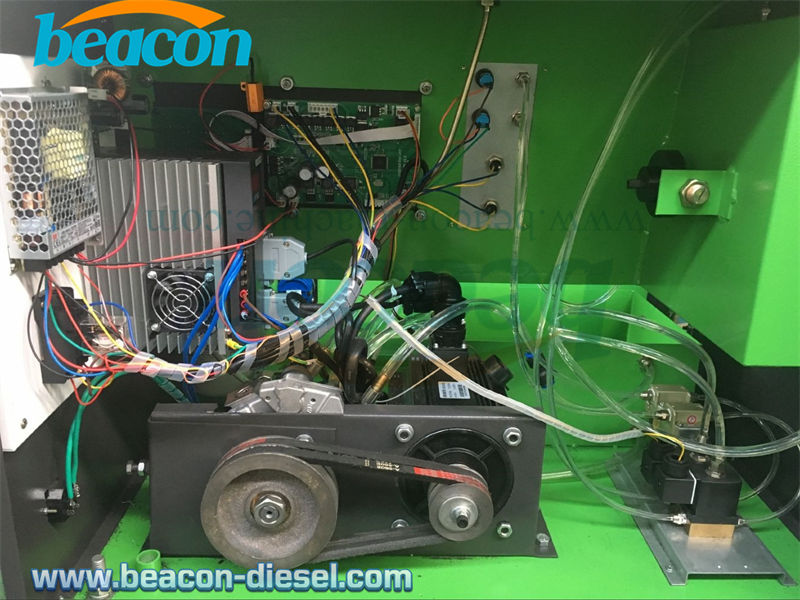

4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.

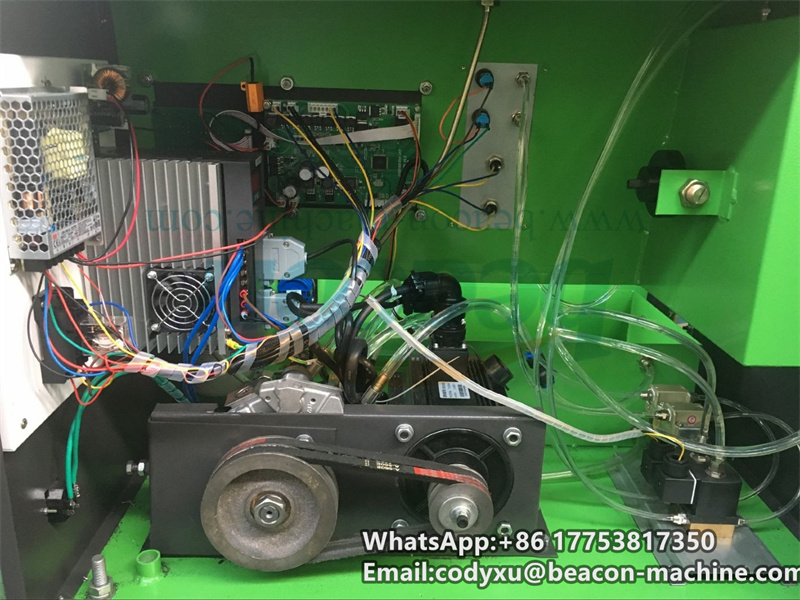

11.Frequency converter inside to keep the RPM.

parameter

TECHNICAL PARAMETER
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml

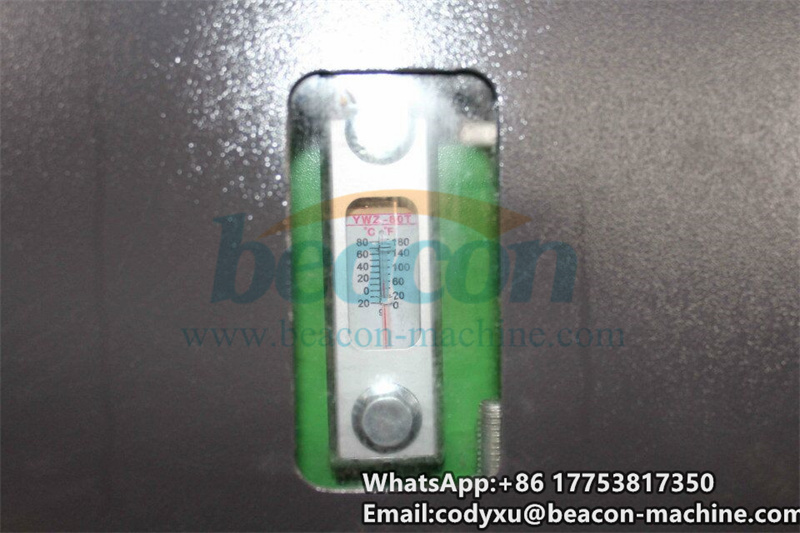

7. temperature control range: 40+-2

*Test data from Beacon laboratory
