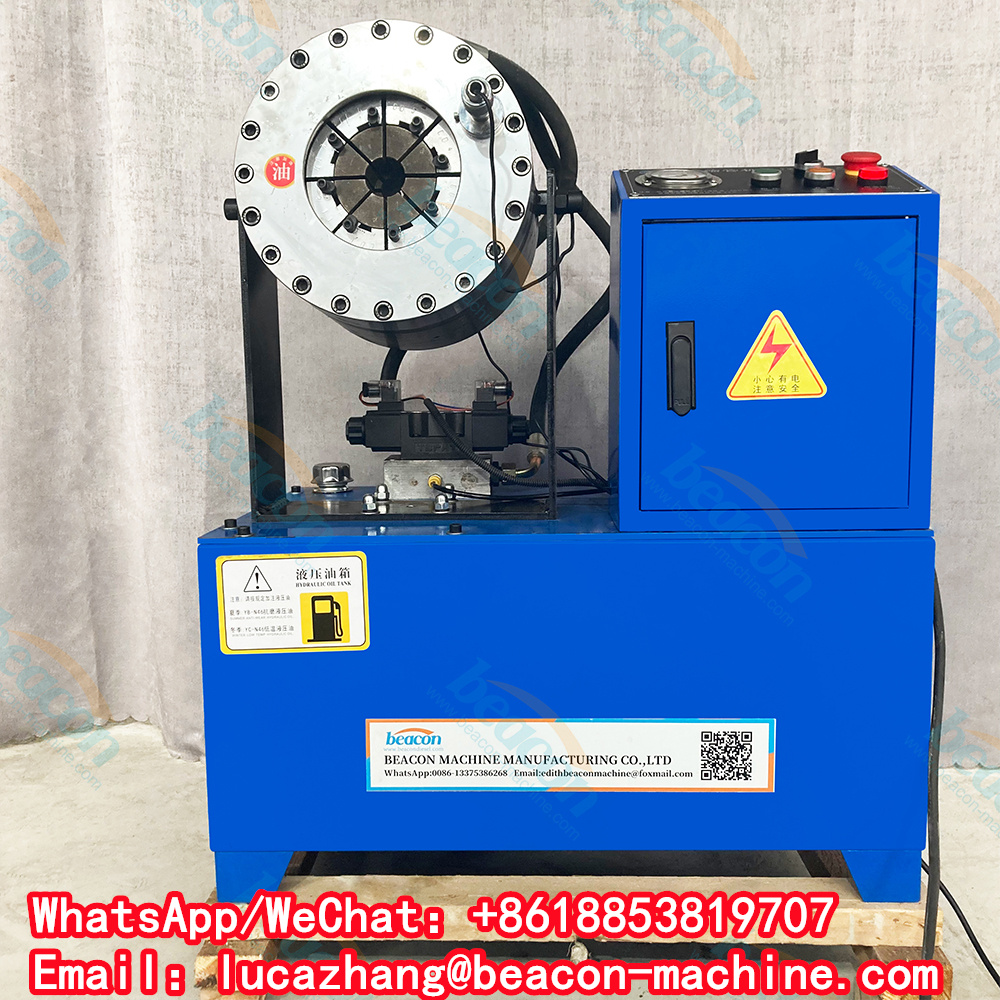

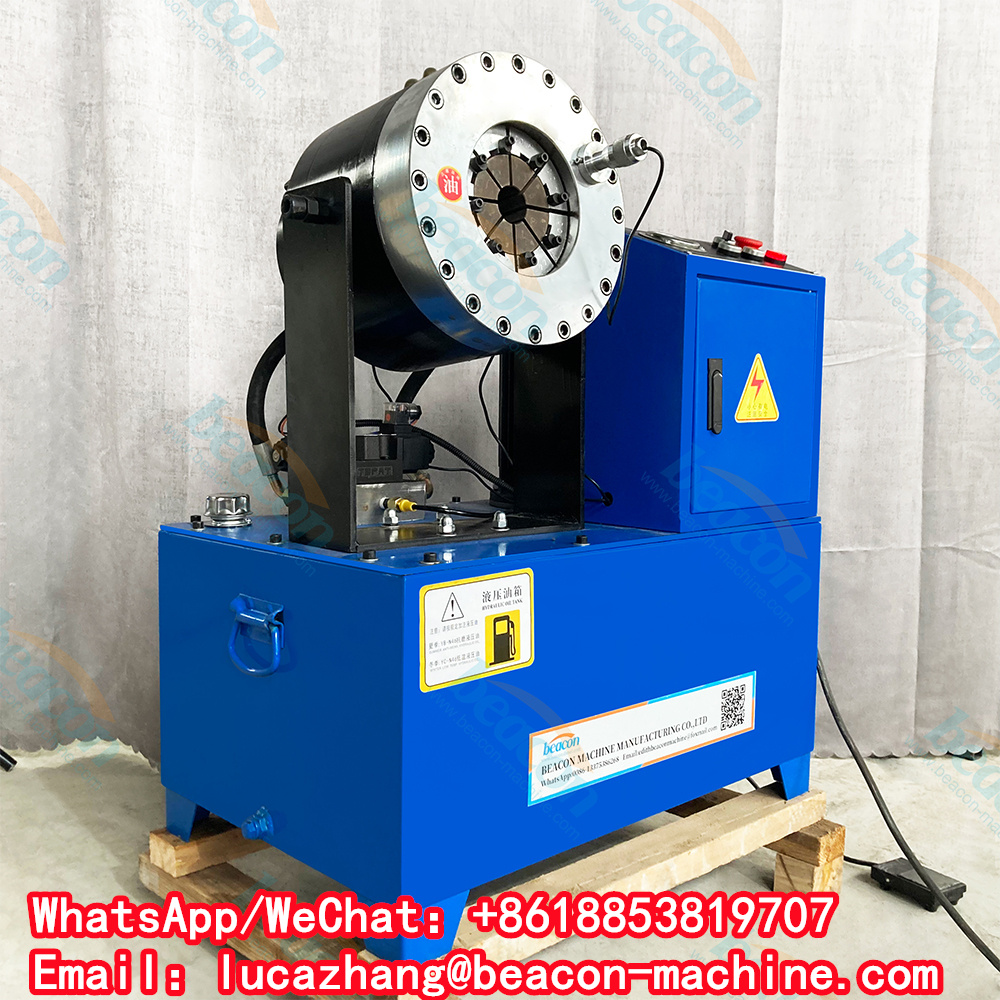

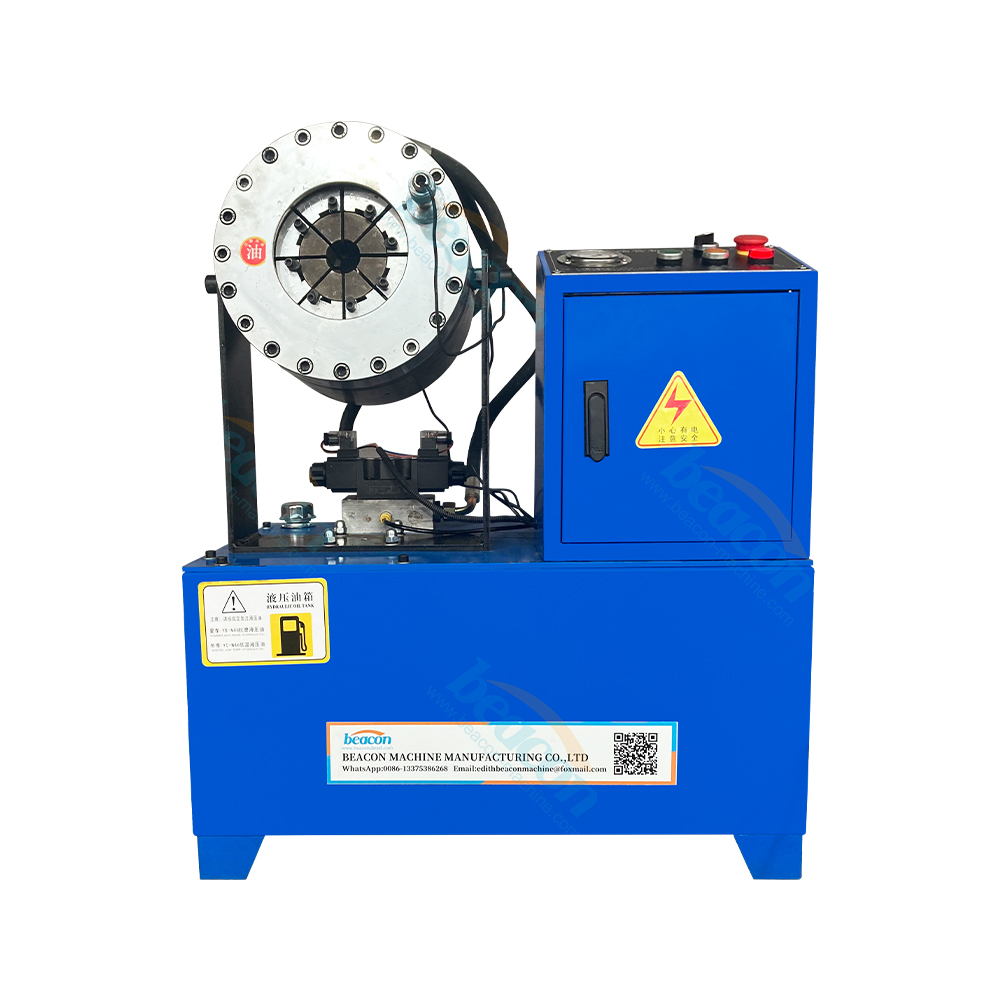

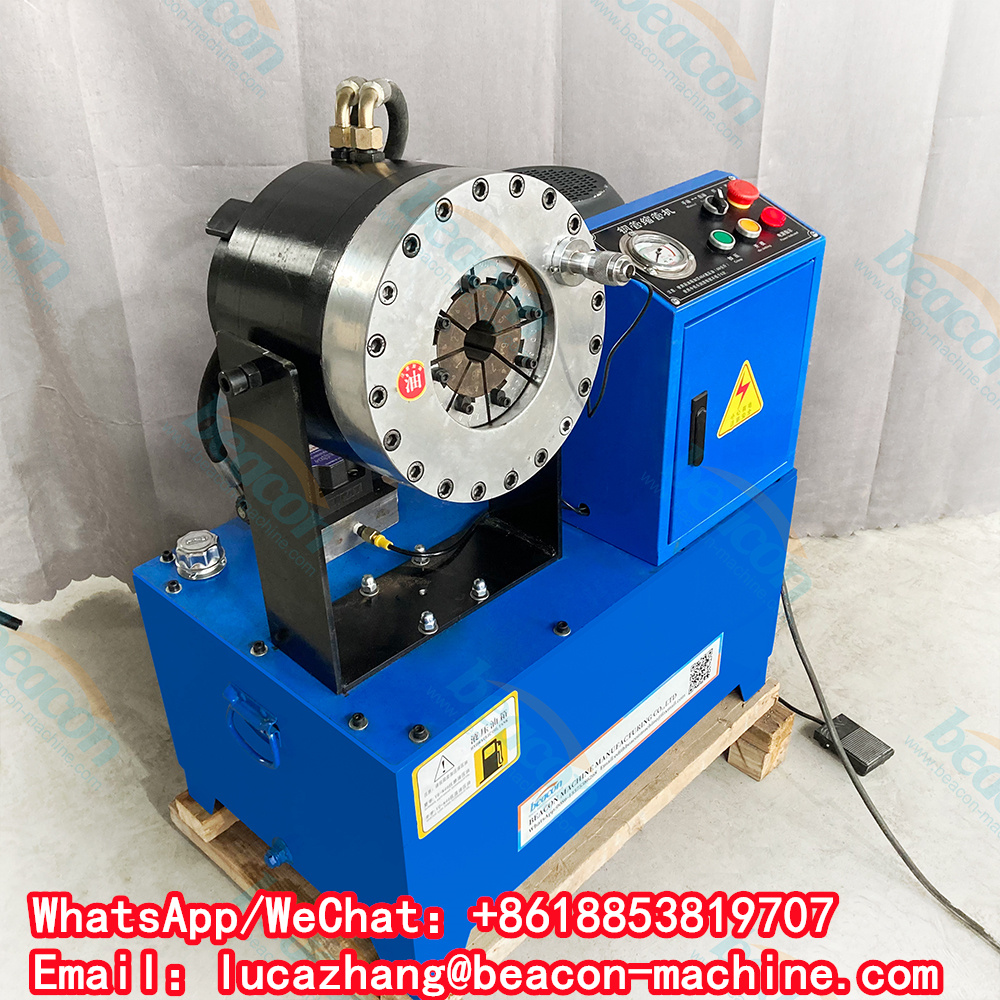

BC-51M factory customized Multi functional Hydraulic rubber pipe making Hose Crimping Shrinking Machine

Beacon factory customized Multi functional Hydraulic rubber pipe making Hose Crimping Shrinking Machine

Introduction

Pipe press is a kind of hydraulic equipment used for buckling pipe fittings assembly which will be matched with metal fittings through the mold of pipe press to apply contraction force, and firmly buckle the metal fittings in the matched high-pressure oil pipe for construction machinery or brake pipe, oil pipe, air-conditioning pipe, and power pipe on the automobile.

product video

Beacon Taper Shrinking Machine BC-51M Non-Standard Customized Shrinking Machine For Circular And Square Tube Necking

Product features

1、 the cylinder piston are used in one precision cast steel to completely solve the cylinder cylinder deformation caused by welding, product precision can not be achieved, etc., the piston in and out of the mold and the opening and contraction of the movement of the buckling machine are relying on the power generated by the hydraulic power source. It not only moves smoothly and returns quickly, but also does not occur like spring return, so that the mold can not open and lock the phenomenon. And the cylinder locking system design are front and back through, easy to buckle a variety of shaped elbow.

2、 the hydraulic system by the motor, pump, solenoid valve, relief valve and valve block composed of a double hydraulic oil circuit with in and out of the movement, but also in the double hydraulic oil circuit to increase the hydraulic check valve, in order to achieve a more rapid return to the purpose of the speed is adjustable, the noise and the system pressure is reduced.

3、The mold seat adopts double bevel design to ensure the uniform distribution of buckling pressure, to ensure that the force of the products after buckling is uniform, the buckling lines are evenly spaced, no big and small head, no oval and other phenomena.

4 、in order to ensure the permanent mechanical precision and life of the pipe press, in the locking mechanism components, not only choose a high-quality alloy steel materials, but also the use of unique heat treatment process. Therefore, the long service life of the pipe press is inseparable from the rationality of material selection, heat treatment, machining, assembly and structure.

Working Principle

The oil pump is installed in the oil tank immersed in hydraulic oil to achieve the purpose of scientific heat dissipation and mute design, the oil pump in the motor drive, the output of hydraulic oil, push the plunger movement in the buckling cylinder, resulting in radial contraction of the die seat, to achieve the mold on the hose connector jacket extrusion. When the contraction amount reaches the predetermined value of micrometer, the extrusion automatically stops, the electromagnetic reversing valve reverses the direction, the plunger in the cylinder reverses the movement, the mold is opened, and the buckling of the hose is completed.
