Boring Block Machine T8018C Engine Cylinder Honing Machine

Boring Block Machine T8018C Engine Cylinder Honing Machine

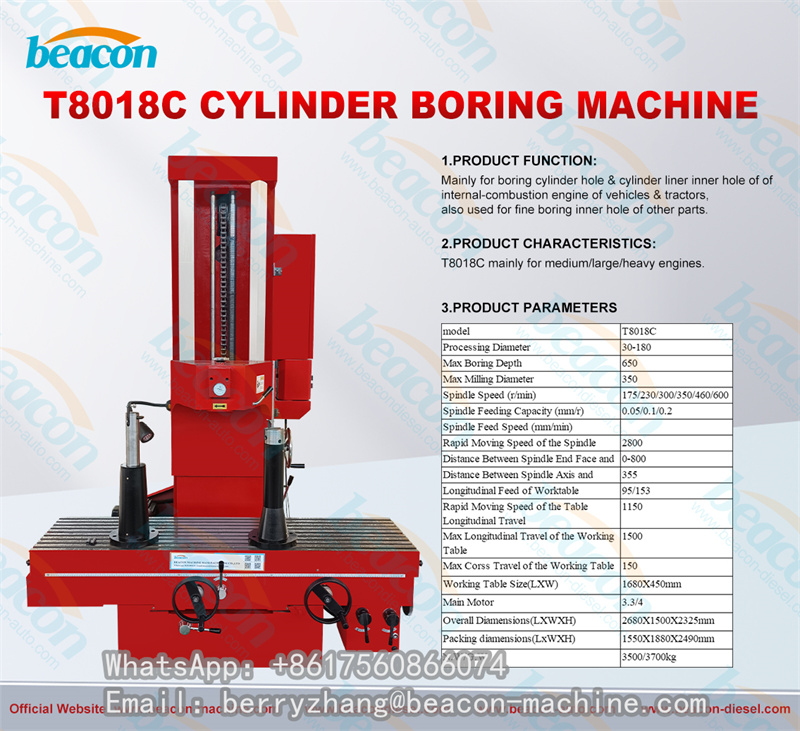

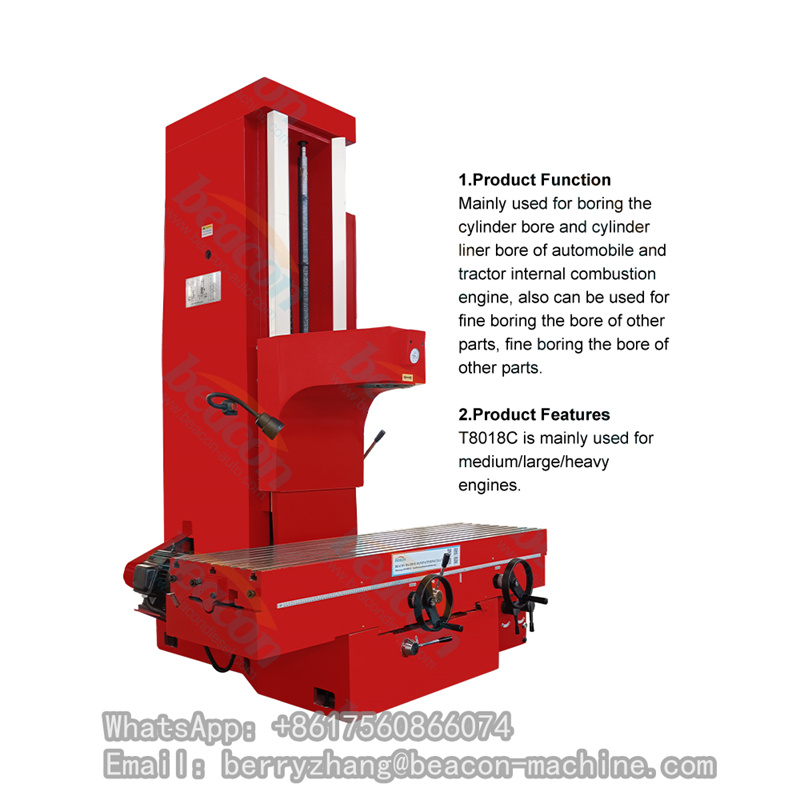

Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors,also used for fine boring inner hole of other parts.T8018C mainly for medium/large/heavy engines.

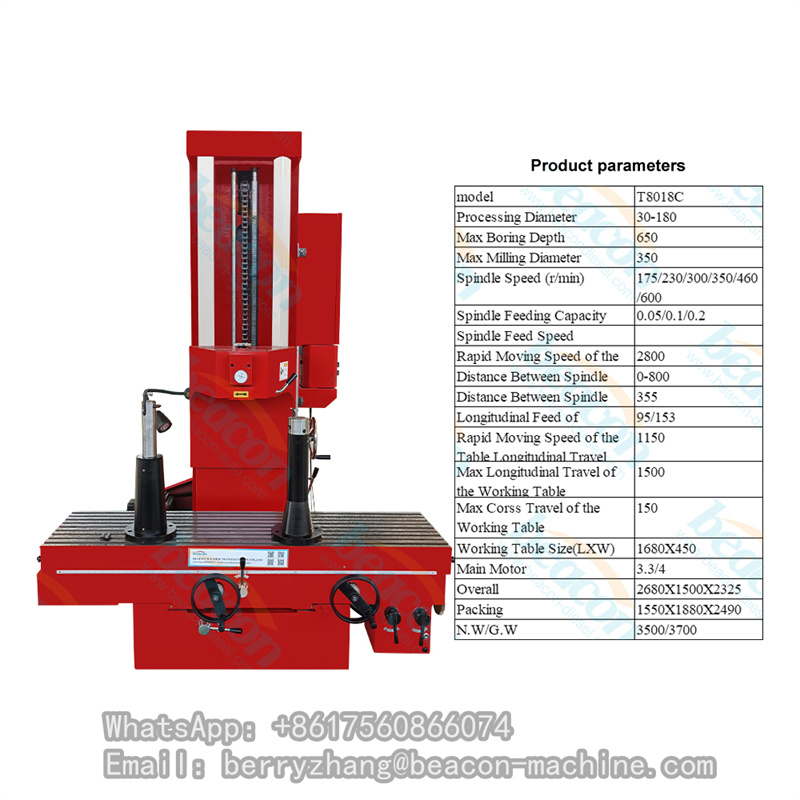

model : T8018C
Processing Diameter: 30-180
Max Boring Depth: 650
Max Milling Diameter: 350
Spindle Speed (r/min): 175/230/300/350/460/600
Spindle Feeding Capacity (mm/r) ：0.05/0.1/0.2
Rapid Moving Speed ofthe Spindle: 2800
Distance Between Spindle End Face and: 0-800
Distance Between Spindle Axis and: 355
Longitudinal Feed of Worktable: 95/153
Rapid Moving Speed of the Table Longitudinal Travel: 1150
Max Longitudinal Travel of the Working Table: 1500
Max Corss Travel of the Working Table 150


*Test data from Beacon laboratory
