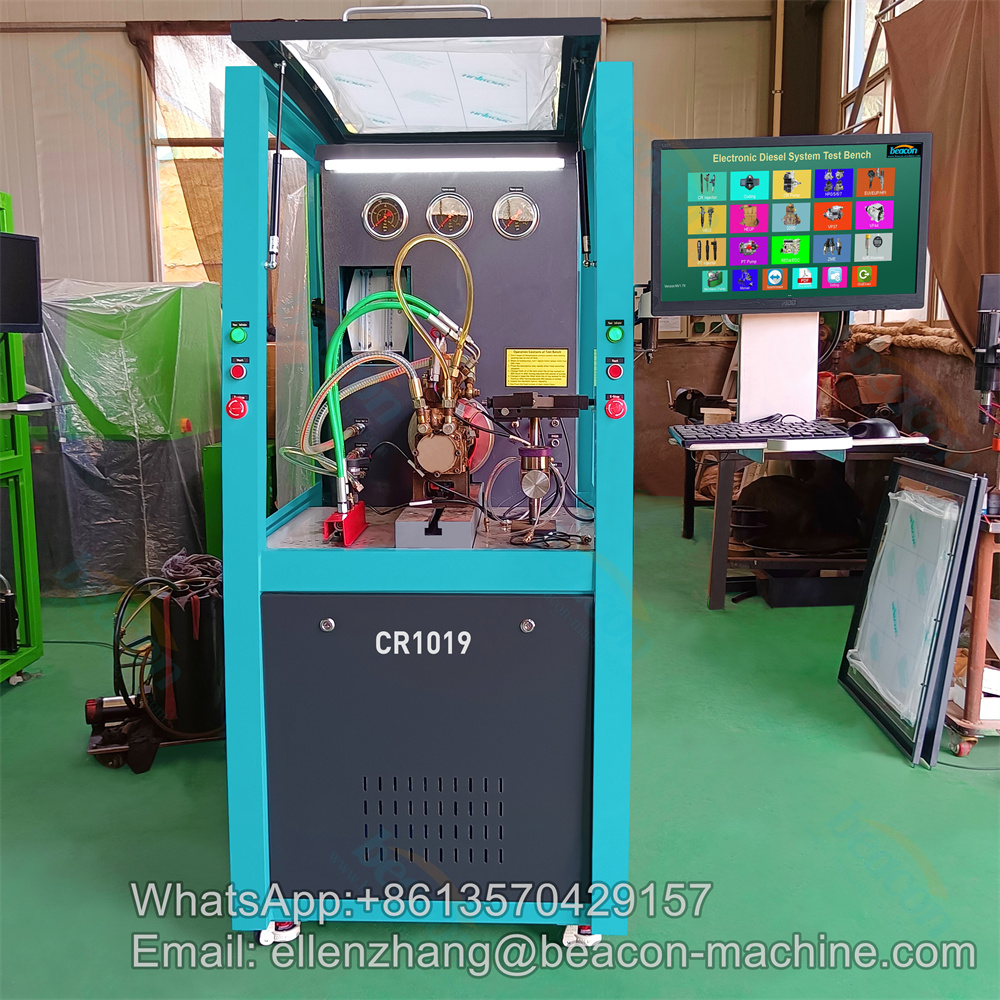

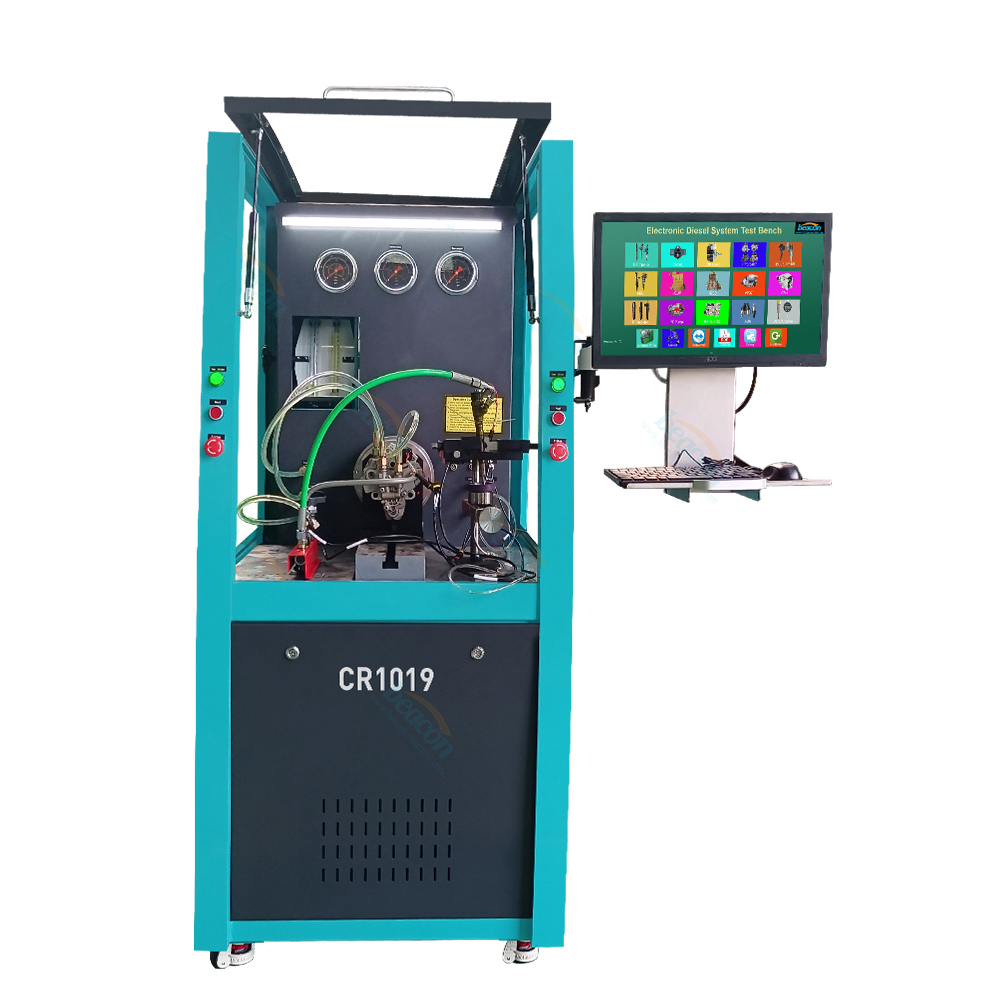

CR1019 common rail injector and pump test bench with cylinder

CR1019 common rail injector and pump test bench with cylinder

The CR1017 is primarily used for testing common rail pump injectors and serves as a continuous fuel delivery analysis and calculation computer measurement system for new diesel injection systems.
Modern diesel injection system testing requires the use of electronic fuel delivery measurement systems, ensuring a high level of measurement reproducibility.
Our machine is now our latest system.

7.5KW motor, 380V/220V

functions:
- common rail injector
- piezo injector

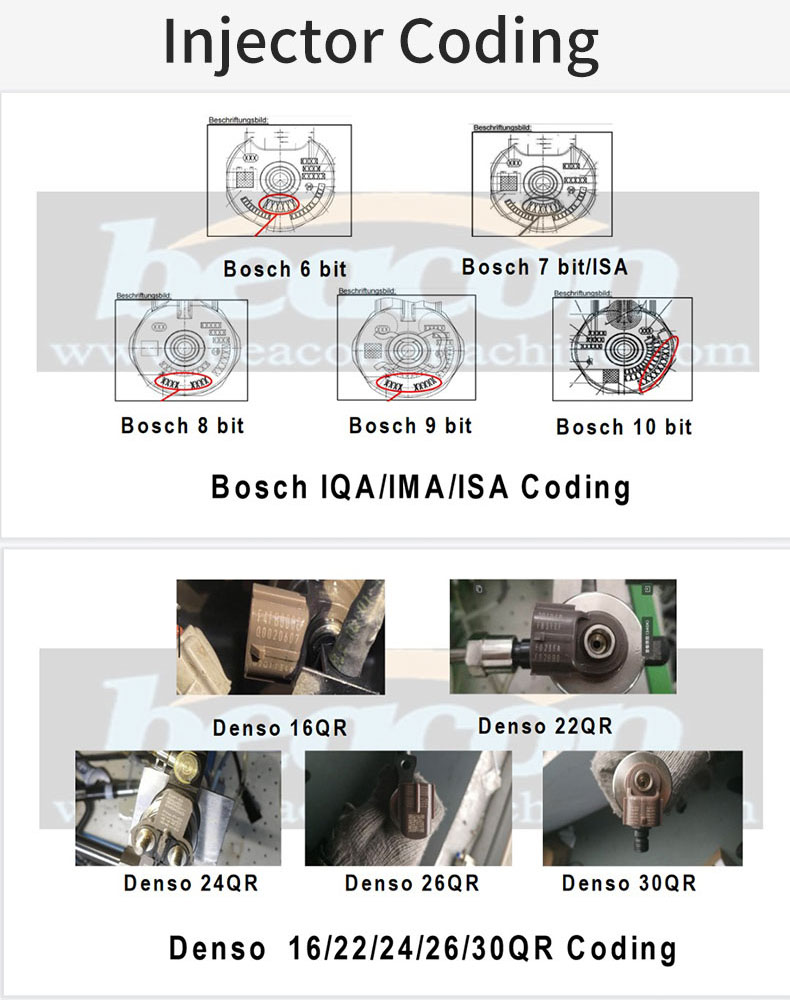

- Bosch, Denso, Delphi, Siemens injector coding

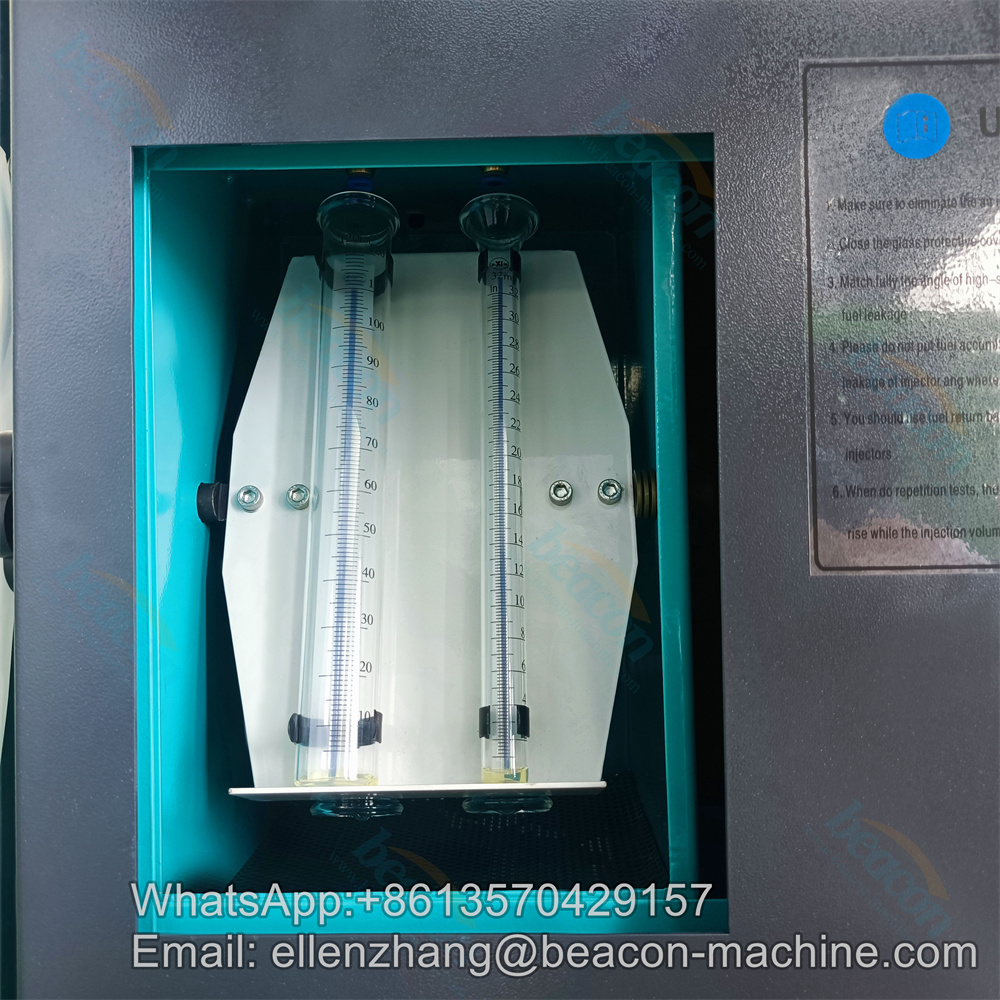

- With measuring cylinder

Voltage Control Range: Phase adjustment

Injector Opening: 0-1000Hz

Control Accuracy: 1Hz

Frequency Control: 0-65535μs

Fuel Injector Hold Time Control: 0-1000 times

Delivery Oil Count Control Accuracy: 1 time

Fuel Pressure Control: 0-2400 bar

Control Accuracy: 1 bar

Electronic Power: 380V/220V 3-phase, 220V single-phase

Product Size: 95107195 mm

Weight: 450 kg
