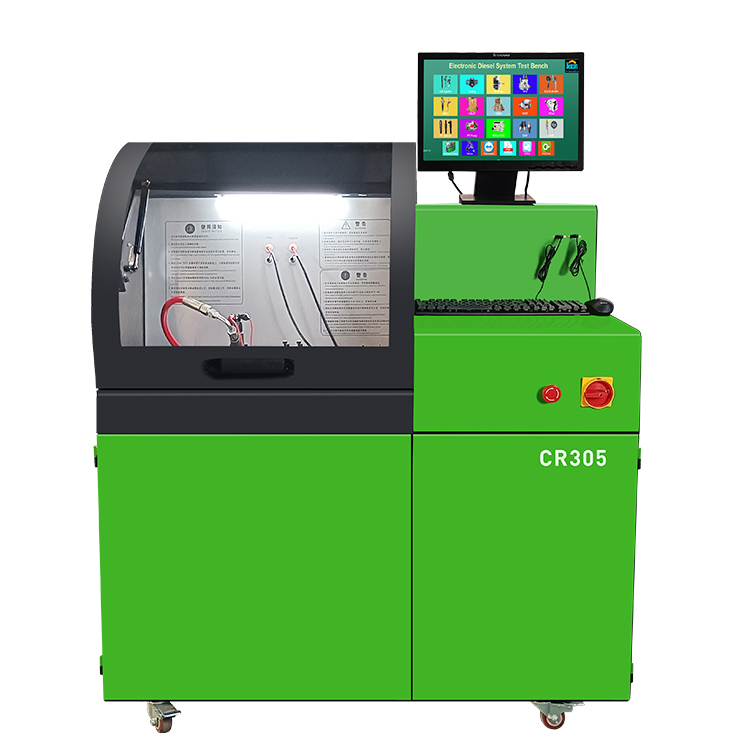

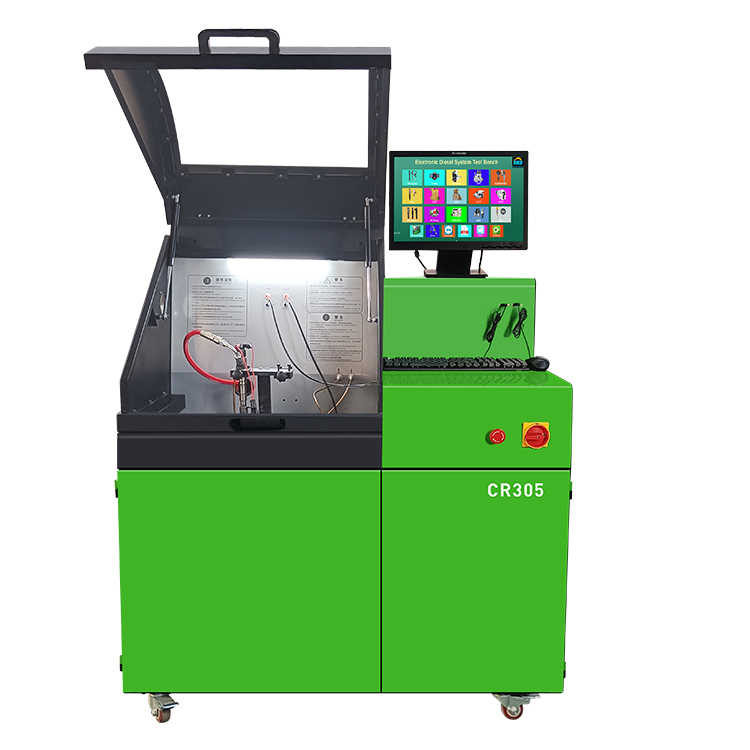

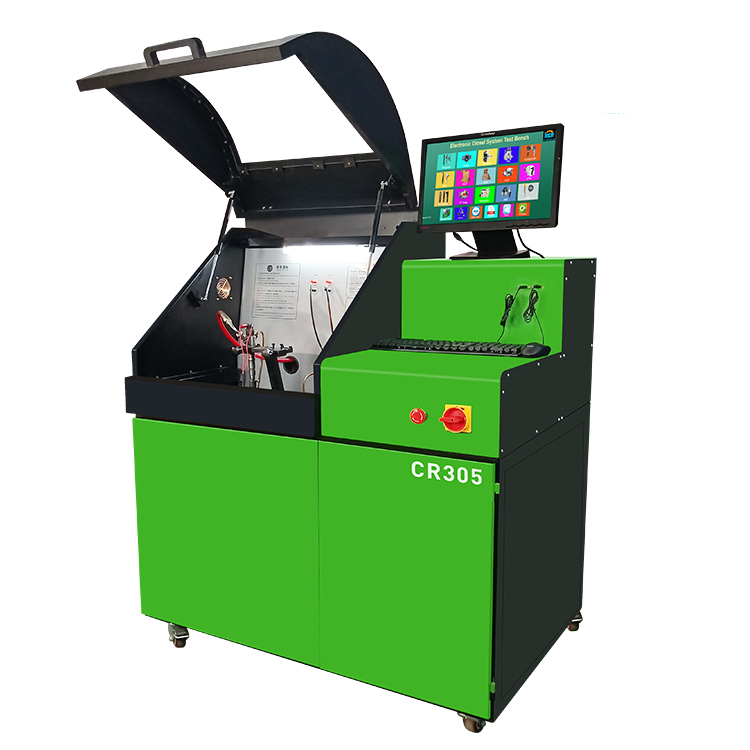

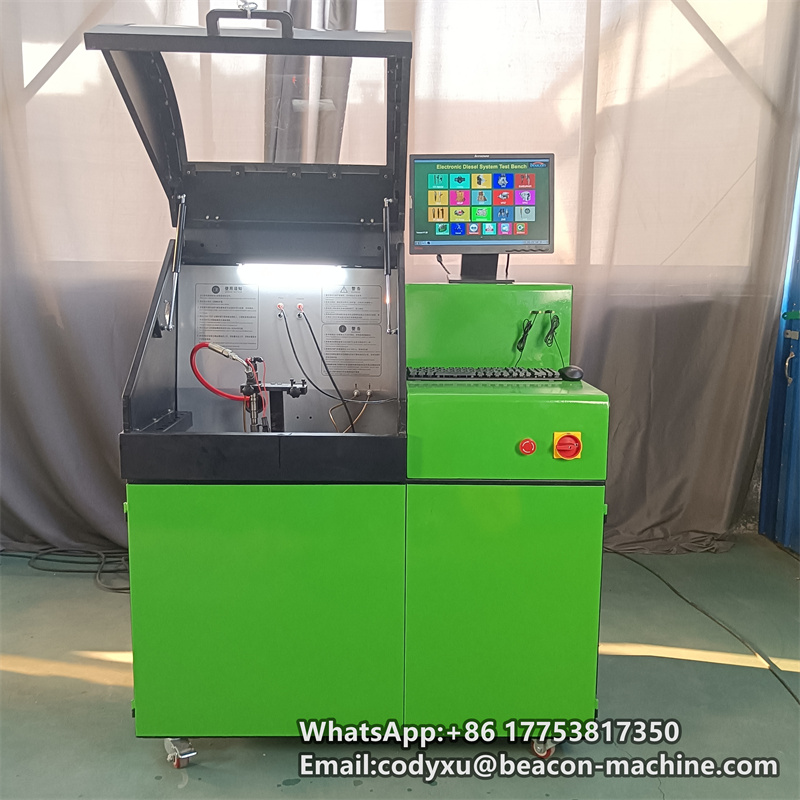

CR305 Diesel Fuel Common Rail Injector Test Bench Vehicle Diagnostic Calibration Injection Testing Equipment
CR305 Diesel Fuel Common Rail Injector Test Bench Vehicle Diagnostic Calibration Injection Testing Equipment Used to detect and repair fuel injectors.
Introduction

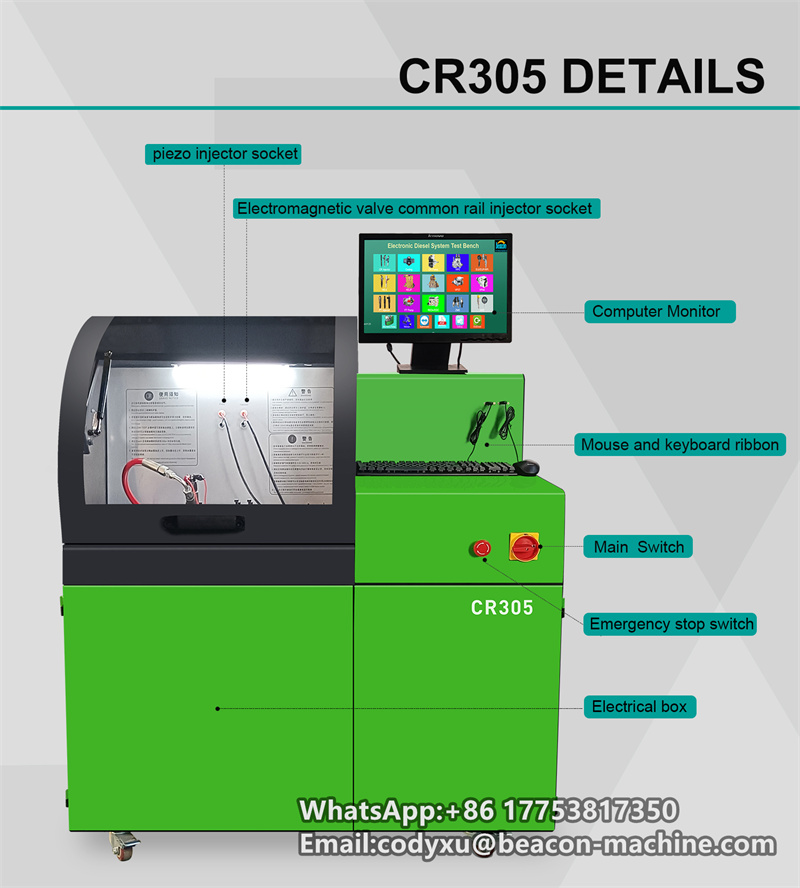

CR305 Diesel Fuel Common Rail Injector Test Bench Vehicle Diagnostic Calibration Injection Testing Equipment
Introduction
BC-CR305 is mainly test for common rail Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value.The system is suitable for detection of BOSCH, DENSO, DELPHI .It also can test 6 common rail injectors in one time.
Main Features
1、 Basic model 5.5kw 380v 3-phase
2、 Test common rail and piezoelectric injectors
3、 Delphi Bosch Denso Siemens injector code
Optional function：
1、 Measure six at the same time (without additional flow sensor)
2 、Measure four at the same time (without additional flow sensor)
3 、Measure two at the same time (without additional flow sensor)
4 、Simultaneous measurement of six (additional flow sensor)
5 、Simultaneous measurement of four (additional flow sensor)
6、 Simultaneous measurement of two (additional flow sensor)
7 、Delphi, Denso, Bosch, Siemens coding

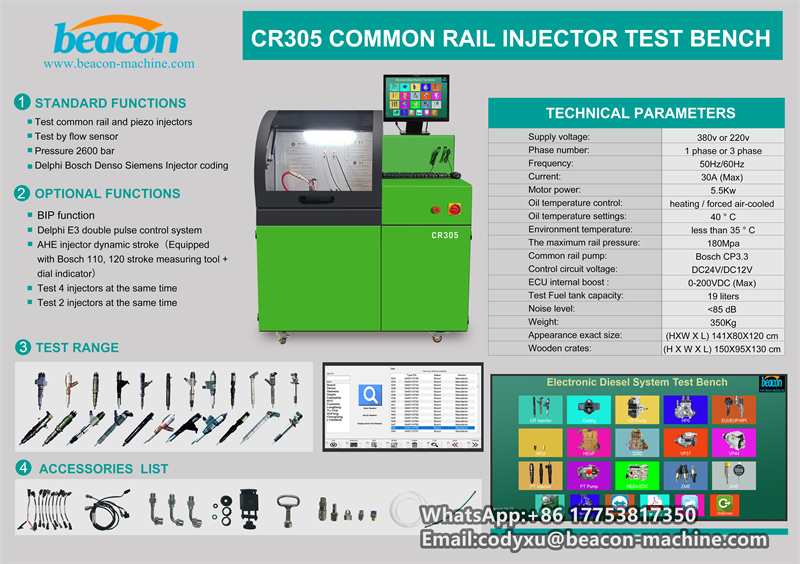

parameter
Name：CR305 common rail injection test bench
Motor Power：5.5KW
Solenoid valve drive current：0-30A
Power supply voltage：220V/380V
Frequency：50HZ/60HZ
Temperature control range：40±2℃
Pressure control range：0-2500bar
Motor speed range：0-2000Rpm
Fuel tank capacity：19L
Pressure：180Mpa
*Test data from Beacon laboratory
