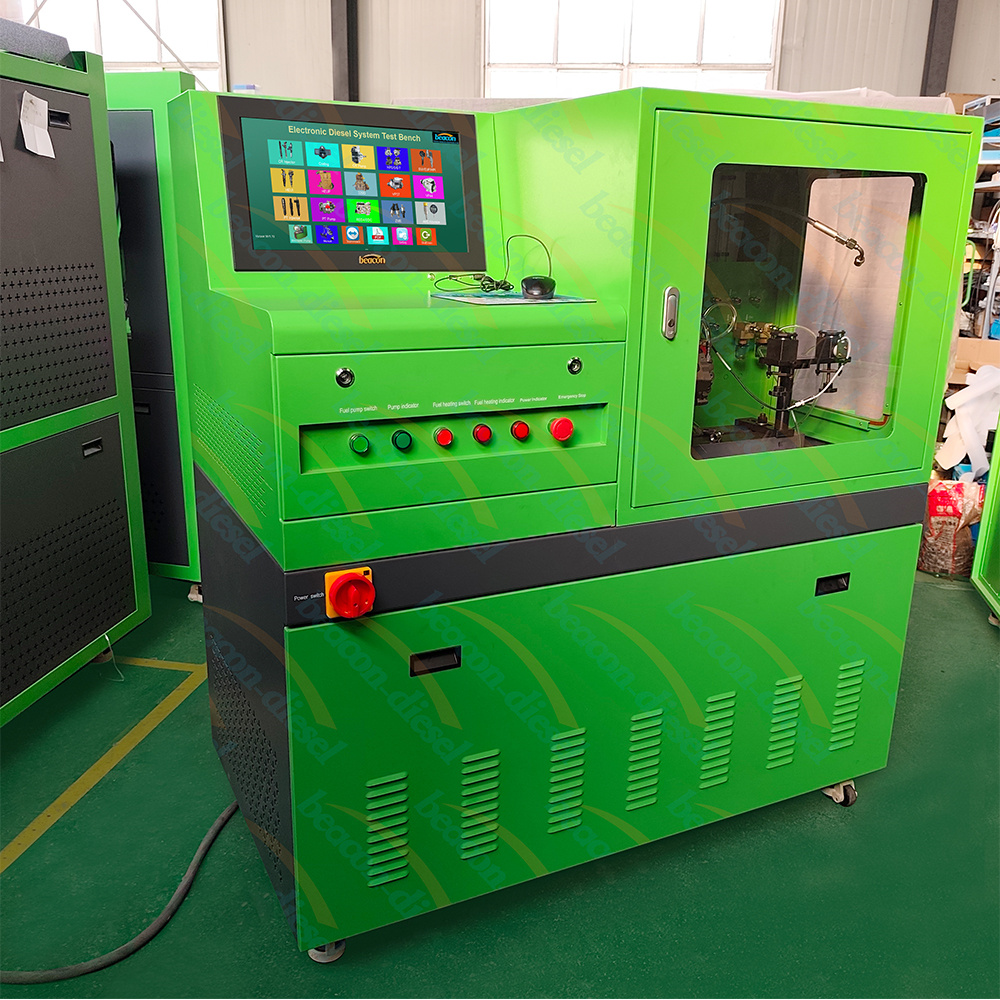

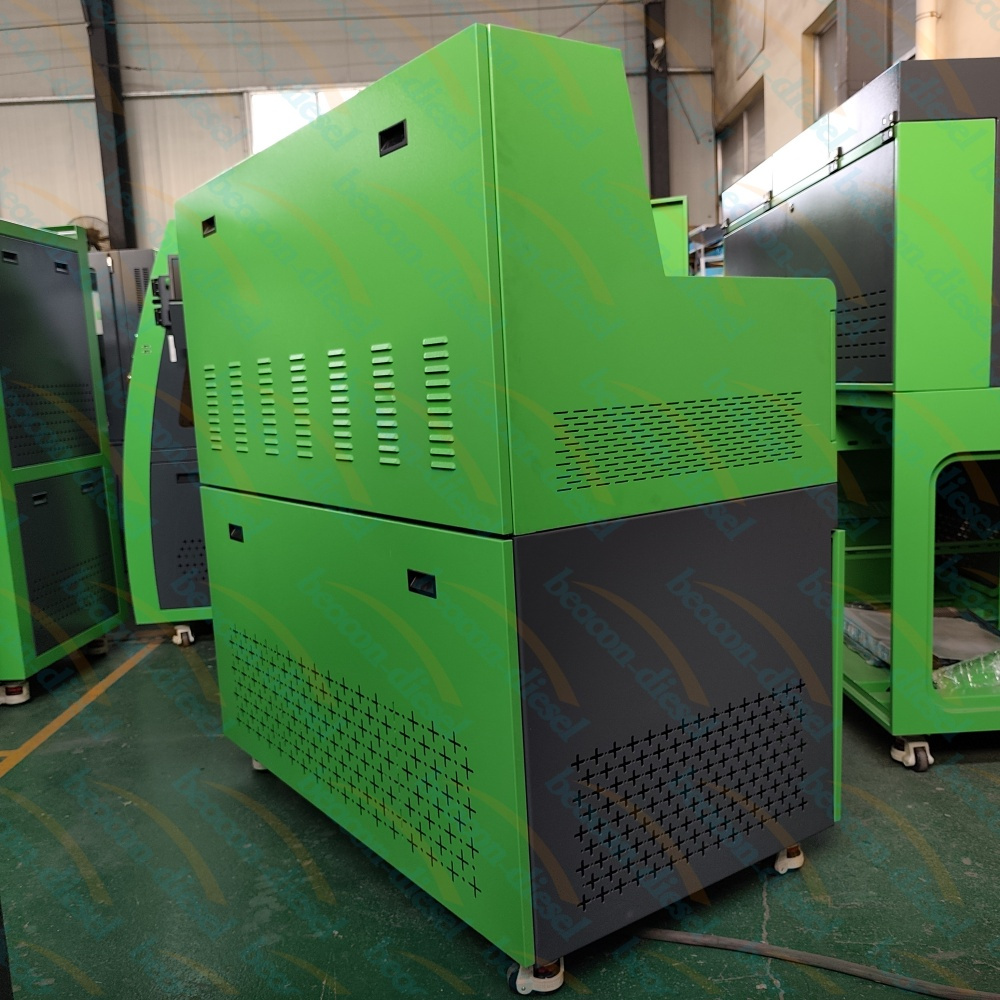

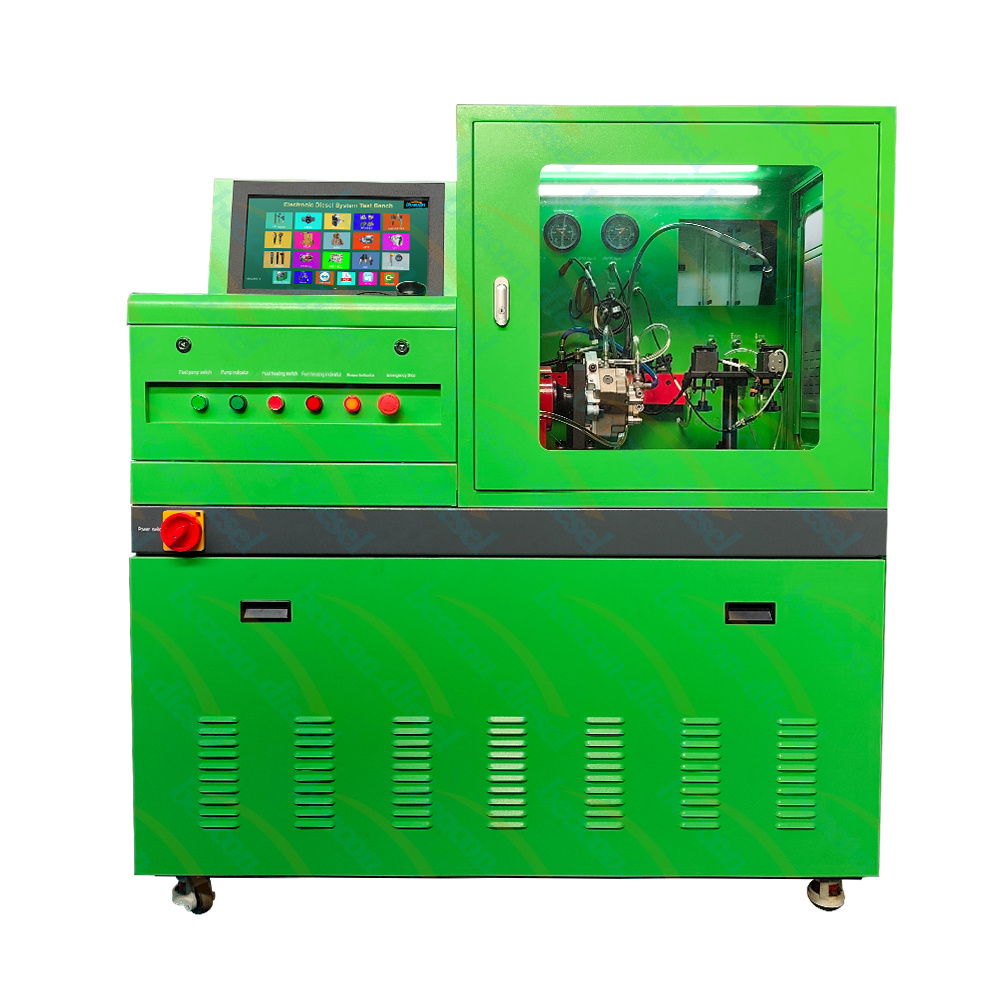

CR316 common rail injector test bench is our latest independent researched special device to test the performance of common rail pump and injector . it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.



Main functions:
1. Test common rail injection + piezo injector function
2. Test measuring cylinder + flow sensor
3. Test common rail pump function
4. Test Denso HP0 pump function
5. Dual DRV, dual rail pressure sensor
6. Forced cooling function

Technical parameters

Main motor speed：0-4000 r / min can be adjustable.

Motor power：7.5KW, 11KW, 15KW, 18.5KW optional.

Fuel Injector open voltage ：Control range:12V, 80V, 150V Control accuracy: phase adjustment

Injector opening ：frequency Control:0-1000HZ Control accuracy: 1HZ

Fuel Injector Hold Time Control：0-65535us

Delivery Oil ：Count Control:0-1000 times Control accuracy: 1 times

Fuel pressure ：Control:0-2000bar Control accuracy: 1bar

Electronic power：3 PHASE 380V or 3 PHASE 220V optional

*Test data from Beacon laboratory
