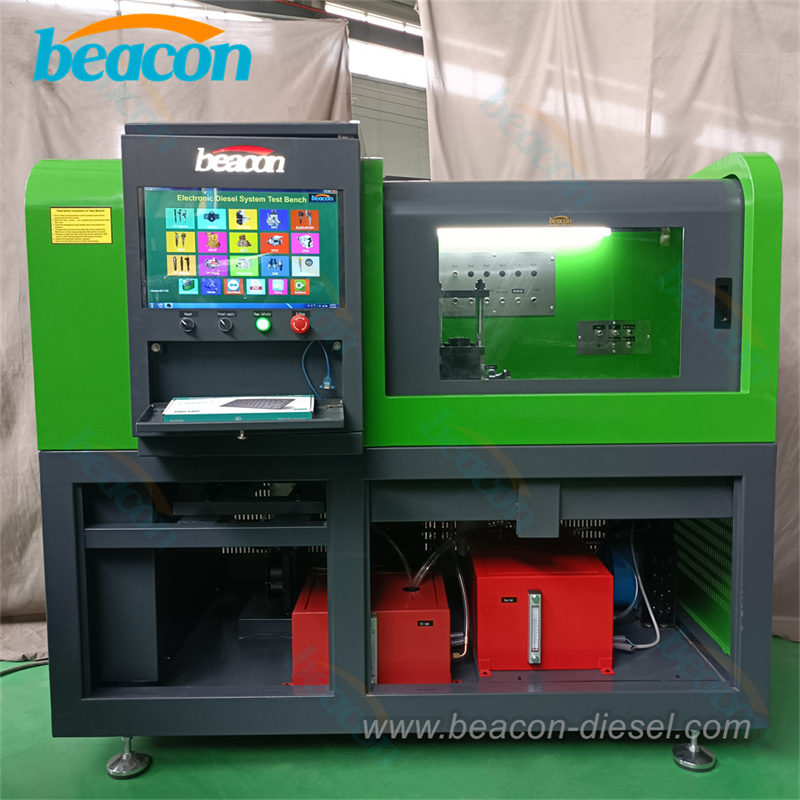

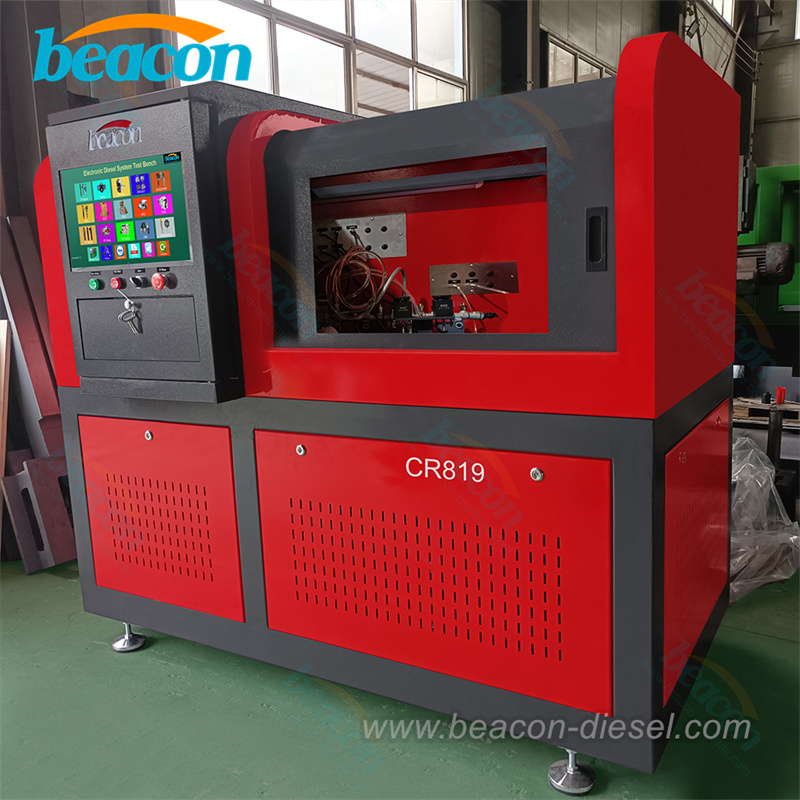

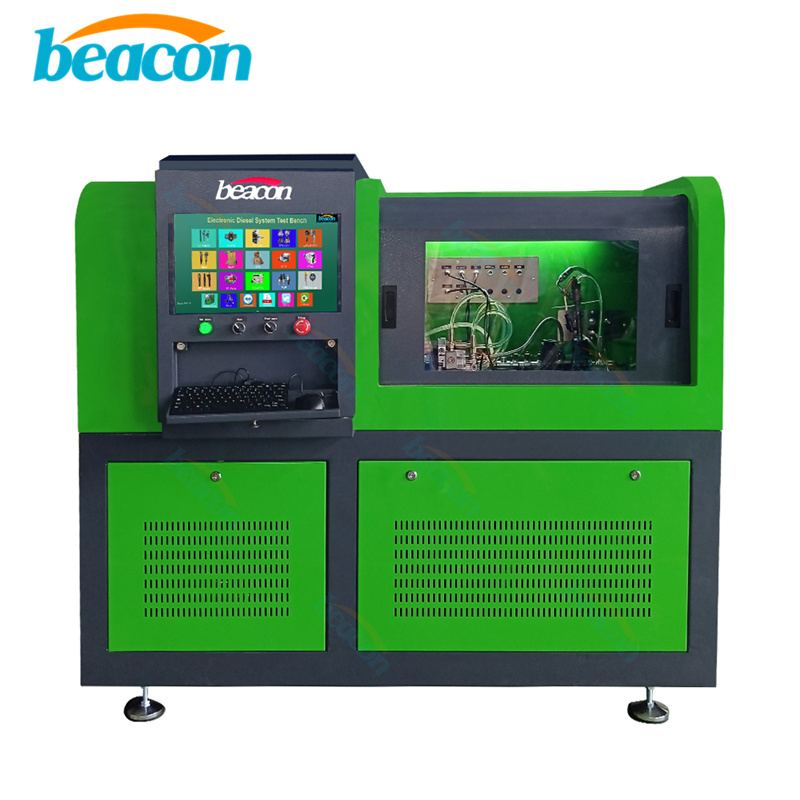

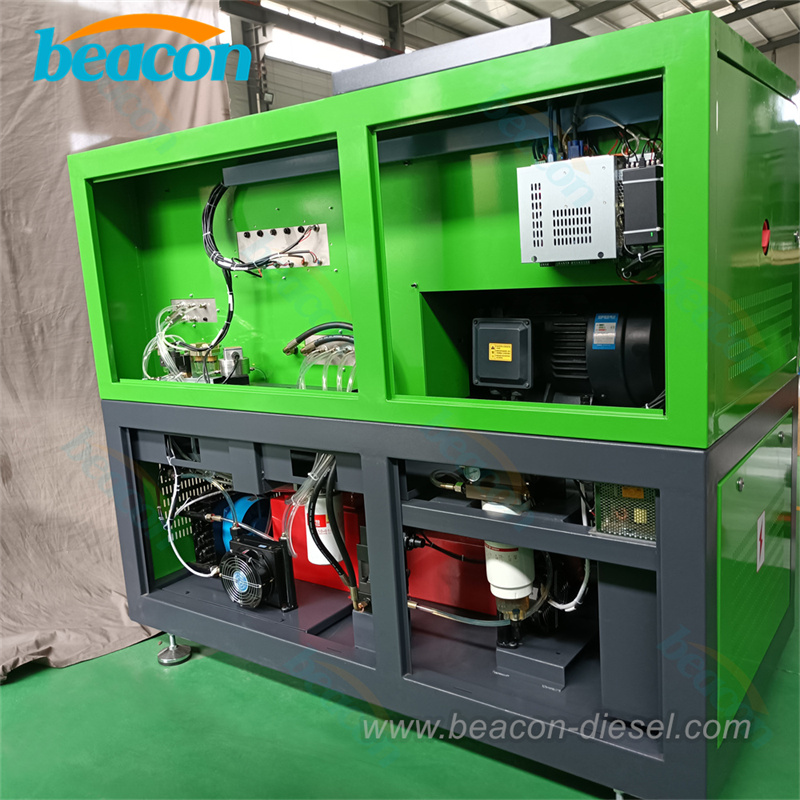

CR819 Common Rail Injector Pump Test Bench
CR819 Common Rail Injector Pump Test Bench offers all-in-one testing for CR, HEUI, EUP/EUI Injectors & Pumps. Features 11KW/15KW/18.5KW motor options and supports CR injector coding (Bosch, Delphi, Denso).
Introduction
CR819 Common Rail Injector Pump Test Bench: The All-in-One Diesel System Diagnostic Expert
The CR819 is a high-performance, multi-functional comprehensive test bench designed for professional diesel fuel injection system repair centers and remanufacturing plants. It not only handles all standard common rail injectors and high-pressure pumps but also extends its testing range to HEUI, EUP/EUI, Denso HP0, and Bosch CP4 pumps via optional functions, achieving true one-stop diagnosis.
🔥 Key Features:
-

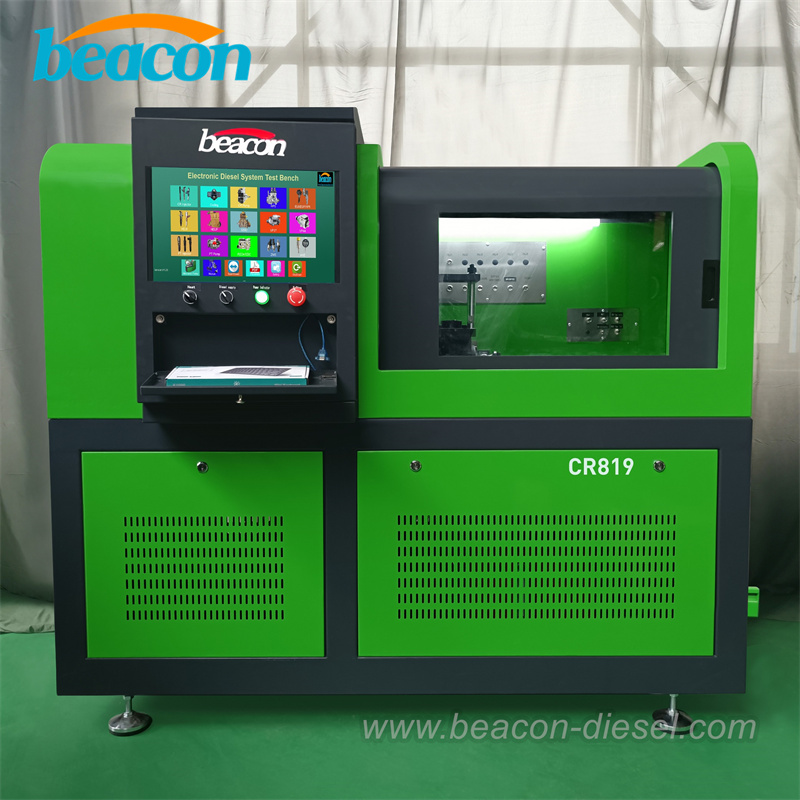

Universal Compatibility: Standard features cover common rail solenoid and piezo injectors, CR pumps, and Denso HP0 pump function.
-
Mature and stable system: Built-in data of over 10,000 injectors, pumps, EUI, EUP, etc.
-

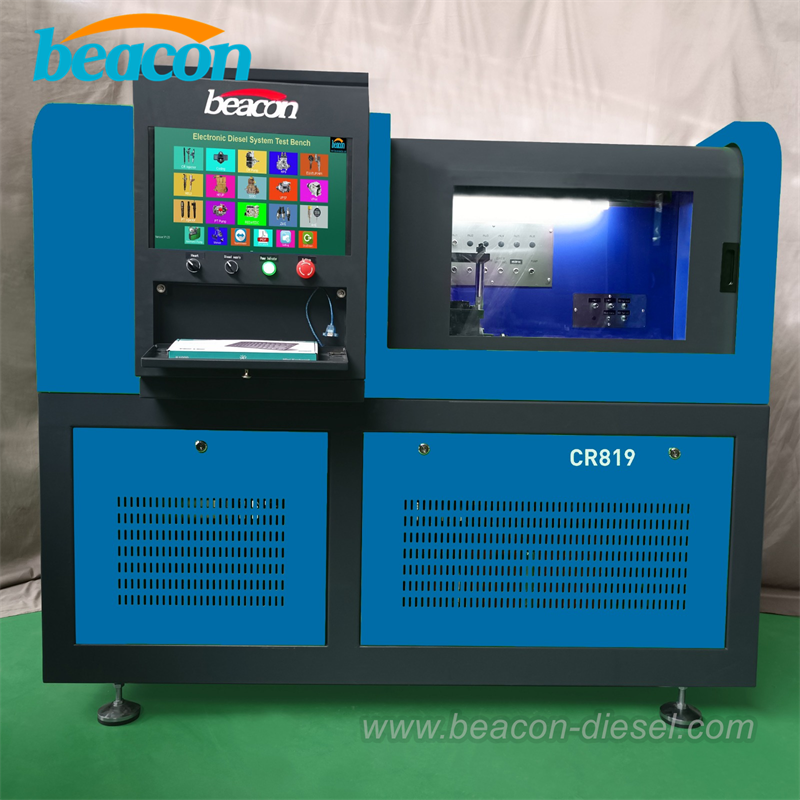

Maximum Expandability: Optional TU-C/D/E EUP/EUI units and HEUI actuator pump kits are available to cover Navistar, ISUZU, CAT, and other widespread applications.
-
High-Precision Testing: Equipped with Rail Pressure Sensor, DRV/HPV, Solenoid Valve Test, and Plunger Sensors for highly accurate and reliable test data.
-

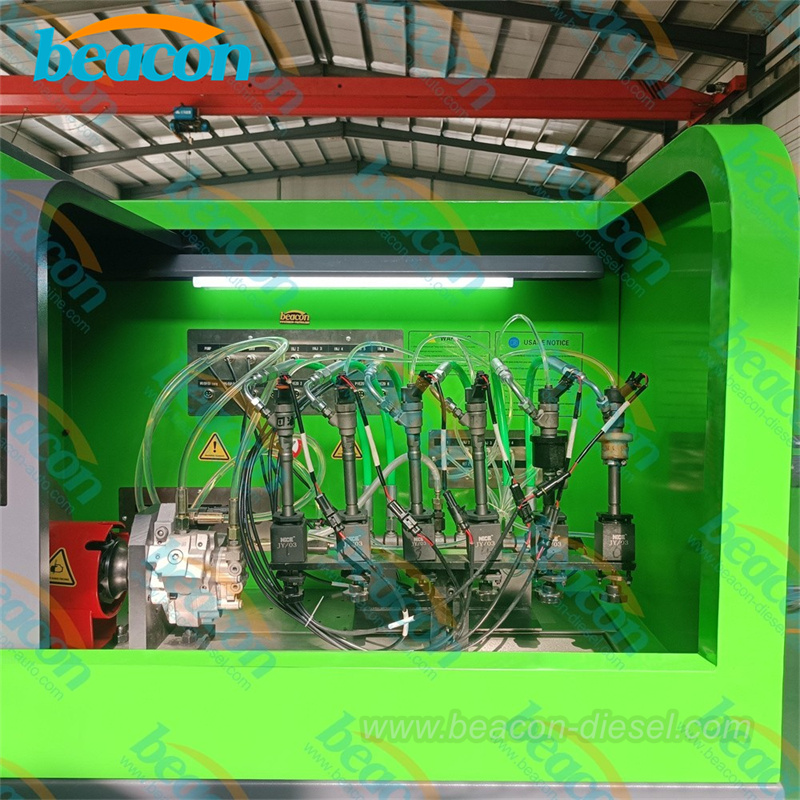

Efficient Batch Testing: Capable of testing 2 injectors at one time or up to 6 injectors in one test (with optional parts), significantly boosting operational efficiency.
-
Intelligent Coding: Supports Bosch, Denso, Siemens, and Delphi Common Rail Injector Coding, helping you upgrade your repair services.
Choosing the CR819 means choosing efficiency, precision, and comprehensive diagnostic capability.
Similar test bench: CR708 common rail test bench
parameter
| Parameter | Specification |
| Main motor speed | 0−4000r/min |
| Motor power | 11KW,15KW,18.5KW,22KW |
| Voltage | 220V/380V 3-phase, 220V 1-phase |
| Fuel injector open voltage range | 12V,80V,150V |
| Injector opening frequency control | 0−1000HZ |
| Fuel Injector Hold Time Control | 0−1000 ms (times) |
| Gross weight | 906 kg (with cam box) |
| Net weight | 690 kg (without cam box) |
| Package size | 185×120×170 CM |
| Machine size | 178×115×156 CM |
*Test data from Beacon laboratory
