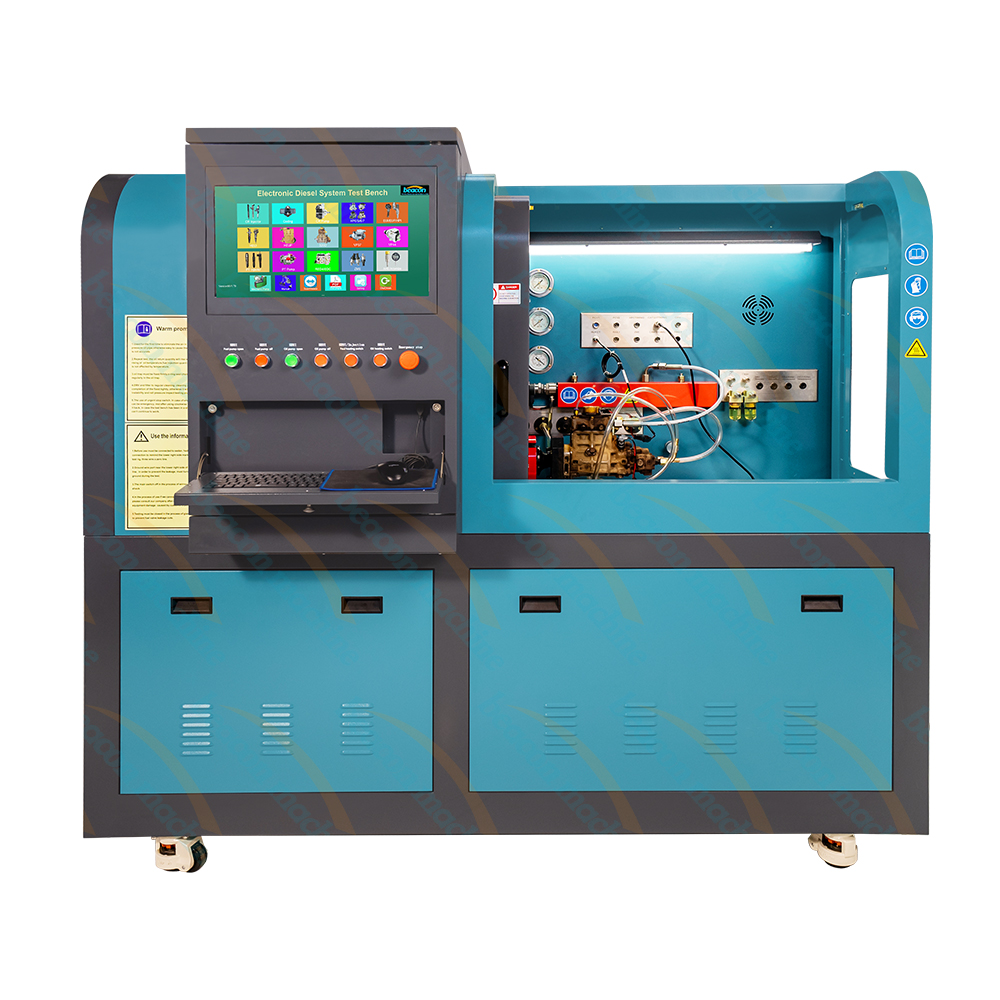

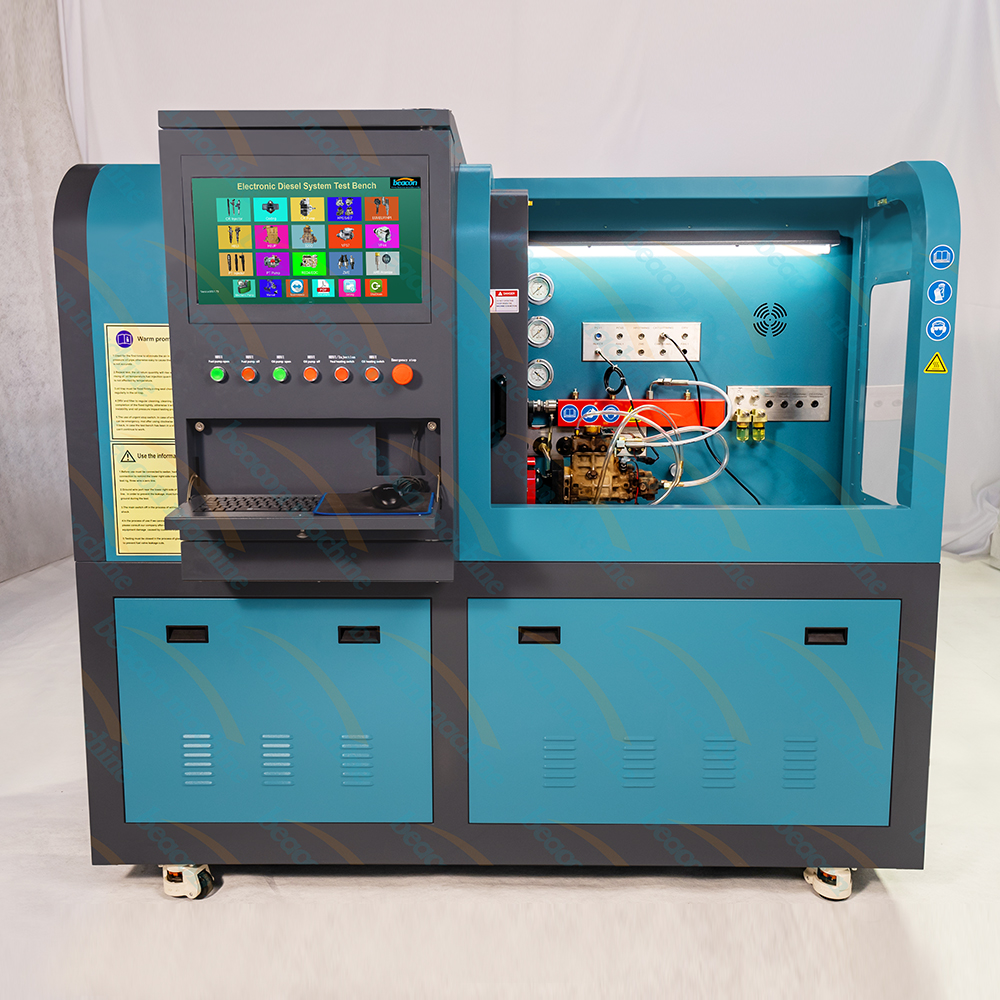

CR819s Common Rail Injector and Pump Test Bench
Common Rail Test Bench for Injector and Pump and EUI EUP HEUI etc.
Introduction
Test one common rail injector
Test one Piezo injector
Test common rail Pumps
Denso HP0 pump
Delphi, Denso, Siemens, Bosch Coding
EUI EUP(with Cambox)
HEUI (with C7 C9 C7-9 3126B)
3126A 3412E NAVISTAR ISUZU G2.8 G2.9
BIP
AHE injector dynamic stroke
Delphi E3
Rail pressure sensor test
DRV/HPV test
Solenoid valve test
ZME

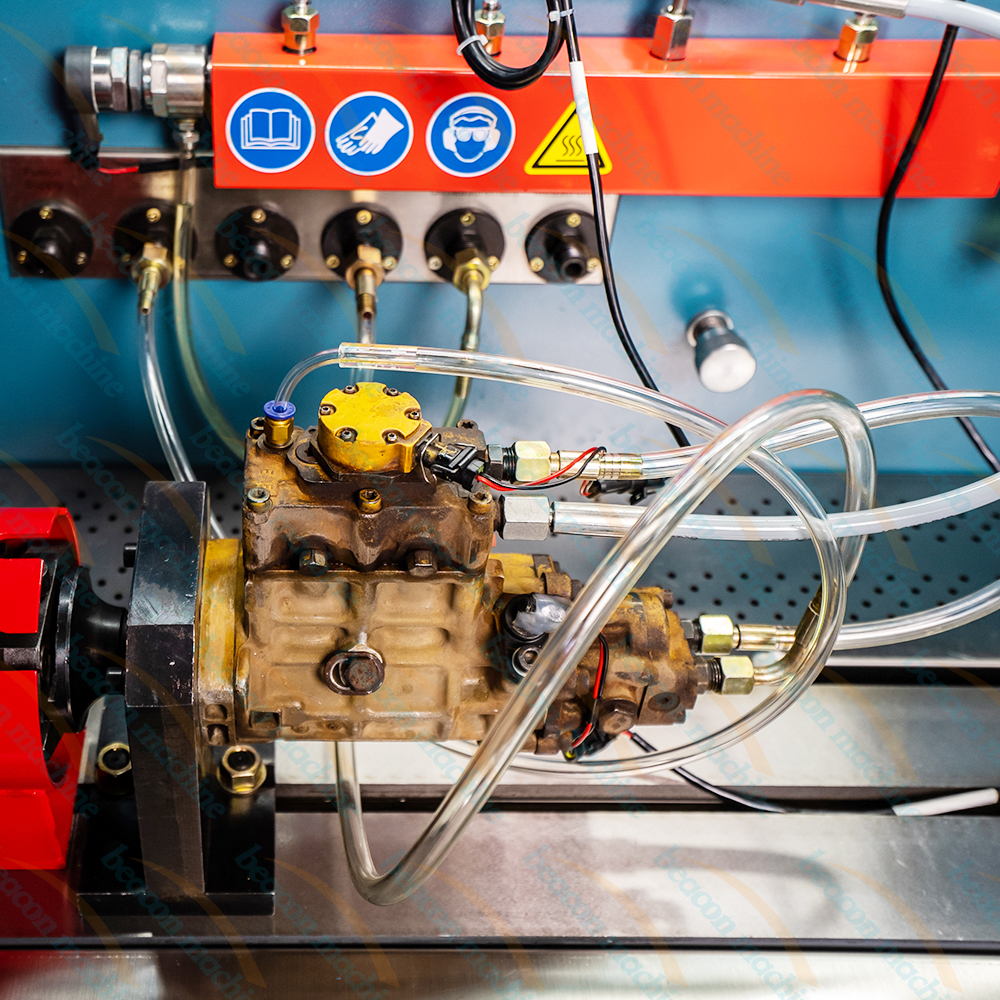

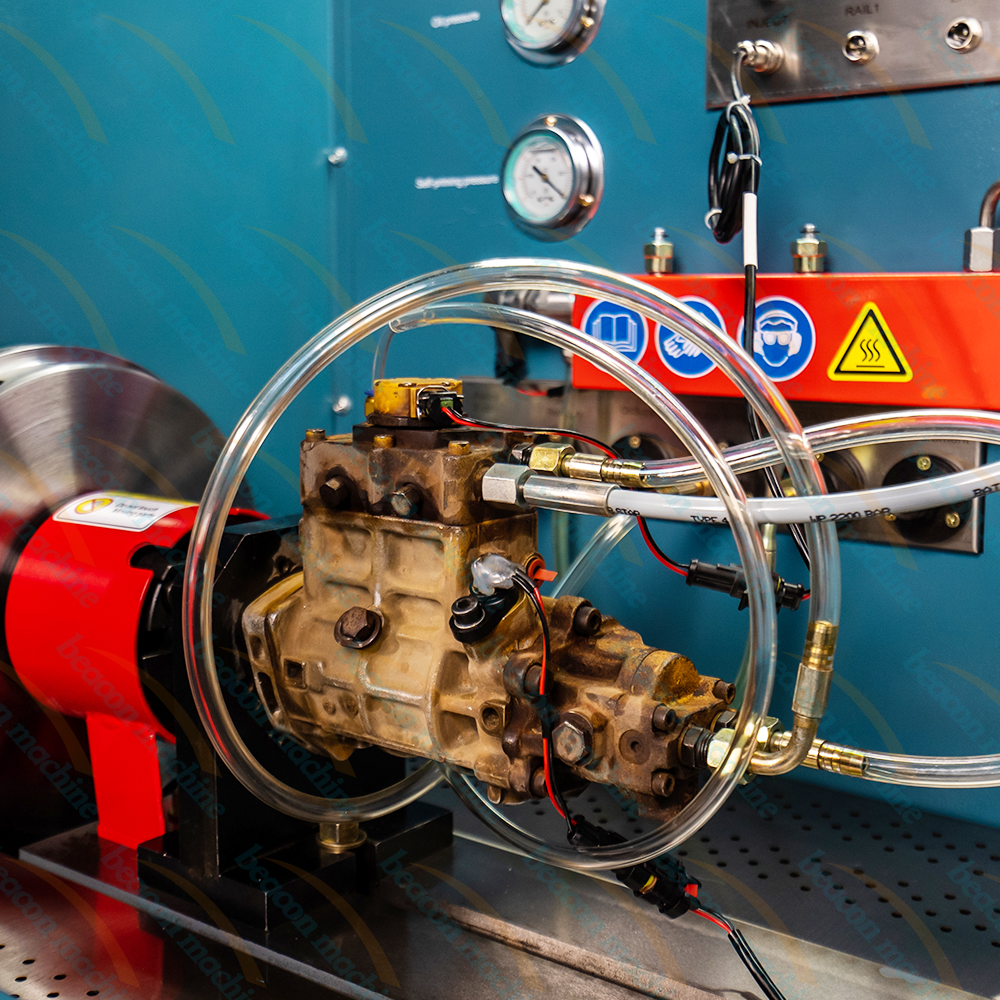

CAT 320D pump
CAT HEUP
Cummins PT pump PT(Need to upgrade cambox)
injector HPI Q60 X15 (Need to upgrade cambox)
Test 2 injectors at same time
Test 4 injectors at same time
Test 6 injectors at same time
parameter
|
1.Main motor speed: |
0-4000 r / min can be adjustable |
|
2.Motor power: |
11KW/15KW/18.5KW/22KW optional |
|
3.Fuel Injector open |
12V, 80V, 150V Control accuracy: |
|
4.Voltage Control range: |
phase adjustment |
|
5.Injector opening |
0-1000HZ Control accuracy: 1HZ |
|
6.Frequency Control: |
0-65535us |
|
7.Fuel injector hold time control: |
0-1000 times |
|
8.Delivery oil count control accuracy: |
1 times |
|
9.Fuel pressure control |
0-2400bar |
|
10.Control accuracy: |
1bar |
|
11.Electronic power: |
380V /220V three phase ; 220V single phase |
|
12.Product size: |
178*115*156 |
|
13.Weight: |
906kg(including cam box);690kg(excluding cam box) |
*Test data from Beacon laboratory
