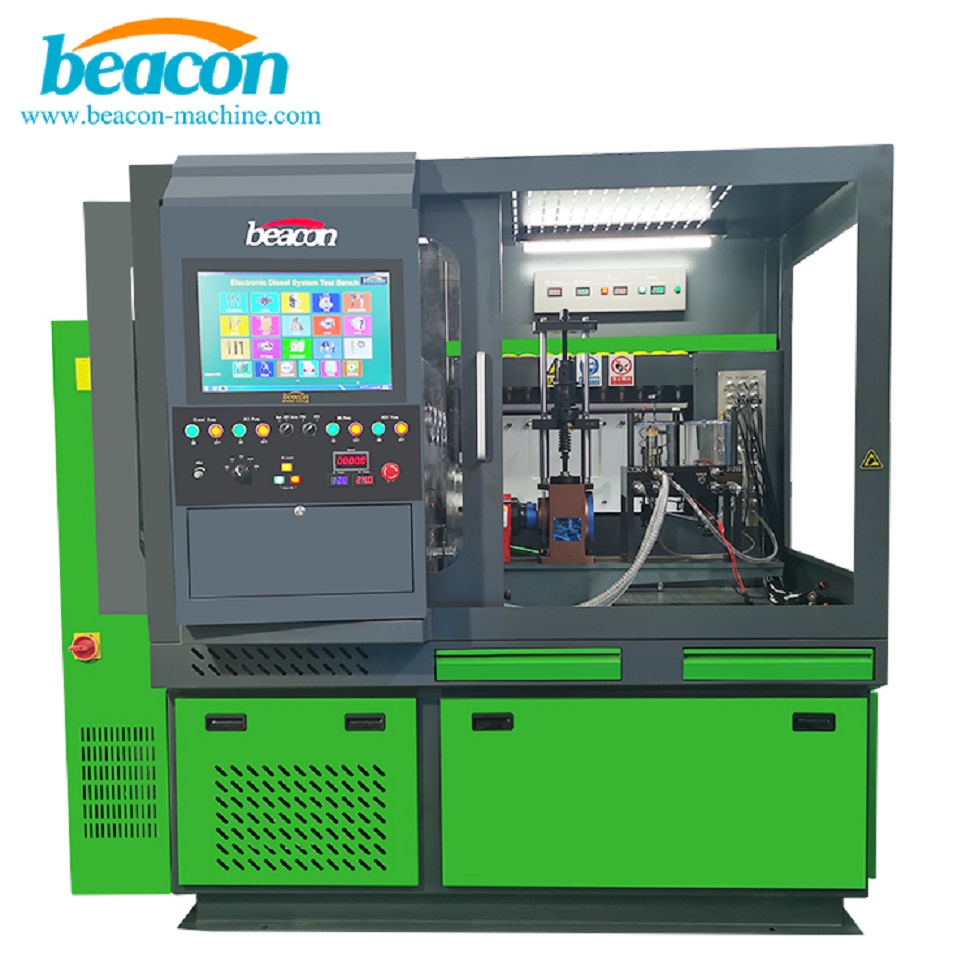

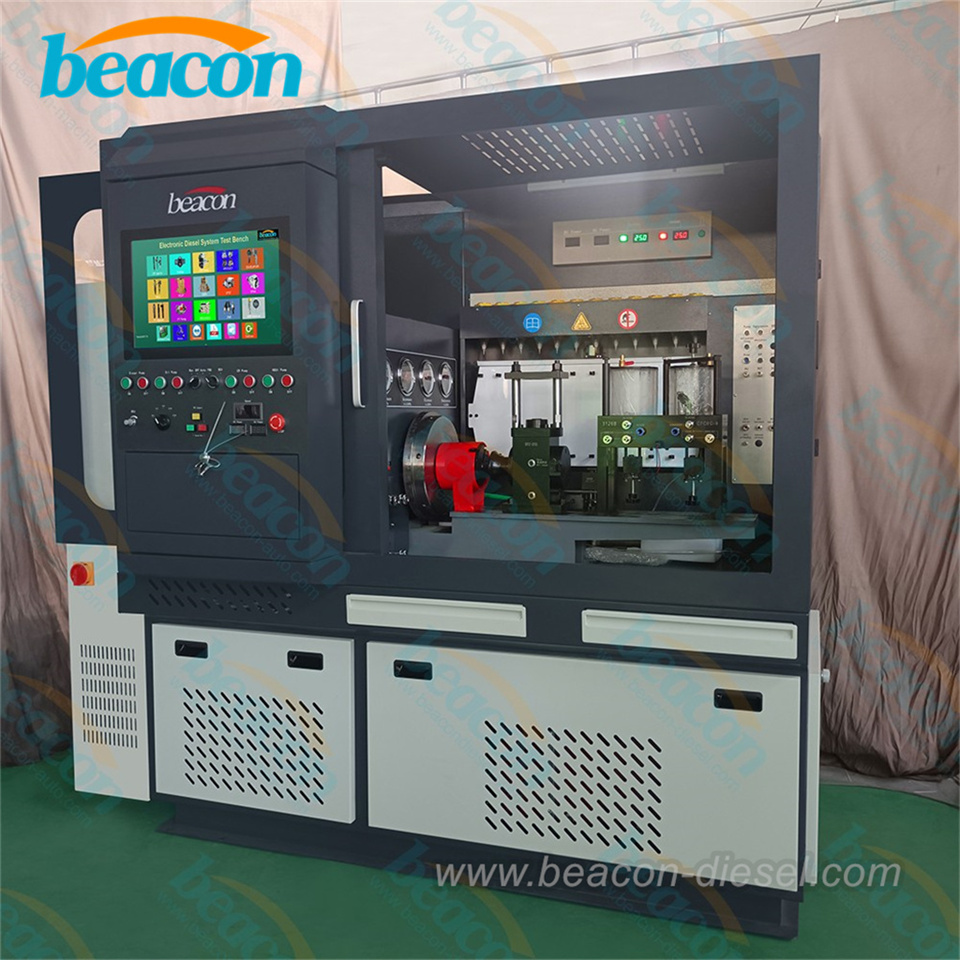

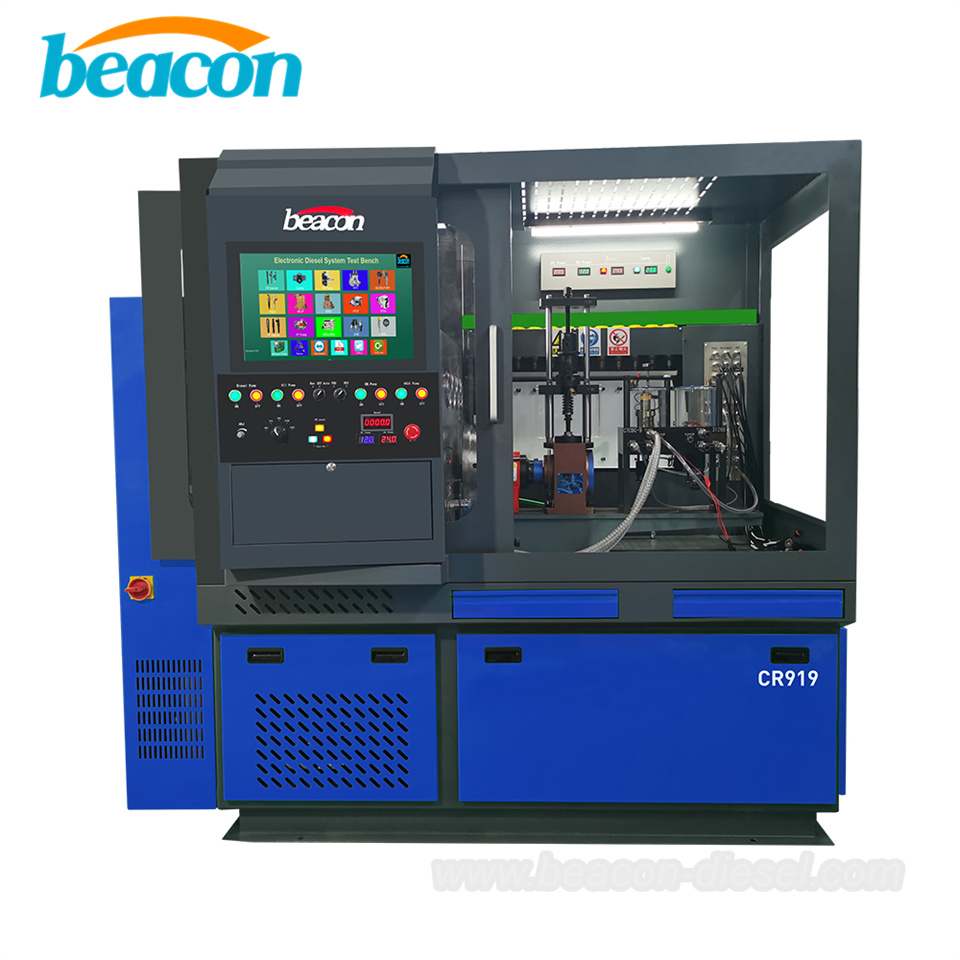

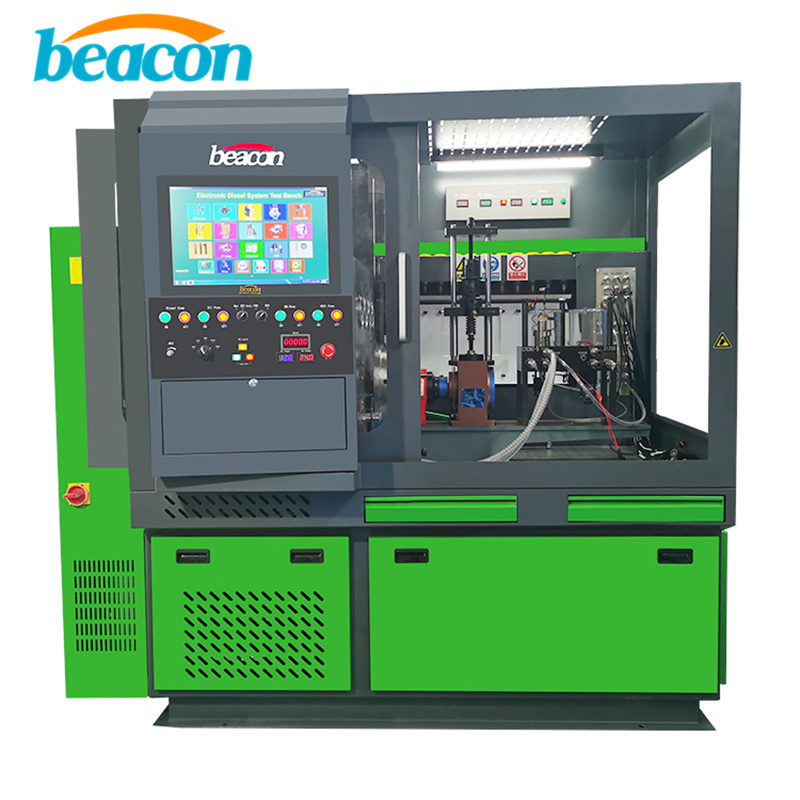

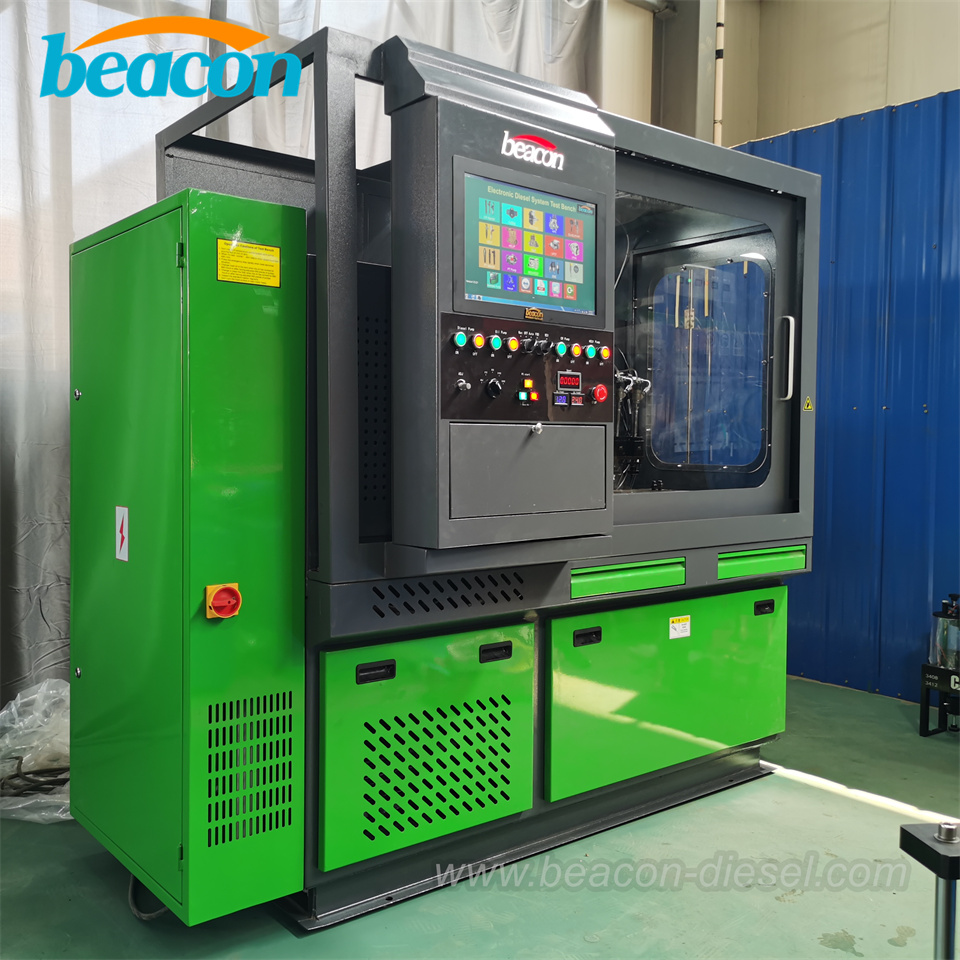

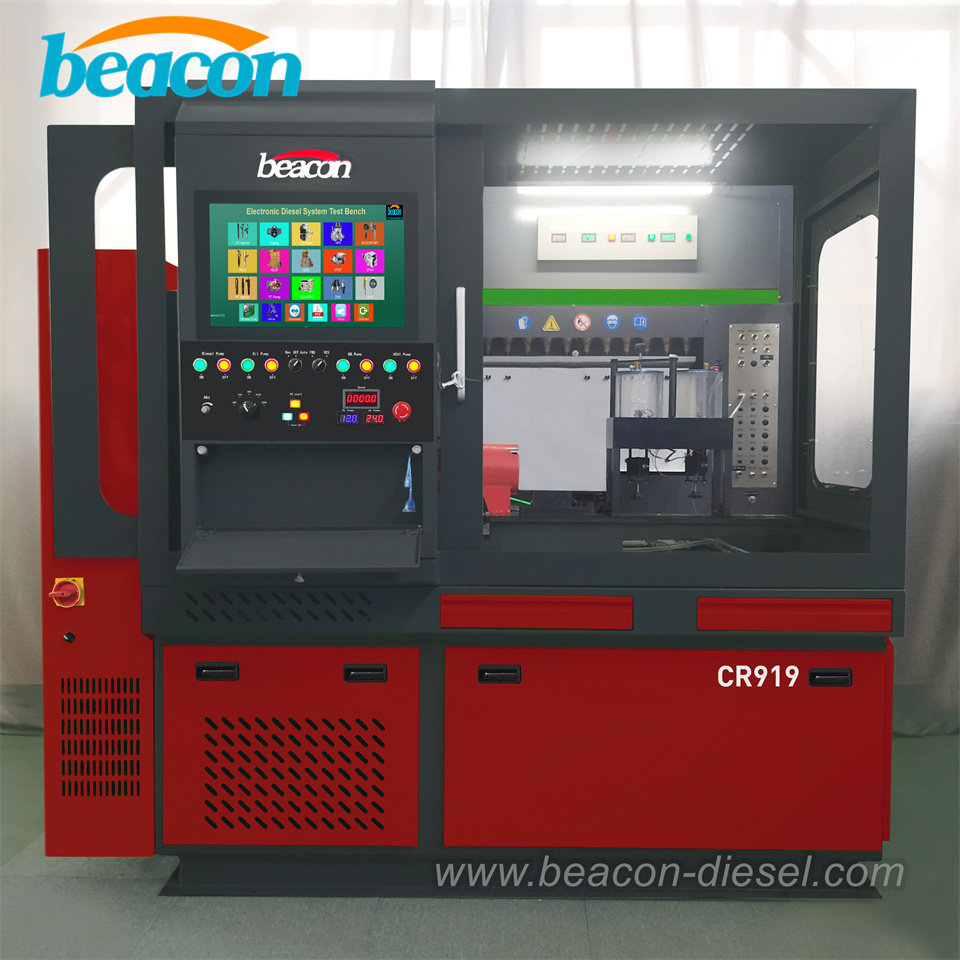

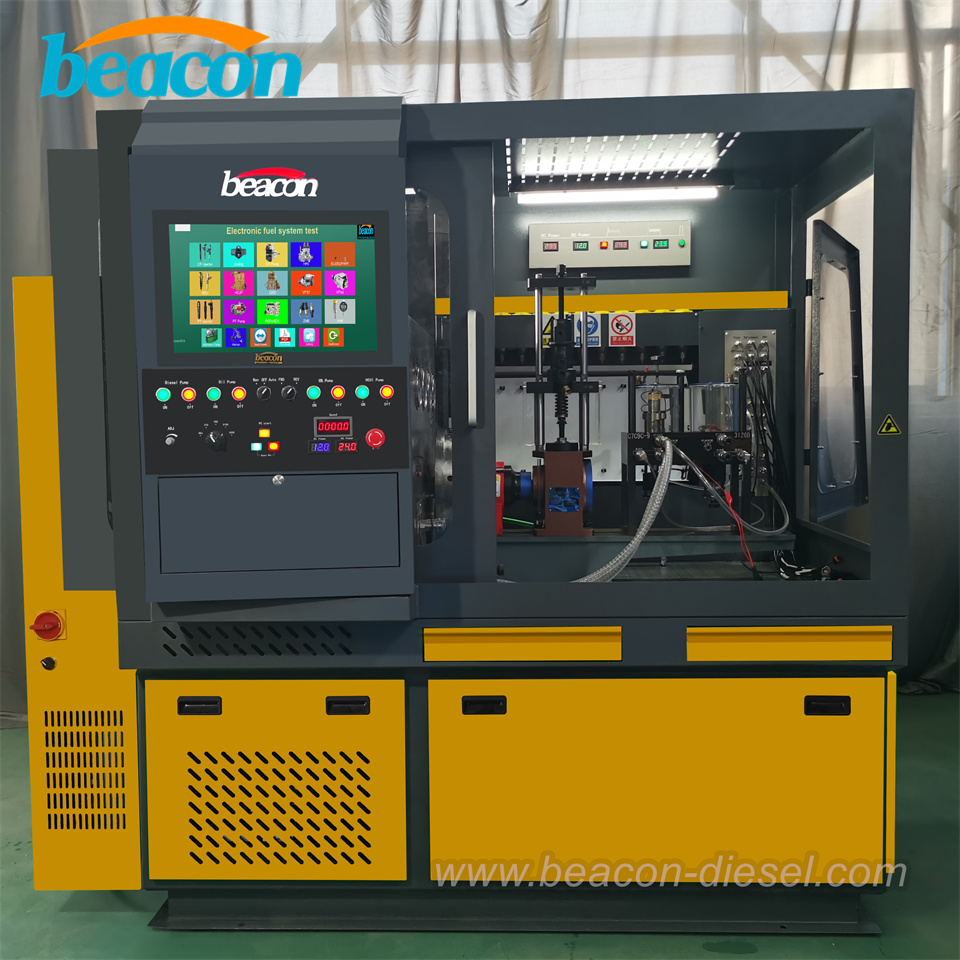

CR919 Multi Function Diesel Fuel Injection Test Bench

Master diesel diagnostics with the CR919. Features 15KW power, dual-oil HEUI system, and 10,000+ standard data points for Bosch, Denso, & Delphi. Get a quote!

Quick Order

Introduction

CR919 Diesel Fuel Injection Test Bench

The functions below distinguish the standard configuration from options. Confirm the relevant part numbers and required adapters for the ordered machine.

Standard configuration functions

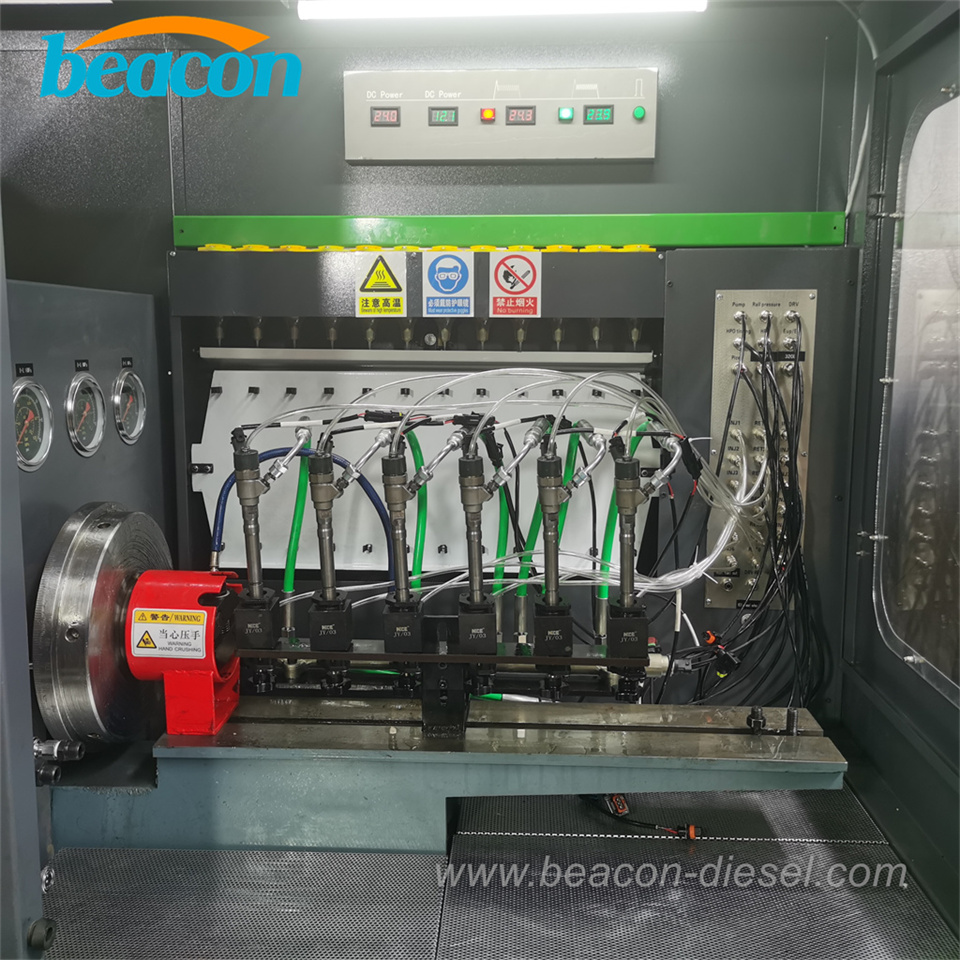

  • Test common rail solenoid injectors.
  • Test common rail piezo injectors.
  • Test common rail high-pressure pumps.

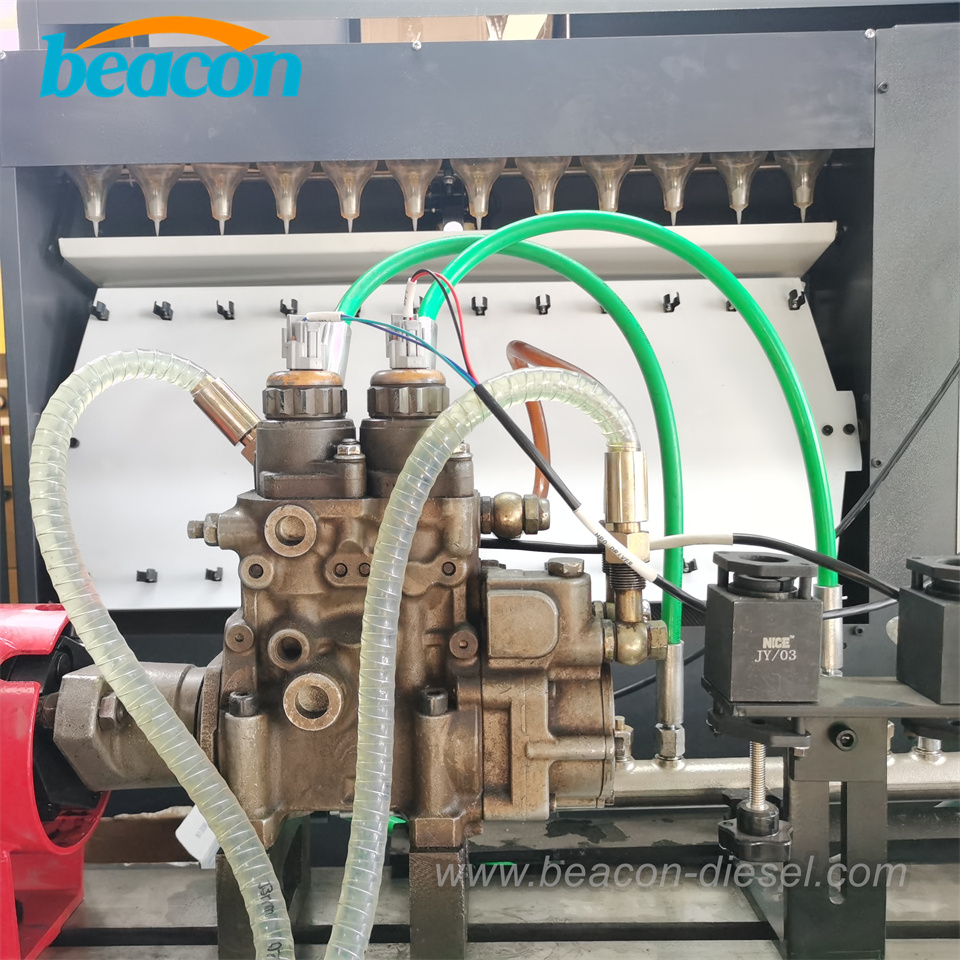

  • Test Denso HP0 pumps.
  • Test HEUI injectors using separate fuel and engine-oil circuits; basic C7, C9 and 3126B fixtures are included.

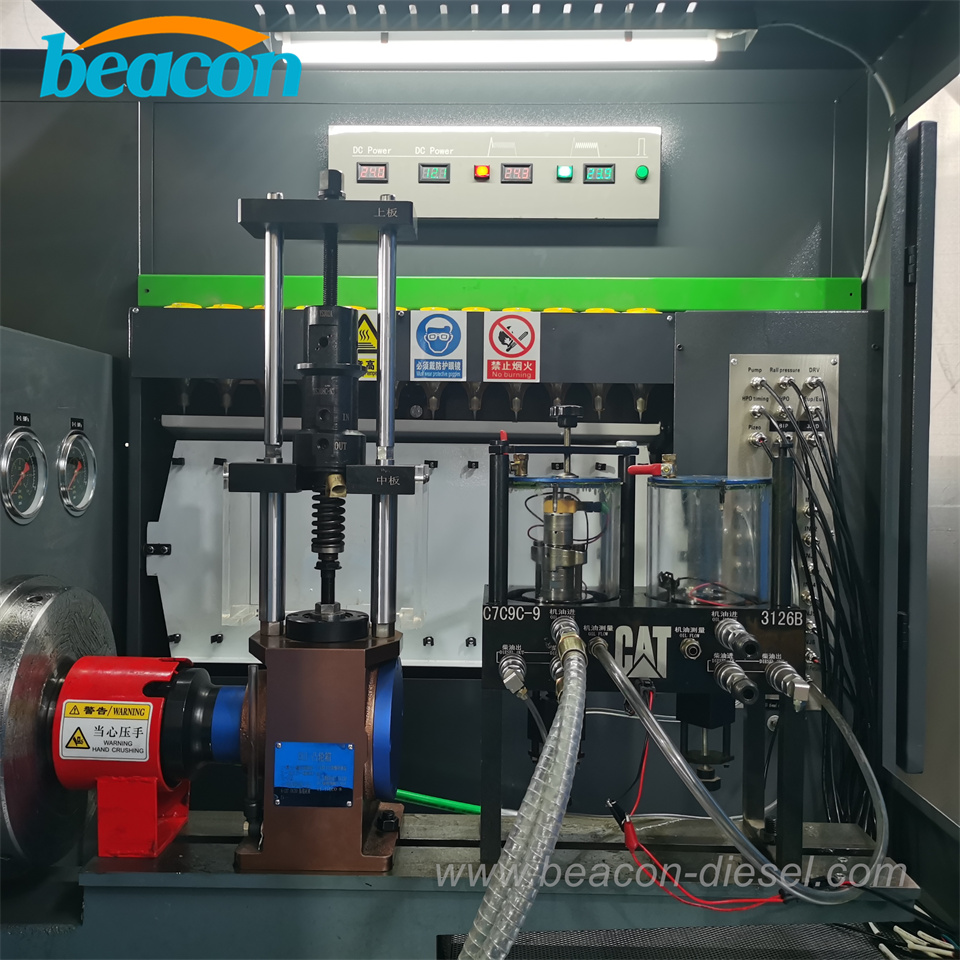

  • Test EUI and EUP components with the included TU-D cam box.

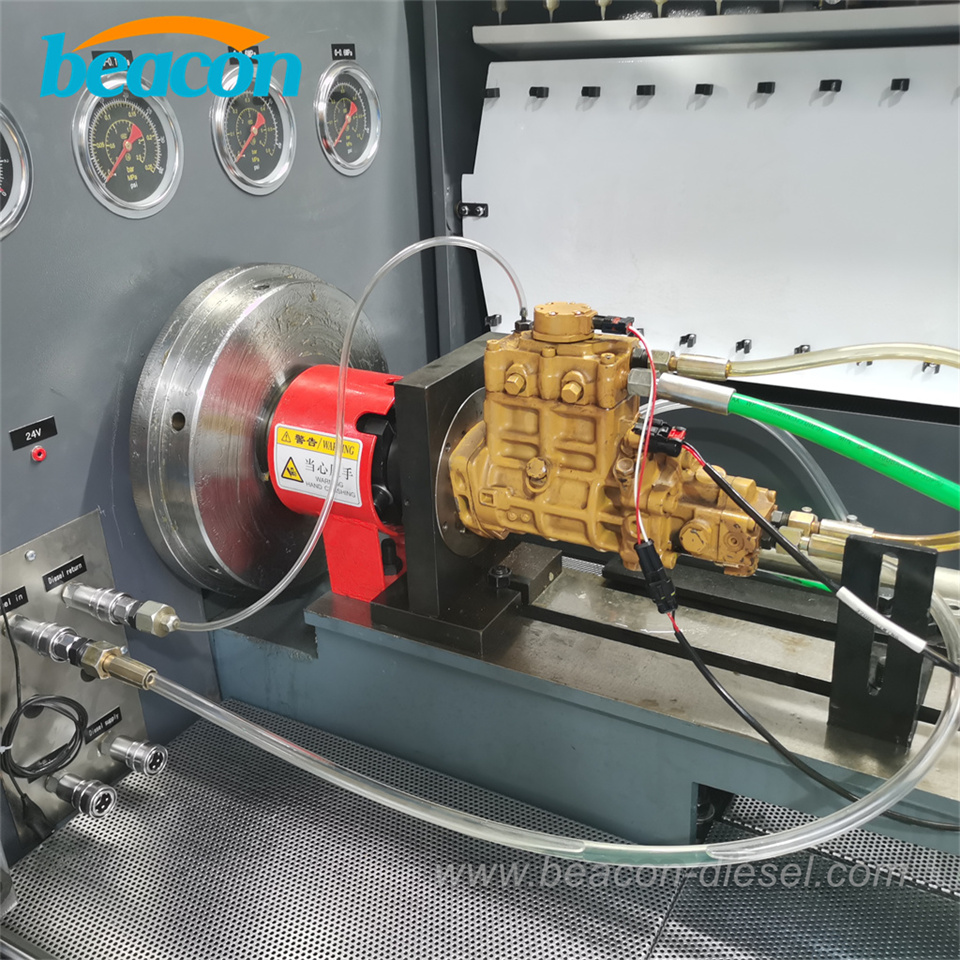

  • Test CAT 320D high-pressure pumps.
  • Generate injector compensation codes for supported Bosch, Denso, Delphi and Siemens injectors.
  • Automatically control test speed and rail pressure during the programmed test sequence.
  • Measure and record fuel flow.
  • Generate test reports.
  • Multilingual control software.
  • Remote software updates.
  • Customize the logo on test reports.

Optional functions

  • TU-C cam box for EUI/EUP testing.
  • TU-E cam box for EUI/EUP testing.
  • Additional EUI/EUP adapters for the selected applications.
  • Additional HEUI fixtures for compatible CAT 3412E, Navistar, Isuzu and Ford applications.
  • Test Euro II mechanical injection pumps.
  • Test VP37 and VP44 pumps.
  • Test RED4 pumps.
  • Test Denso V3, V4 and V5 pumps.
  • Test Cummins PT injectors.
  • Test Cummins PT pumps.
  • Test compatible Cummins HPI, Q60 and X15 applications.
  • Test CP4 pumps with the corresponding adapters.
  • Test Denso HP5, HP6 and HP7 pumps with the corresponding adapters.
  • Test Bosch four-pin injectors with the corresponding harness and fixture.
  • Delphi E3 dual-pulse control function.
  • Configuration for testing 2 injectors.
  • Configuration for testing 4 injectors.
  • Configuration for testing 6 injectors.
  • Configuration for testing 8 injectors.
  • BIP signal testing.
  • AHE injector dynamic-stroke measurement with the corresponding measuring tools.
  • ZME metering-unit testing.
  • Rail-pressure sensor testing.
  • DRV/HPV pressure-control valve testing.
  • Solenoid-valve testing.

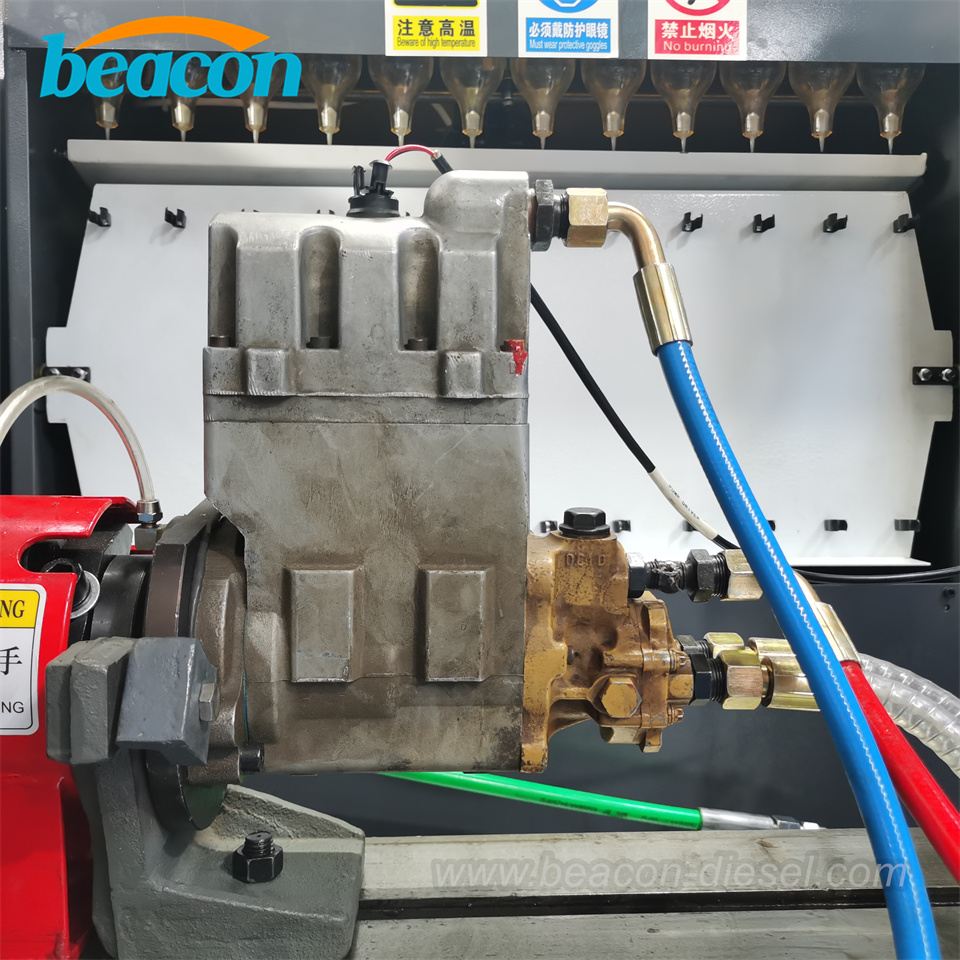

  • Test HEUI actuation pumps (HEUP).
  • Air-conditioning forced cooling.

parameter

Feature Category Detail
System Compatibility Common Rail Injectors (Solenoid & Piezo), Common Rail Pumps (CP1, CP3; CP4 with optional adapters), EUI/EUP, HEUI (C7/C9/3126B fixtures standard; additional HEUI fixtures optional), CAT 320D pump testing standard
Manufacturer Support Bosch, Delphi, Denso, Siemens, Cummins, CAT, Isuzu, Ford
Power 15KW/18.5KW/22KW (380V 3-Phase)
Test Pressure (Rail) 0-2400 bar
Cooling Standard cooling fan; optional air-conditioning forced cooling
Control Automatic Software Updates, 15 Languages Available
Accuracy High-precision flow sensor (3 pieces)
Dimensions 211*135*190 CM
Weight 1250 KG

*Test data from Beacon laboratory
