DPF-RGD Particulate Filter Regeneration System - Advanced Diesel Exhaust Cleaning

DPF-RGD Particulate Filter Regeneration System - Advanced Diesel Exhaust Cleaning

1. Fully Automatic Operation: Equipped with a large-screen PLC for fully automatic and intelligent control.

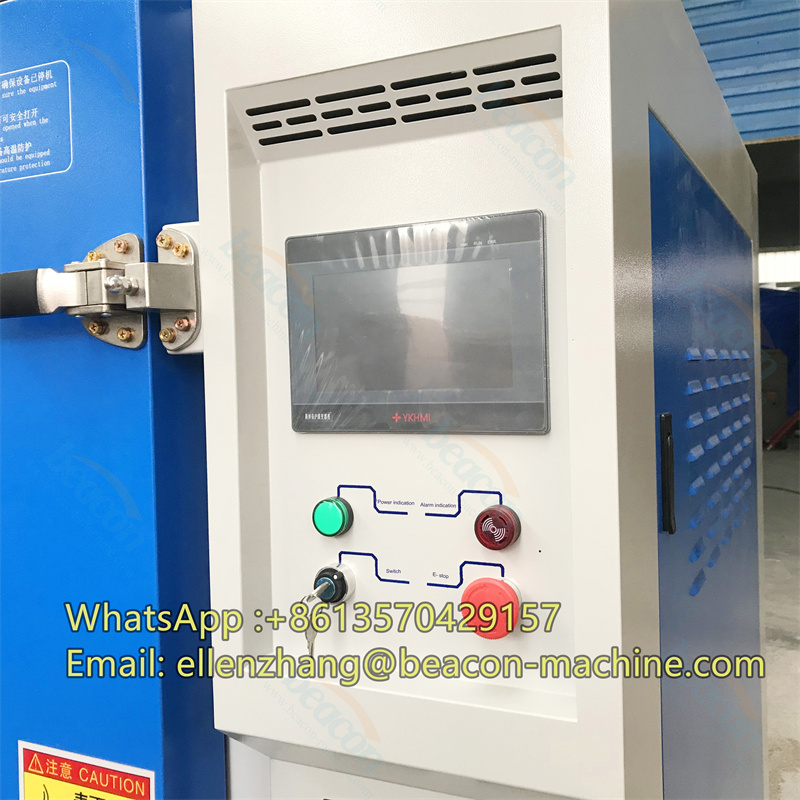

2. User-Friendly Interface: Features a 7-inch touch screen for convenient human-machine communication with all operations accessible on the screen.
3. Advanced Control System: Utilizes programmable intelligent PLC control with multi-stage temperature control, automatic temperature rise and fall program, PID function, and high-temperature control accuracy.
4. Durable Construction: The inner chamber is made of 304 stainless steel, known for its sturdiness and durability, with an internal insulation layer of high-quality aluminum silicate fiberboard for energy efficiency and resistance to high-temperature deformation.
5. Energy-Efficient Design: Offers 30% more energy savings compared to ordinary fiber insulation, with a 25% increase in regeneration effect.
6. Automatic Operation Cycle: The device works automatically upon power setting and stops when the task is complete, ensuring energy efficiency and ease of use.
7. Rapid Cooling Feature: Includes a strong cooling mode to quickly reduce the temperature inside the furnace, enhancing post-regeneration work efficiency.

Technical Parameters:

1. High-Temperature Range: The furnace can reach temperatures from 0 to 700 degrees Celsius with controllable and adjustable timing.
2. PID Temperature Control: Equipped with controllable silicon for precise temperature regulation.

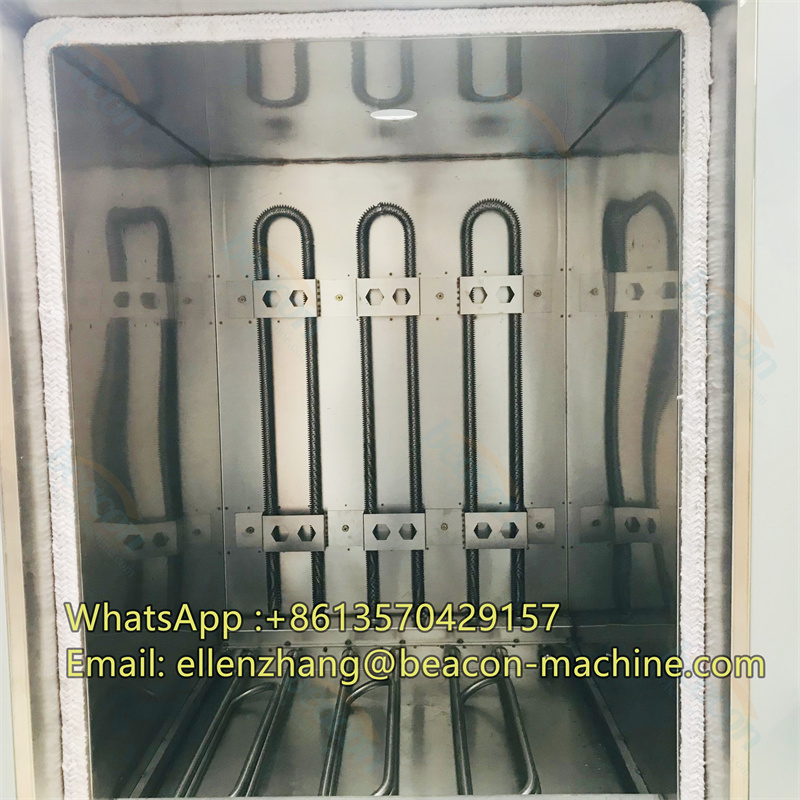

3. Lining and Insulation: Features a 304 stainless steel liner with aluminum silicate fiberboard for energy-saving insulation.
4. High-Temperature Material: Constructed with 2520 high-temperature hot material for reliability under extreme conditions.
5. Emergency Cooling Function: Allows for rapid temperature reduction when needed.
6. Model: DPF-RGD
7. Furnace Size: 760 mm x 820 mm x 1160 mm
8. Total Power: 20 KW
9. Equipment Dimensions: 1400 mm x 1105 mm x 1660 mm (L x W x H)
10. Equipment Weight: Approximately 430 KG
