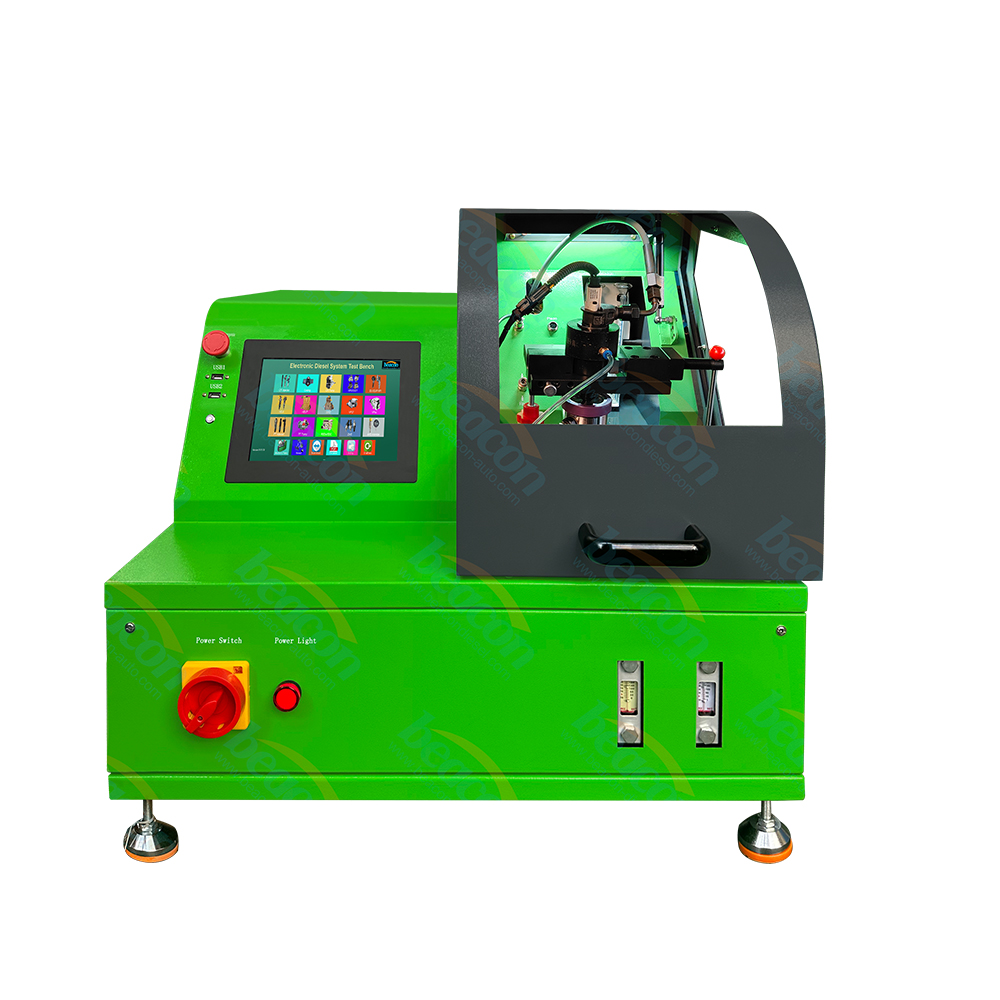

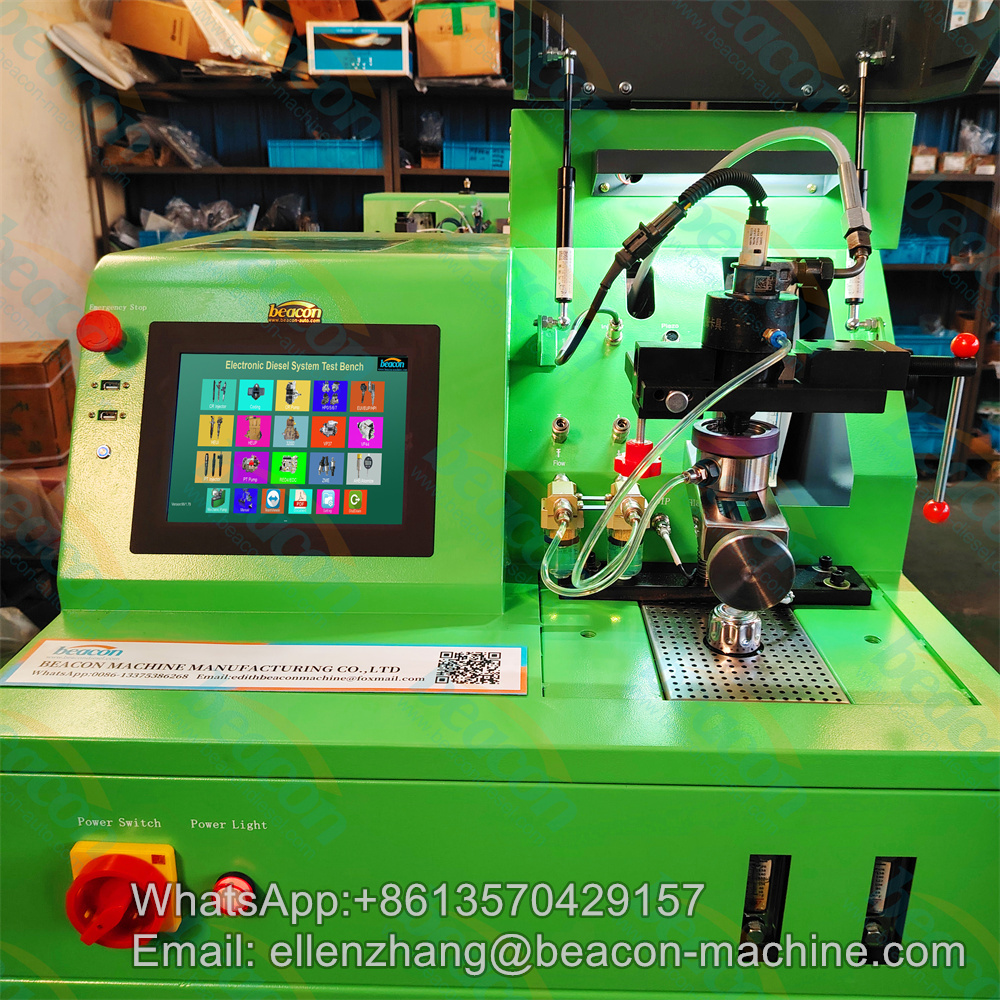

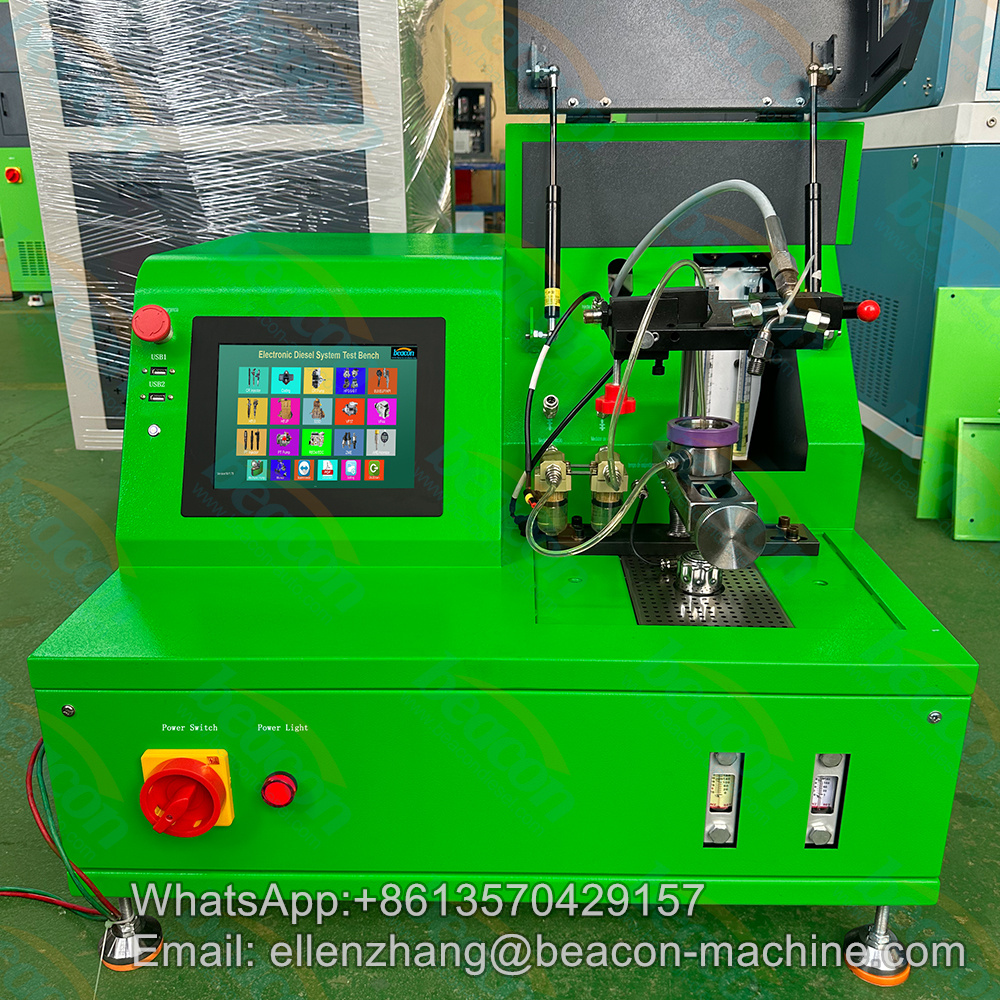

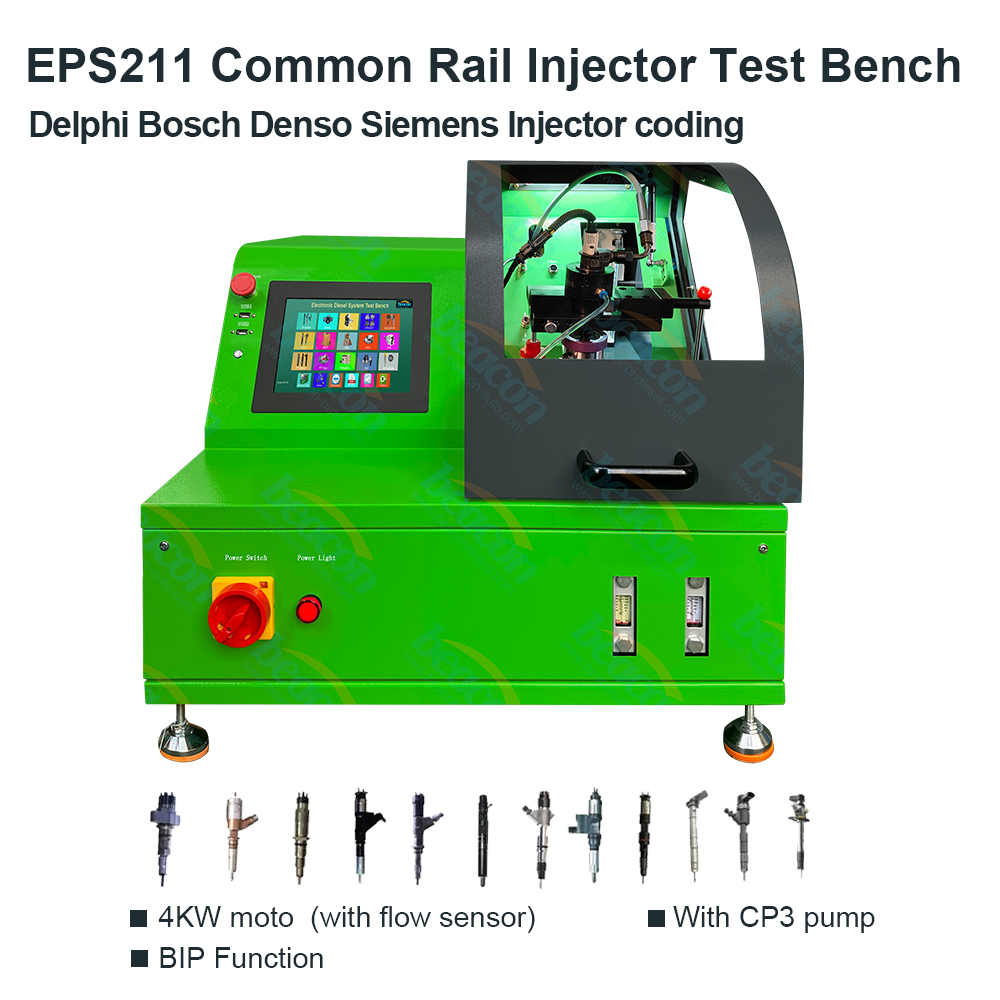

EPS211 commom rail injector test bench

The EPS211 high-pressure common rail test bench simulates the functionality of a diesel engine ECU (Engine Control Unit) and generates control signals for common rail systems, including CP1, CP2, CP3, HP3, HP4, and Delphi. It supports high-pressure common rail technologies from manufacturers such as Bosch, Denso, Delphi, and Siemens.

The test bench drives the high-pressure oil pump and common rail injectors, allowing users to configure and adjust driving signal parameters based on actual operating conditions.

Additionally, these parameters can be grouped and saved for future reference, enabling maintenance personnel to efficiently diagnose and repair the high-pressure common rail system.

(1) Measuring motor speed: 0～3000rpm; oil pump speed: 0--1500rpm

(2) Working pressure: 0-200Mpa

(3) Fuel tank volume: 10L;

(4) Test oil filtering accuracy: 3μ;

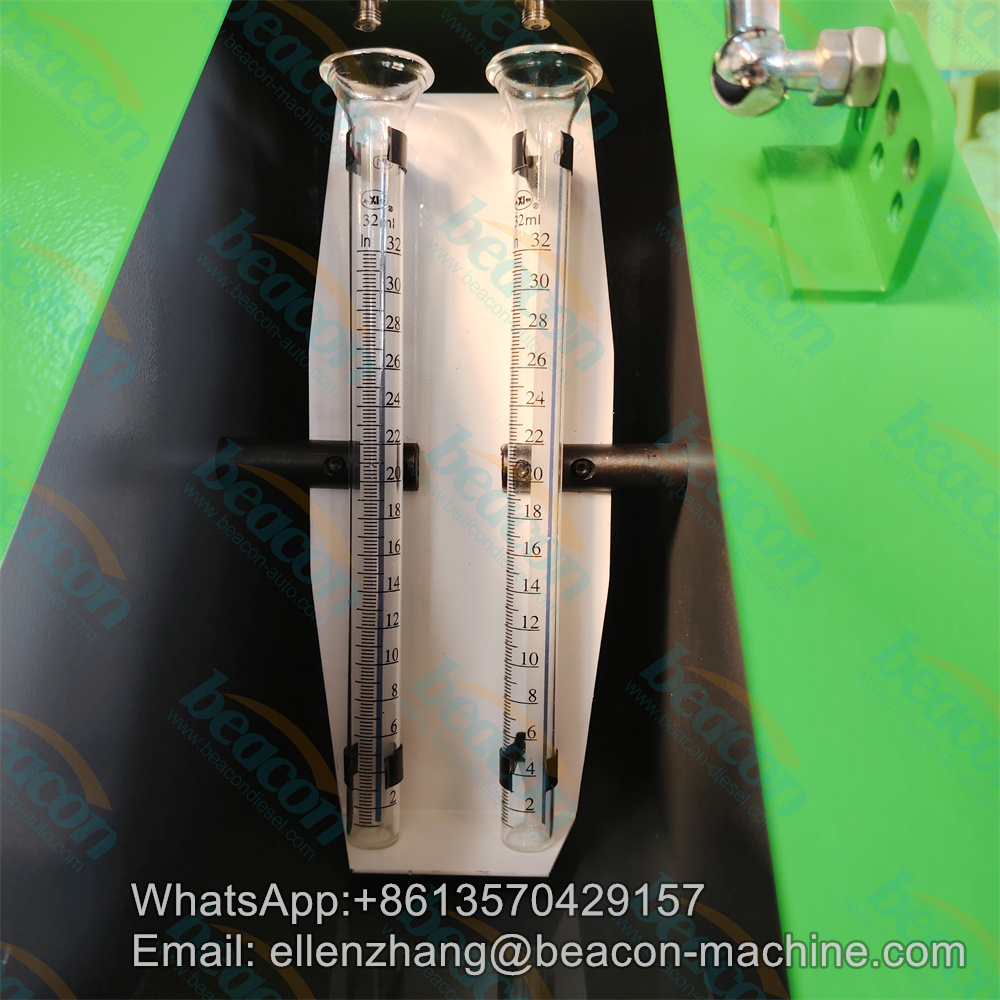

(5) Oil measuring method: flow meter

(6) Power supply: 380V/50HZ;

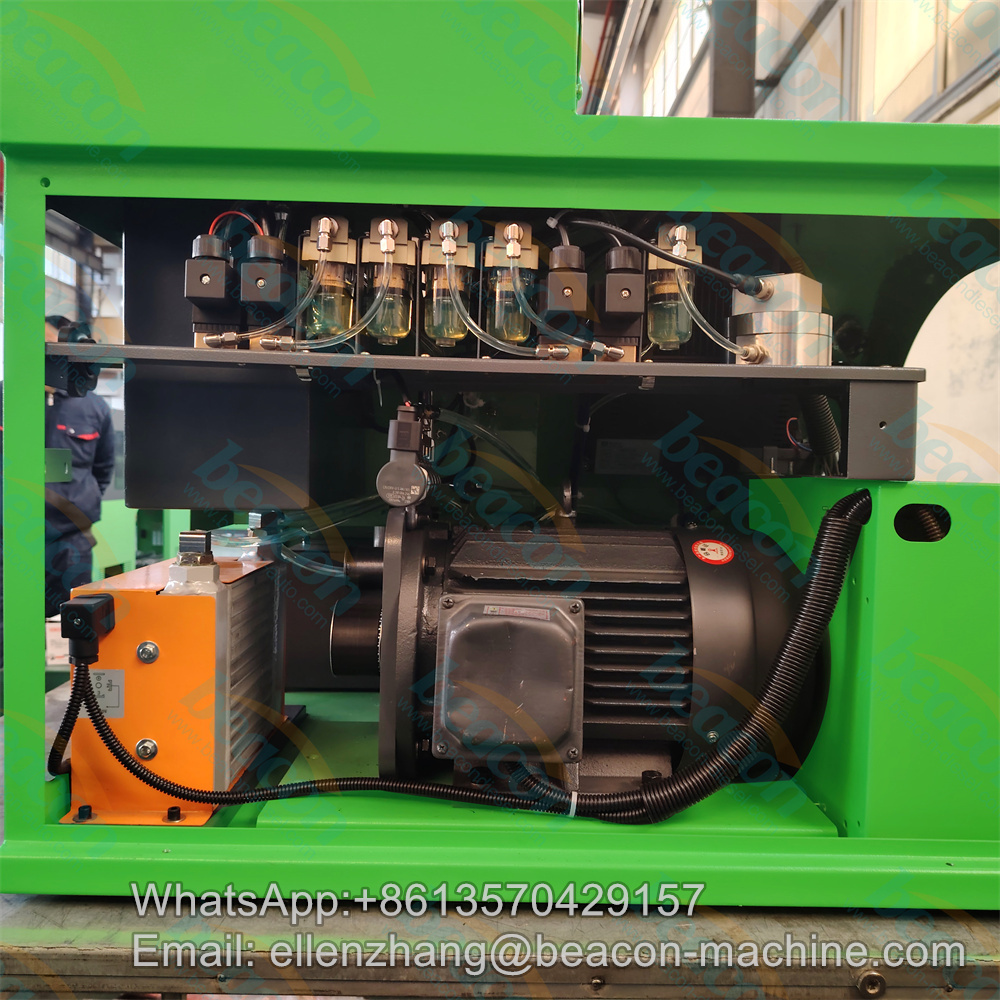

(7) Common rail pump type: CP3;

(10) Output power: 4KW

(11) Overall dimensions (mm):830*750*900

(12) Net weight: 160Kg.
