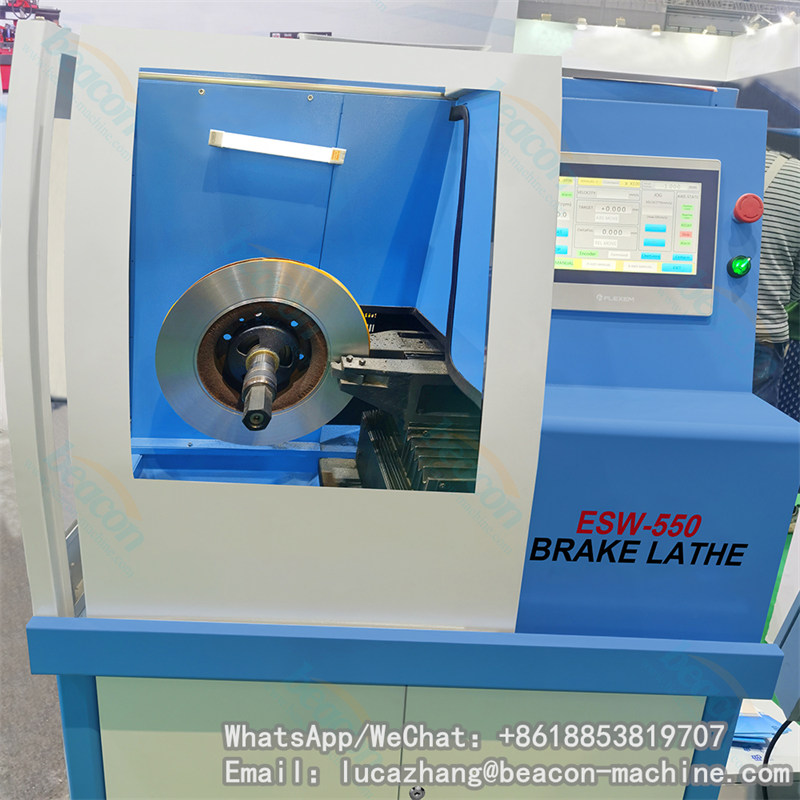

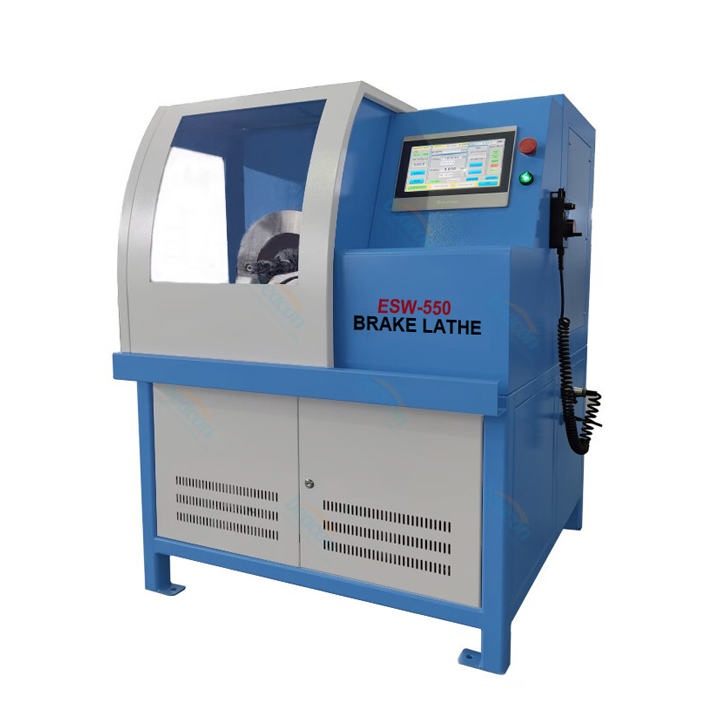

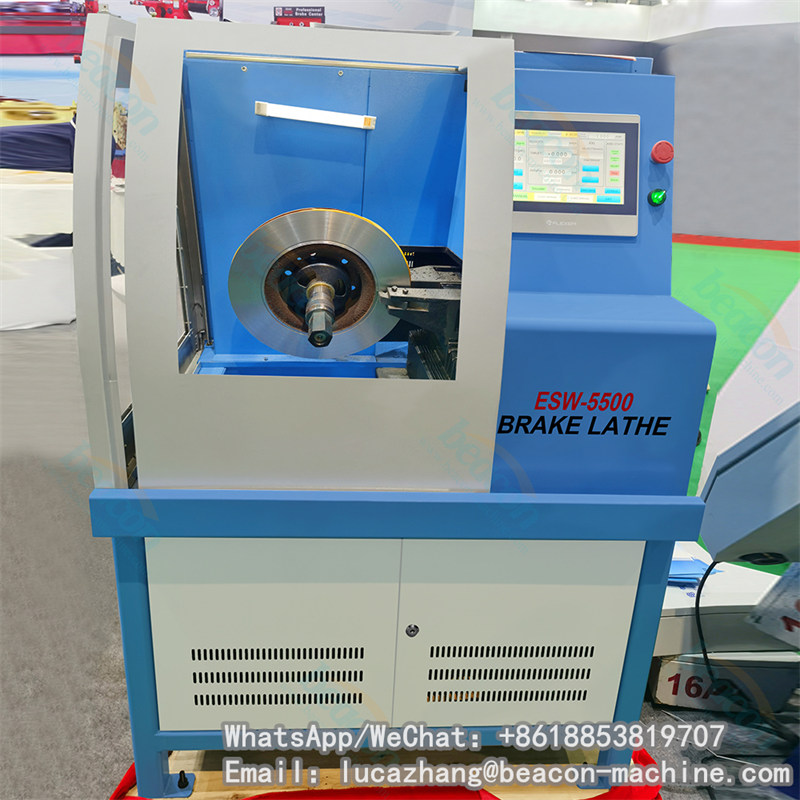

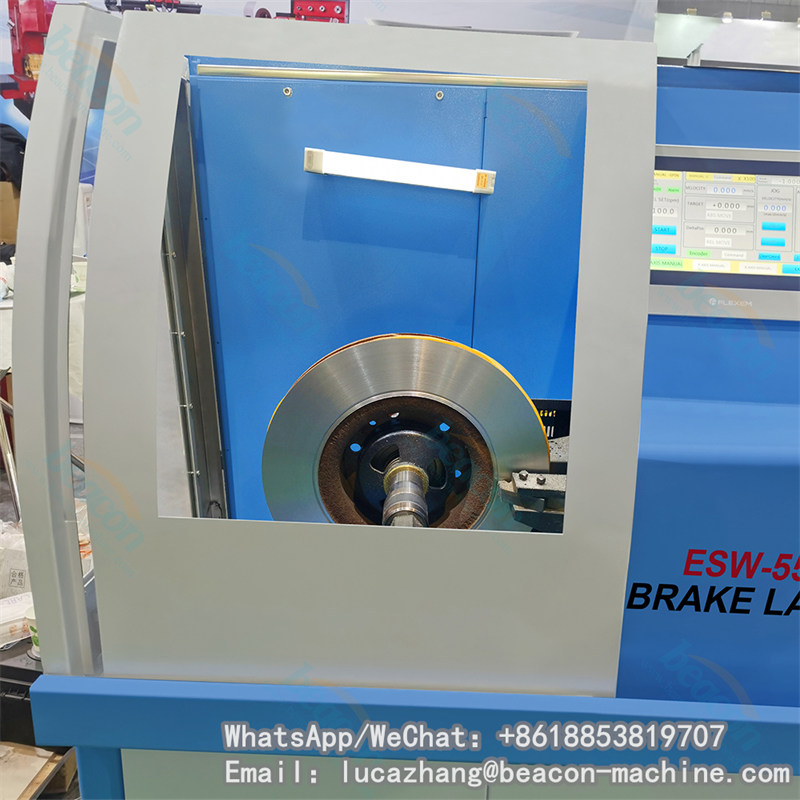

ESW-5500 automatic brake disc and drum lathe machine for bigger disc with touch screen intelligent control system

ESW-5500 automatic brake disc and drum lathe machine fro bigger disc with touch screen intelligent control system

Introduction

ESW-5500 automatic brake disc and drum lathe machine fro bigger disc with touch screen intelligent control system

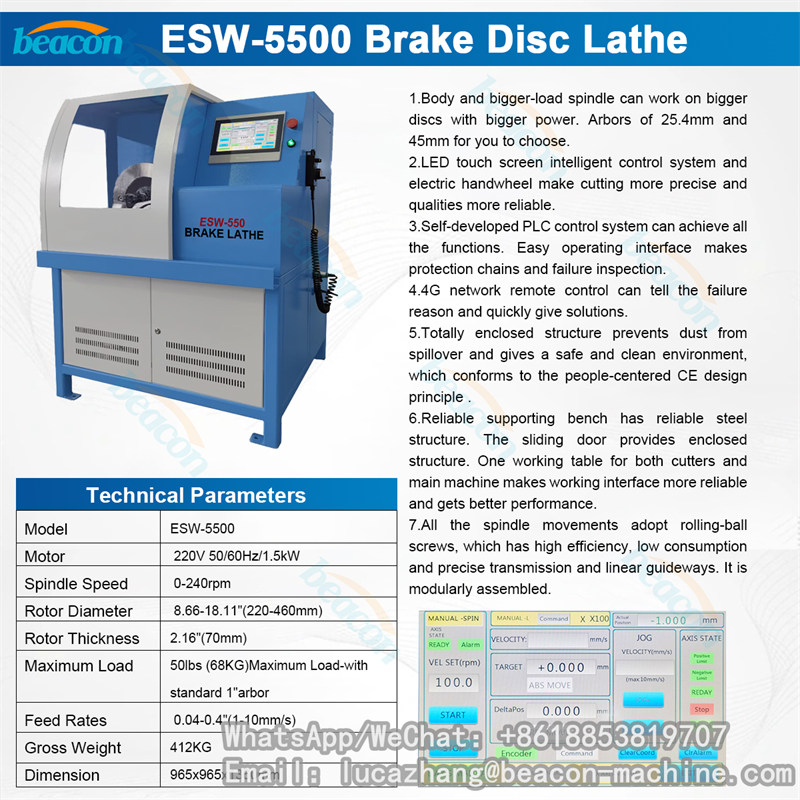

parameter

Model: ESW-5500
Motor: 220V 50/60Hz/1.5kW
Spindle Speed: 0-240rpm

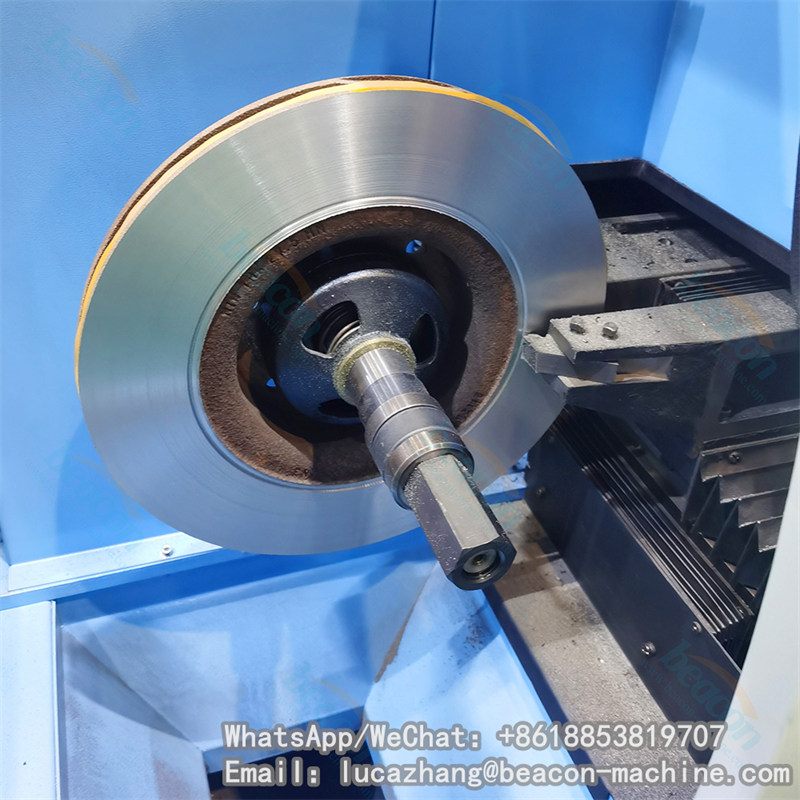

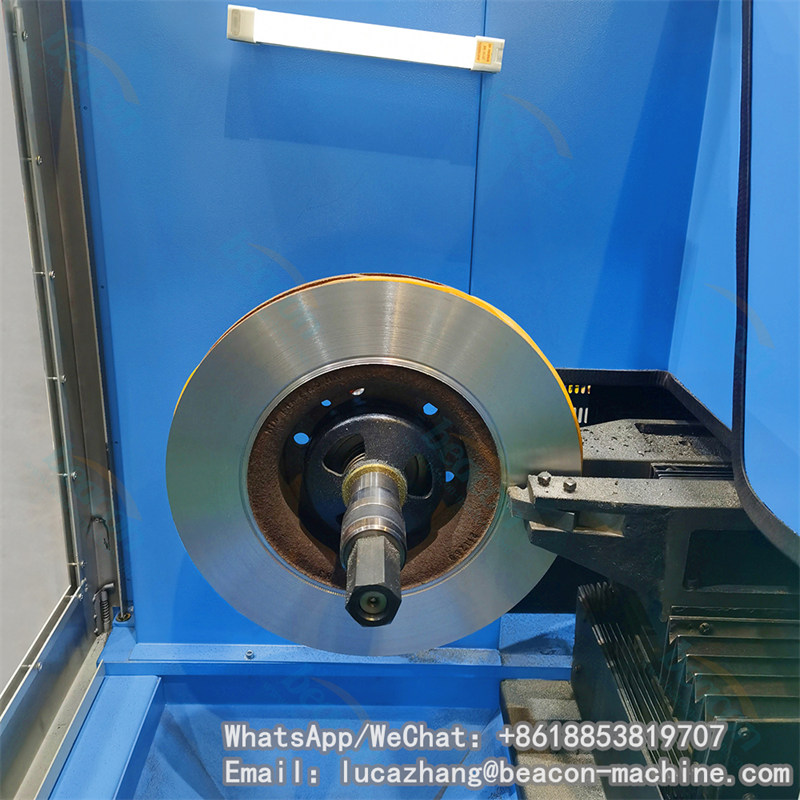

Rotor Diameter: 8.66-18.11"(220-460mm)
Rotor Thickness: 2.16"(70mm)
Maximum Load: 50lbs (68KG)Maximum Load-with standard 1"arbor
Feed Rates: 0.04-0.4"(1-10mm/s)
Gross Weight: 412KG
Dimension: 965x965x1360mm
*Test data from Beacon laboratory

1.Grey castiron body and bigger-load spindle can work on bigger discs with bigger power. Arbors of 25.4mm and 45mm for you to choose.

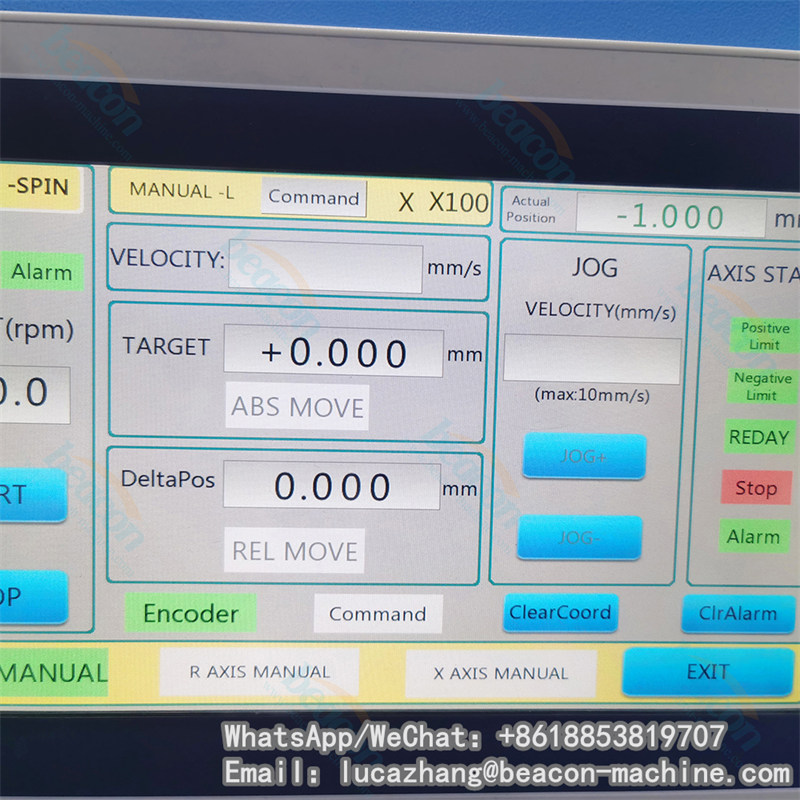

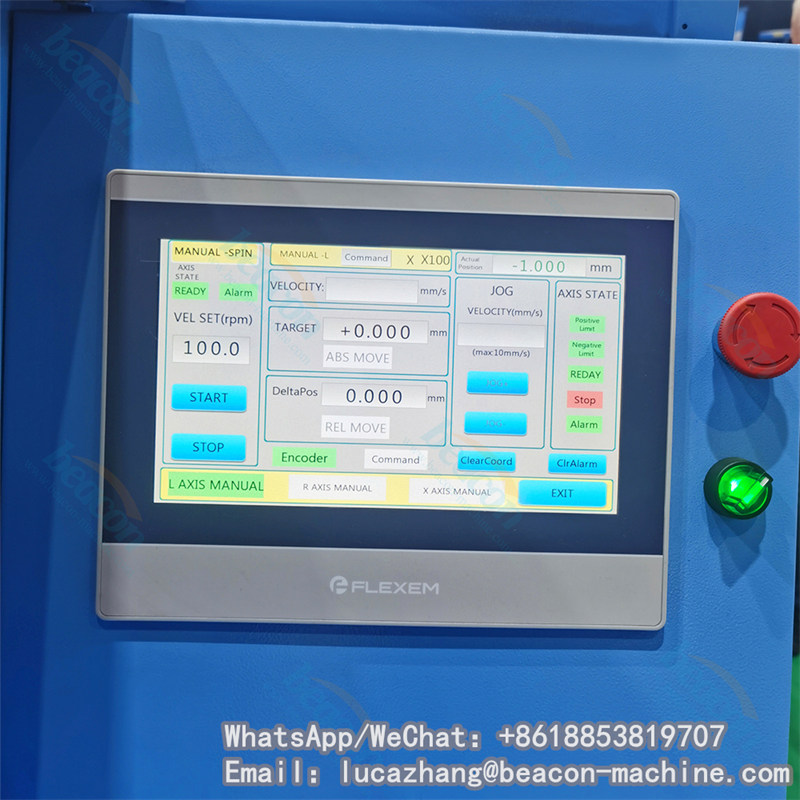

2.LED touch screen intelligent control system and electric handwheel make cutting more precise and qualities more reliable.
3.Self-developed PLC control system can achieve all the functions. Easy operating interface makes protection chains and failure inspection.

4.4G network remote control can tell the failure reason and quickly give solutions.
5.Totally enclosed structure prevents dust from spillover and gives a safe and clean environment, which conforms to the people-centered CE design principle .

6.Reliable supporting bench has reliable steel structure. The sliding door provides enclosed structure. One working table for both cutters and main machine makes working interface more reliable and gets better performance.
7.All the spindle movements adopt rolling-ball screws, which has high efficiency, low consumption and precise transmission and linear guideways. It is modularly assembled
