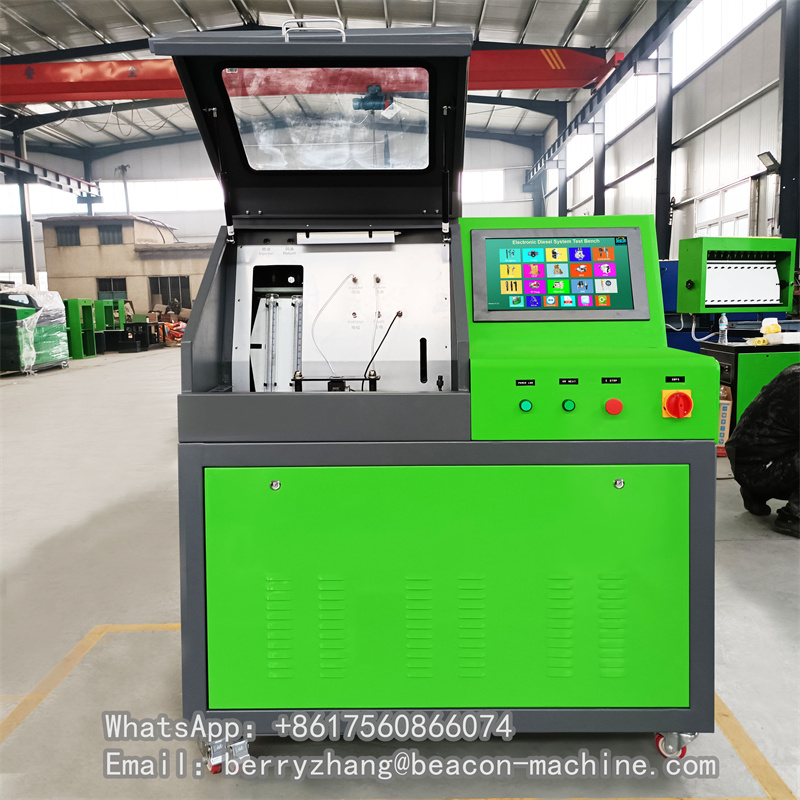

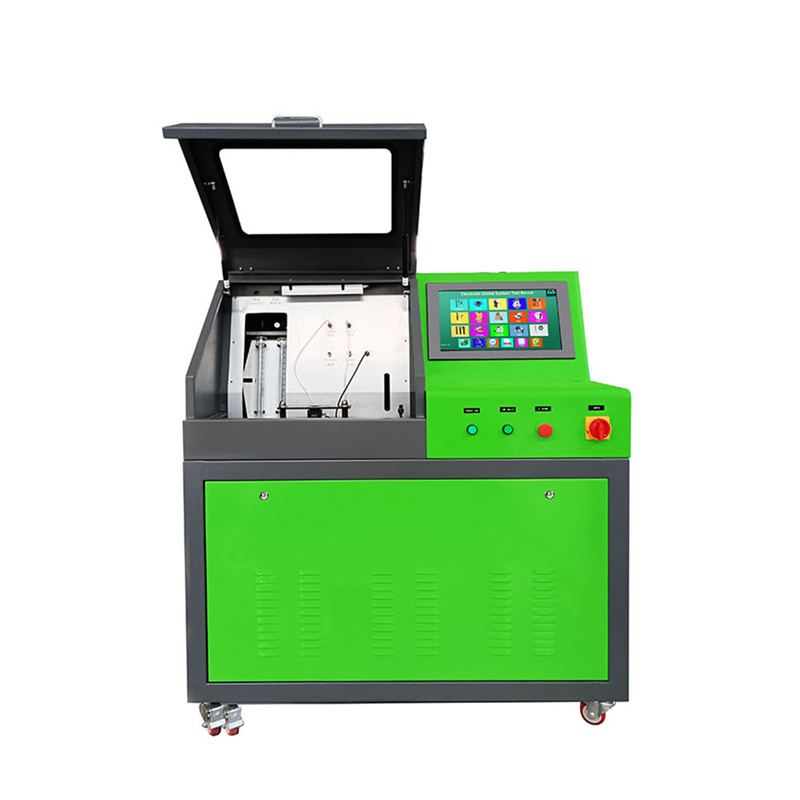

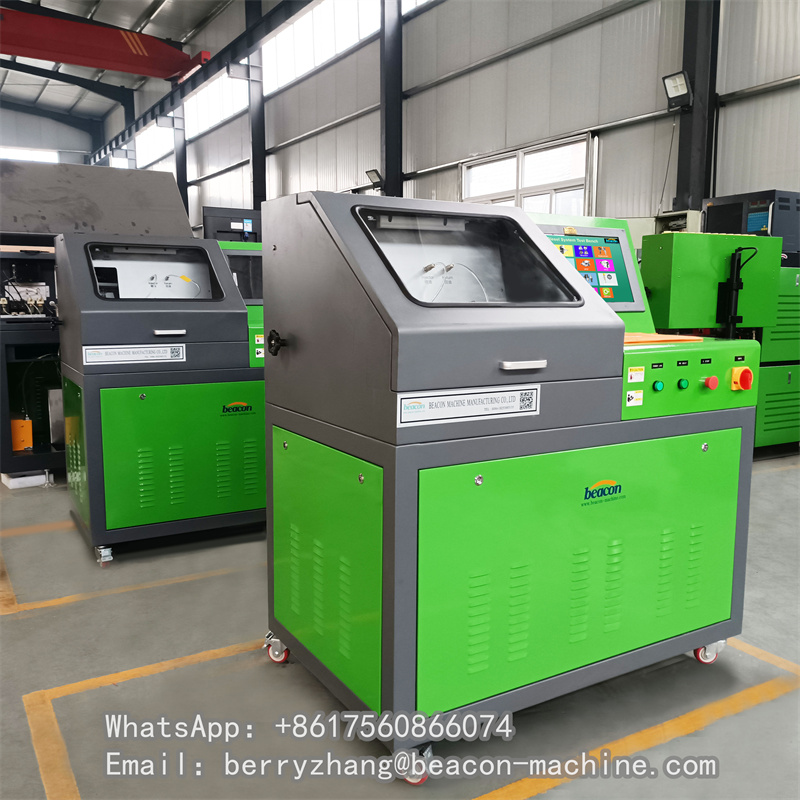

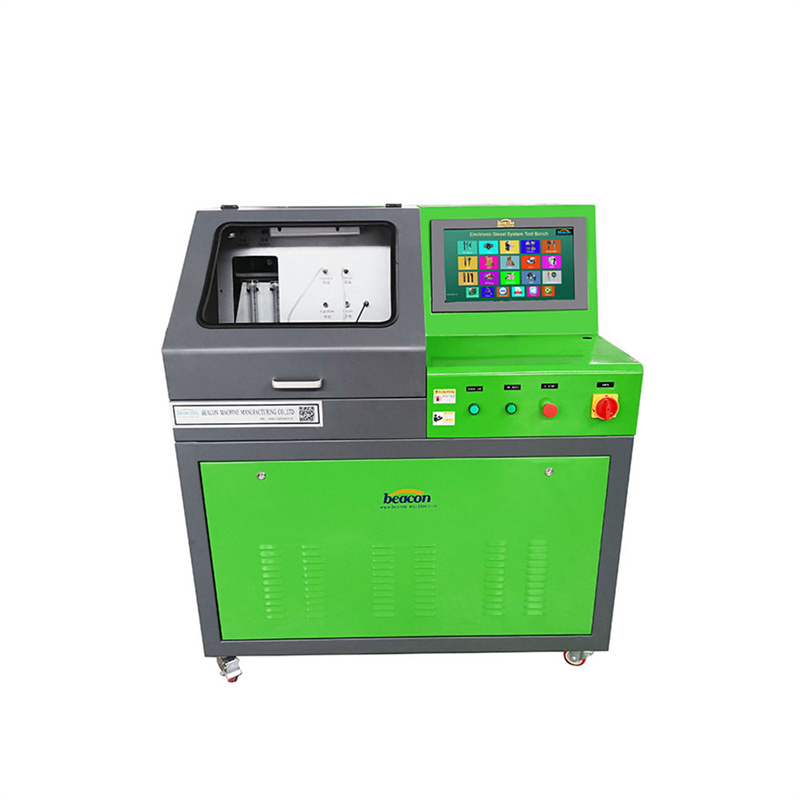

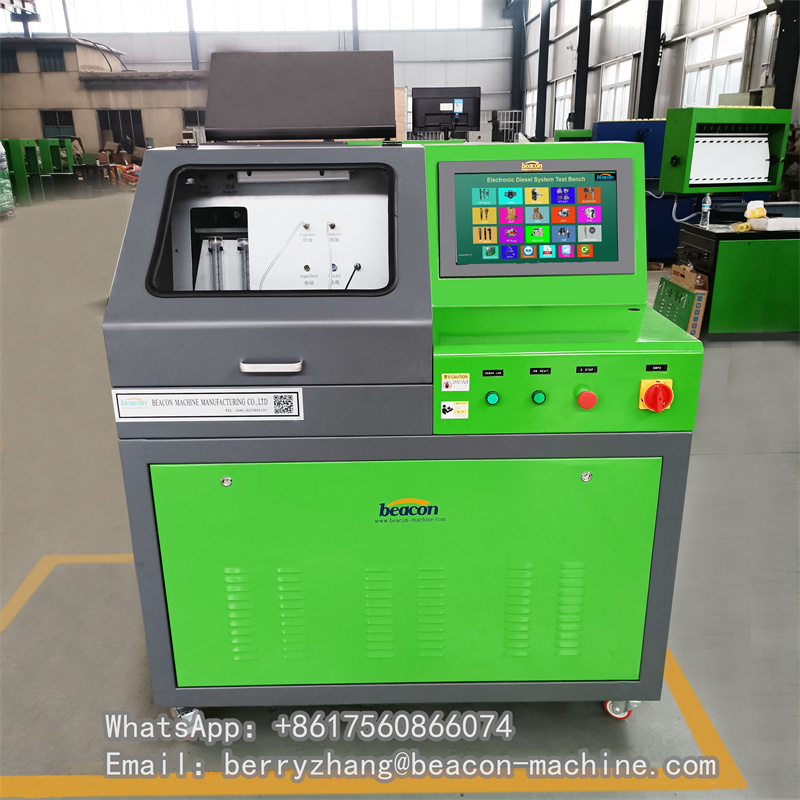

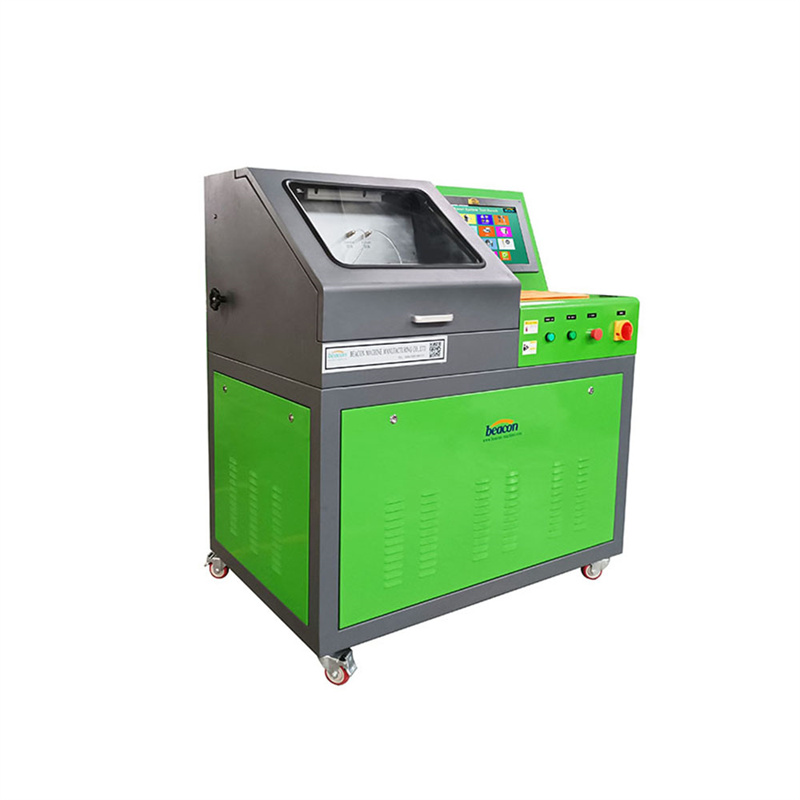

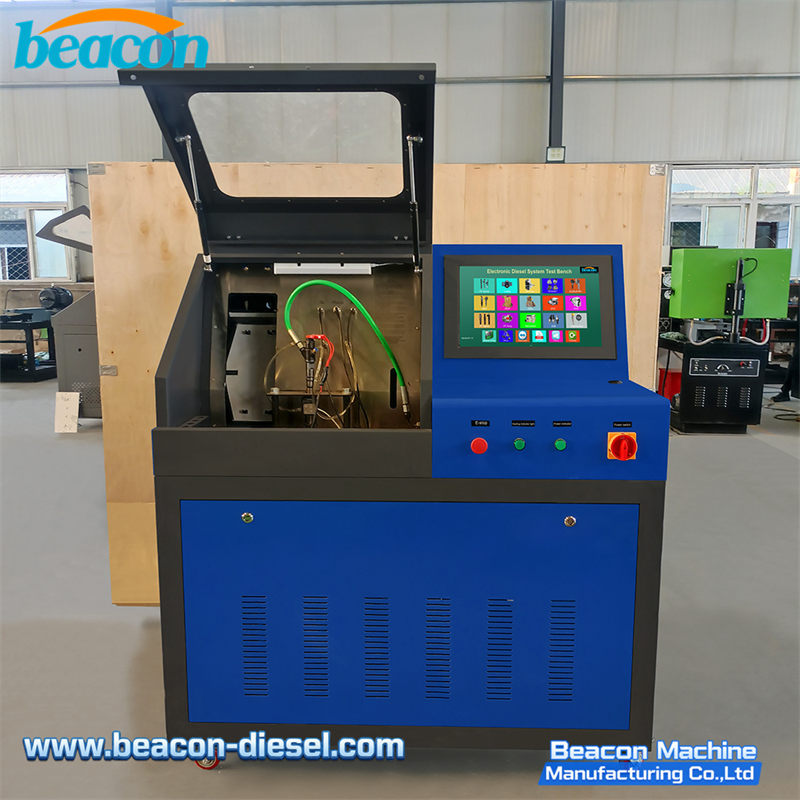

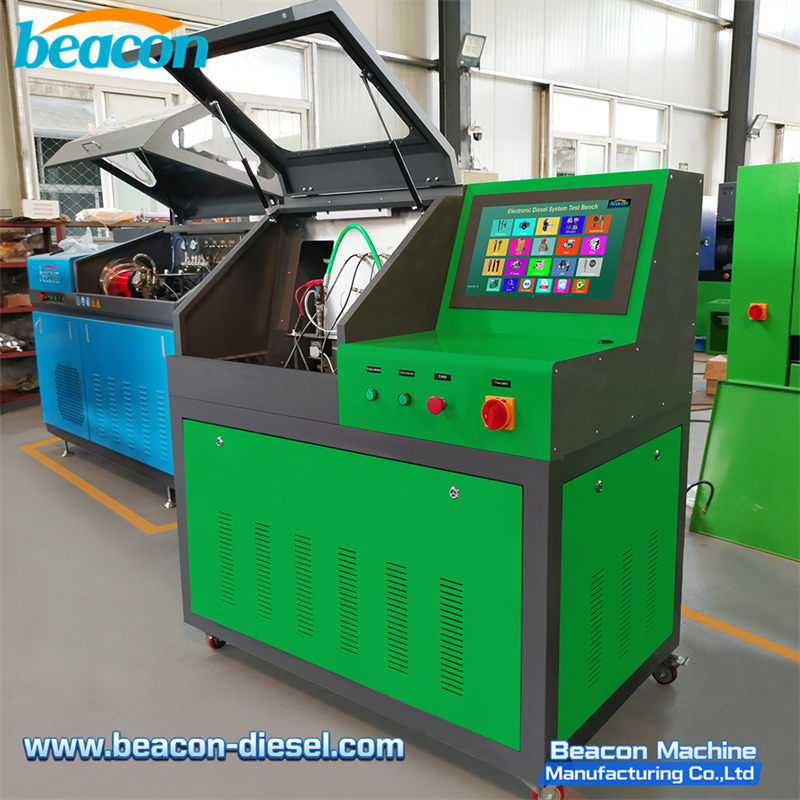

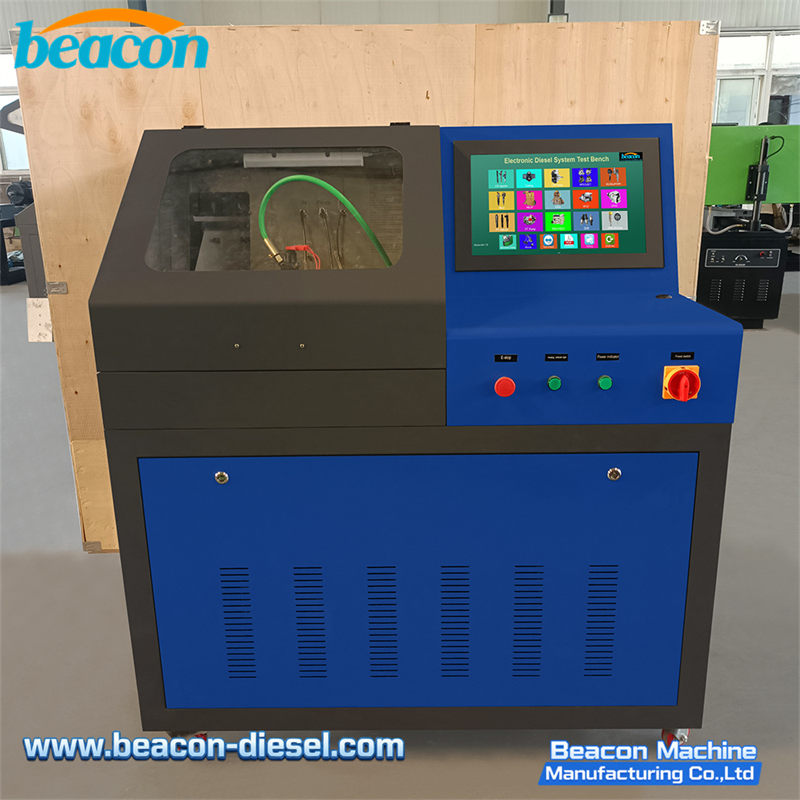

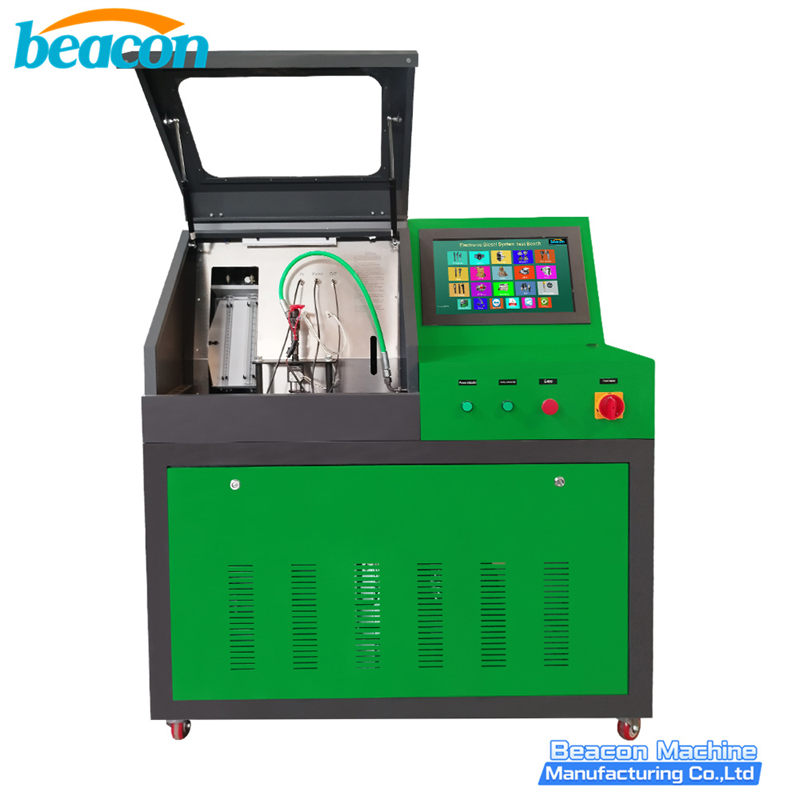

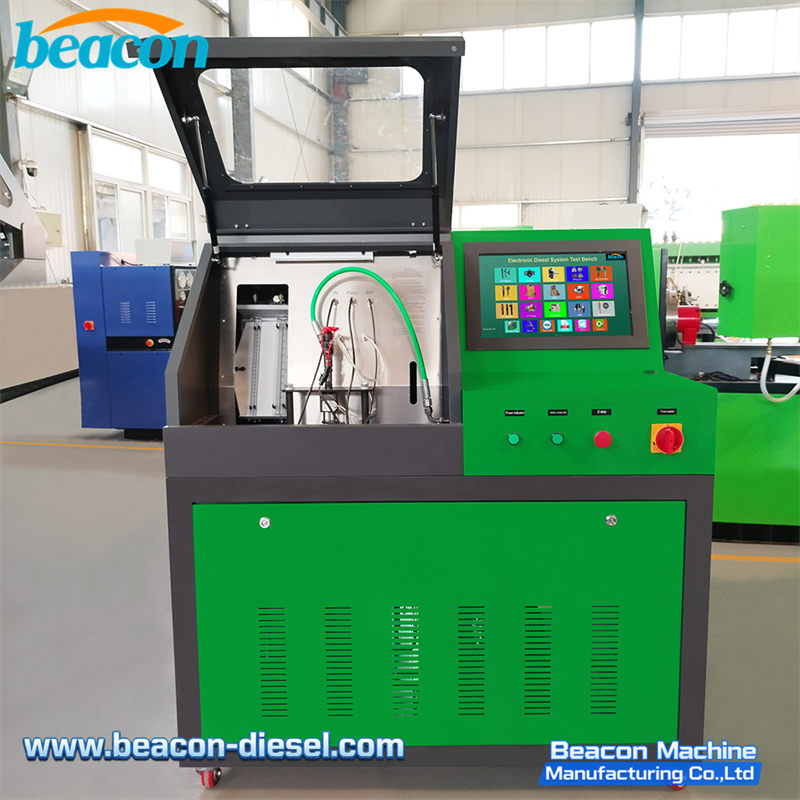

High Pressure Common Rail Diesel Fuel Injector Testing CRS5000S Cr Injector Test Bench

CRS5000S COMMON RAIL TEST BENCH is mainly test for common rail injector.

Introduction

High Pressure Common Rail Diesel Fuel Injector Testing CRS5000S Cr Injector Test Bench

CRS5000s COMMON RAIL TEST BENCH is mainly test for common rail injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured value.

The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH(DENSO) original common rail pump to provide 0~2400bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.Advanced technology, steady performance, precise measurement and convenient operation.
It is the kind of product with a high performance-price ratio in our industry.

CHARACTERISTIC:
1. Controlled by industrial computer in real time, windows operating system.

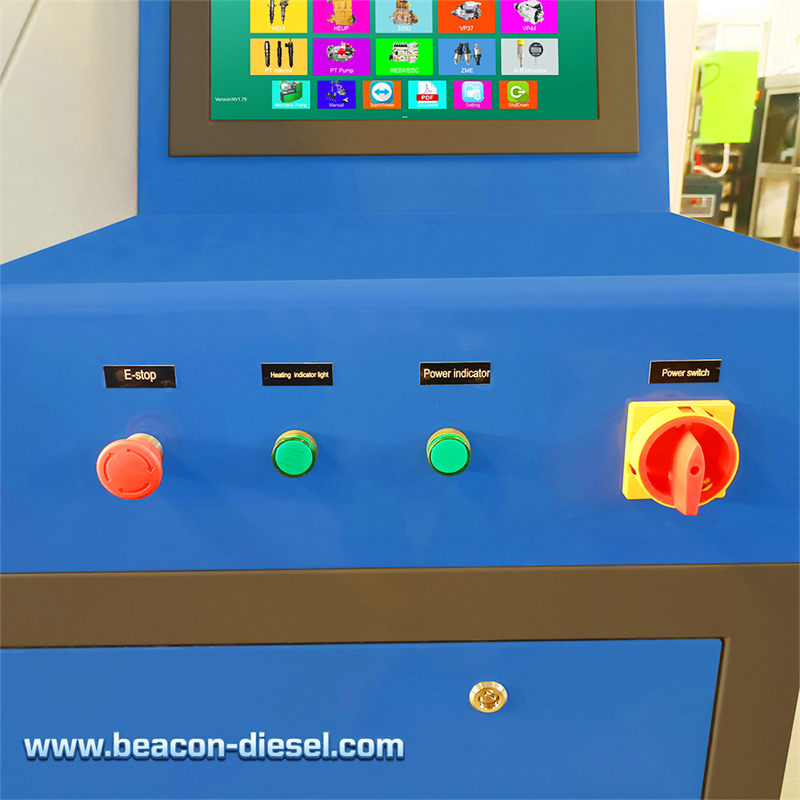

2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen.
3. More than 3000 kinds of injecotor data can be searched and used.
4. It is installed BOSCH(DENSO) common rail pump to provide 0~2400bar for denso rail.
5. Rail pressure can be tested in real time.
6. Provide pressure overload protect by DENSO rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
FUNCTION:
1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the back flow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.

parameter

Supply voltage: 320V/220V single/220V phase
Phase number: Three-phase
Frequency: 50Hz/60Hz
Current: 7.5A(Max)
Motor power: 4kw
Oil temperature control: heating/forced air-cooled
Environment temperature: less than 35℃
The maximum rail pressure: 200Mpa
Common rail pump: Bosch CP3.3
Control circuit voltage: DC24V/DC12V
ECU internal boost: 0-200VDC(Max)

*Test data from Beacon laboratory
