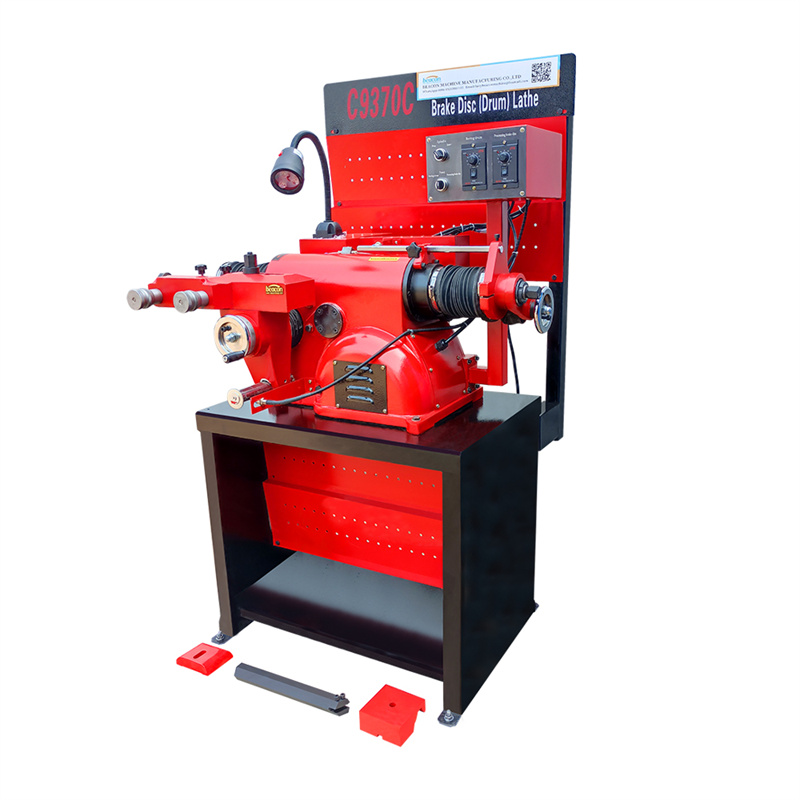

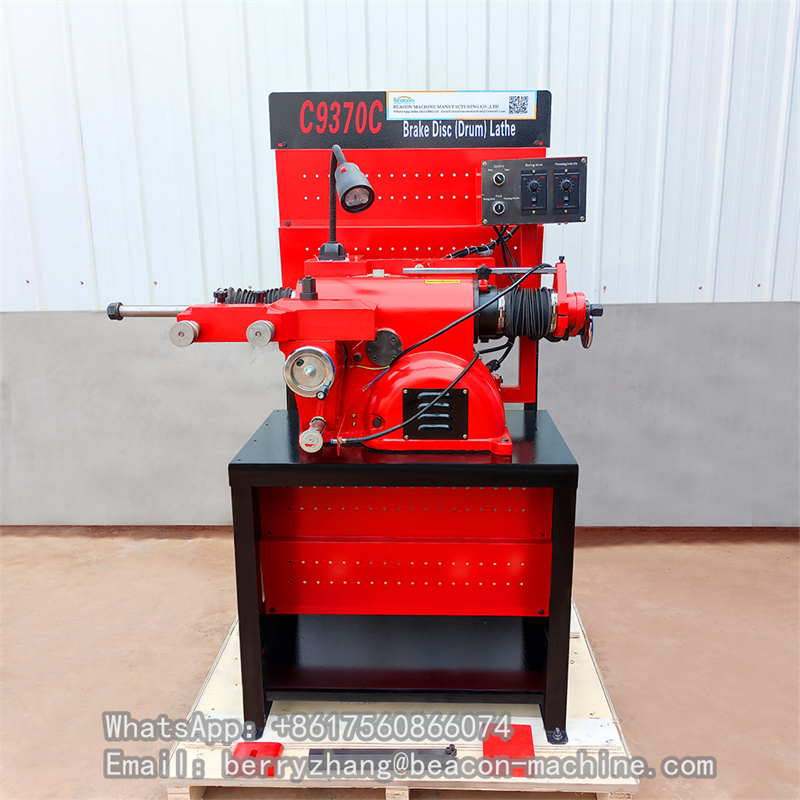

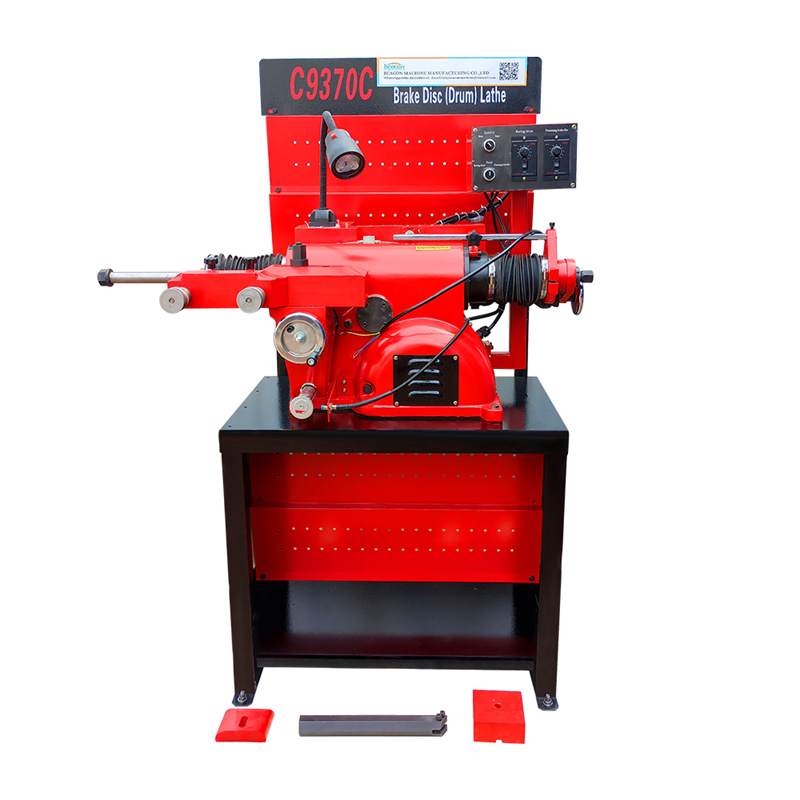

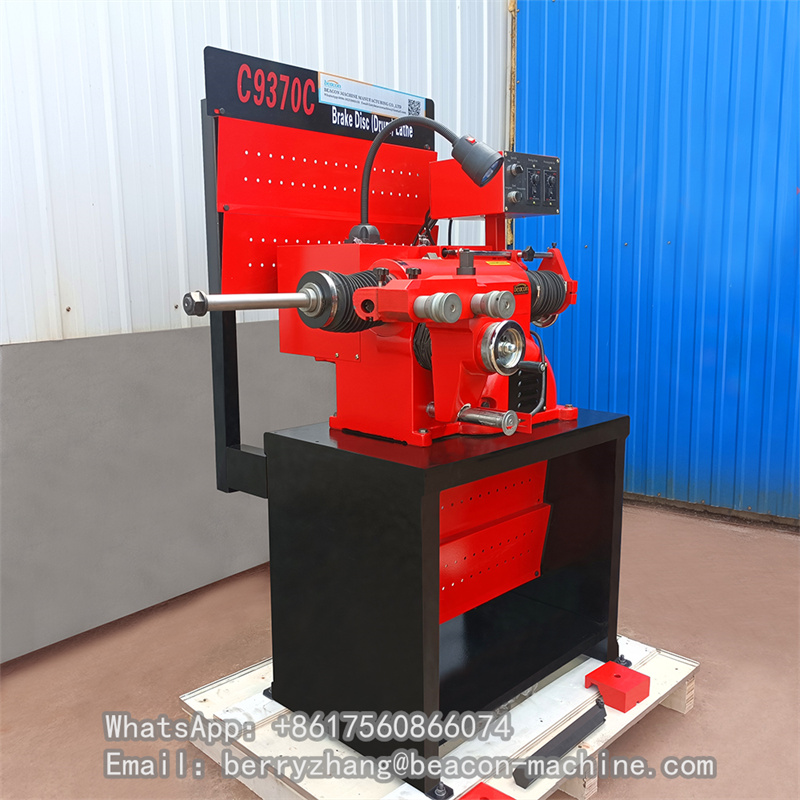

Auto Repair Equipment Brake Disc Drum Skimming Lathe Machine C9370C

The machine is main used for boring and repairing the brake drum and plate for pick-up truck, car and mini car.

Quick Order

Introduction

Auto Repair Equipment Brake Disc Drum Skimming Lathe Machine C9370C


1、The machine is main used for boring and repairing the brake drum and plate for pick-up truck, car and mini car.
2、The machine use horizontal structure , low center of gravity and easy to clamping.
3、Use bearing outer ring of brake drum as the locating datum,usedabber and tabber and taper sleeve can easy to made clampingboring and repairing the brake drum come true.
4、The machine are good in rigidity、 quite in cutter speed、 high inefficiency. In general you only should turning one time ,themachine
can reach your accuracy requirement.
5 、 The machine is variable speed control without step, easy tooperate , easy to repair,on the safe side .

parameter

Main Specifications C9370C
Range of processing:     Brake Drum 152-700mm
                                          Brake Plate 180-460mm
Max depth of processing brake drum: 260mm
Spindle Speed: 70、88、118r/min
Speed: 0.05-0.5mm
Max processing depth: 0.5mm
Machine power: 0.75kw/1400r/min/380(220)v
Overall Dimensions: 1360*980*1520mm
Packing Dimensions: 1060*950*1460mm
N.W/G.W: 330/380KG

*Test data from Beacon laboratory
