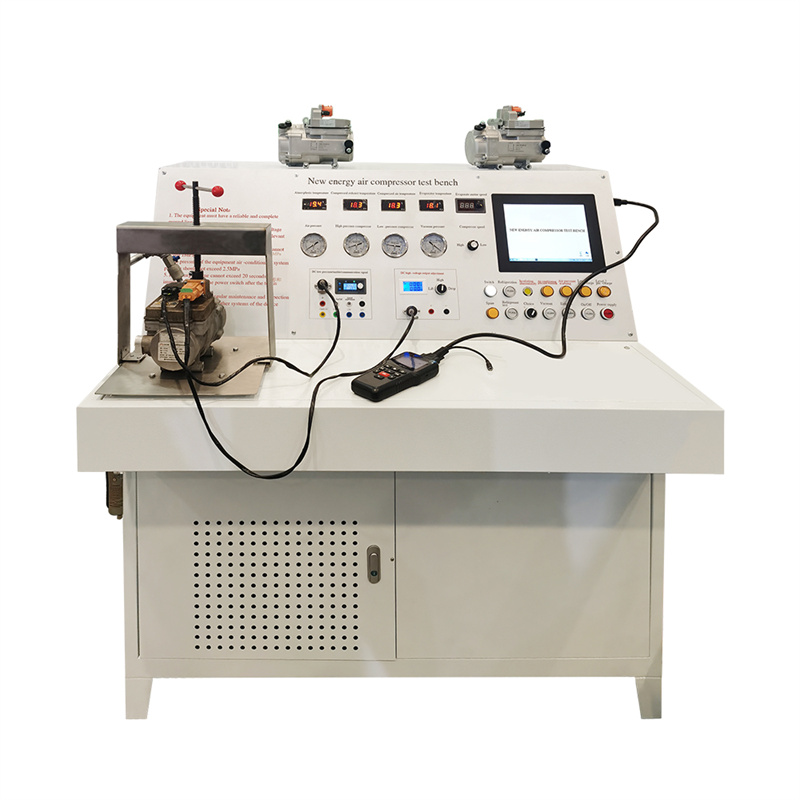

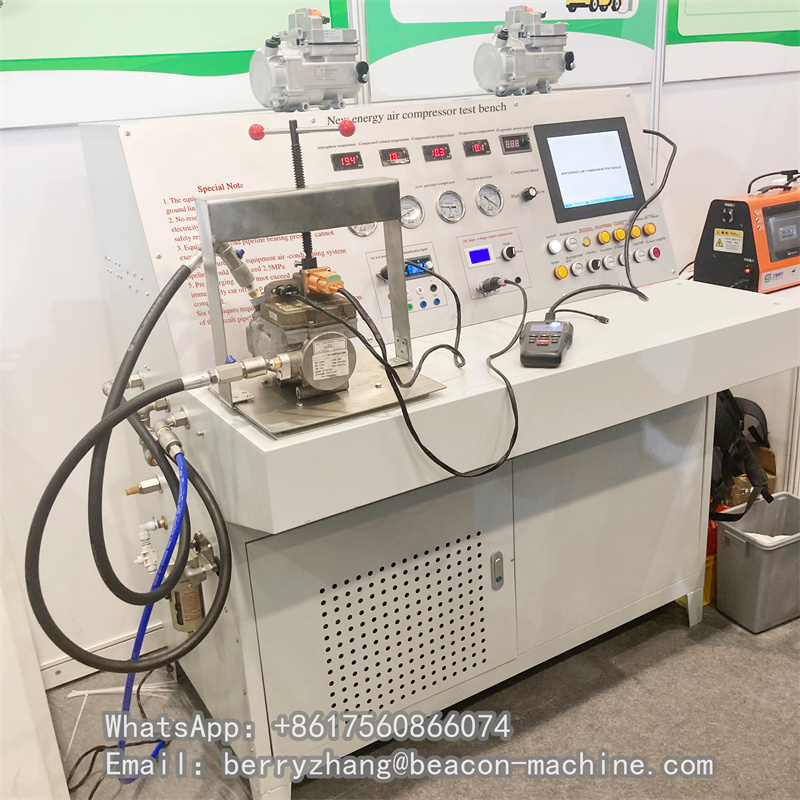

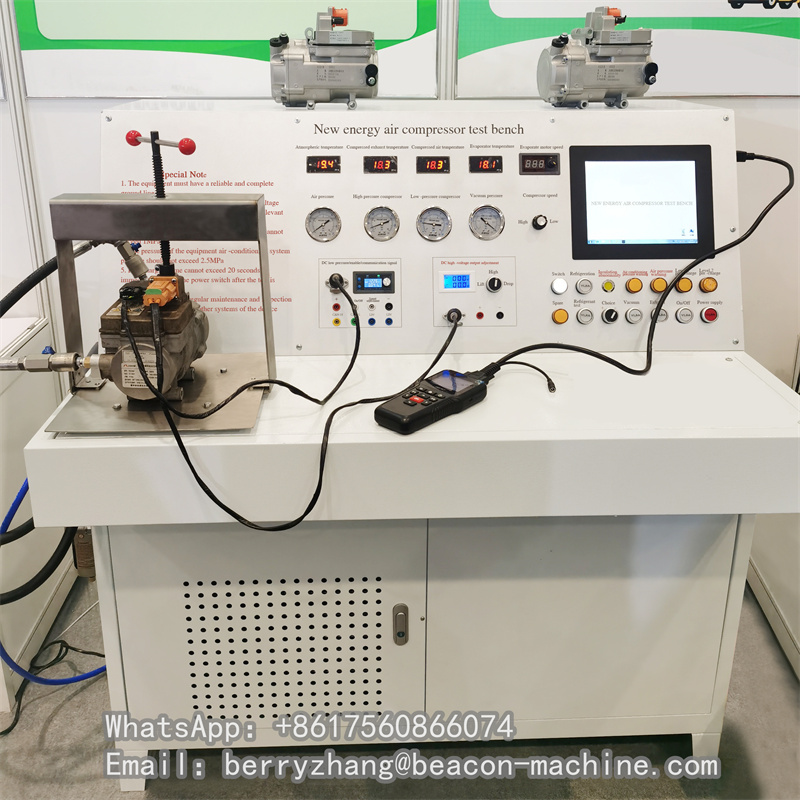

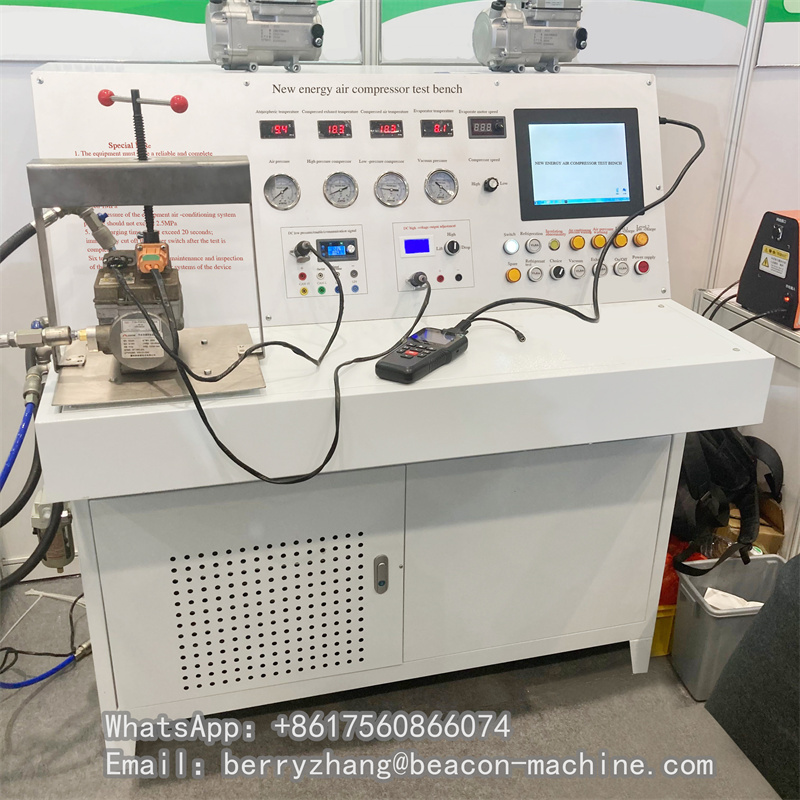

High Precision Air Compressor Test Bench NC101 For New Energy Vehicle Air Conditioning Compressor

New Energy Car Air Conditioning Compressor Nc101 Test Bench WIth Ac/Dc Leakage And Overload Protection Function

Introduction

High Precision Air Compressor Test Bench NC101 For New Energy Vehicle Air Conditioning Compressor

FUNCTION
(1) One channel of DC 0 ～ 650V/30A output
(2) One channel of DC 0~30V/25A output
(3) There are two levels of pre -charging functions.
(4) There is a self -discharge function after power off.
(5) There are 5Mn insulation testing
(6) There is an AC/DC leakage and overload protection function
(7) "Air" test mode: have electrical control over pressure (8KG) protection function and mechanical ultra -pressure (10kg); there is electric exhaust and manual oil discharge function
(8) "Air Conditioning" test mode: It has its own air -conditioning system to draw real vacancy/air -conditioning system refrigerant recycling function; there is a high/low voltage protection function of the electronic control air -conditioning system
(9) Adjustment of compressor speed;
(10) There are commonly used compressors to enable/CAN/LIM startup ports; when external special drives or computers, they can meet all compressor detection in the market.
(11) Because one machine has two test modes: "air"+air conditioning ", it can quickly judge the basic performance of the compressor;It can also truly simulate the use of the compressor in the air conditioning system; it can quickly/intuitive detection of various parameters of the compressor
(12)Equipment comes with work -controlled man -machine exchange, preset commonly used test drivers, high degree of automation. (This software function is under development)
(13) Suitable for compressor maintenance detection and compressor parts and assembly production enterprises, durability testing

parameter

1: Equipment Size (unit mm):
1200X 1100X 600
2: Working Voltage:
AC 220V; 50H/Z (if you need to communicate 380V, you need to order)
3: Detection Range:
Air -conditioning system high voltage 0～25kg (if you need to order over 25kg);
air-conditioning system high voltage 0 ～ 10kg;Generally use refrigerant F134A;
air pressure detection range: 0～8kg (if you need to order

*Test data from Beacon laboratory
