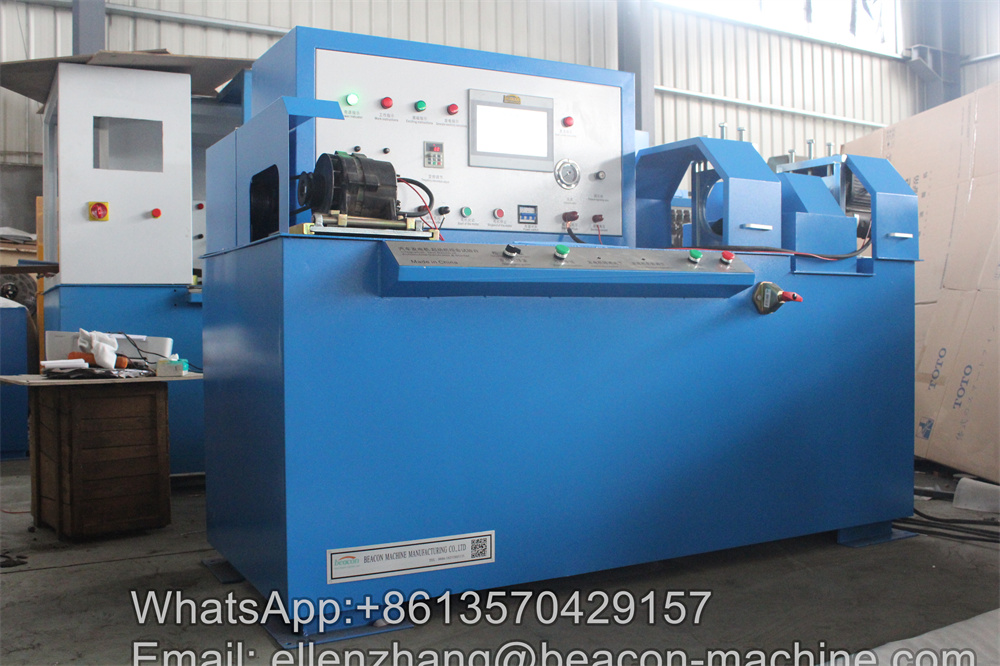

Automotive generator starter test bench BCQZ-C

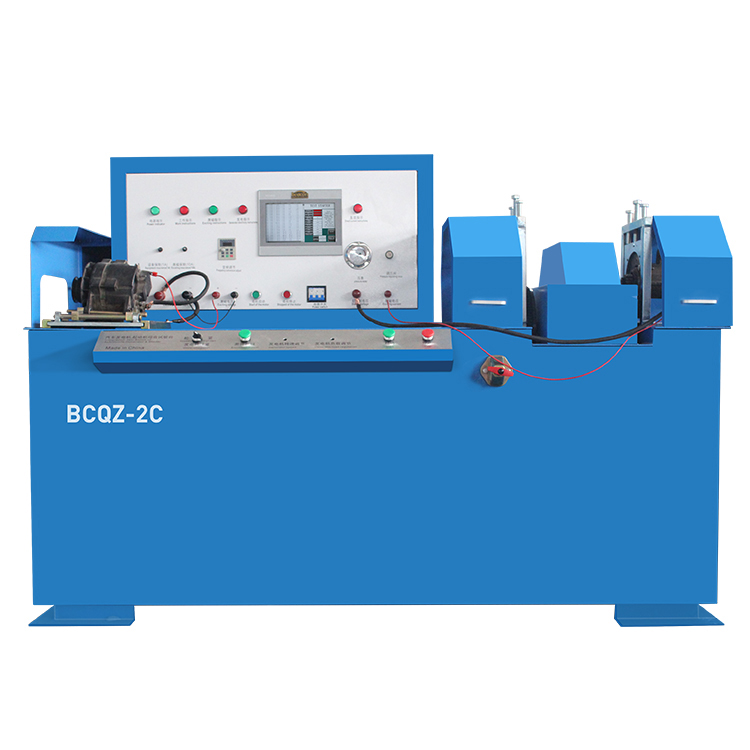

BCQZ-2C Automotive generator starter test bench

The test bench adopts frequency conversion speed regulation, combined with PLC and touch screen control.

It is mainly used for performance test of automobile generator and starter, as well as special generator and starter test.

The machine has the characteristics of high regulation sensitivity, strong controllability and high degree of automation.

The load adopts electronic module type, which is safe and reliable.

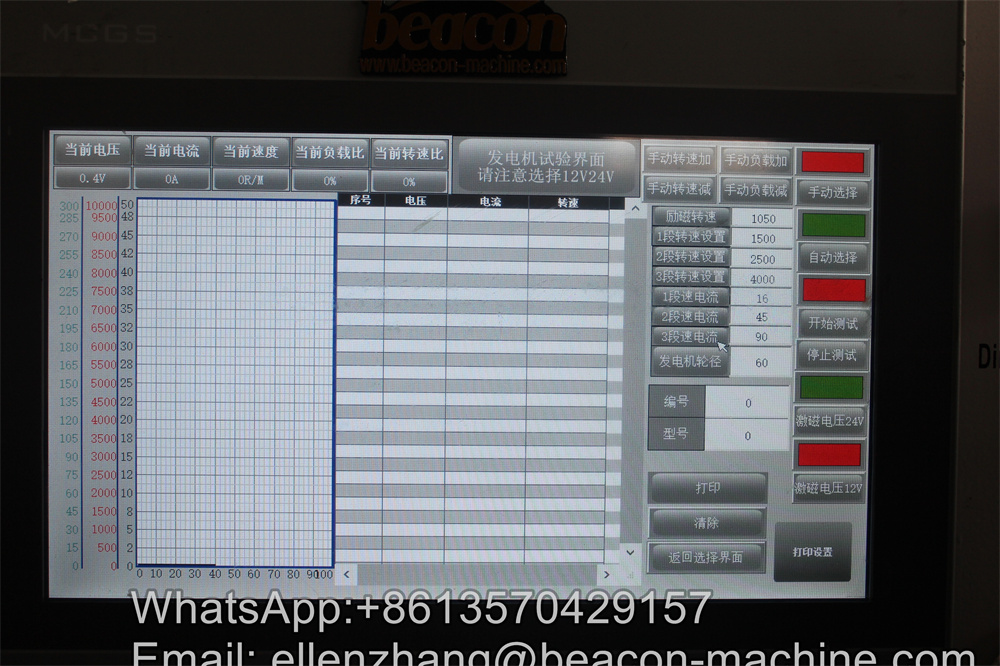

The touch screen carries out data processing, displays and prints the detection results and waveform curves, and can realize the dynamic detection of various types of generators and starters.

Input voltage 380 AC, 50Hz;

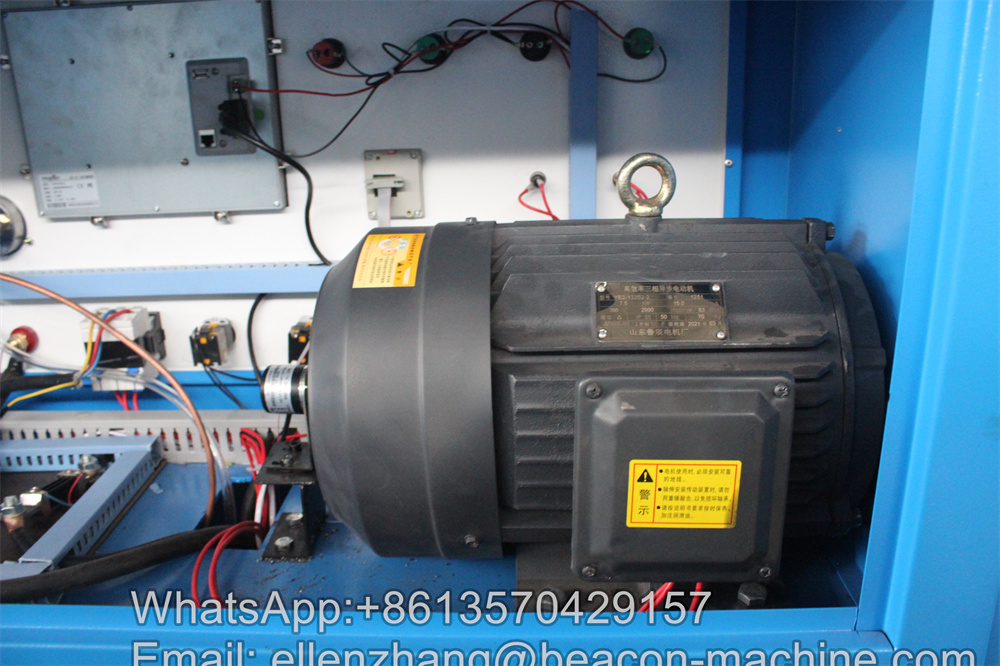

Motor power: 15kw

Frequency converter power: 15kW (three-phase AC)

Steering: forward and reverse;

Speed regulation range: no load 0-8000r / min, load 0-6000r / min;

1. Load mode: electronic modular DC (0 ~ 300A)

Working current of generator: 0-300A (continuously adjustable)

2. Factory setting of frequency converter: 0 ~ 80Hz

Excitation voltage: DC 12V 24V

Excitation current: 10A

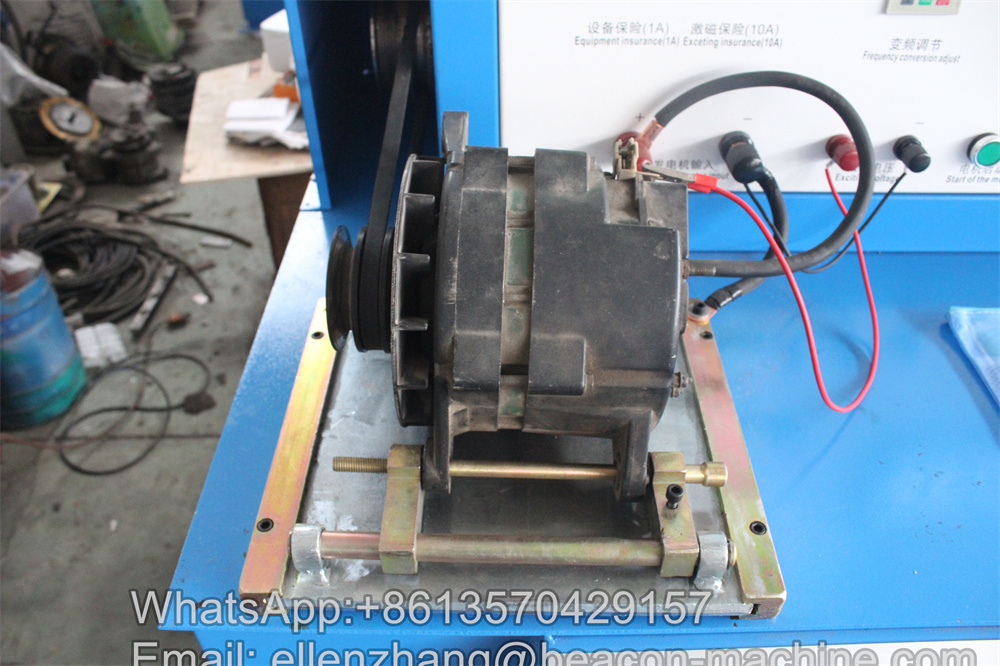

Generator clamp: Electric

Generator speed regulation: touch type

Generator load regulation: touch type

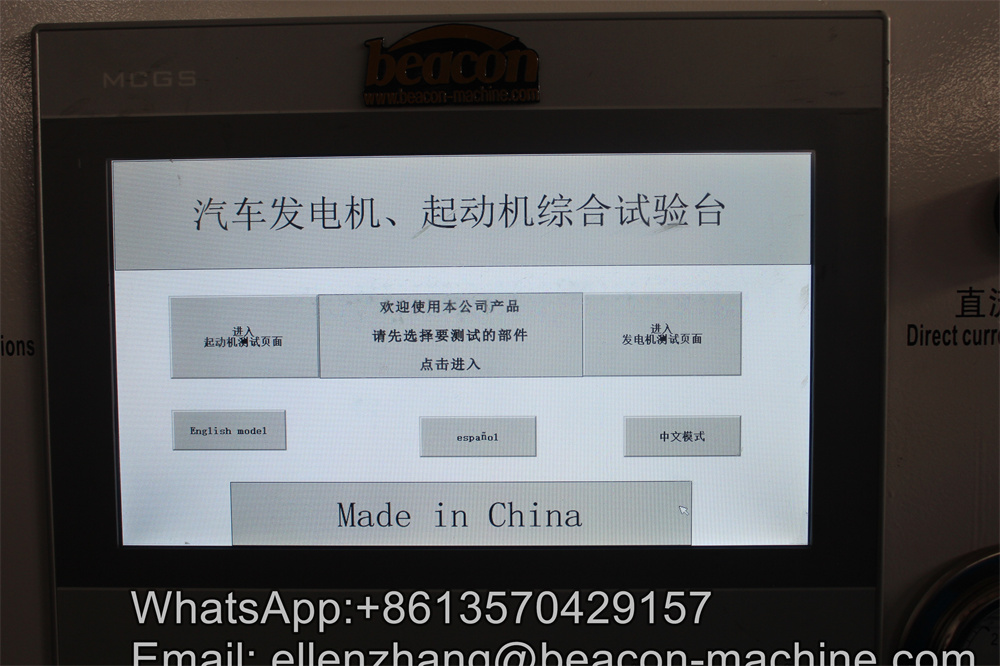

3. Display mode: touch screen

4. Operating voltage of starter: (selected according to starter)

Operating current of starter: 0-2000A

Torque of starter: 0 ~ 200N. M

Speed range of starter: 0-9999 rpm

Oil pressure setting: 0 ~ 1MPa (arbitrary adjustment)

Start time: any setting

Starter brake: hydraulic automatic brake

External battery: 12V or 24V  (provided by the user)
