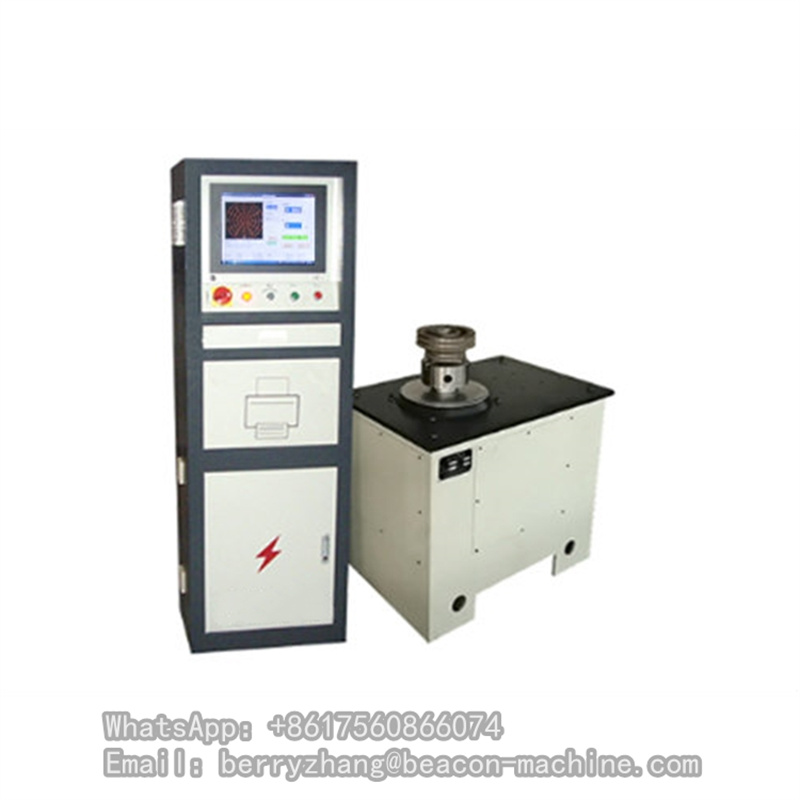

Beacon Boat Repairing Yld-20S Drive Shaft Fan Blade Pump Impeller Vertical Dynamic Balancing Machine

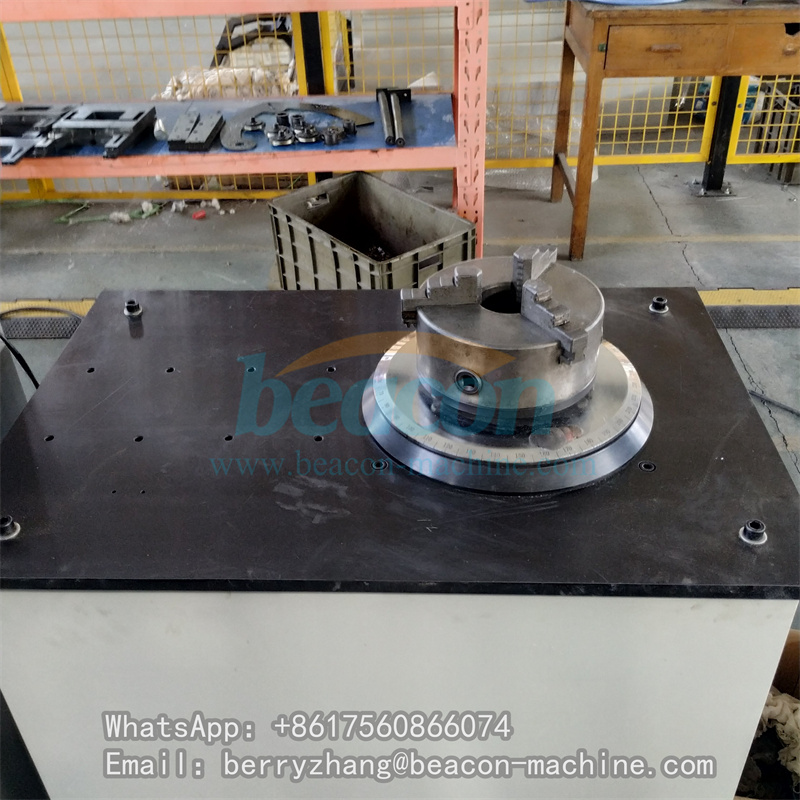

This series fo balancers are single-sided bertical balancers.This machine is suitable for cheching the dynamic balance of disc rotating parts on one side. It is an ideal equipment for dynamic balance checking of fan blade， ventilation fan blade, automobile flywheel, clutch, brake disc, brake drum, hydraulic torque converter, hydraulic coupler and other parts. When replacing the workpiece, only the fixture for installing the workpiece needs to be replaced to check the balance. The common type of this machine is driven by two-speed motor. "A" Type is Variable Frequency Speed Regulation System.Data processing is carried out by industrial control computer. LCD displays unbalance value, phase angle and real-time speed in real time. It is equipped with industrial cabinet and balancing machine system with mechanical parts, which is convenient for parameter storage and printing. The system has high test accuracy, reliable use and convenient maintenance. More advanced than other test systems. It can be equipped with general fixture, torque converter and other special fixtures, and also can be equipped with side weight removal drilling machine, vertical weight removal drilling machine and vacuum device and other accessories.

GB-2000 Universal Microcomputer Balance Measurement System is the latest Universal Microcomputer Balance Measurement System under Windows XP Operating System. The operating environment of this system should be at least above Windows 95 operating system. The hardware of the system is composed of several single chip microprocessors (CPUs). It uses a dual-channel high-speed A/D converter. It has the functions of programmable tracking amplification, programmable tracking filtering, real-time speed measurement, real-time data transmission, analog reference signal and analog vibration signal. It makes full use of the advantages of Windows and makes the measurement system powerful. From the operation interface, data processing, report printing, data graphics display, file graphics print output, all reflect the charming style of Windows. Concentrated design makes the balancing measurement system suitable for various balancing equipments such as soft support, hard support, static balance, dynamic balance and so on. It can also realize the simultaneous measurement of multiple balancing devices by a measuring system. Full dynamic and uninterrupted measurement of unbalance magnitude, phase and speed is realized, and the measurement accuracy is greatly improved.

parameter

1)weight of work-piece (kg): 1-20
2)Max diameter of work-piece (mm): φ500
3)Min achievable residual unbalance amount(gmm/kg): ≤3
4)Unbalance reduction ratio(%): ≥90
5)Rotating speed(r/min): 200-1500
6)Motor power(kw): 1.1
7)Drive mode: V-ribbed belt driven
8)Work environment: temperature: -5---45℃; humidity: 0-85%

*Test data from Beacon laboratory
