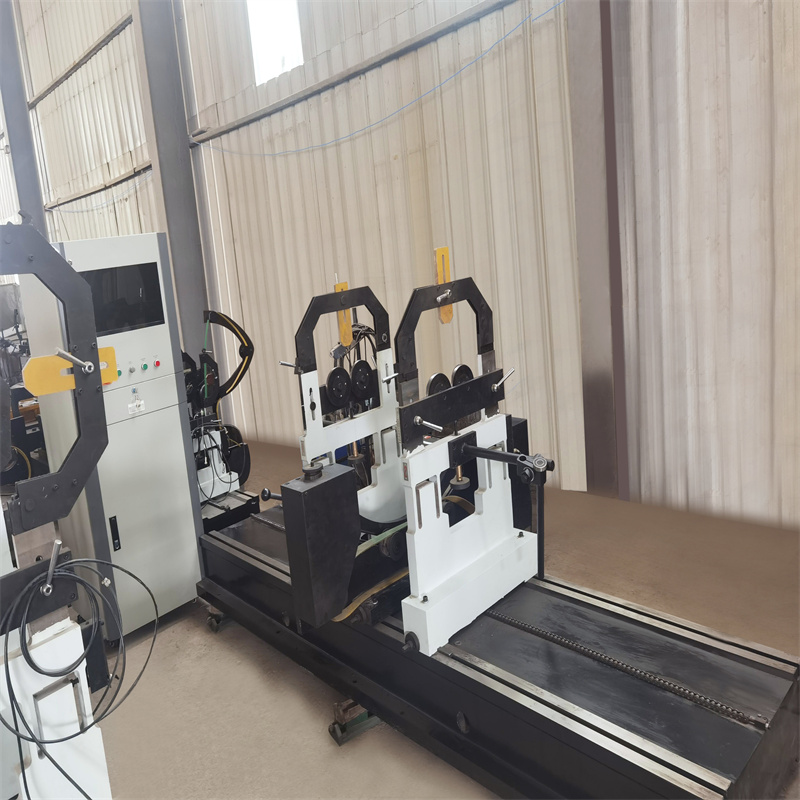

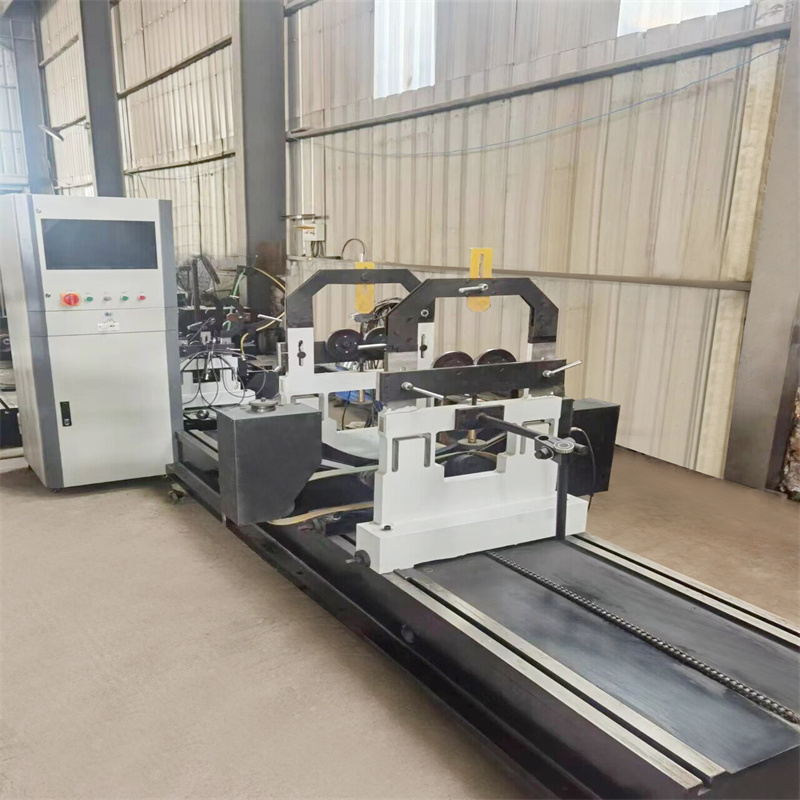

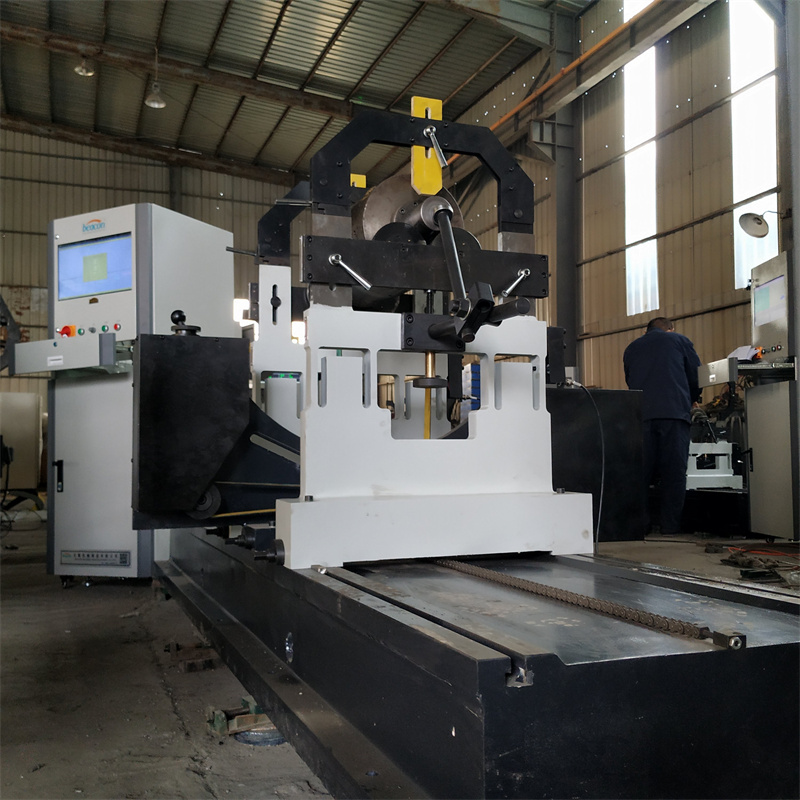

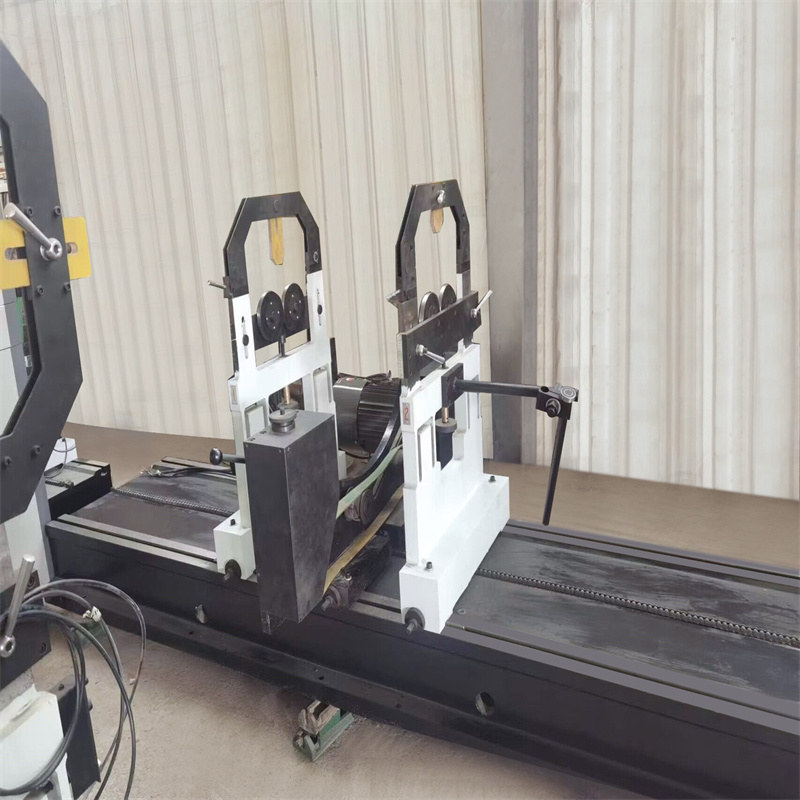

YYQ-1600A horizontal double-sided dynamic balancing machine with hard support driven by ring belt for dynamic testing

SUMMARY

This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.

Model：YYQ-1600A

EThe measuring time：10s (measurement cycle can be arbitrary set).

Software version：Windows XP

display mode：19 inch LCD

power supply：The power of three-phase four-wire type AC 380V, 50/60HZ

Working：continuously

Workpiece quality range (Kg)：20-1600

Beam supporting interval distance (mm)：340-3300

Trunnion range (mm)：Φ 20-120,120-240

Workpiece diameter (mm)：2100

Balance speed (r/min)：180-1800 variable frequency speed regulation

Motor power (KW)：11

Unbalance reduction rate%：≤90

Minimum can reach surplus balabcing (emar)：≤0.5g・mm/kg

*Test data from Beacon laboratory
