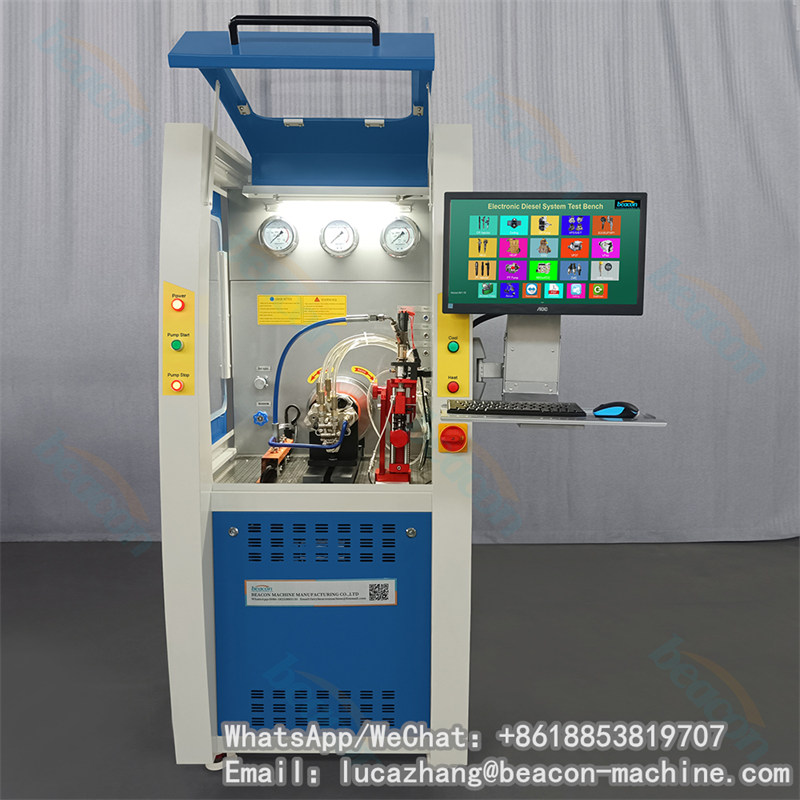

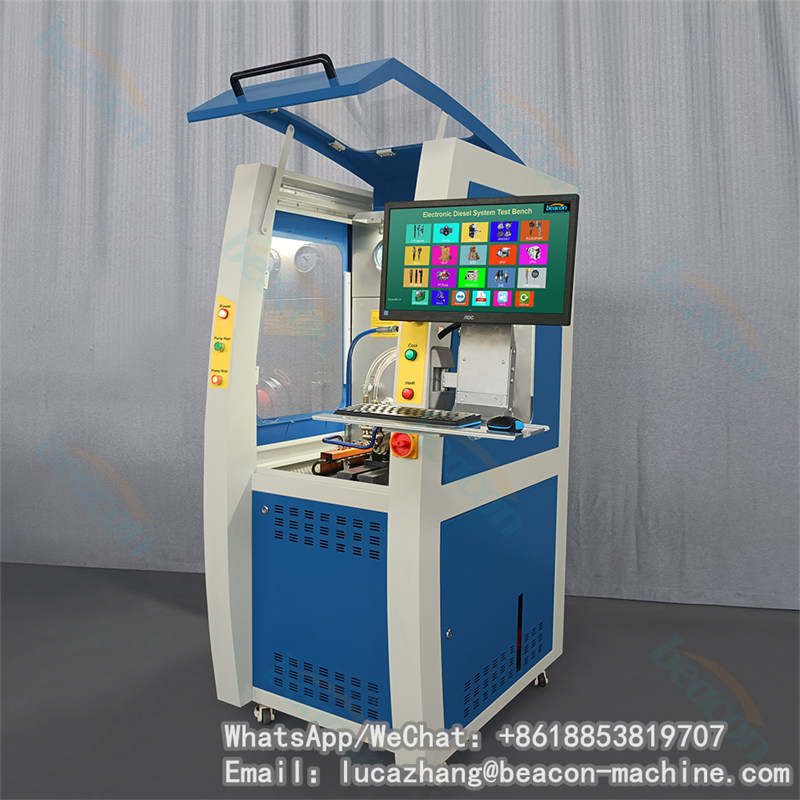

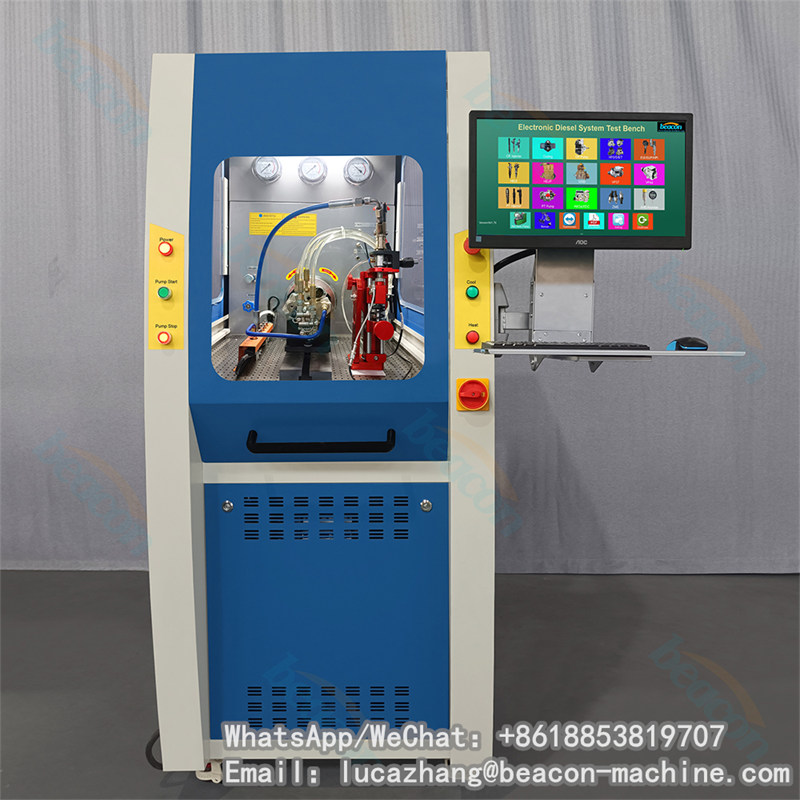

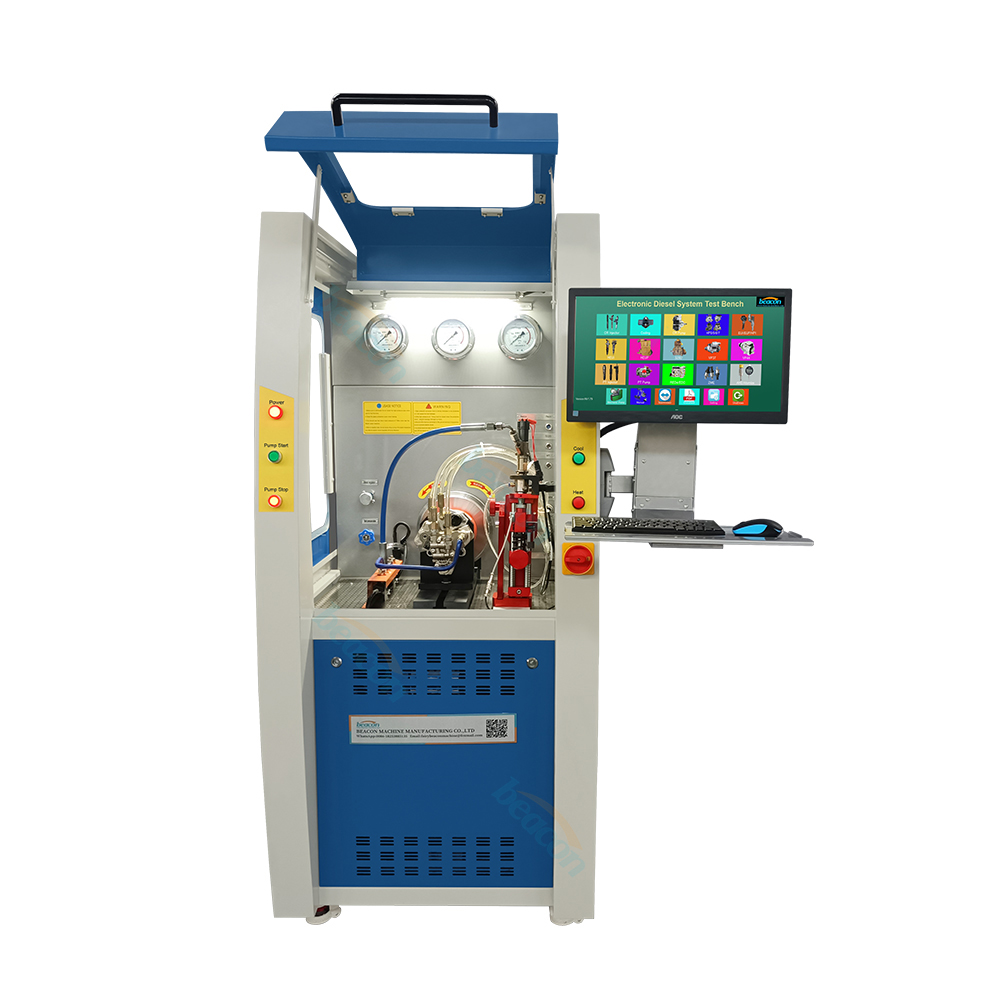

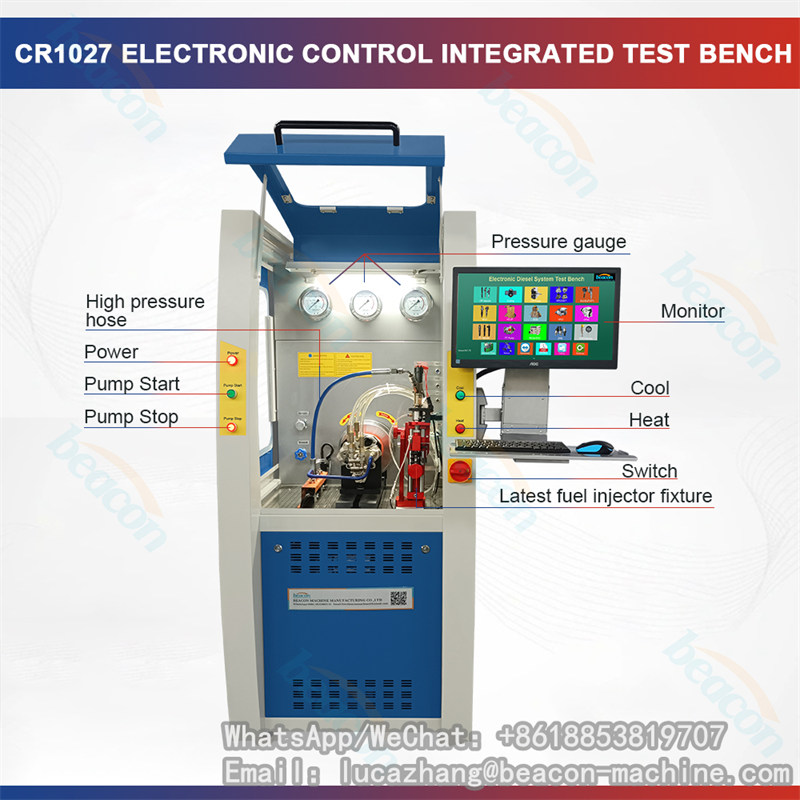

Beacon CR1027 High Pressure Common Rail Electronic Control System Comprehensive Machine Diesel Injector Pump Test Bench

CR1027 high pressure common rail electronic control system comprehensive test bench can test common rail injectors, piezoelectric injectors, common rail pumps, etc.

WhatsApp: +8618661335350

Tel / Wechat: +8618661335350

Email: beacondiesel@beacon-machine.com

Quick Order

Introduction

CR1027 high-voltage common rail electronic control system comprehensive test bench: using a fully automatic control system, it can very conveniently conduct testing of electronically controlled common rail injectors (including piezoelectric common rail injectors), high-voltage electronically controlled common rail pumps, etc. Testing and maintenance. It can test thousands of models of electronically controlled injectors and high-voltage electronically controlled common rail pumps including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang), etc. The test data is complete. Optional EUI EUP and other functions.

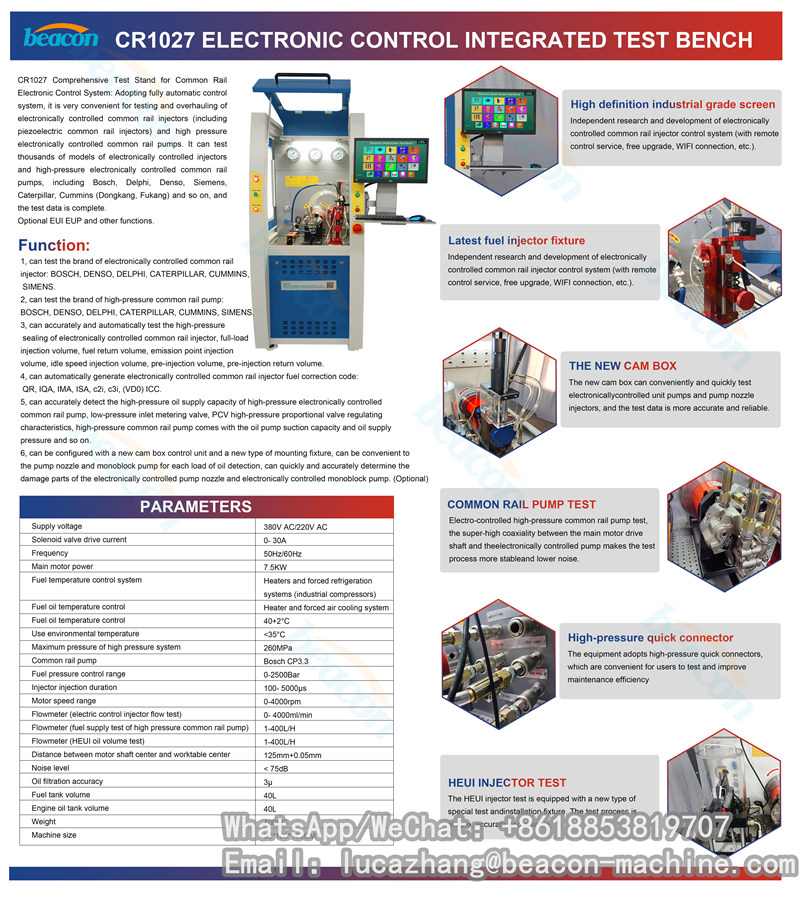

parameter

Fuel Injector open ：12V, 80V, 150V Control accuracy:
voltage Control range: phase adjustment
Injector opening ：0-1000HZ Control accuracy: 1HZ
frequency Control: 0-65535us
Fuel Injector Hold Time Control: 0-1000 times
Delivery Oil Count Control accuracy: 1 times
Fuel pressure control：0-2400bar
Control accuracy: 1bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size: 95*107*195
Weight: 450KG
*Test data from Beacon laboratory

product video

Beacon CR1027 High Pressure Common Rail Electronic Control System Comprehensive Machine Diesel Injector Pump Test Bench

Function:
1. Electronically controlled common rail injector brands that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.
2. High-pressure common rail pump brands that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.
3. It can accurately and automatically test the high-pressure sealing, full-load fuel injection volume, oil return volume, discharge point fuel injection volume, idle speed injection volume, pre-injection volume, and pre-injection return volume of the electronically controlled common rail injector.

4. Can automatically generate electronically controlled common rail injector fuel quantity correction codes: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.
5. It can accurately detect the high-pressure oil supply capacity of the high-pressure electronically controlled common rail pump, the pressure regulating characteristics of the low-pressure oil inlet metering valve and the PCV high-pressure proportional valve, and the oil suction capacity and oil supply pressure of the high-pressure common rail pump's own oil transfer pump.
6. It can be equipped with a new cam box control unit and a new clamping fixture, which can conveniently detect the oil quantity of the pump nozzle and single pump for each load, and can quickly and accurately judge the electronically controlled pump nozzle and electronically controlled single pump. damaged parts. (optional)
