Introduction

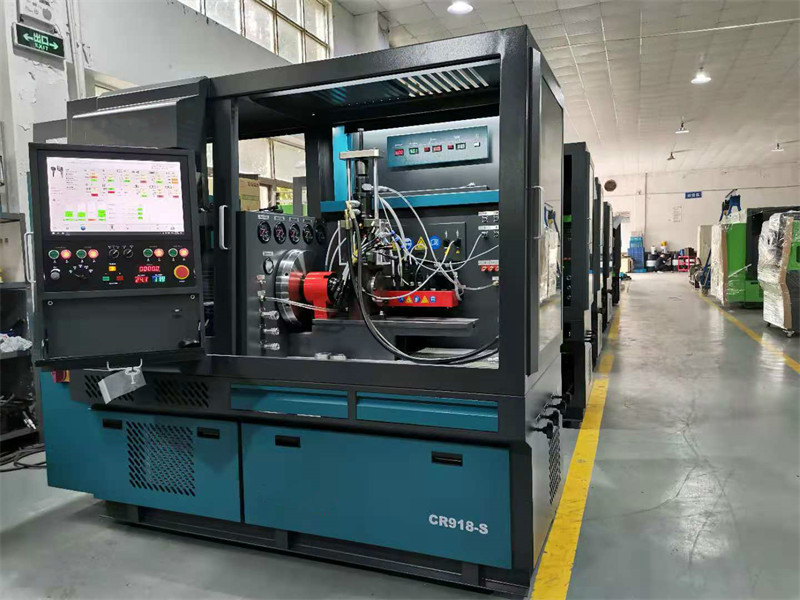

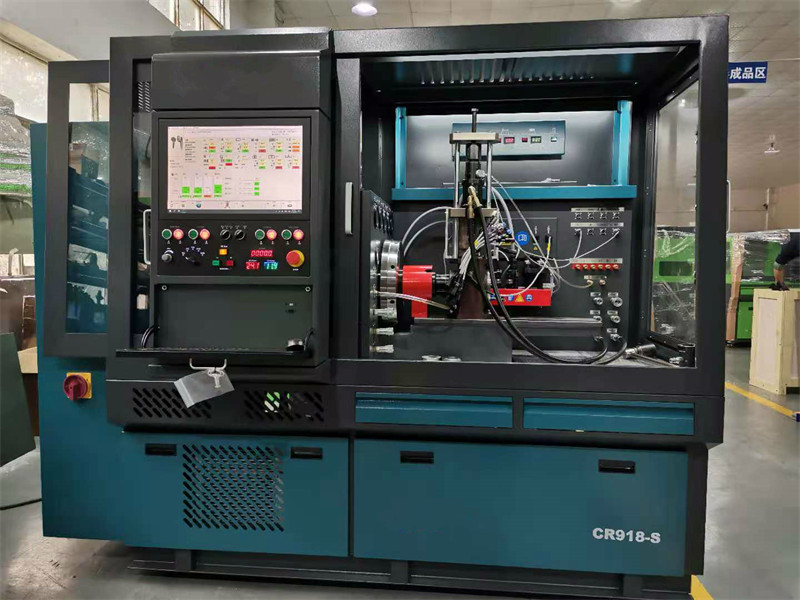

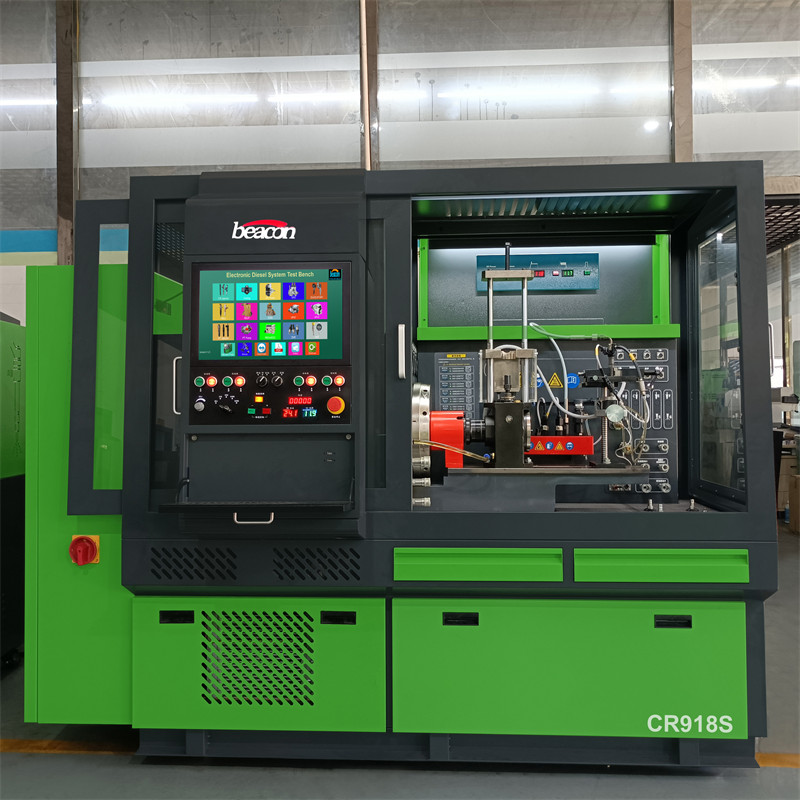

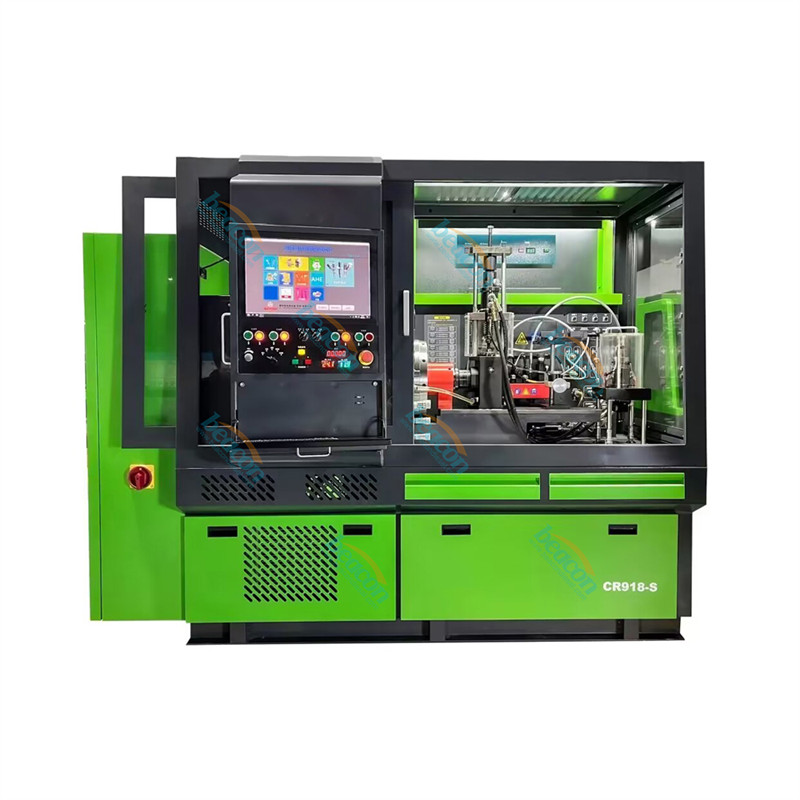

Beacon CR918S all injector generation encoding function common rail diesel injector fuel pump test bench CR918-S

parameter

Main power: 380V AC 220V(Optional)
Phase: Three,single(Optional)
Frequency: 50HZ/60HZ
Current: 45A(MAX)
Main Motor: 22kw
Main motor rotation: 0-4000 RPM/MIN
Oil motor HP/FLOW: 0.19KW/13L/MIN
Diesel motor HP/FLOW: 0.19KW/13L/MIN
Control circuit voltage: DC12V/24V 350W
ECU internal voltage: 0-200V DC(MAX)
Oil tank volume: 30L
Diesel Tank volume: 52L
Tempreature control: Heating/Forced cooling
Max rail pressure: 180Mpa 240Mpa(Optional)
Flowmeter(injection): 4-550ml/min
Flowmeter (pump supply): 1-400L/H
Flowmeter (pump flowback): 1-400L/H
Flowmeter(oil): 5-600L/H
Center distance between motor and working bench: 125mm
Weight: 1100KG
Outlook size net: (LxWxH)2400x1350x1880
Wooden cage: (LxWxH)2500x1480x2050
*Test data from Beacon laboratory

product video

Beacon CR918S all injector generation encoding function common rail diesel injector fuel pump test bench CR918-S


FEATURES:

Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation

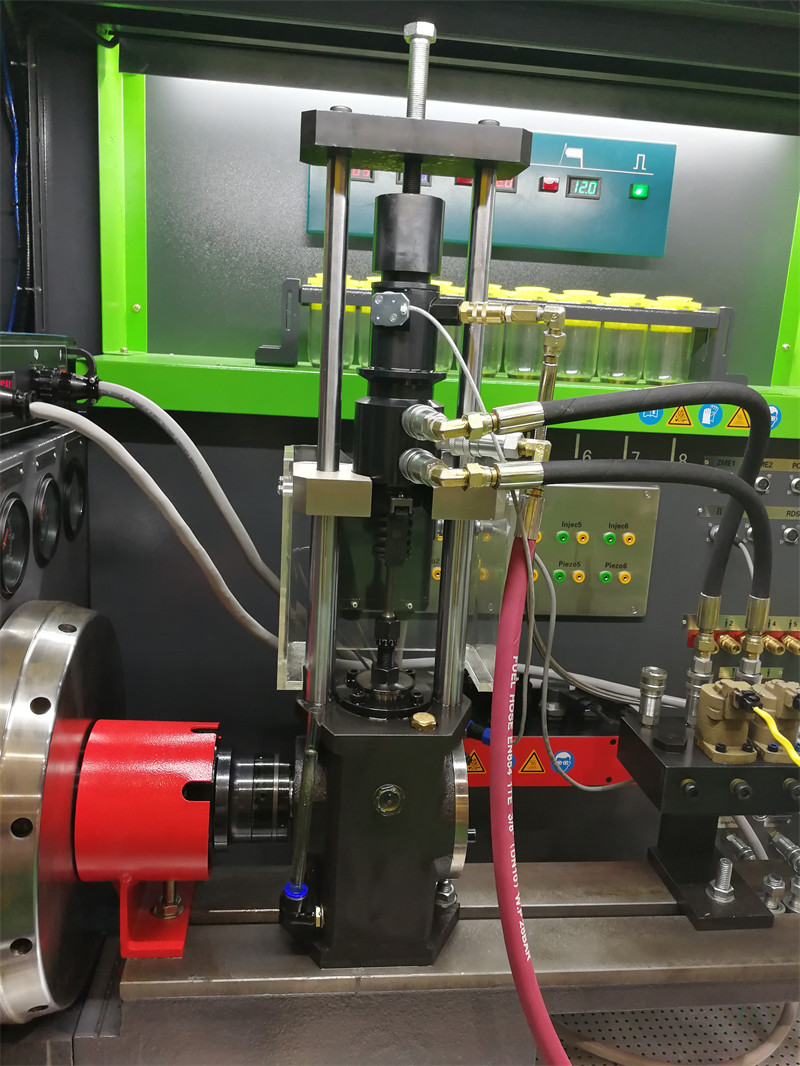

►Test common rail injector
►Test common rail pump
►Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure is 2600 bar
►Drive motor 22KW
►Injection drive and system voltage monitor
►Common rail with filter function
►Dual DRV configuration
►High pressure filter plugging reminder function
►Waste tank overflow warning
►Oil tank and diesel tank strong integrated air conditioning system
