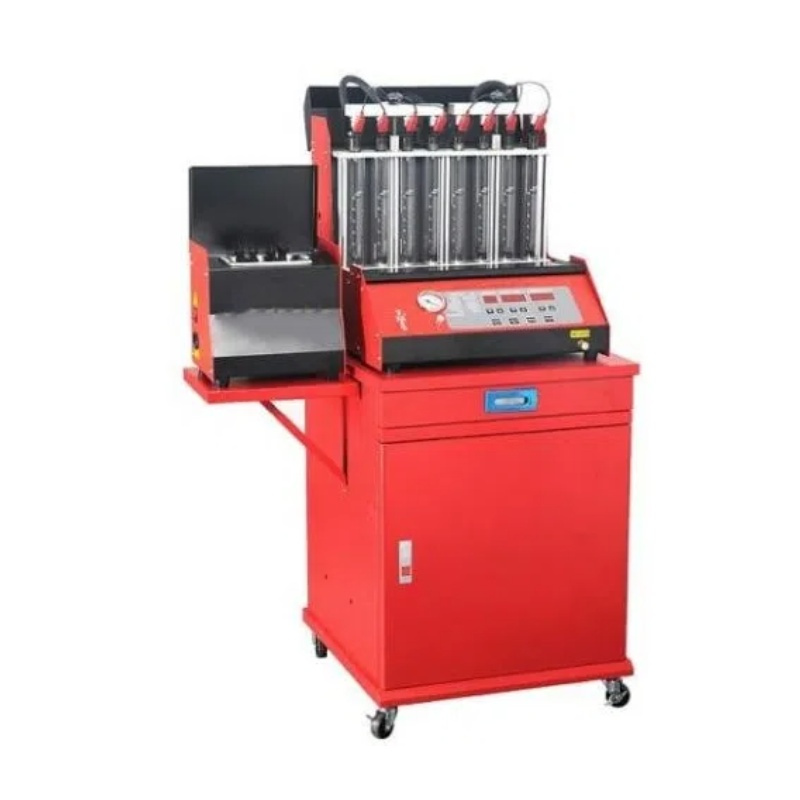

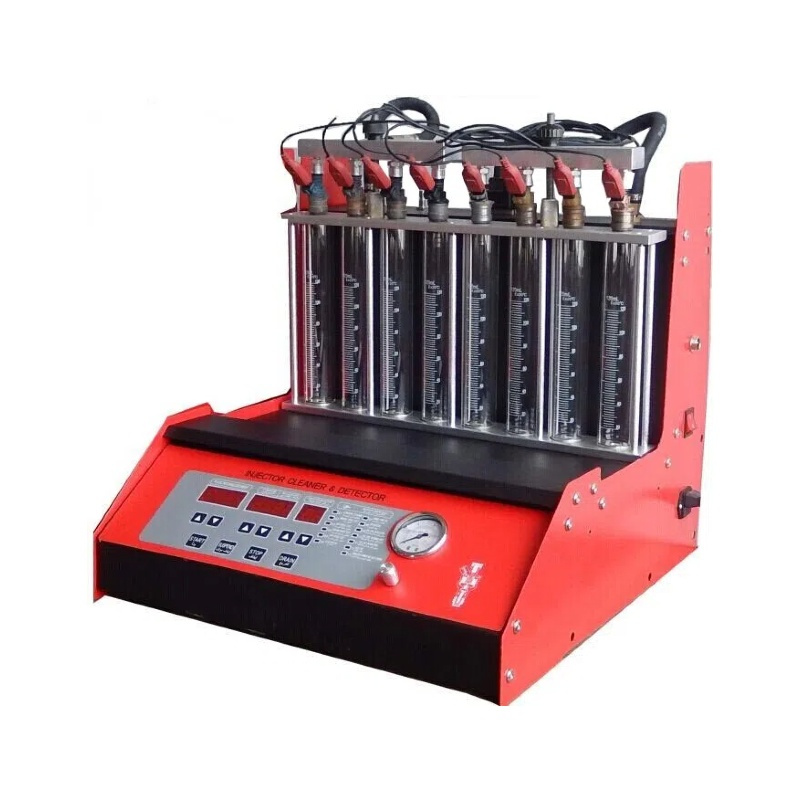

Beacon Gasoline Fuel Injector Nozzle Test Bench BC-8H 8 Cylinder Petrol Injection Tester Cleaning Machine

Functions
●Engine injector cleaning and detecting;
●Test 8 injectors in one time;
●Injector fuel distribution and delivery checking;
●Engine on-car cleaning;
●Leakage hunting;
●Injector cleaning;
●Multilanguage applicable including English, Arabic,Russian, etc.;
●LED display with clear menu and easy operation;
●Wide models can be tested with stable performance and reliable data;
●Liquid in tube drain back to tank automatically;
●Separated ultrasonic bath(Installed in cabinet);
●Optional:Special adapter for MONO & Side-feed injector;
●Packed inside dolly when shipped,CBM save.

Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz;
Input power: 250W;
Ultrasonic cleaner power: 100W,25KHz;
Simulated RPM range: 10000rpm; step: 50rpm;
Injection time: 0~600sec, step 1sec
Time range: 10000s(adjustable)
Pulse width: 0-20ms; step 0.1 ms;
Test liquid tank volume:  6L
Testing tube volume:  120ml
Dimensions: 600mm×500mm×750mm;
Weight: About 54kg

*Test data from Beacon laboratory
