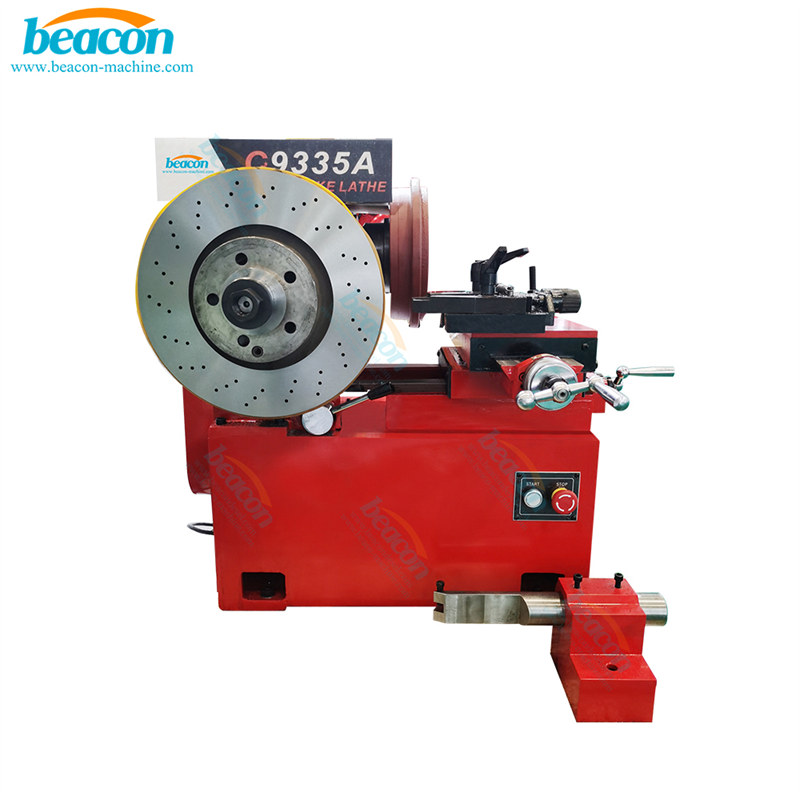

C9335A Brake Disc Drum Lathe Brake Disc Skimming Machine For Car Balancing Repair Manufacturers

Beacon C9335A Brake Disc Drum Lathe Brake Disc Skimming Machine For Car Balancing Repair Manufacturers for Car Repair

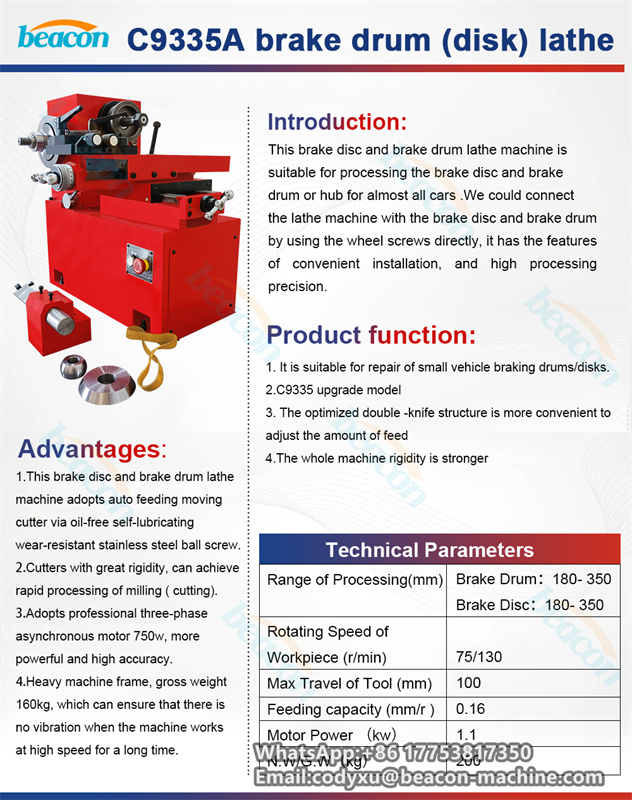

Introduction

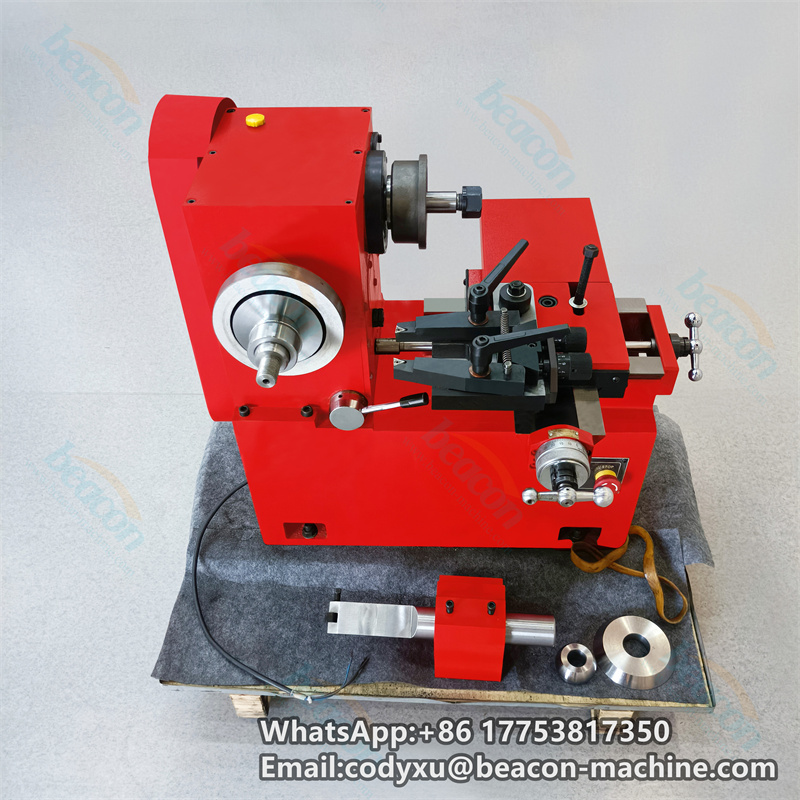

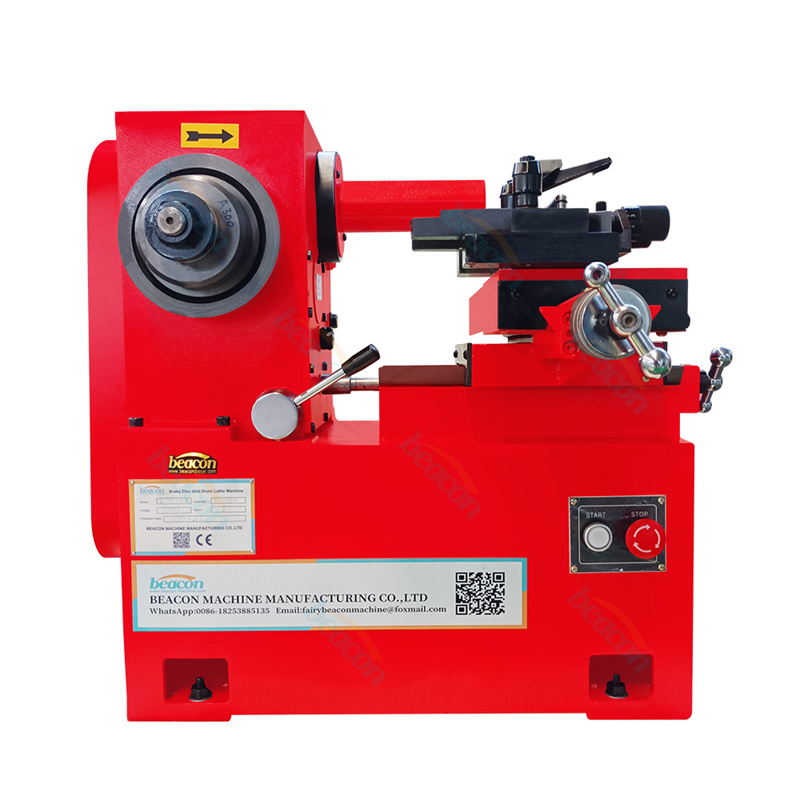

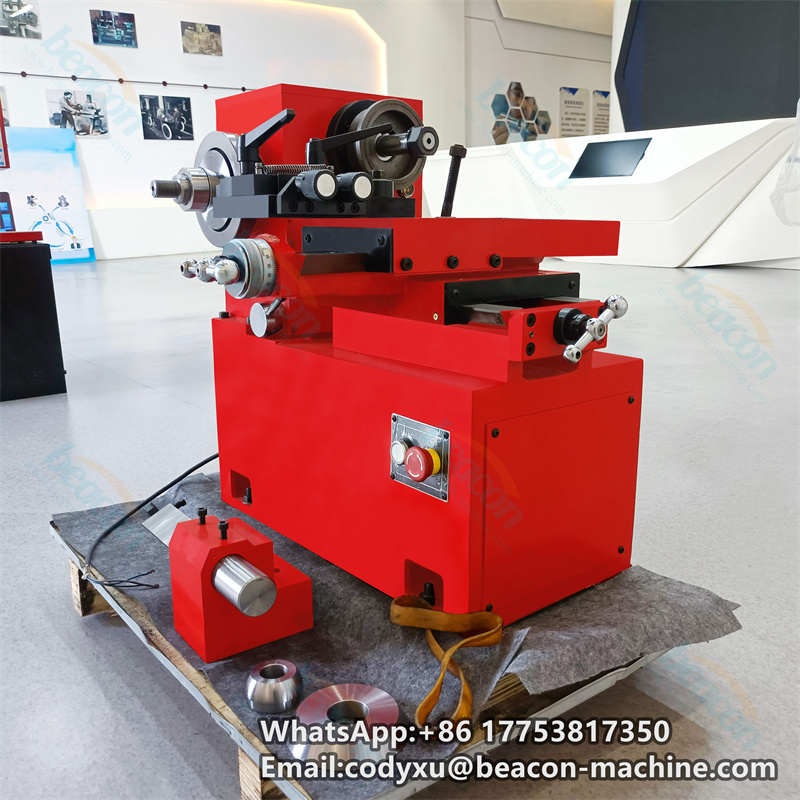

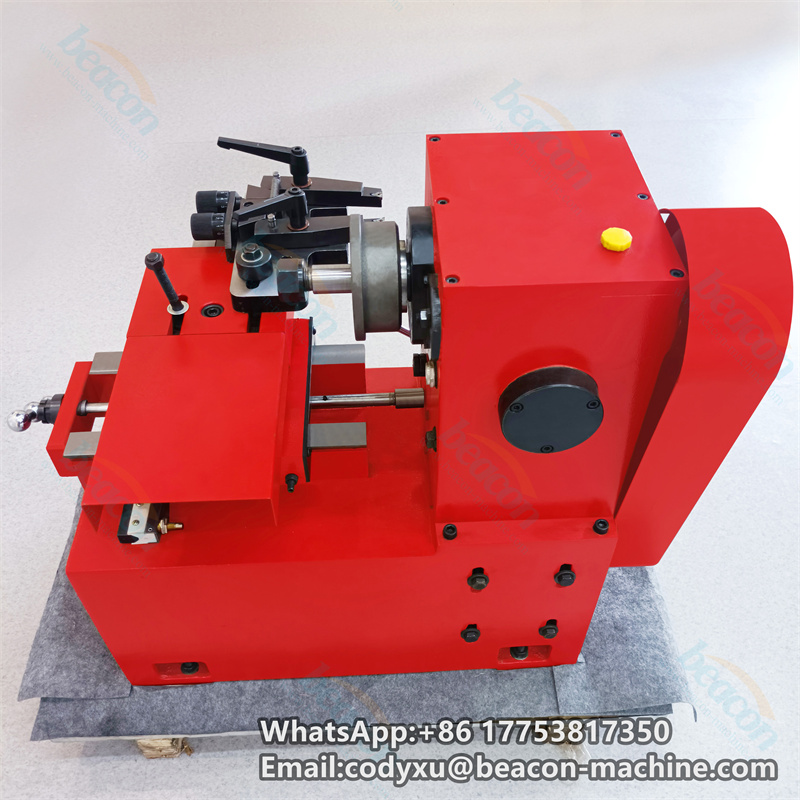

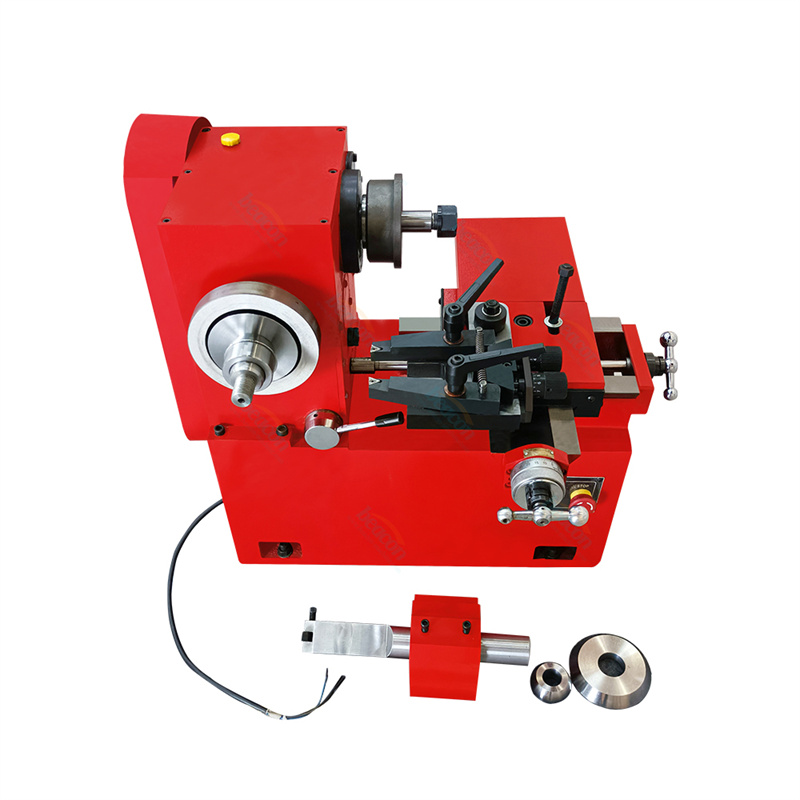

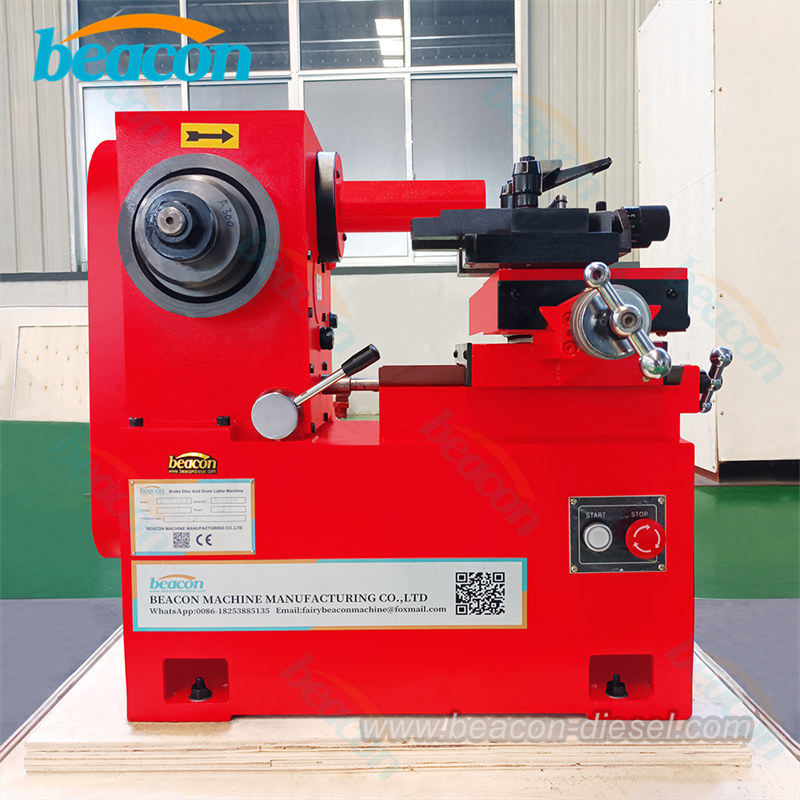

C9335A Brake Disc Drum Lathe Brake Disc Skimming Machine For Car Balancing Repair Manufacturers

1.General introduction:
This brake disc and brake drum lathe machine is suitable for processing the brake disc and brake drum or hub for almost all cars .We could connect the lathe machine with the brake disc and brake drum by using the wheel screws directly, it has the features of convenient installation, and high processing precision.

2.Advantages:
（1）This brake disc and brake drum lathe machine adopts auto feeding moving cutter via oil-free self-lubricating wear-resistant stainless steel ball screw.
（2）Cutters with great rigidity, can achieve rapid processing of milling ( cutting).
（3）Adopts professional three-phase asynchronous motor 750w, more powerful and high accuracy.
（4）Heavy machine frame, gross weight 160kg, which can ensure that there is no vibration when the machine works at high speed for a long time.
（5）The base can be installed universal wheels, the machine can move easily and flexibly.

3. Product function:
(1) It is suitable for repair of small vehicle braking drums/disks.
(2) C9335 upgrade model

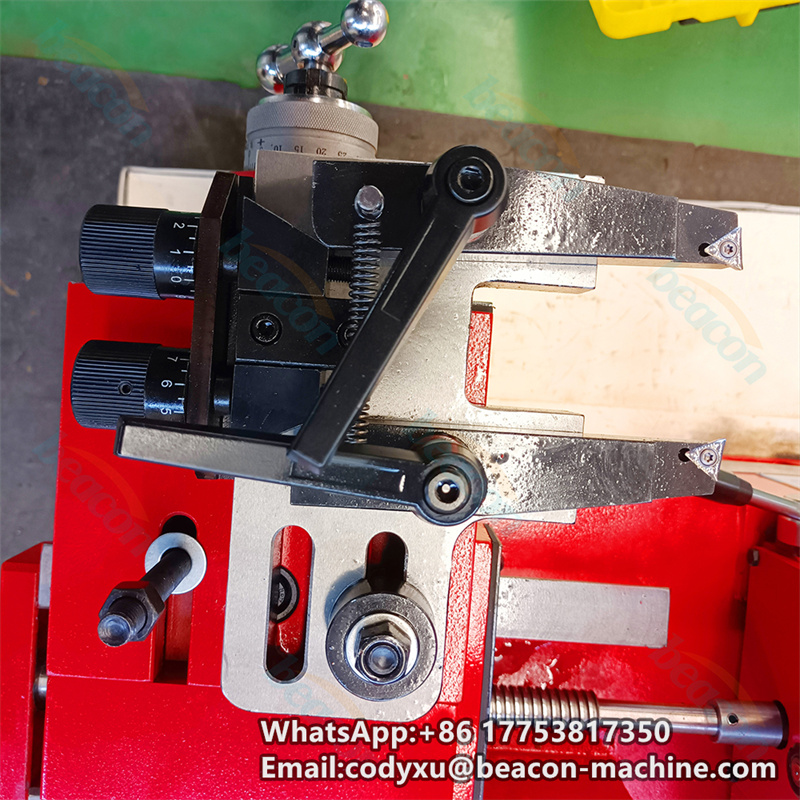

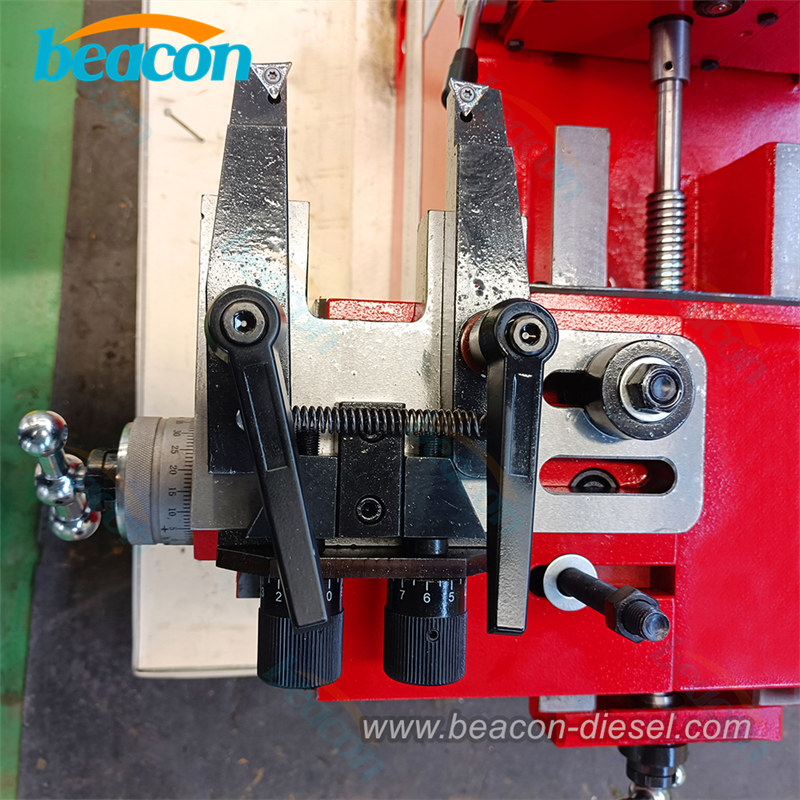

(3) The optimized double -knife structure is more convenient to adjust the amount of feed
(4) The whole machine rigidity is stronger

parameter

1.Model：C9335A
2.Range of Processing (mm）：
（1）Brake Drum：180- 350
（2）Brake Disc:180- 350
3.Rotating Speed of Workpiece（r/min）：75/130
4.Max Travel of Tool (mm)：100
5.Feeding capacity (mm/r)：0.16
6.Motor Power (KW)：1.1
7.N.W/G.W (kg)：200

*Test data from Beacon laboratory
