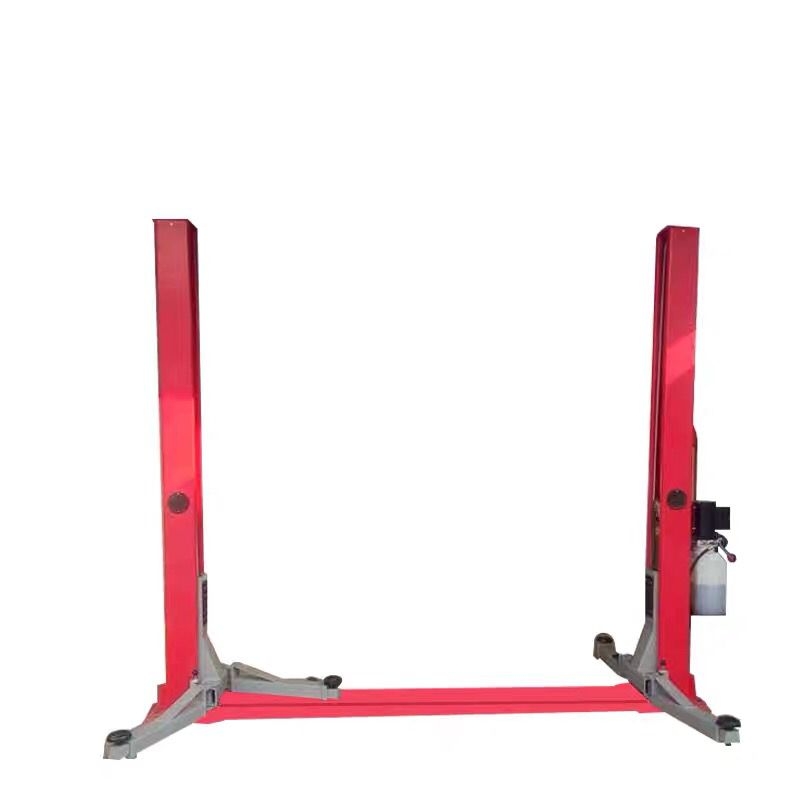

CE Certification Garage Two Post Car Lifter LM-B Hydraulic Base Floor 2 Post Car Lift

CE Certification Garage Two Post Car Lifter LM-B Hydraulic Base Floor 2 Post Car Lift

● Base plate type, the column height: 2800mm, more suitable for low ceiling workshops.
● Dual cylinders located in master and slave columns, high strength chains and steel ropes drives system.
● Complete steel bending process, surface shot blasting process, electrostatic powder spraying, strong surface adhesion and durable powder coating.
● Symmetric lifting arms, the length of lifting arms can be adjusted from 700-1100mm.
● Power units adopt copper core motors, with better heat dissipation, high efficiency, longer service life, and avoid corrosion by sea water vapor during shipping.
● Dynamic test: 115% of the rated capacity; Static test: 150% of the rated capacity.
● Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle,special hydraulic system design to avoid overload running.
● CE & ISO9001 certificated.

Lifting capacity 4000kgs / 8820lbs
Unlock method dual side manual
Max. lifting height without height adapters 1870mm / 6.14 ft
                                with height adapters 1965mm / 6.45 ft
Lifting stroke 1750mm
Min height of pick-up pads 120mm
Column height 2782mm / 9.13 ft
Total width 3380mm
Width between 2 columns 2810mm
Vehicles pass width 2540mm
Length of lifting arms 700-1100mm
Lifting/falling time 70s/40s
Working power 2.2KW
Working voltage 220V/380V/customized
Package information:
Gross weight 520kgs
Packages quantity 2 pcs
Packages size 2800*475*740mm; 820*280*290mm (1.1CBM)

*Test data from Beacon laboratory
