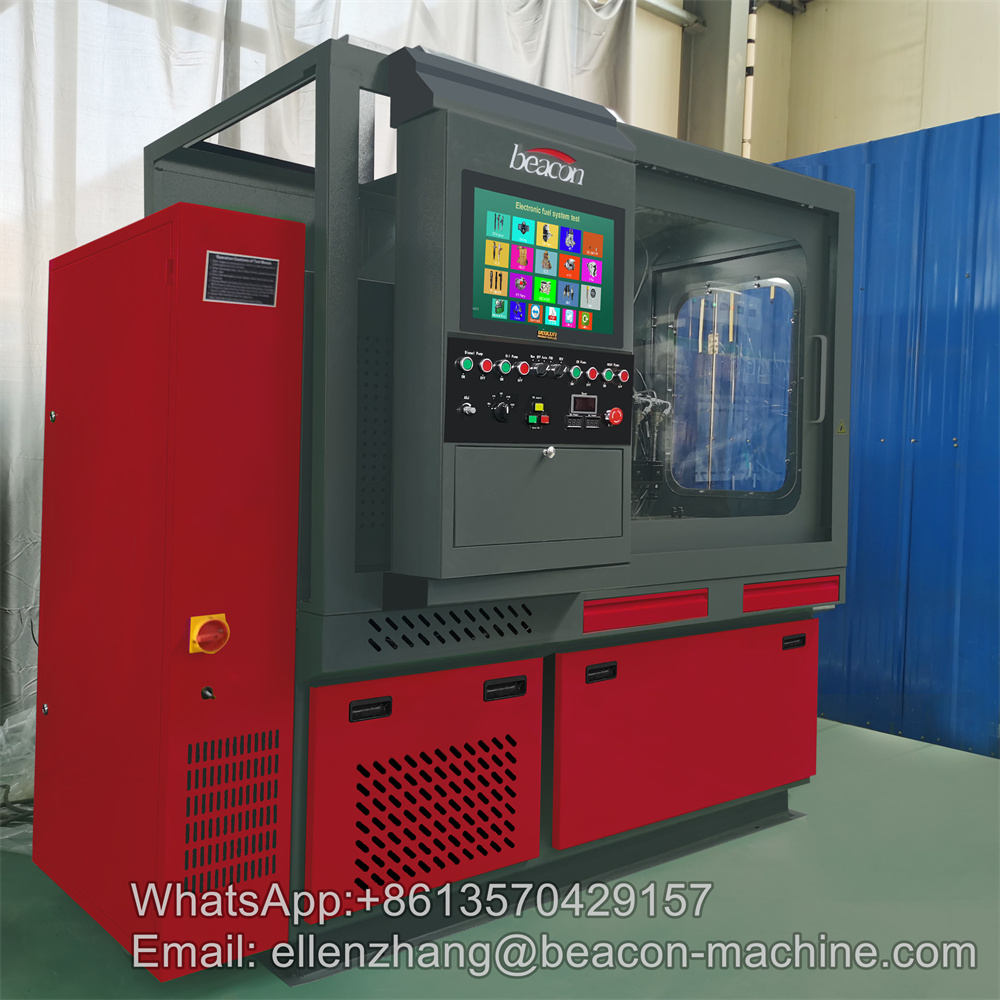

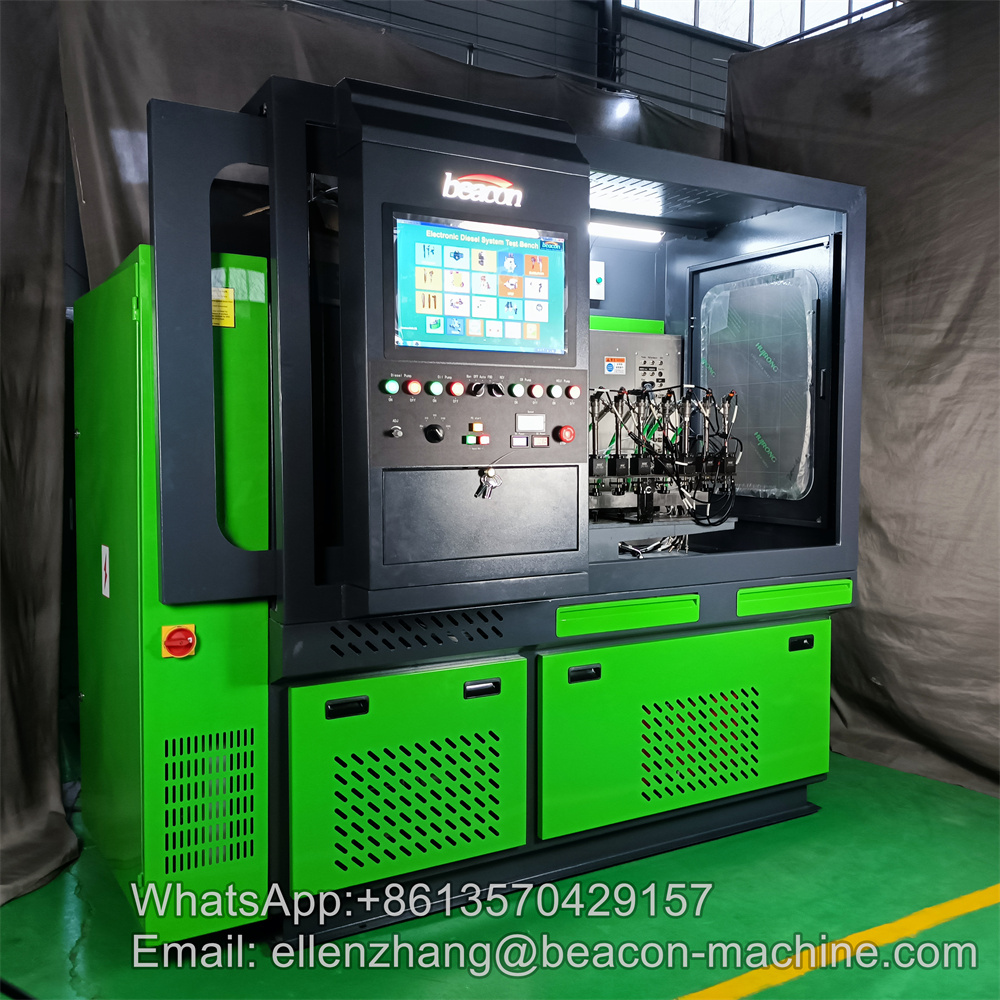

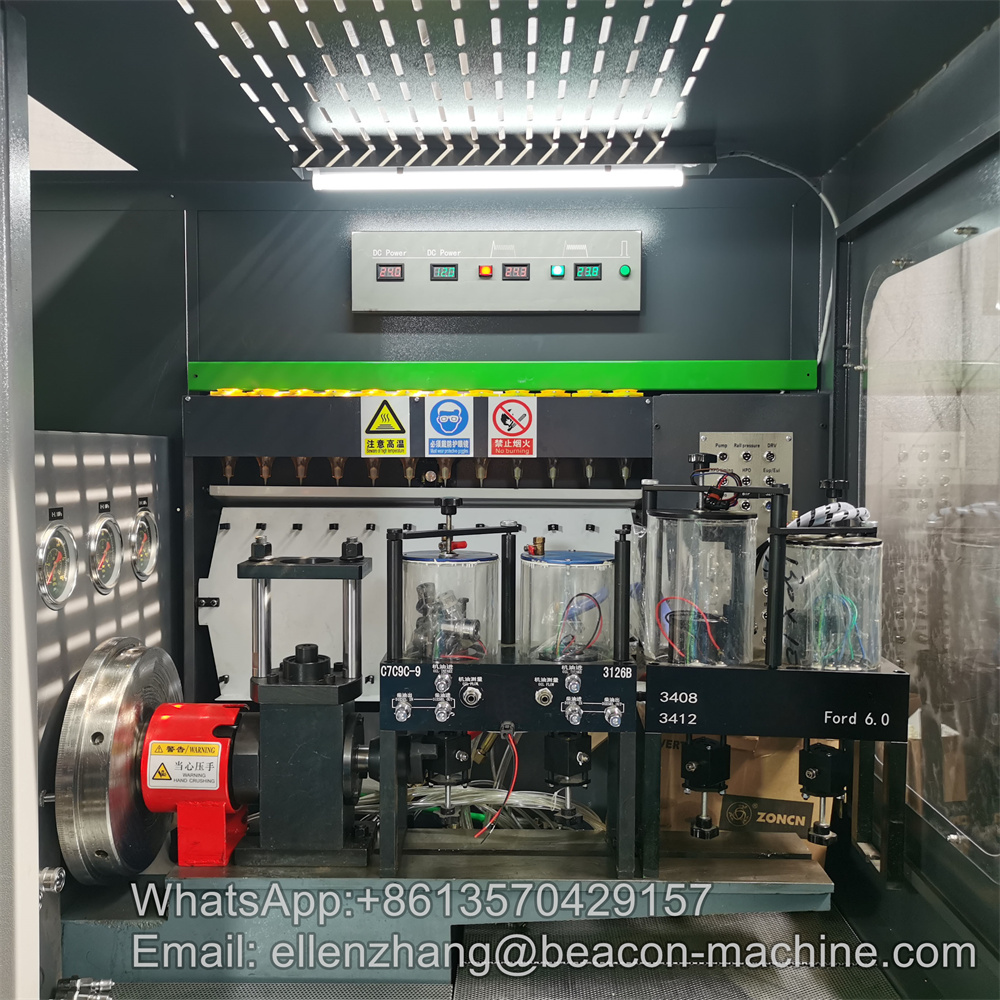

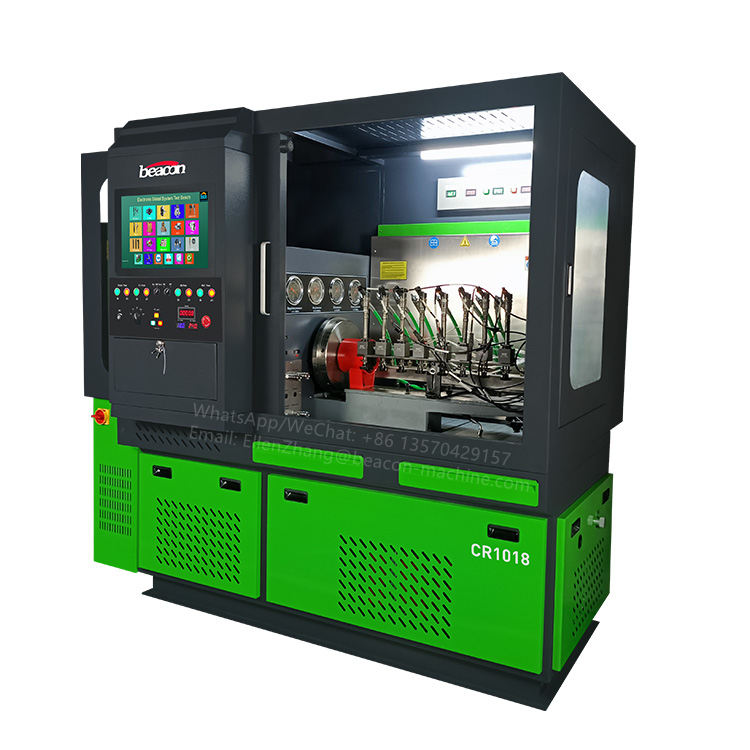

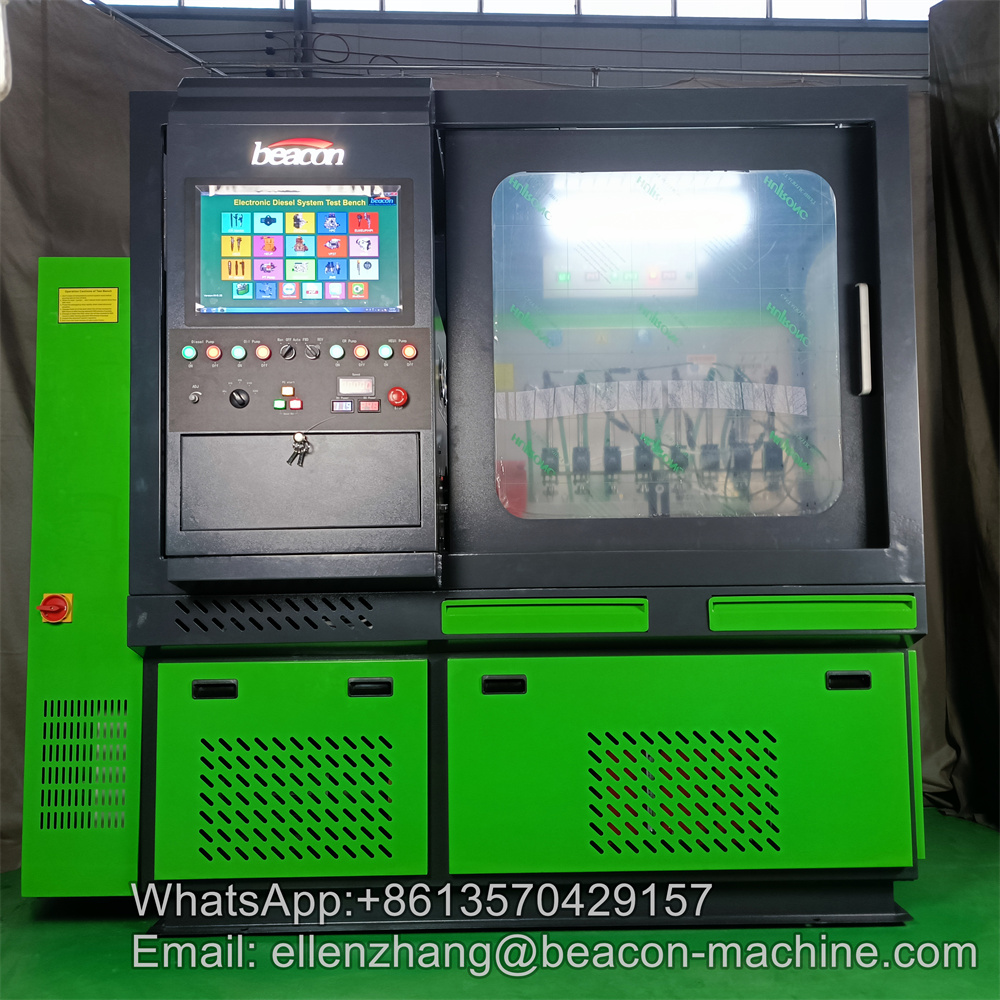

CR1018 comprehensive test bench for common rail injector and pump testing EUI EUP HEUI

CR1018 comprehensive test bench for common rail injector and pump testing EUI EUP HEUI

[15KW  380V]

- Cummins XPI

1. Host power: 15KW/18.5KW/22KW

2. Spindle speed: 0-3000 rpm

3. Host center height: 128 mm

4. Wheel oil pump: 10 L/min

5. Oil supply pressure: 0-0.4 MPa

6. Fuel tank capacity: 40 L

7. Oil tank capacity: 20 L

8. High pressure oil supply: 0-250 MPa

9. Oil supply: 0-35 MPa

10. Hotbed control: 40°C ± 2°C

11. Oil hotbed: 40°C ± 2°C

12. Drive voltage: 0-180 V

13. Drive current: 0-25 A

14. Input voltage: 220V-380V (according to customer needs)

15. Machine dimensions (CM): 205130192

16. Weight (KG): 1250
