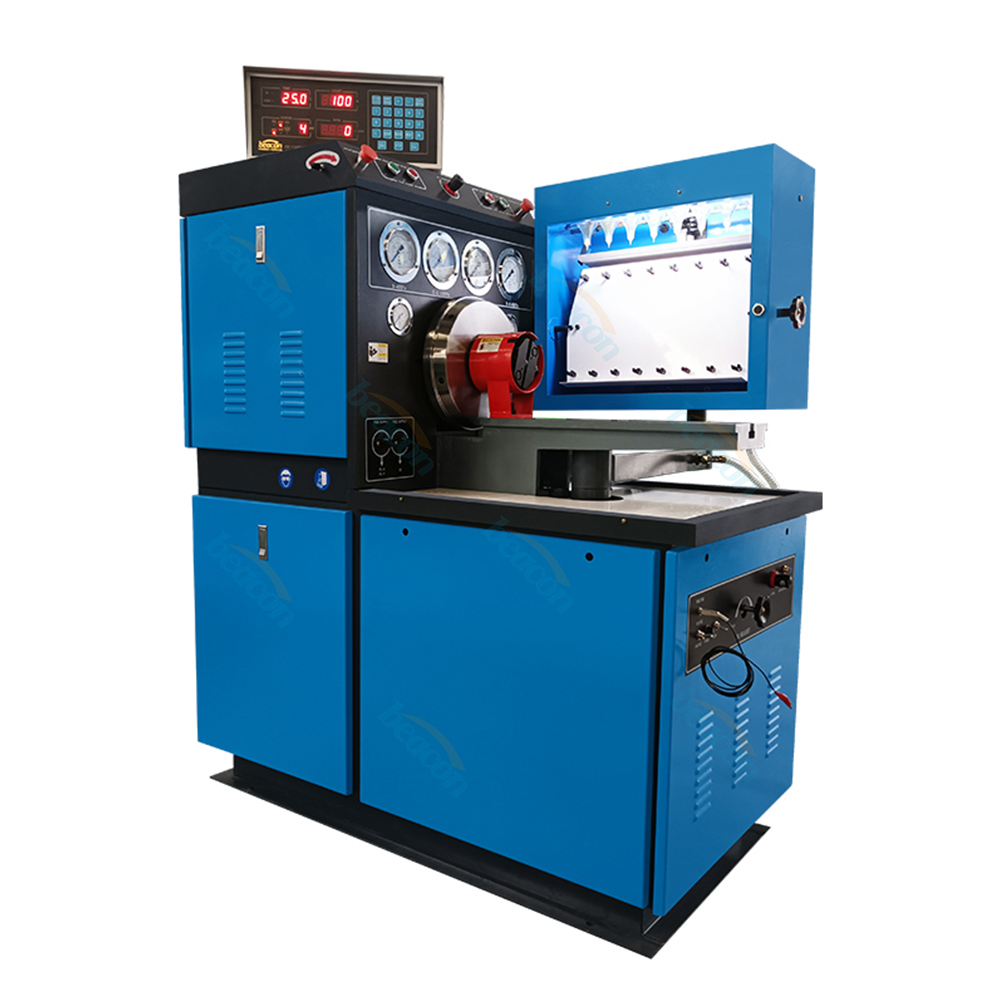

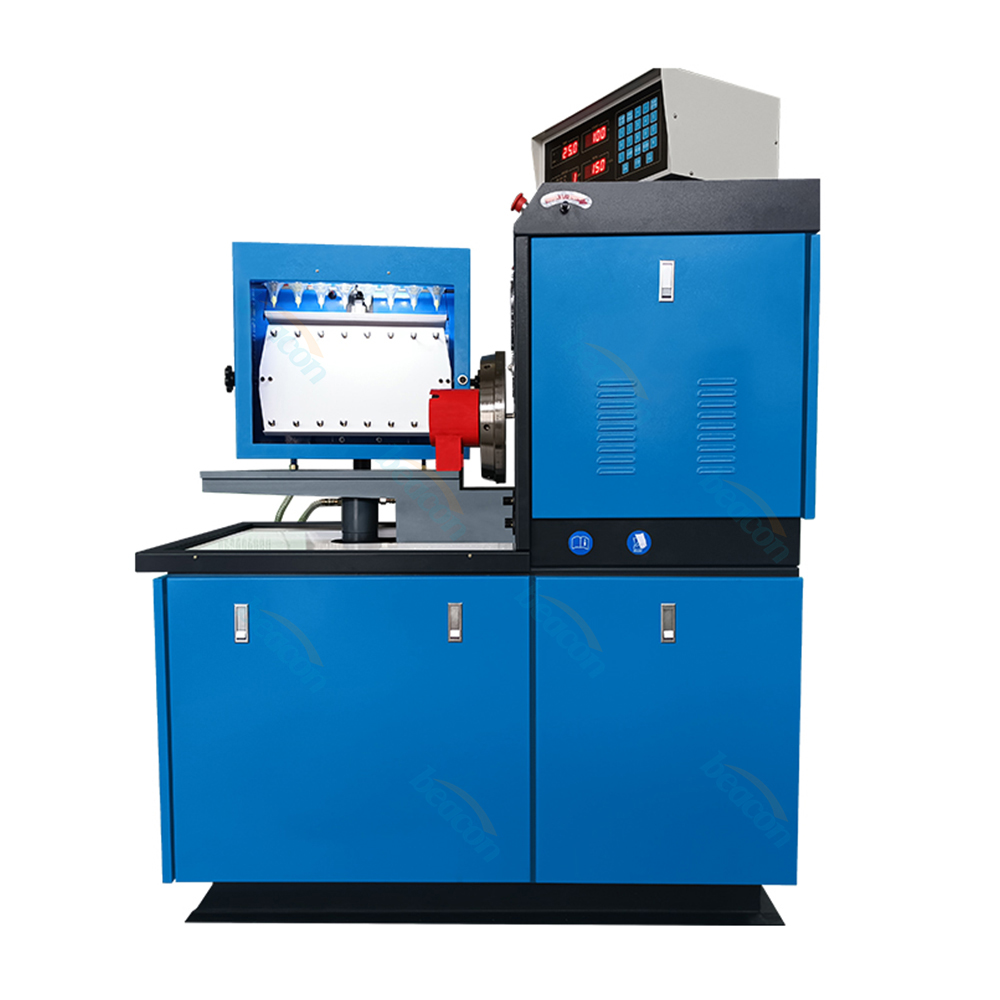

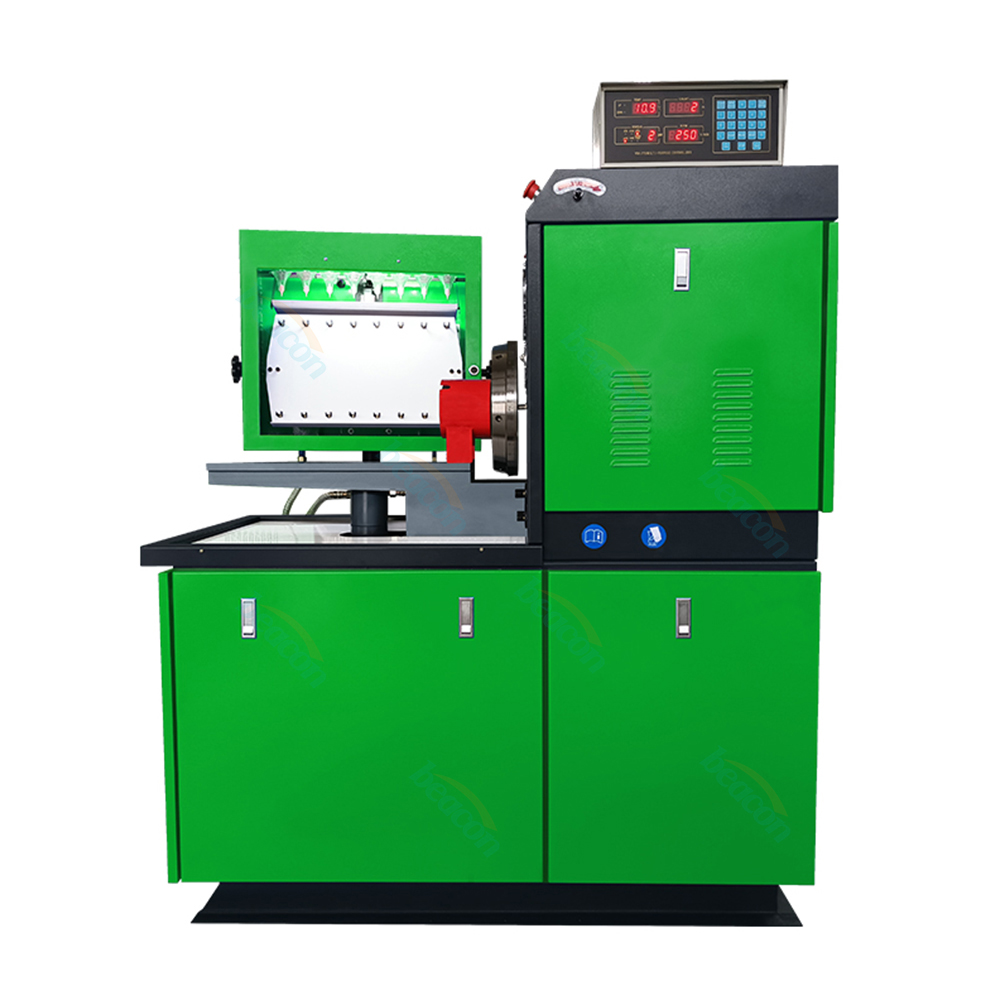

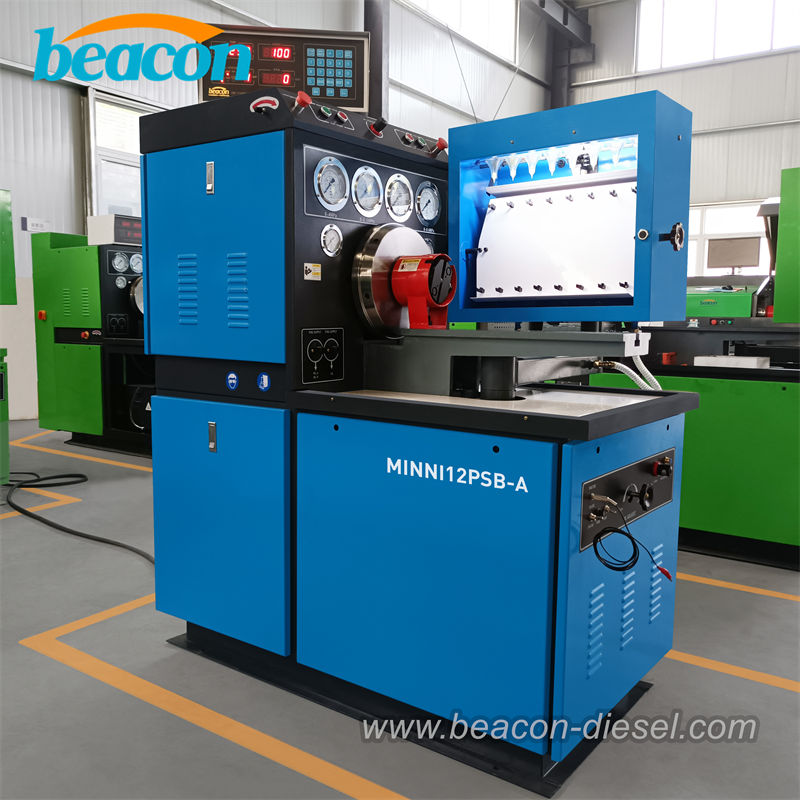

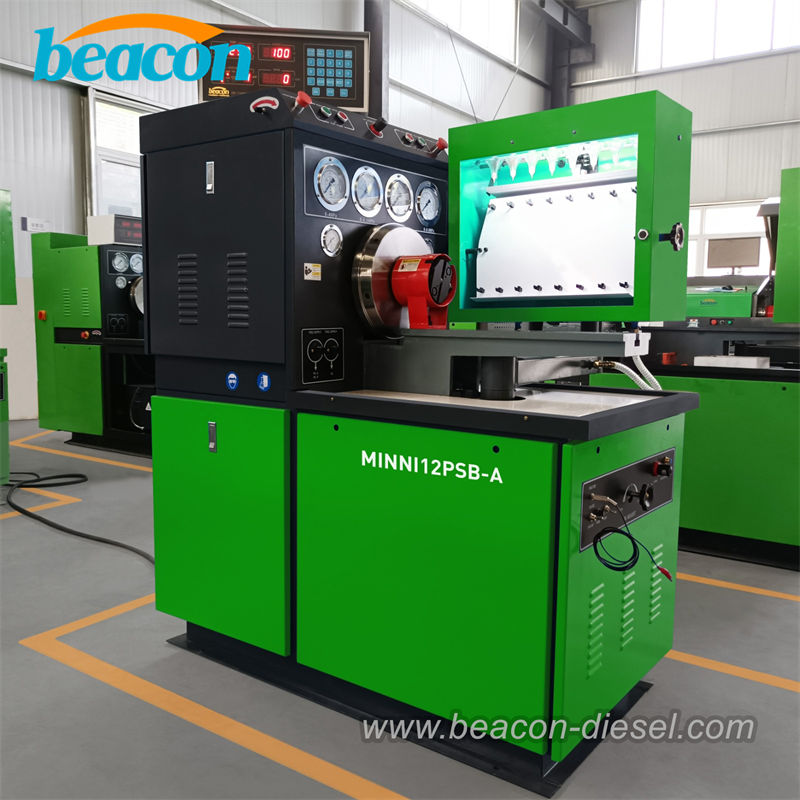

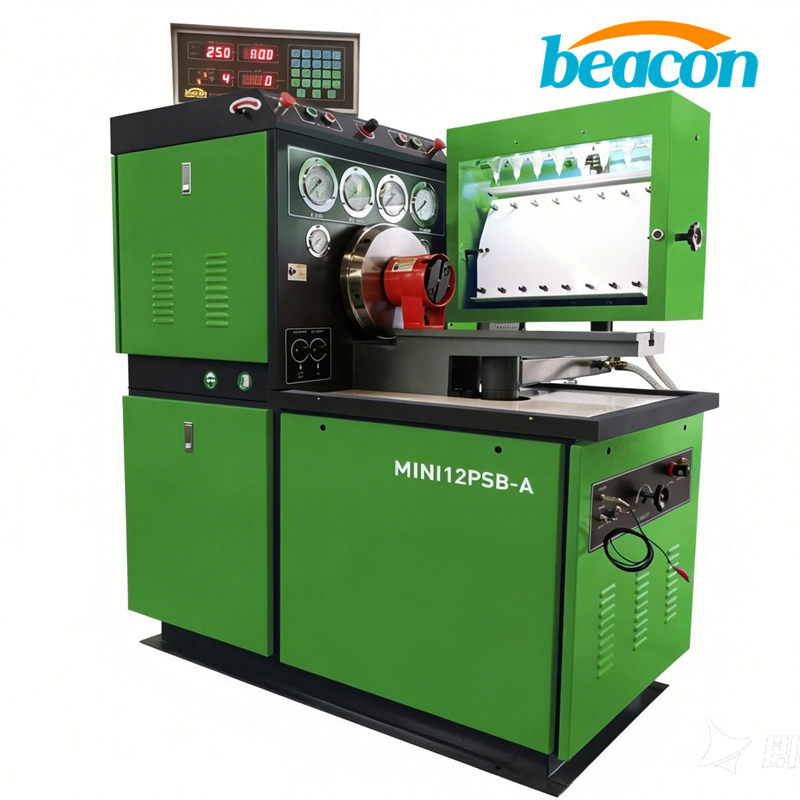

MINI12PSB-A Traditional Mechanical Diesel Fuel Injection Pump Test Bench 8 Cylinder Service Machine

Introduction

MINI12PSB-A Traditional Mechanical Diesel Fuel Injection Pump Test Bench 8 Cylinder Service Machine

Introduction
The MINI12PSB-A fuel injection pump test bench is the latest generation of fuel injection pump test bench, which is improved on the basis of the introduction of foreign advanced technology, and is designed and developed by itself. The main drive of this product adopts the most advanced frequency conversion speed regulation technology today, and the stepless speed regulation range can reach 0-4000 rpm, with stable speed, large output torque and ultra-low noise. The test bench speed, fuel injection count, and fuel temperature are all digitally displayed, and the air pressure is displayed by a mechanical meter. The display is clear, the work is reliable, and the control accuracy is high. The most prominent feature of the test bench is: ten groups of spindle speed settings are stored, the number keys can directly switch the speed, and the speed deviation automatic correction function is provided, the preset speed is fast, and the accuracy is high, which can greatly improve the work efficiency.

Main Features
(1) The main engine drive adopts frequency conversion speed regulation, and the speed regulation range: ±4000 rpm;
(2) Four-digit display is adopted for oil metering count and spindle speed;
(3) The fuel temperature is displayed in three digits;

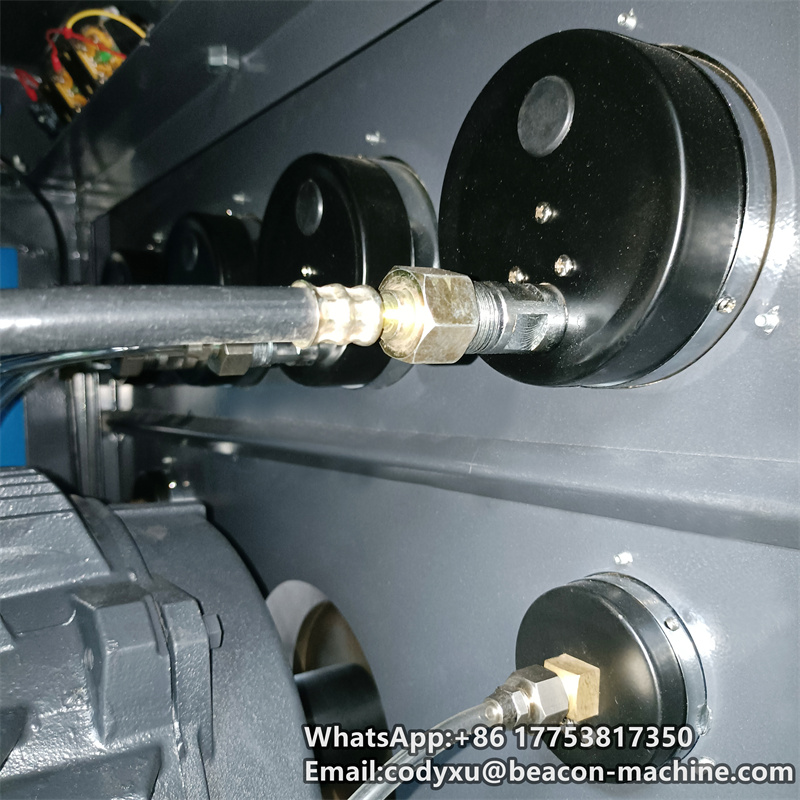

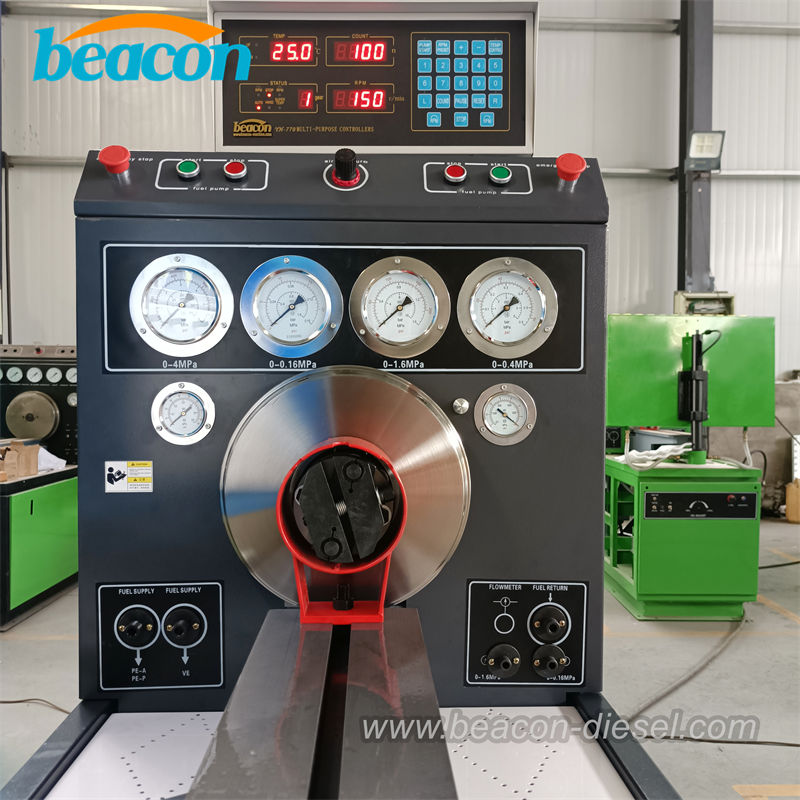

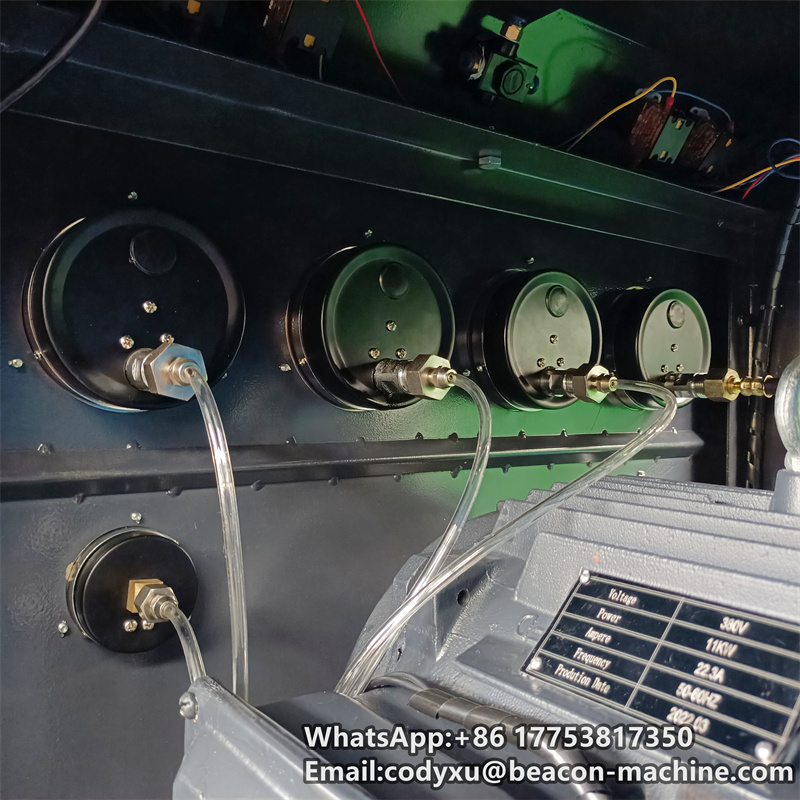

(4) The gas pressure is displayed by a mechanical meter;

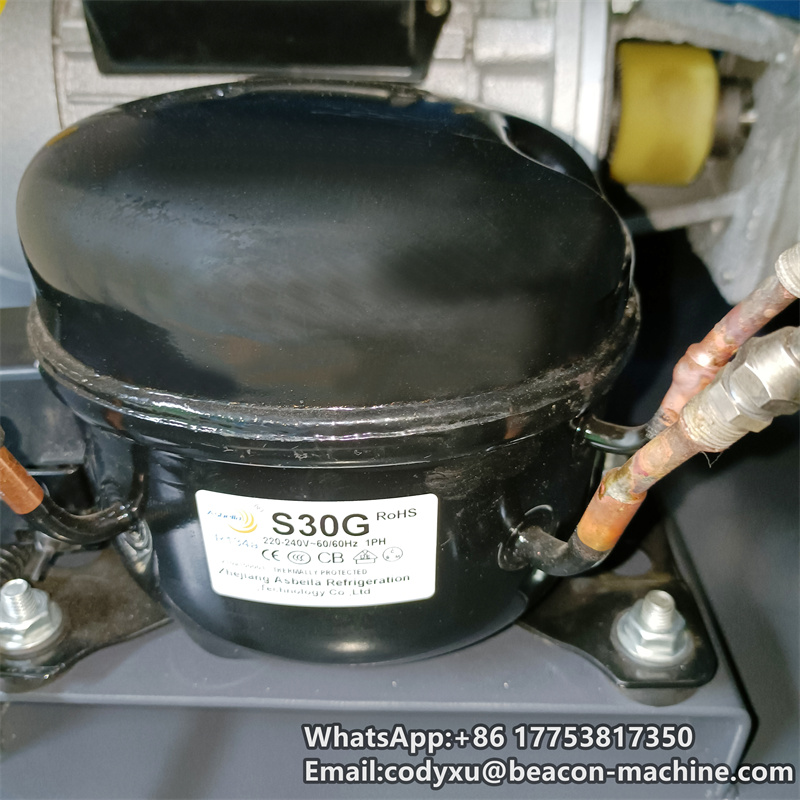

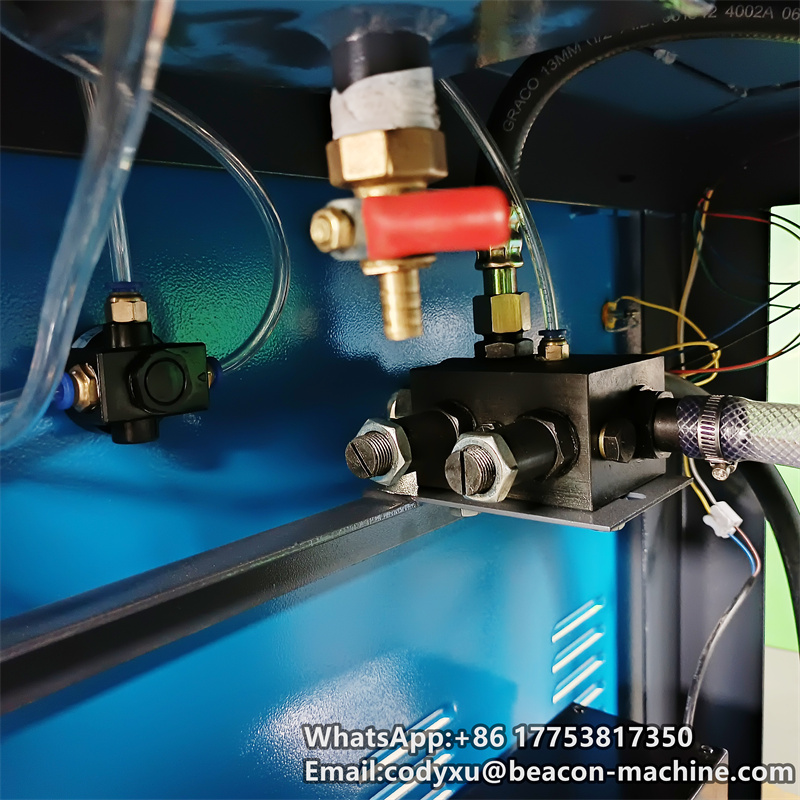

(5) It is provided with an internal air pump, and the adjustable range of air pressure is: positive pressure 0～4MPa;
Negative pressure -0.03～0MPa;

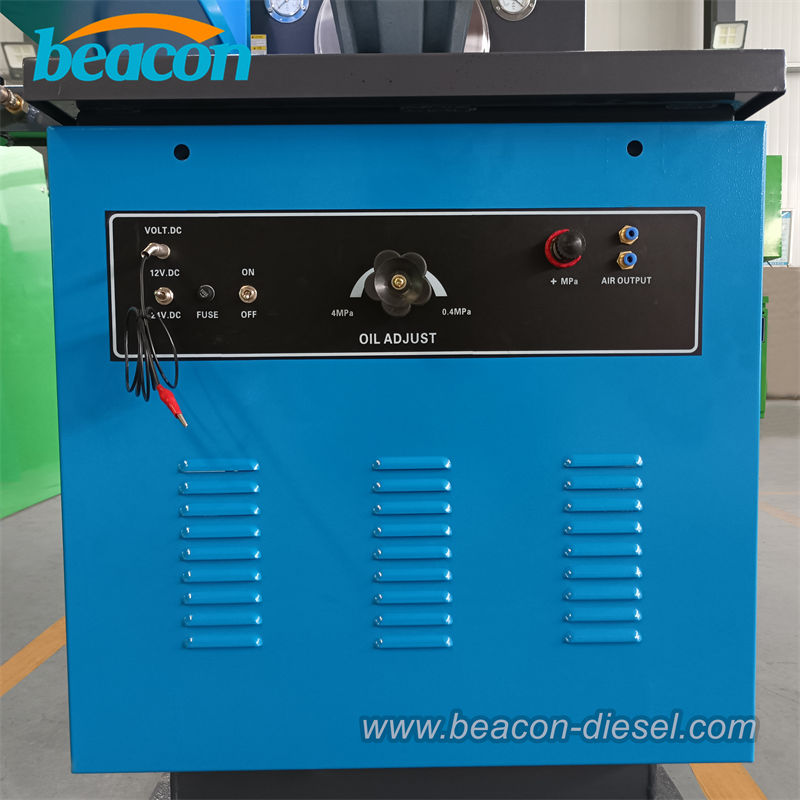

(6) With 12V/24V DC power supply;

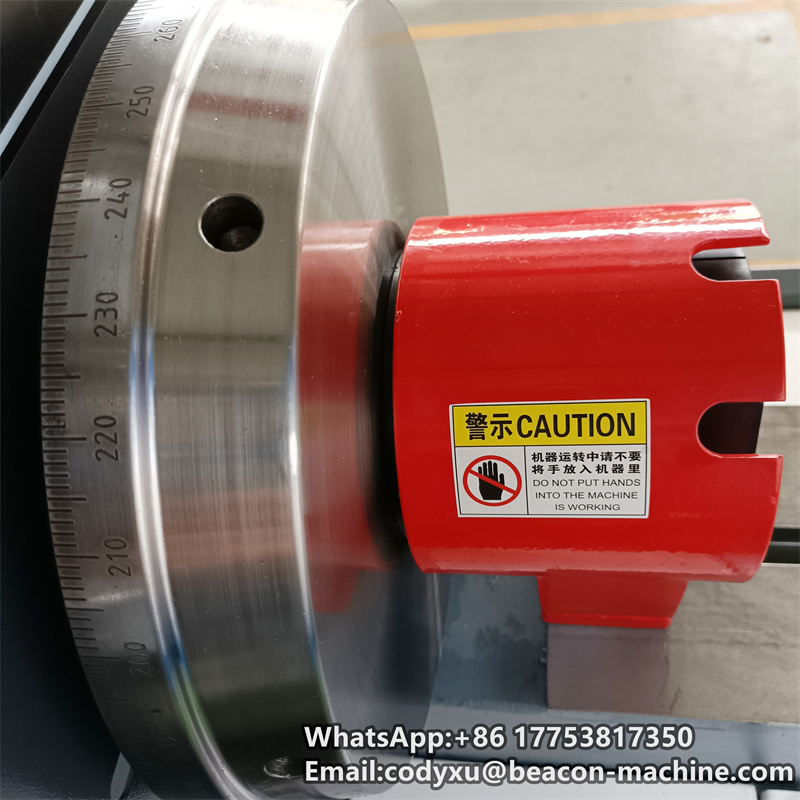

(7) The main engine is a channel steel frame structure, and the overall structure is compact and stable. The inertia wheel is installed after the high-speed dynamic balance test to make the speed stable without vibration;
(8) The shell adopts electrostatic spraying, and the shell is beautiful;

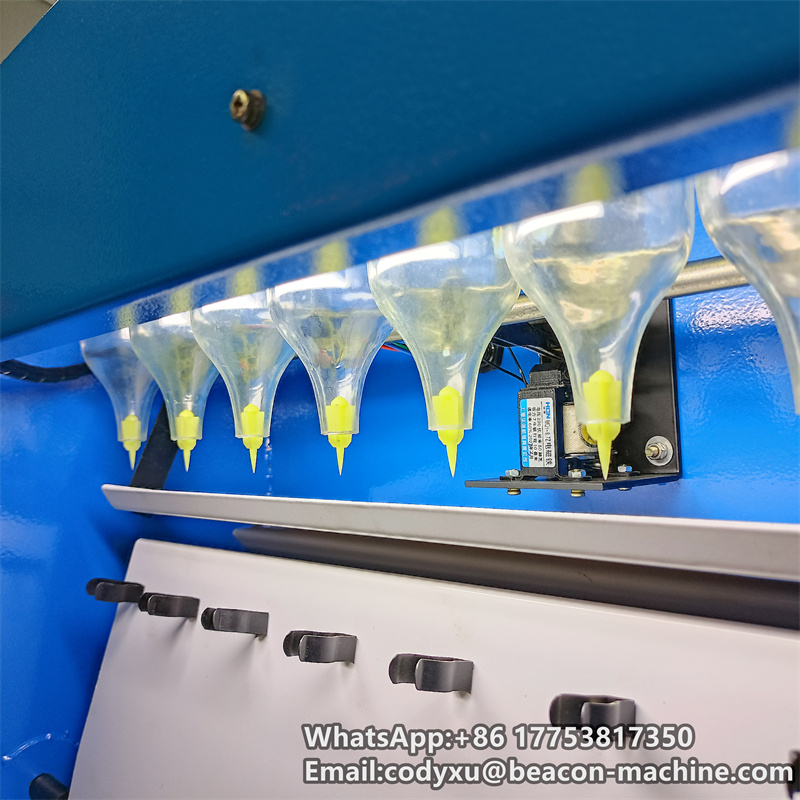

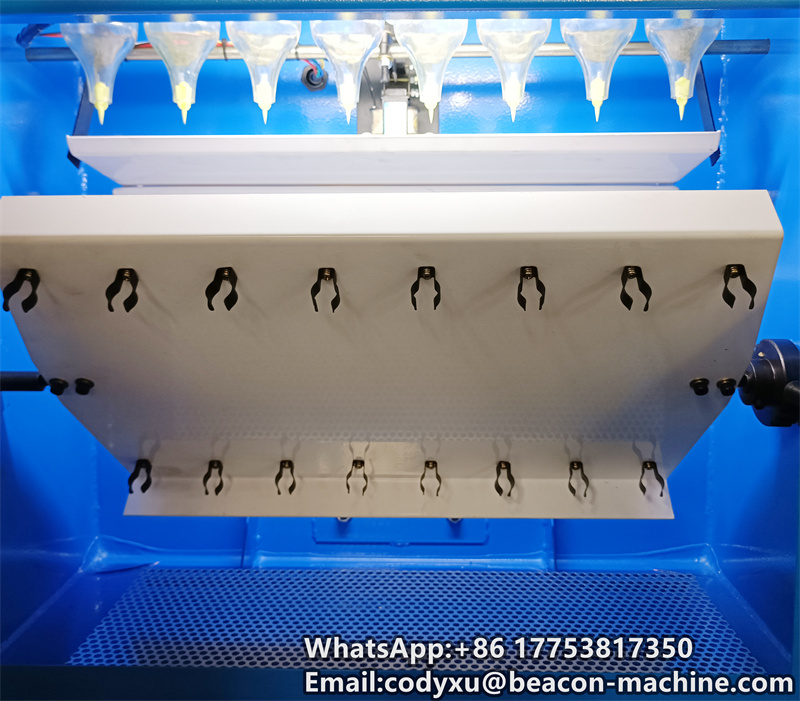

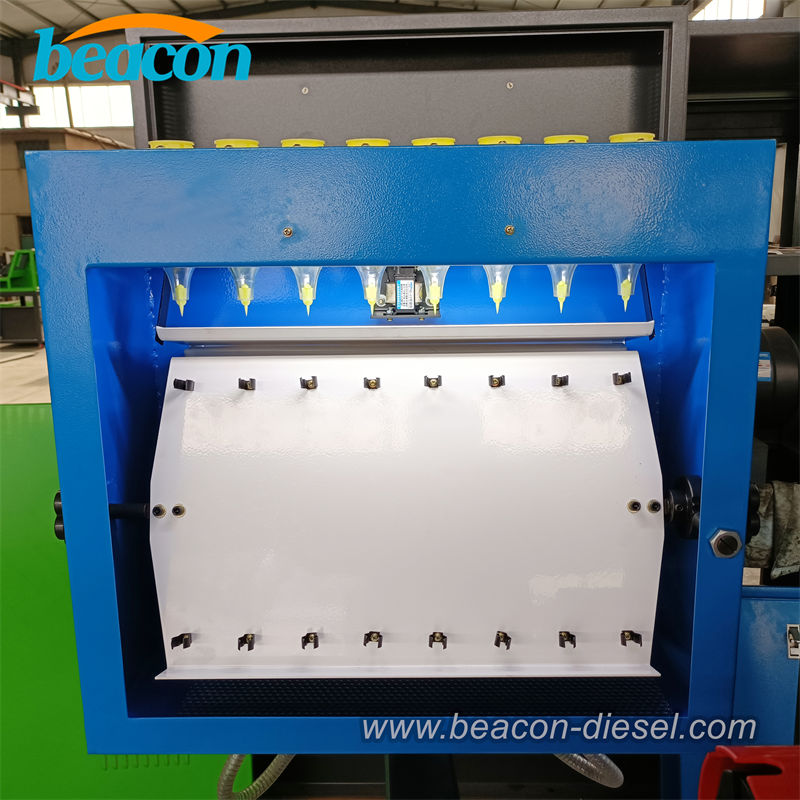

(9) The oil collection tank can be rotated left and right, and can also be adjusted up and down;
(10) The test bench has an emergency stop button;

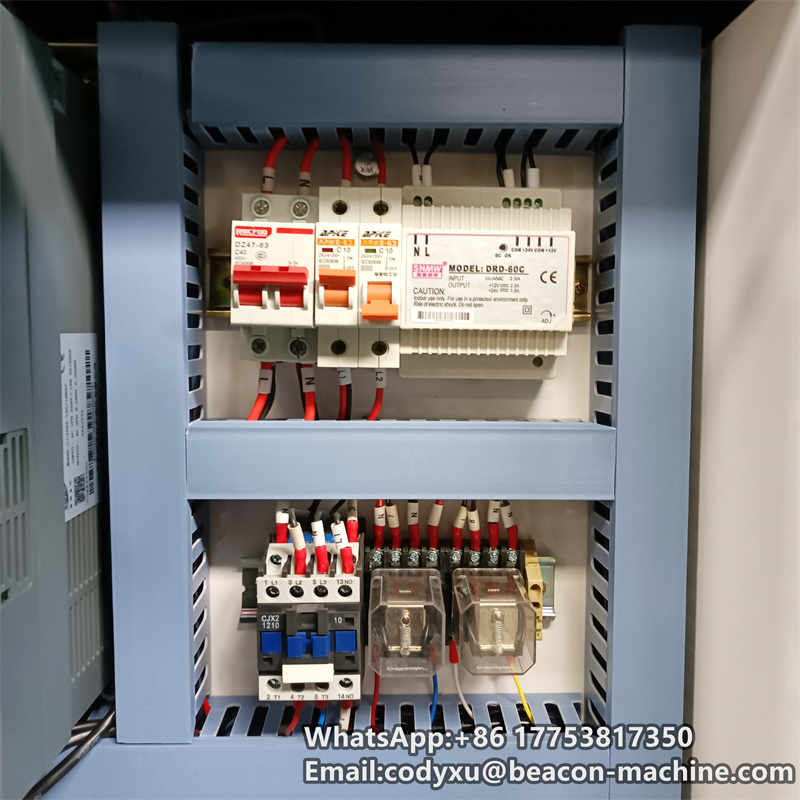

(11) The test bench has protections such as undervoltage, overvoltage, overheating, and overload;
(12) Ultra-low noise of the test bench;
(13) The test bench saves energy.

parameter

1.Voltage:380/220v 3 phase
2.Power output:7.5KW/11KW

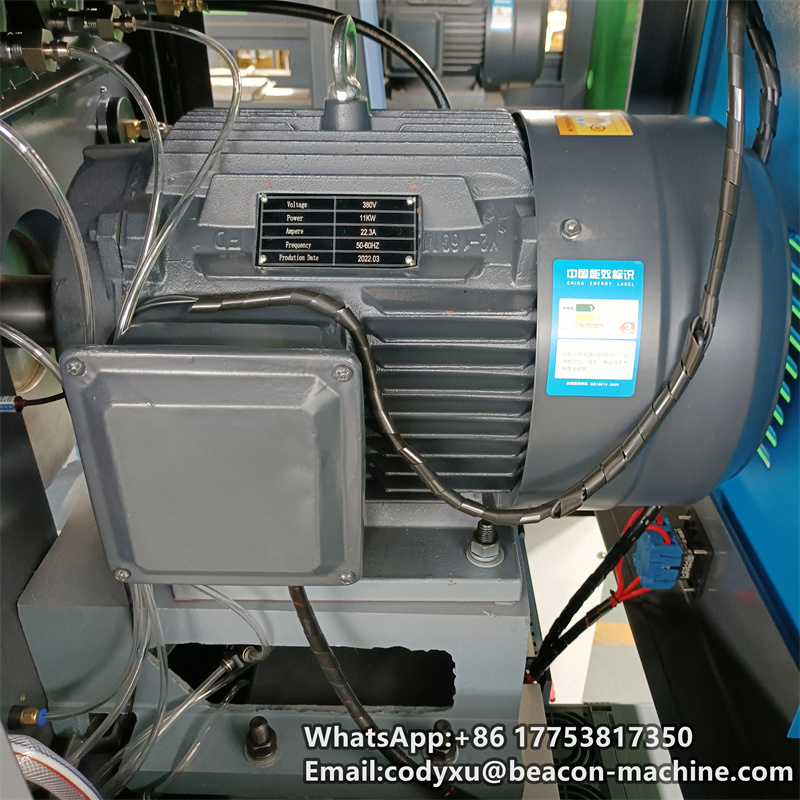

3.Motor:AC motor
4.Transmisson:Converter
5.Speed range(rpm):0~4000
6.Shaft high(mm):125
7.Number of cylinders:8
8.Test oil temperature:40+2
9.Strokes counting:50~9999
10.Feeding pumps motor:1.1Kw
11.Standard injector:ZS12SJ1

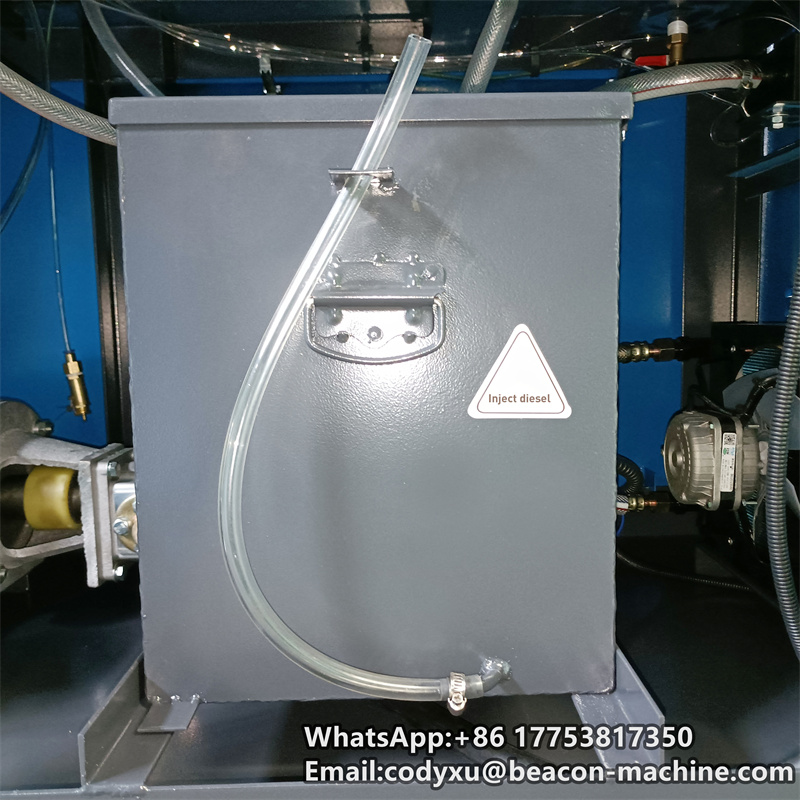

12.Volume of test oil tank (L):40
13.Small graduated cylinder(ml):45
14.Large graduated cylinder(ml):150
15.Flower meter:LZB-10
16.DC power supply:12/24V
17.High pressure of feeding test oil :>4Mpa
18.Low pressure of feeding test oil :>0.4Mpa
19.High Pressure gague for VE pump:0~1.6Mpa
20.Low Pressure gague for VE pump:0~0.16Mpa
21.Machine Size(m):L* W * H1.45*1.01*1.58
22.Net weight(Kg):650

*Test data from Beacon laboratory
