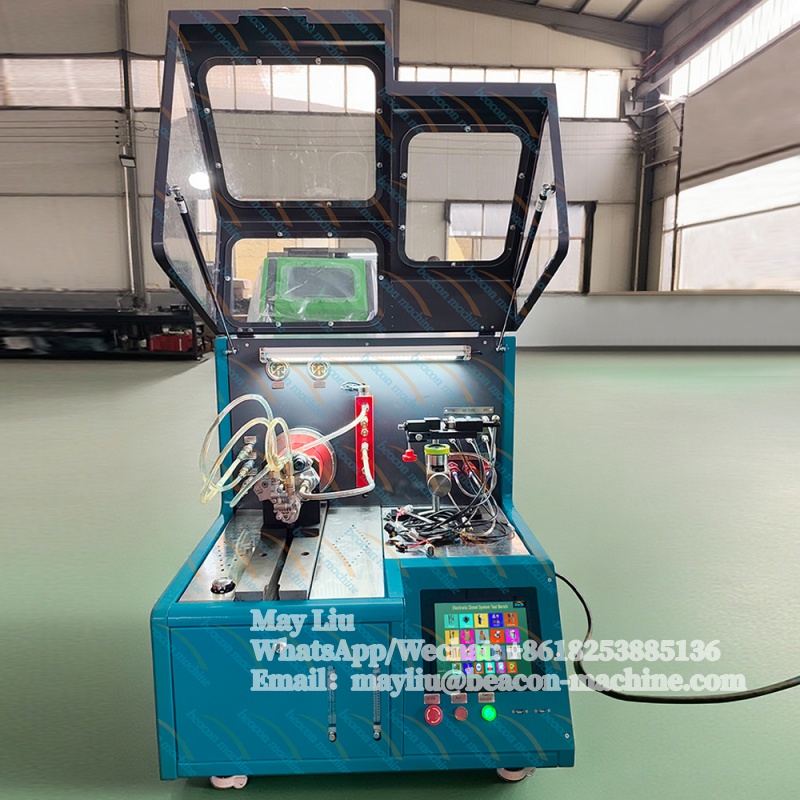

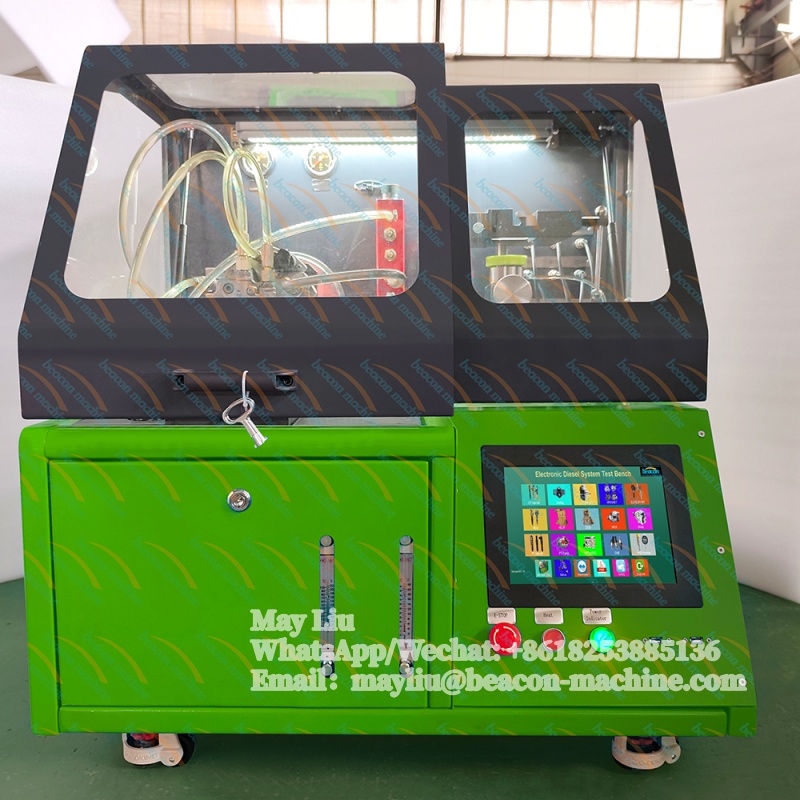

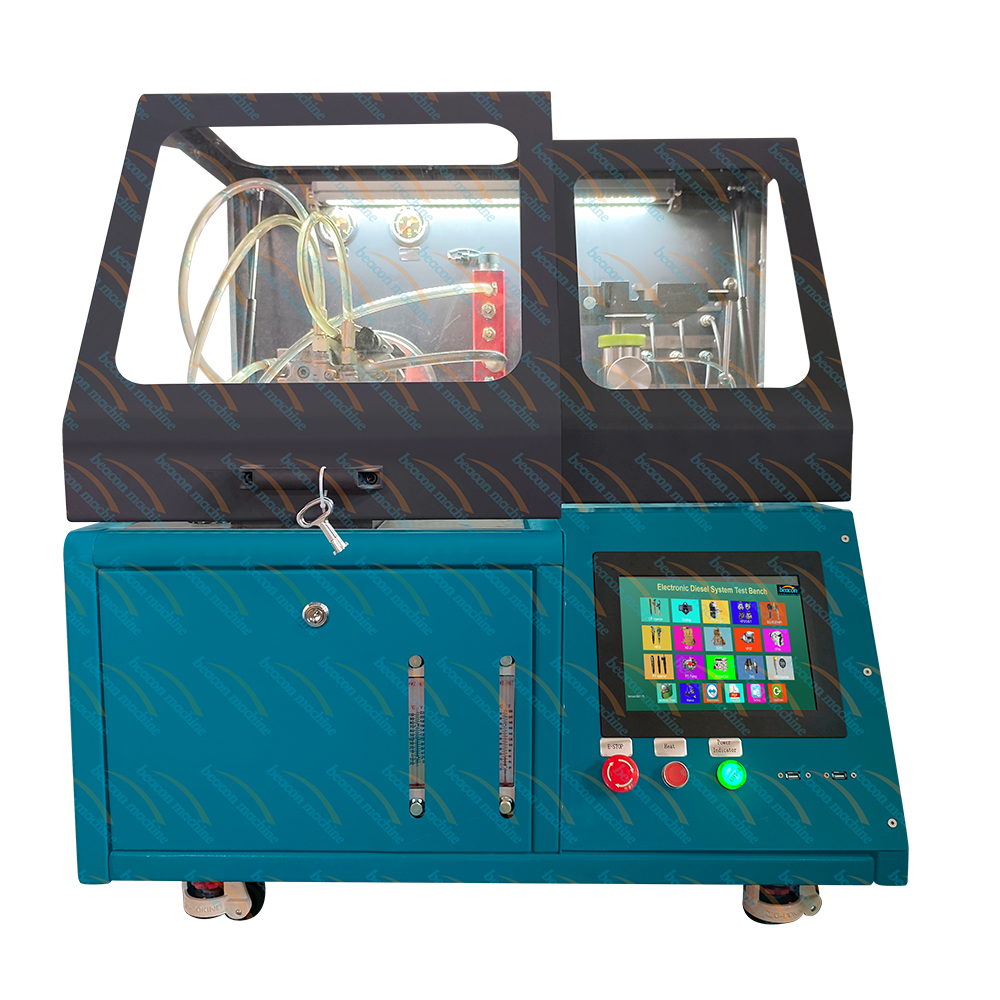

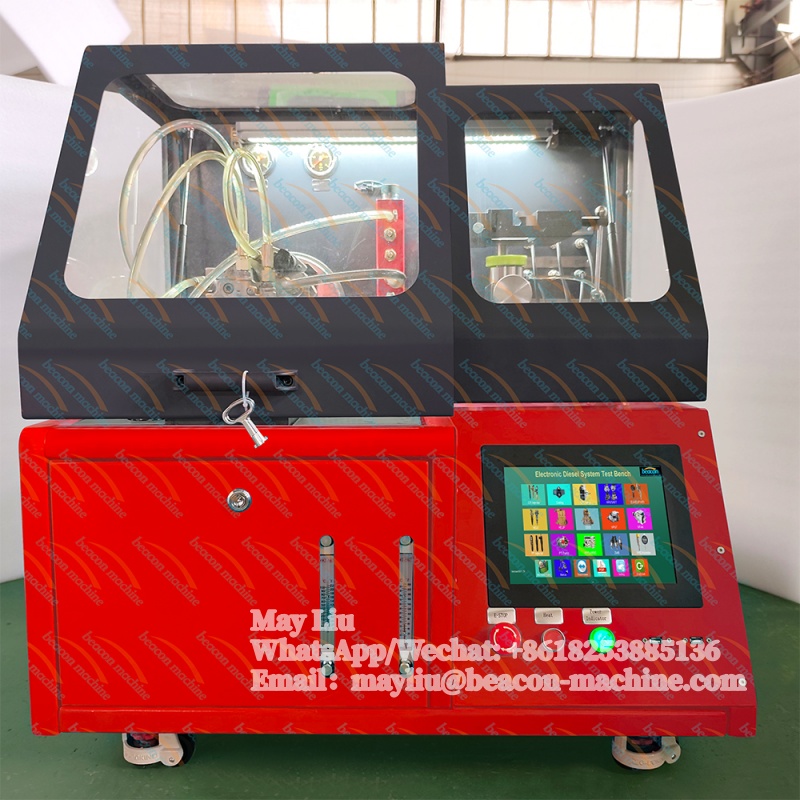

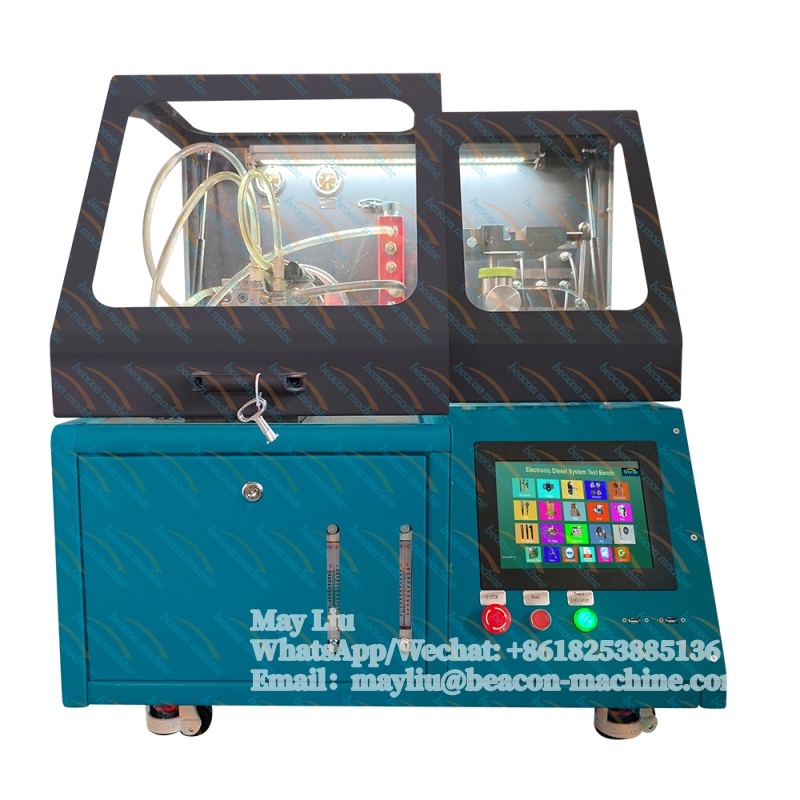

Common Rail Test Bench CR216 Diesel Injector test stand Electric Pump Testing Machine

Common rail test bench CR216 injector testing machine Electric pump calibrating banks

Introduction

Introduction
The function of the CR216 common rail injector test bench is to imitate the working condi- tions of the diesel engine ECU (Engine Control Unit), while providing control signals for
common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive
high-pressure common-rail fuel pumps and high-pressure common rail systems. Rail injec- tors work; users of drive signal parameters can be set according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the work- ing status of the high-pressure common rail system.

parameter

BASIC FUNCTION
Basic model 5.5KW 380V 3-phase
Common Rail Injector+Piezo Injector+BIP
Common Rail Pump
Denso HP0 Pump Function
Delphi Bosch Denso Siemens Injector coding

Optional Function
CAT 320D pump
Testing 2 units simultaneously (without additional flow sensors)
Testing 2 units simultaneously (with additional flow sensors)
ZME test for metering unit
AHE injector dynamic stroke (equipped with

Bosch 110, 120 stroke measuring tool + dial gauge)

CP4 pump function test
Bosch four-pin injector

Denso HP5/HP6/HP7
Rail pressure sensor test
DRV/HPV test
Solenoid valve test

*Test data from Beacon laboratory
