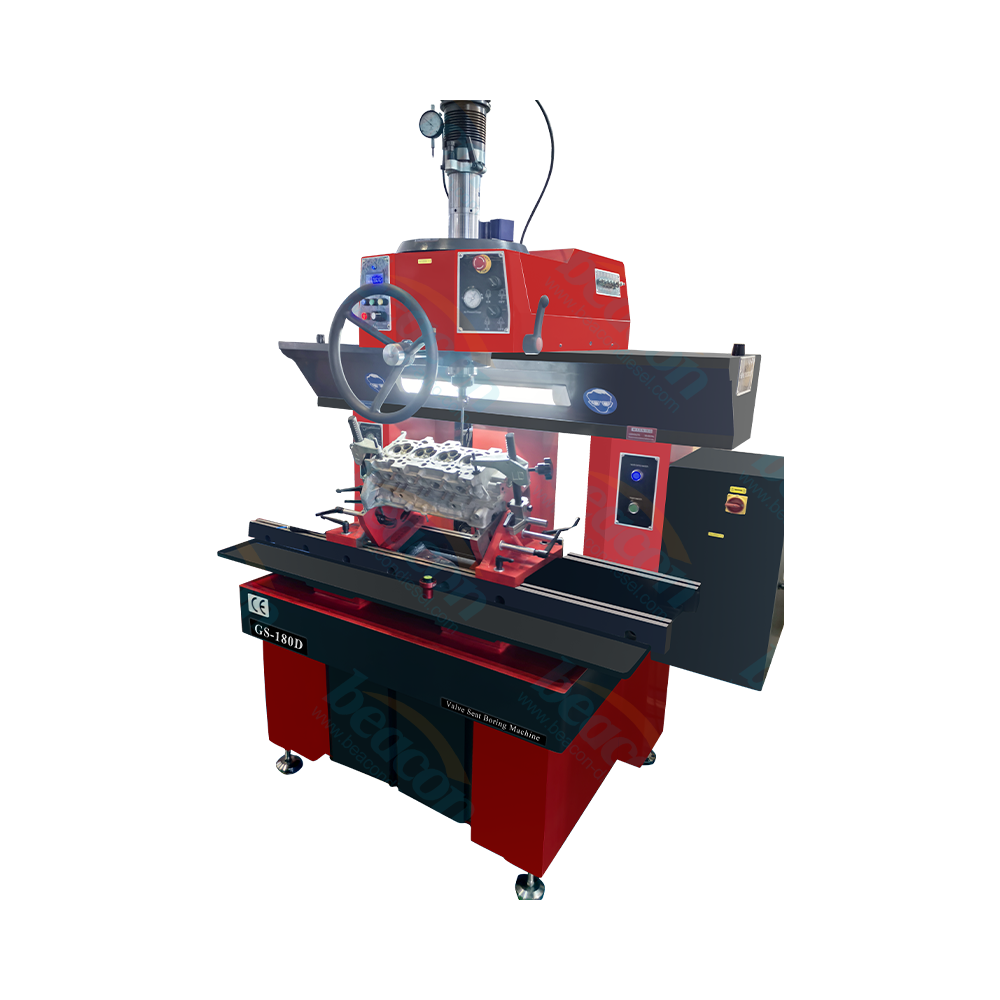

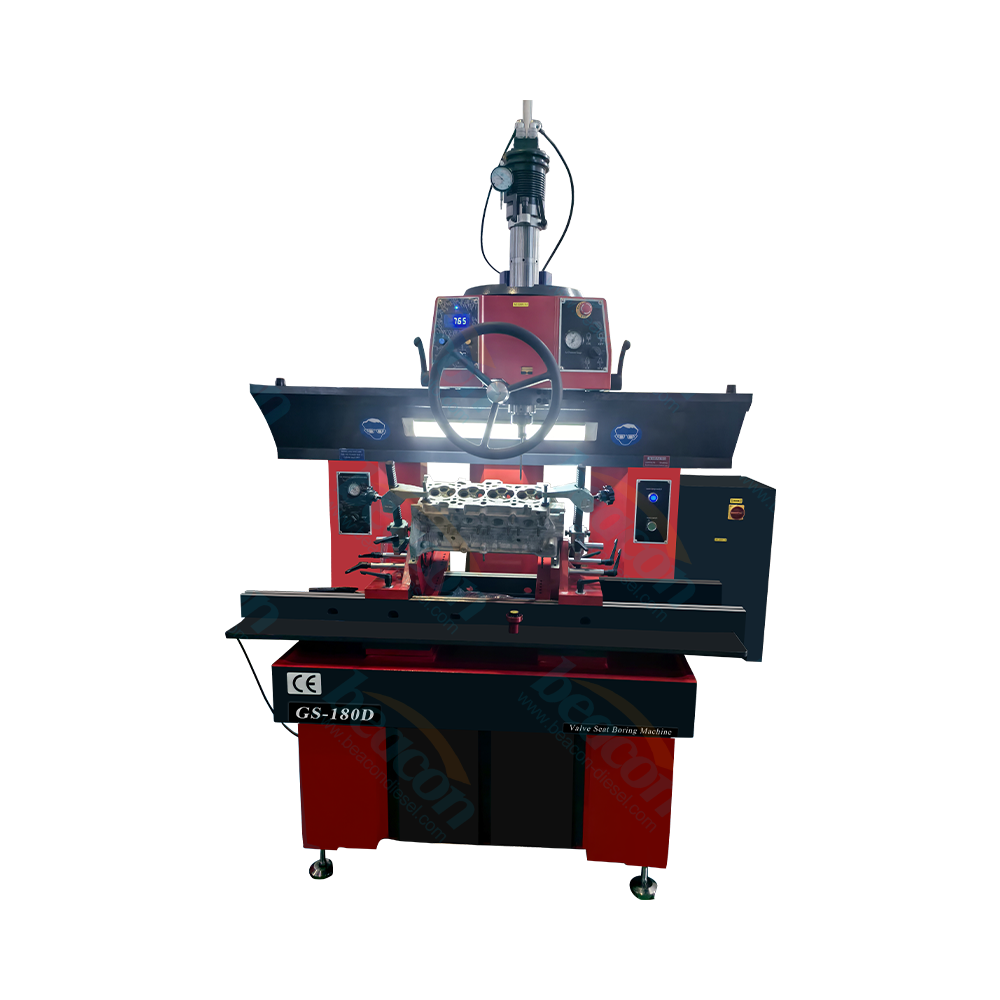

GS-180D Valve Seat Boring Machine for Engine Cylinder Repairing
GS-180D Valve seat boring machine for engine cylinder head car care processing equipment
Introduction
GS-180D Valve Seat Boring Machine for Engine Cylinder Repairing

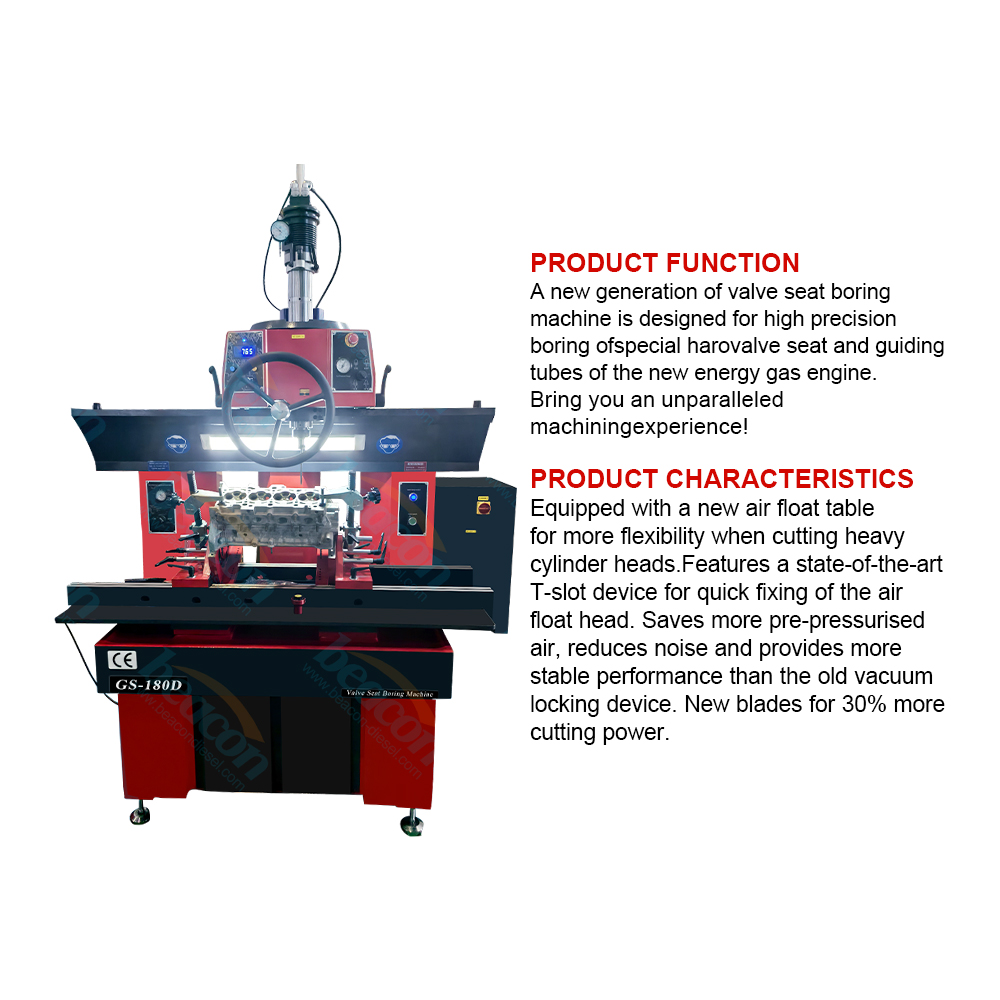

1.Product function:
A new generation of valve seat boring machine is designed for high precision boring ofspecial harovalve seat and guiding tubes of the new energy gas engine. Bring you an unparalleled machining experience.2.Product characteristics:
Equipped with a new air float table for more flexibility when cutting heavy cylinder heads.Features a state-of-the-art T-slot device for quick fixing of the air float head. Saves more pre-pressurised air, reduces noise and provides more stable performance than the old vacuum locking device. New blades for 30% more cutting power.

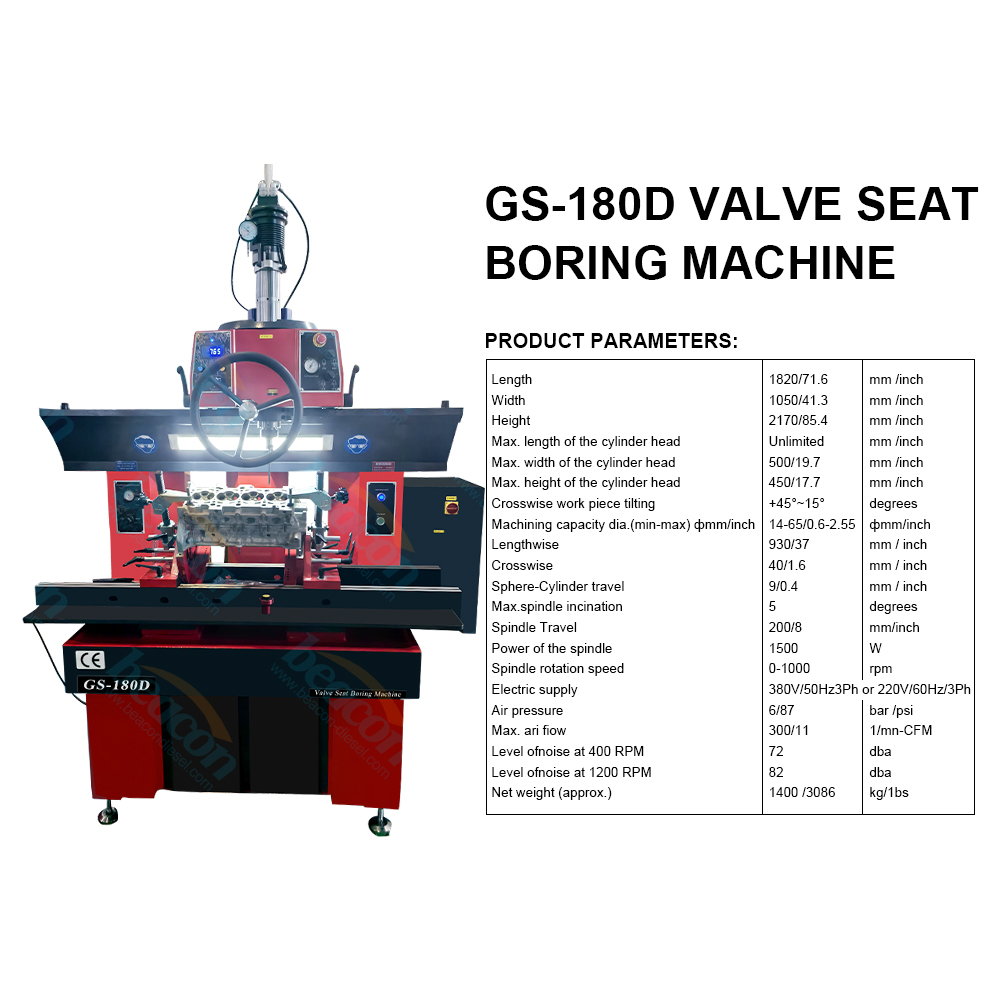

parameter
Length：1820/71.6 mm /inch
Width：1050/41.3 mm /inch
Height：2170/85.4 mm /inch
Max. length of the cylinder head：Unlimited mm /inch
Max. width of the cylinder head：500/19.7 mm /inch
Max. height of the cylinder head：450/17.7 mm /inch
Crosswise work piece tilting：+45°~15° degrees
Machining capacity dia.(min-max) фmm/inch：14-65/0.6-2.55 фmm/inch
Lengthwise：930/37 mm / inch
Crosswise ：40/1.6 mm / inch
Sphere-Cylinder travel：9/0.4 mm / inch
Max.spindle incination：5 degrees
Spindle Travel：200/8 mm/inch
Power of the spindle：1500 W
Spindle rotation speed：0-1000 rpm
Electric supply：380V/50Hz3Ph or 220V/60Hz/3Ph
Air pressure：6/87 bar /psi
Max. ari fiow：300/11 1/mn-CFM
Level ofnoise at 400 RPM：72 dba
Level ofnoise at 1200 RPM：82 dba
Net weight (approx.)：1400 /3086 kg/1bs
*Test data from Beacon laboratory
Width：1050/41.3 mm /inch
Height：2170/85.4 mm /inch
Max. length of the cylinder head：Unlimited mm /inch
Max. width of the cylinder head：500/19.7 mm /inch
Max. height of the cylinder head：450/17.7 mm /inch
Crosswise work piece tilting：+45°~15° degrees
Machining capacity dia.(min-max) фmm/inch：14-65/0.6-2.55 фmm/inch
Lengthwise：930/37 mm / inch
Crosswise ：40/1.6 mm / inch
Sphere-Cylinder travel：9/0.4 mm / inch
Max.spindle incination：5 degrees
Spindle Travel：200/8 mm/inch
Power of the spindle：1500 W
Spindle rotation speed：0-1000 rpm
Electric supply：380V/50Hz3Ph or 220V/60Hz/3Ph
Air pressure：6/87 bar /psi
Max. ari fiow：300/11 1/mn-CFM
Level ofnoise at 400 RPM：72 dba
Level ofnoise at 1200 RPM：82 dba
Net weight (approx.)：1400 /3086 kg/1bs
*Test data from Beacon laboratory
