HP-C Hydraulic Steering Gear Power Pump Test Bench Hydraulic Cylinder Disassembly Injector Machine
HP-C Hydraulic Steering Gear Power Pump Test Bench Hydraulic Cylinder Disassembly Injector Machine For testing hydraulic pumps
Introduction
Requirements for fuel injection of fuel tank:
(1) The fuel tank must be cleaned before hydraulic oil is injected into the fuel tank;
(2) The hydraulic oil must be strictly filtered before the fuel tank is injected. The mechanical impurities contained in the oil should be controlled within 0.05mm;
(3) The hydraulic oil level is more than 2/3 of the oil label, and it is displayed according to the liquid level.
Remarks: Check the voltage oil level before booting, and add it in time; pay attention to the high -pressure filter should be cleaned or replaced in time, and it is usually cleaned once in half a year.
Power -powered debugging test bench host
The other end of the three -phase and four -line cable (there must be a three -phase and four -wire plug). After the automatic protection switch is connected to the grid, the automatic protection switch is closed to the test platform to send electricity.
According to the direction of the hydraulic pump installed, select the switch at the main axis of the test bench, and select the appropriate spin.
Connection of hydraulic pump pipeline:

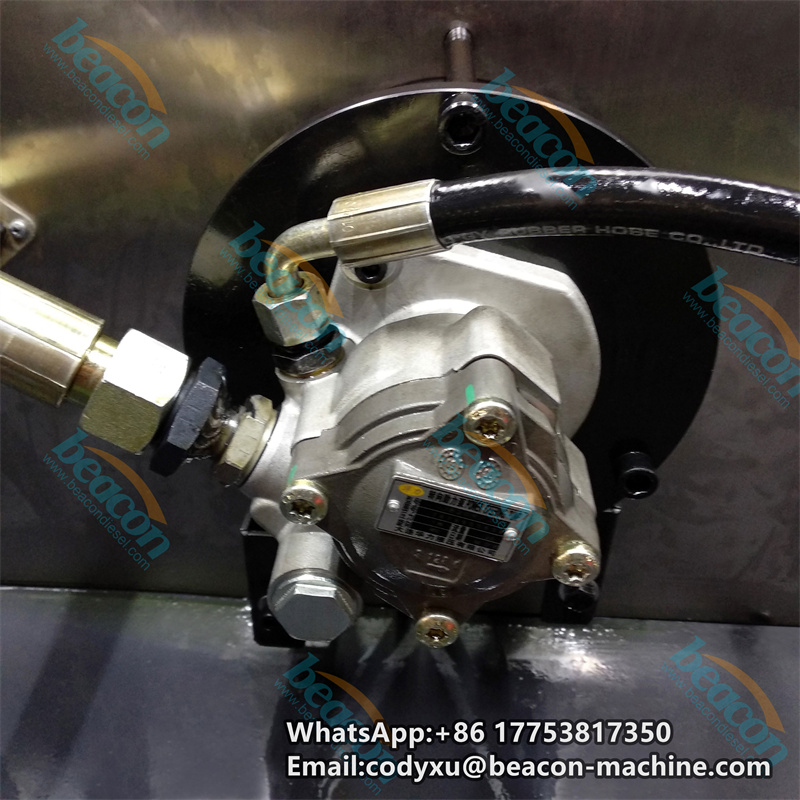

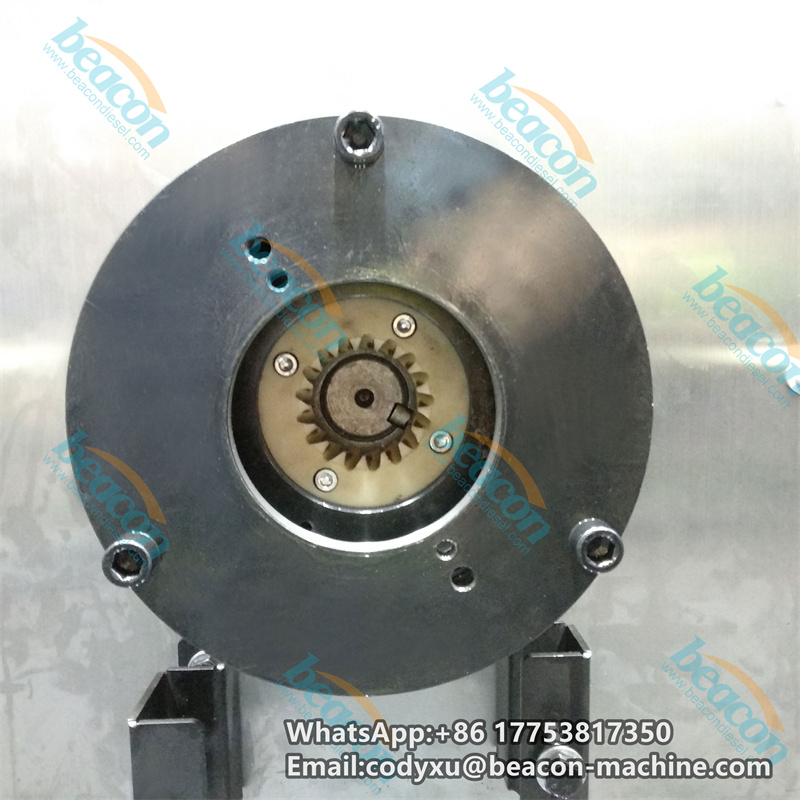

(1) First select the appropriate bracket or coupling of the hydraulic pump, fix it on the work table
(2) The equipment oil supply pipe is connected to the hydraulic pump to synchronize the return to the oil pipe; pay attention to the accuracy of the pipeline
(3) When the gas source blows away or clean, use the gas source nozzle
(1) The fuel tank must be cleaned before hydraulic oil is injected into the fuel tank;
(2) The hydraulic oil must be strictly filtered before the fuel tank is injected. The mechanical impurities contained in the oil should be controlled within 0.05mm;
(3) The hydraulic oil level is more than 2/3 of the oil label, and it is displayed according to the liquid level.
Remarks: Check the voltage oil level before booting, and add it in time; pay attention to the high -pressure filter should be cleaned or replaced in time, and it is usually cleaned once in half a year.
Power -powered debugging test bench host
The other end of the three -phase and four -line cable (there must be a three -phase and four -wire plug). After the automatic protection switch is connected to the grid, the automatic protection switch is closed to the test platform to send electricity.
According to the direction of the hydraulic pump installed, select the switch at the main axis of the test bench, and select the appropriate spin.
Connection of hydraulic pump pipeline:
(1) First select the appropriate bracket or coupling of the hydraulic pump, fix it on the work table
(2) The equipment oil supply pipe is connected to the hydraulic pump to synchronize the return to the oil pipe; pay attention to the accuracy of the pipeline
(3) When the gas source blows away or clean, use the gas source nozzle
parameter

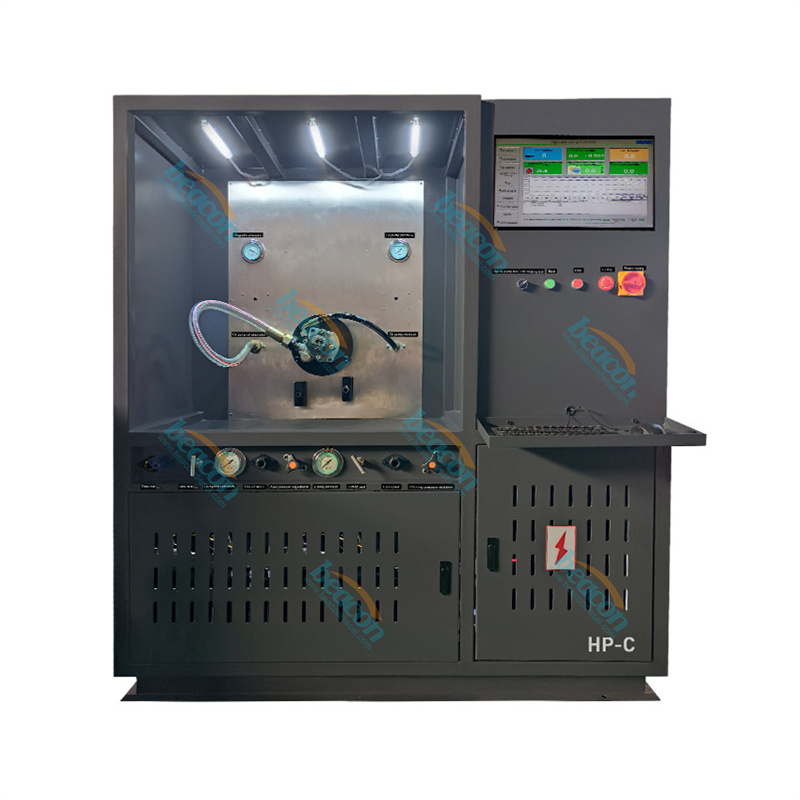

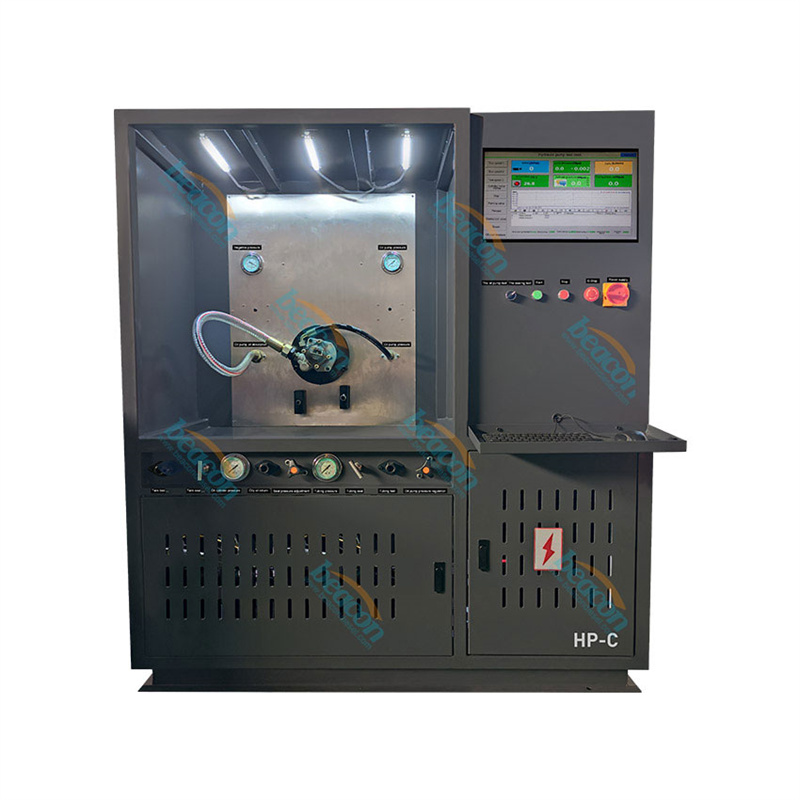

Product name：HP-C hydraulic pump test table
Model Number：HP-C
Brand Name：Beacon
Electronic power：380v /220v 3 phase 220v single phase
Power：Electronic
Color：Private custom
warranty: 12 months
Product Size：150*120*200(CM)
Weight：600kg
*Test data from Beacon laboratory
