Gasoline Fuel Injector Cleaning Machine Launch GDI CNC605 Injector Tester Removable Ultrasonic Cleaner Box

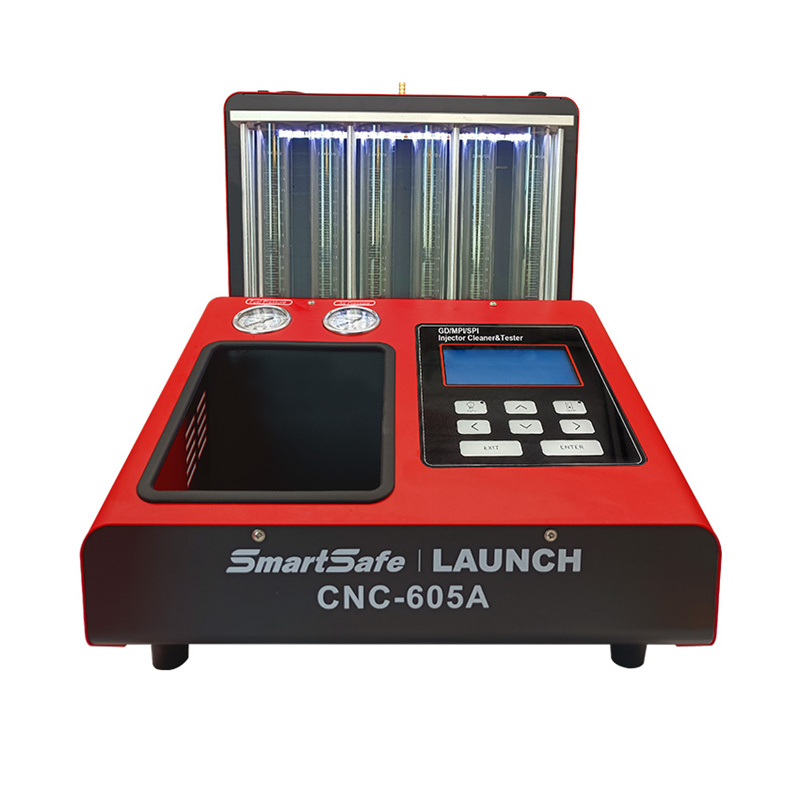

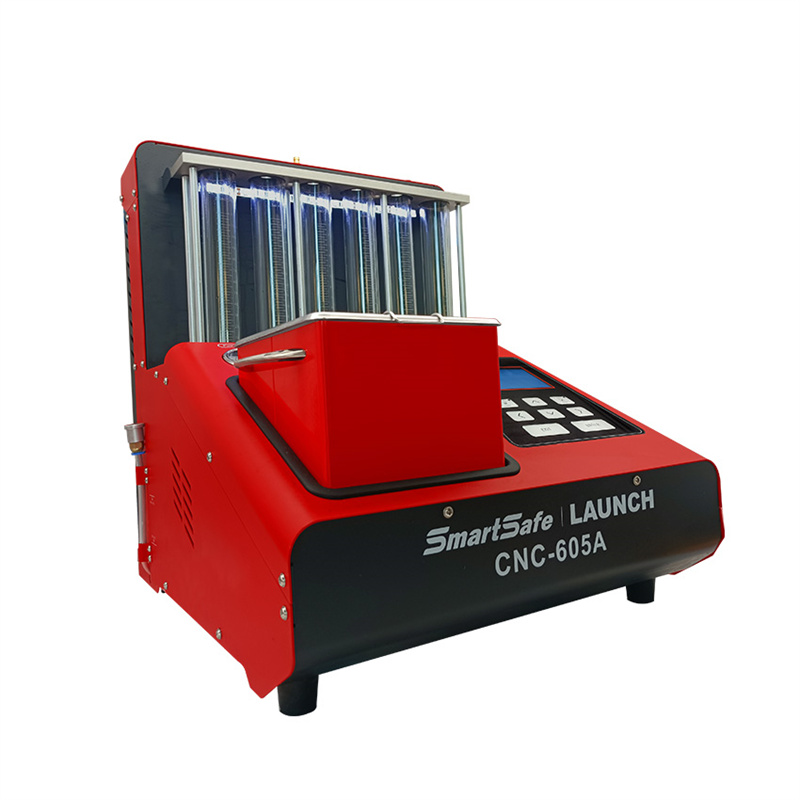

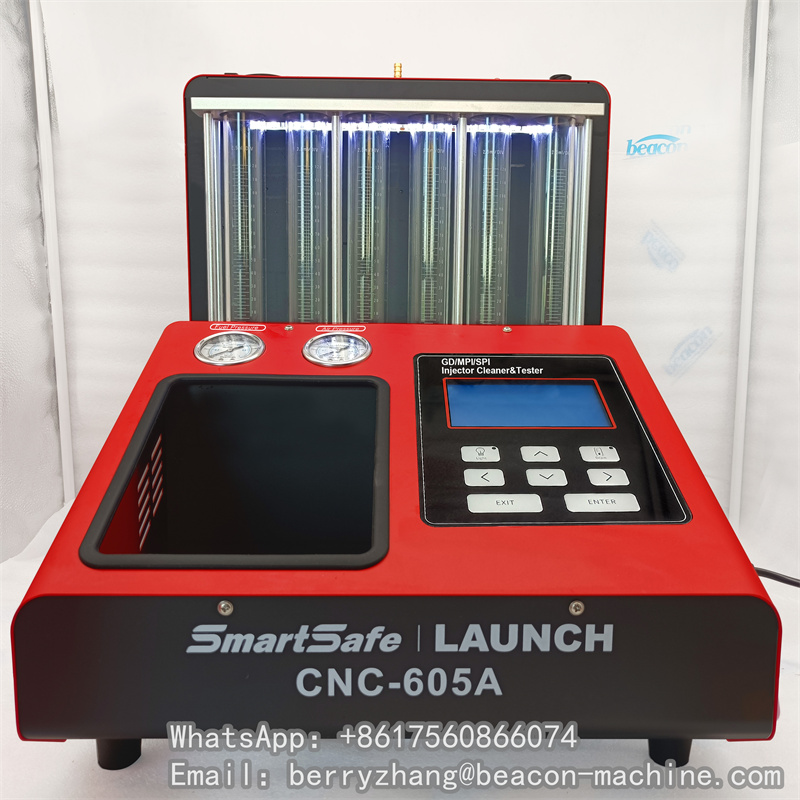

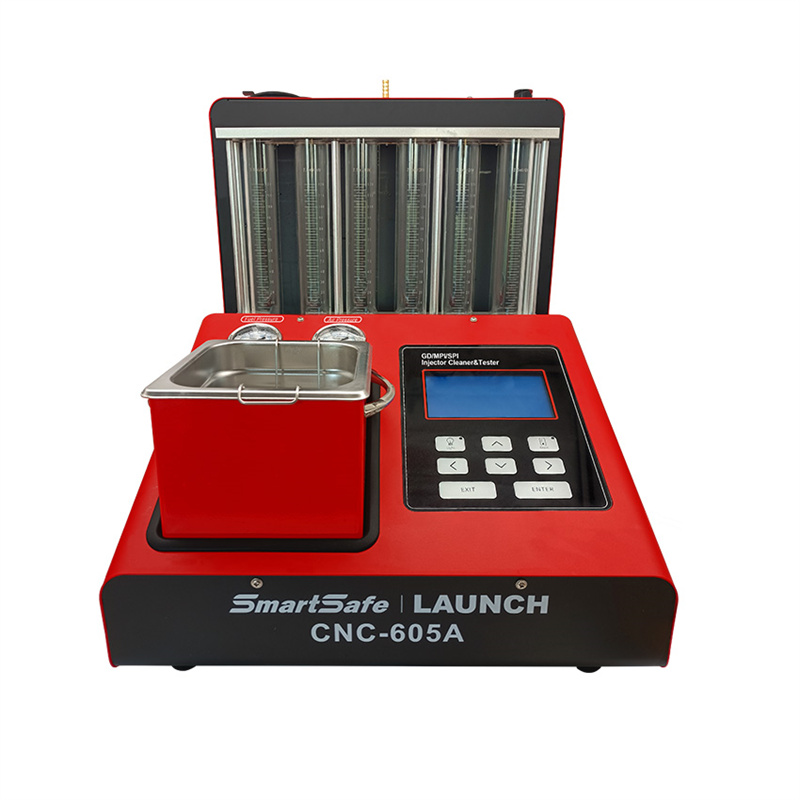

CNC-605A is an injector cleaner & tester suitable for GDI, EFI, SFI and other injectors.

Introduction

Gasoline Fuel Injector Cleaning Machine Launch GDI CNC605A Injector Tester Removable Ultrasonic Cleaner Box

CNC-605A is an injector cleaner & tester suitable for GDI, EFI, SFI and other injectors. The injector can be cleaned and tested by simulating the engine condition. It can also be used to clean the fuel injector and fuel supply system on the vehicle without disassembly.

Functions:
1. Suitable for multiple fuel injectors(GDI, EFI, SFI etc)
2. Powerful ultrasonic cleaning
3. Simulation condition test
4. Automatic oil discharge

Feature
The latest appearance and structure design
atmosphericControllable background light
Electric control oil discharge
Built-in cooling fan, stable and reliable operation

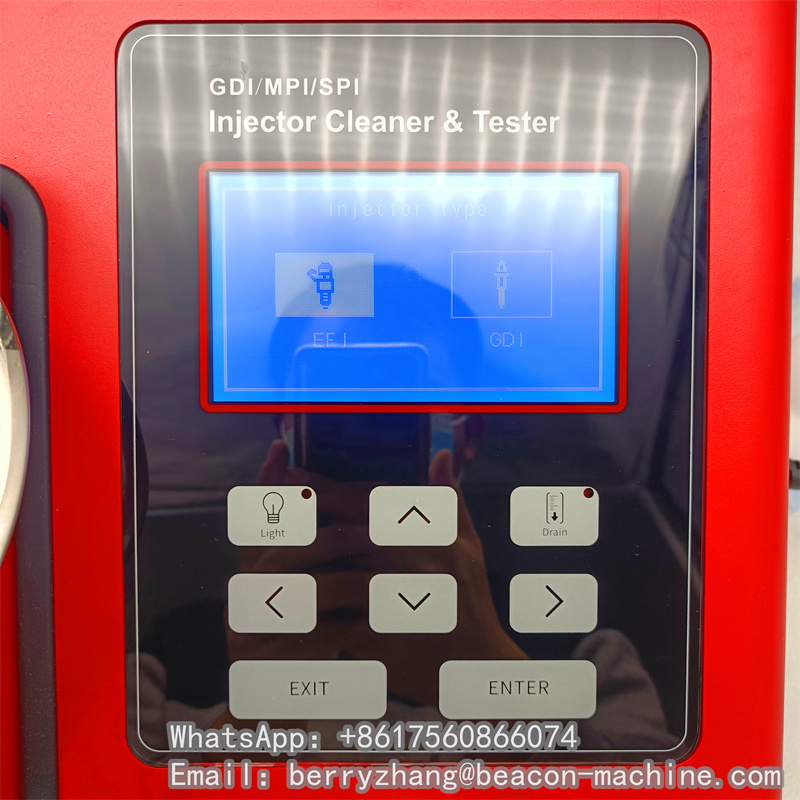

LCD display,
multi-language
Touch button operation,
glass panel
Backwash

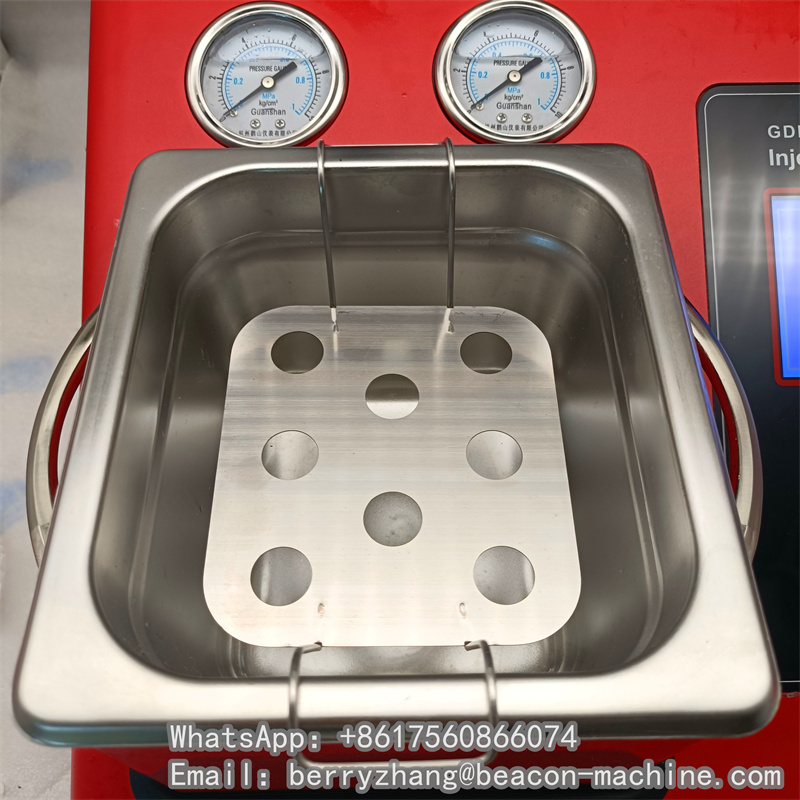

Ultrasonic cleaning
No disassembly,/cleaning and maintenance(Need to buy adapter)
Atomization test
Uniformity test
Tightness test

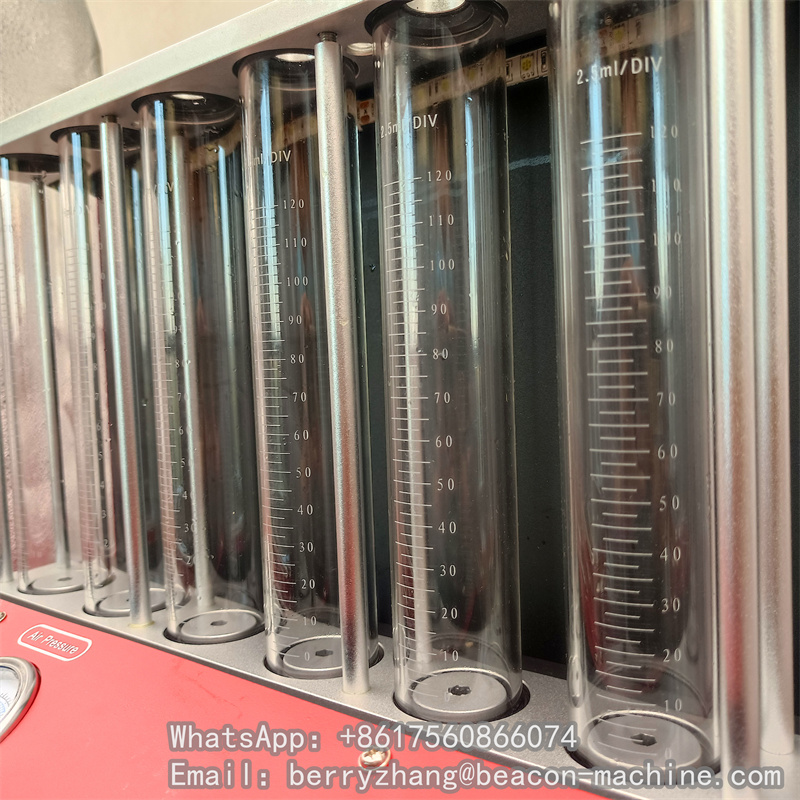

Fuel injection volume test Automatic mode System functions
Suitable for GDI, EFI, SFI and Other types of fuel injectors

parameter

Specification:
Voltage AC220V
Host power 350W
Ultrasonic power 60W
Test tube accuracy 2%
Analog speed 100~9999rpm,
step length 100rpm
Driving time 0.5~25ms,
step length 0.1ms
Timing range 1~30min
LCD 128x64 Oil
supply pressure 0.1~10bar

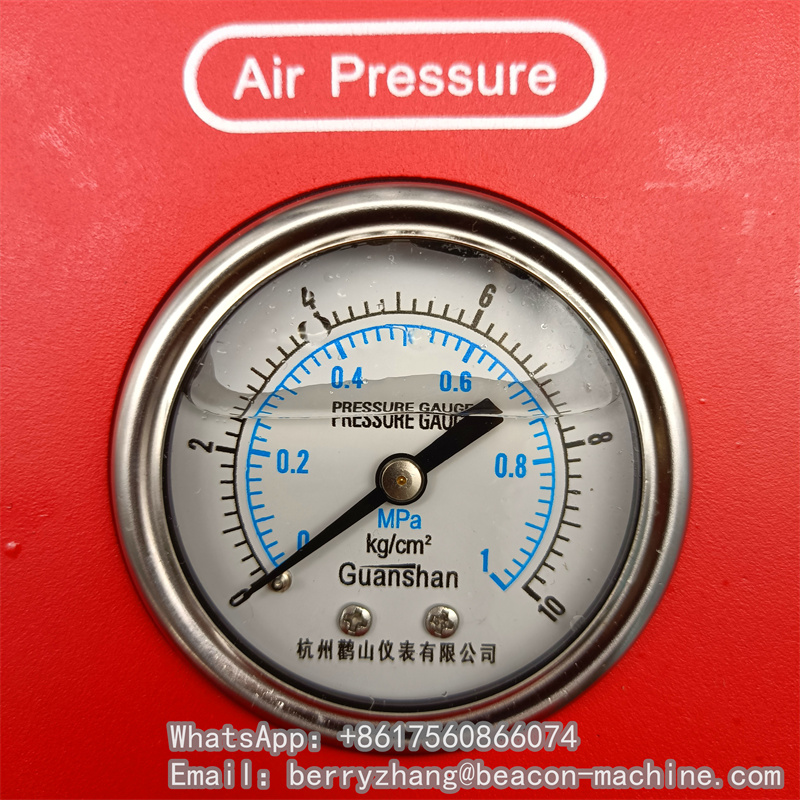

Inlet pressure 6~8bar
Fuel tank capacity about 4L
Packing size (LxWxH) 540x520x580mm
Gross weight 25kg (4 cylinders)/28.5kg (6 cylinders)

*Test data from Beacon laboratory
