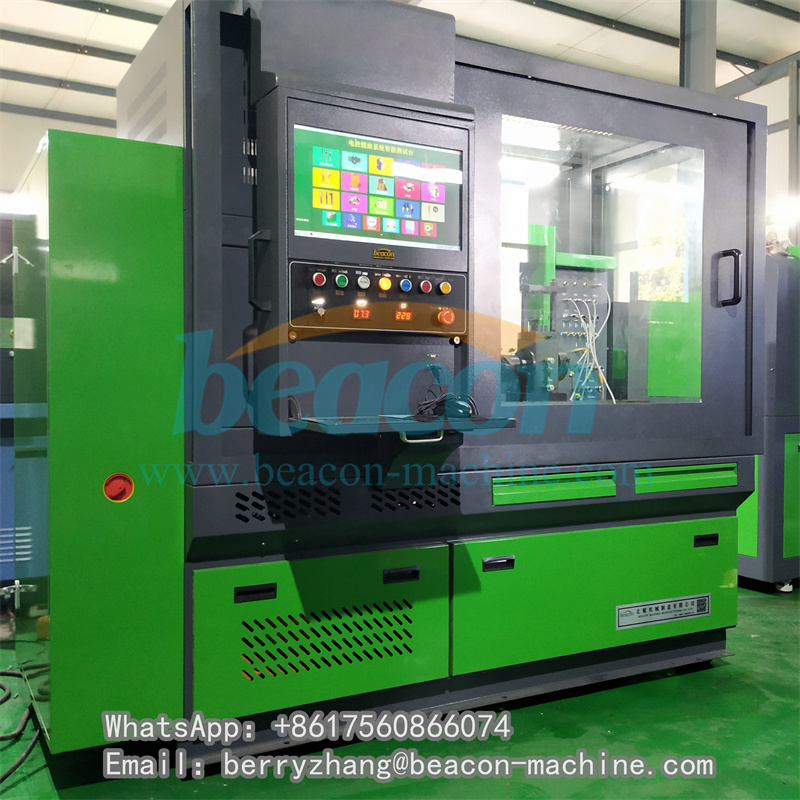

Multifunctional CR825 CRS825L Common Rail Injector Tester Test Bench Diesel Pump Calibration Machine

Implement all coding functions HEUI CR diesel fuel injector pump test bench pump calibration machine

Introduction

Multifunctional CR825 CRS825L Common Rail Injector Tester Test Bench Diesel Pump Calibration Machine

Function Introduction
(1)Test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, solenoid or piezo common rail injector and pump(Included the pump with 2 ZME metering units).
(2)Injector coding can be generated, including Bosch IQA / IMA / ISA, Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI(optional);
(3)Can test Bosch, Caterpillar, Cummins, Delphi EUI and EUP, including Delphi E3 double solenoid EUI and Cummins M11 double pulsing EUI (optional);
(4)Test HEUI injector and HEU pump (optional);
(5)Test Caterpillar 320D pump (optional);
(6)Test VP37,VP44,RED4,Denso V3/V4/V5 pump (optional);
(7)Test Cummins HPI injector,PT pump (optional);
(8)Test Injector response time,EUI/EUP BIP；
(9)Test injector resistance and indctance.
(10)Test the armature lift of the injector solenoid valve (AHE) (optional).
(11)The test plan is consistent with the original data, and the test accuracy reaches the original factory standard;
(12)The database is fully openthe part number can be increased.
(13)Automatic network upgrade, test data and functions are kept up to date

parameter

1.Host power 15kw
2. Spindle speed 0-3000r / min
3. Host center height 128 cm
4. Wheel oil pump 10L / min
5. Oil supply pressure 0-0.4mpa
6. Fuel tank capacity 40L
7. Oil tank capacity 20L
8. High pressure oil supply 0-250mpa
9. Oil supply 0-35mpa
10. Hotbed control 40 ° C ± 2 ° C
11.Oil hotbed 40 ° C ± 2 ° C
12.Drive voltage 0-180v
13. Drive current 0-25v
14. Input voltage 220v-380v (according to customer needs)
15.Overall dimensions (cm) 225×142×218
16.Weight (KG): 1250

*Test data from Beacon laboratory
