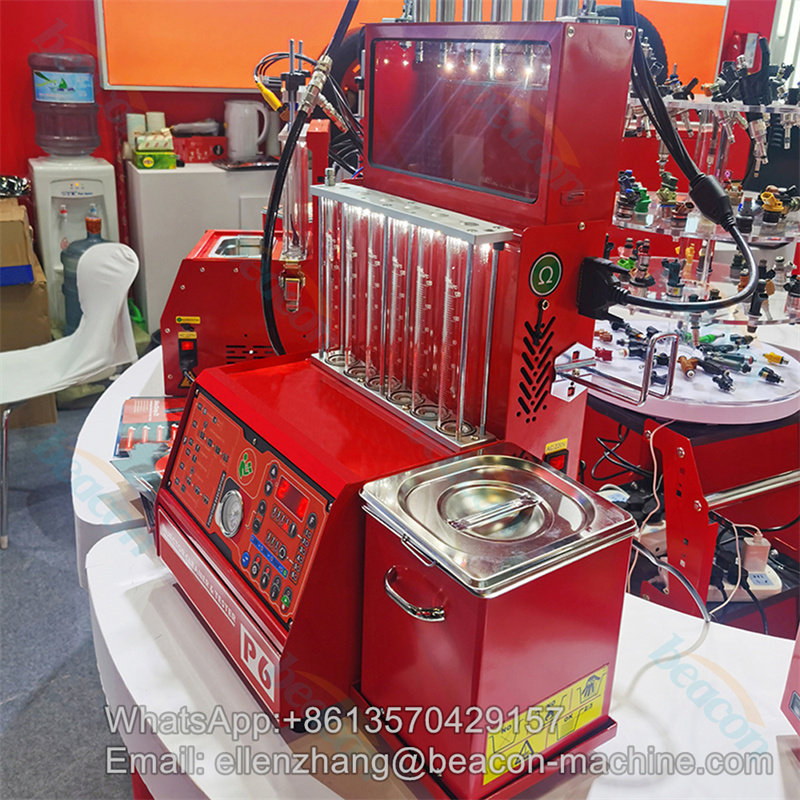

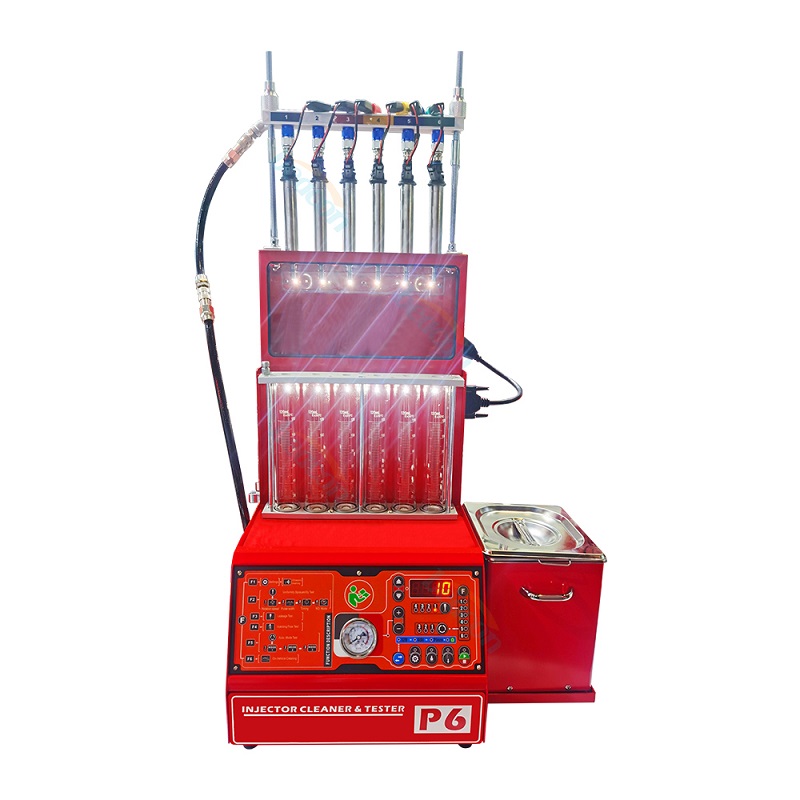

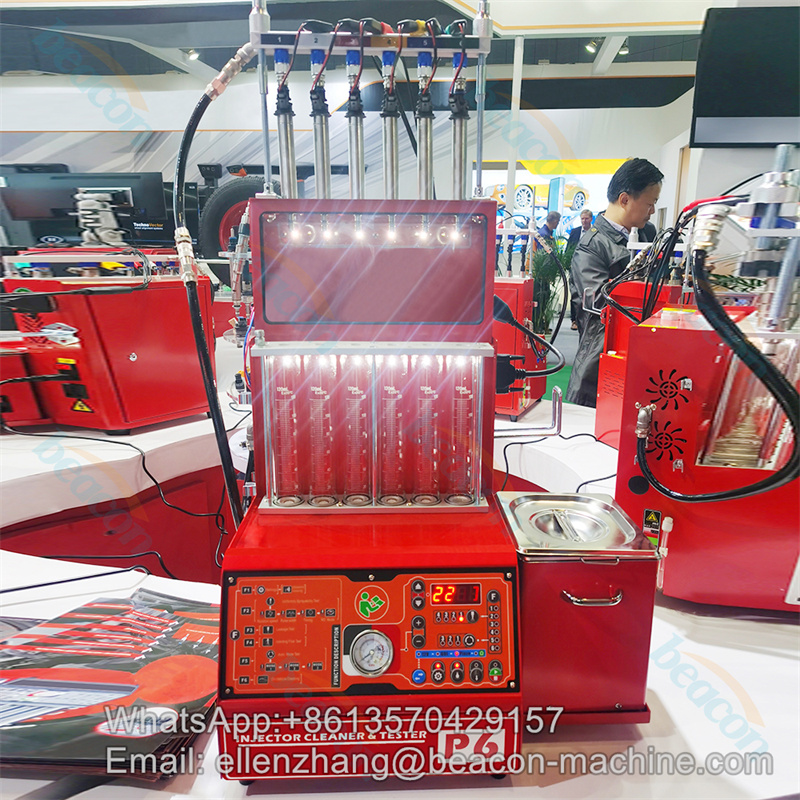

P6 gasoline injector test and cleaning machine

The P6 is a cutting-edge gasoline injector test and cleaning machine, designed for comprehensive diagnostics and ultrasonic cleaning to ensure optimal fuel injection and engine performance.

WhatsApp: +8618661335350

Tel / Wechat: +8618661335350

Email: beacondiesel@beacon-machine.com

Quick Order

Introduction

P6 gasoline injector test and cleaning machine

1 Supports Piezo(BMW,BENZ)injectors

2 Supports various GDI injectors

3 Dedicated tool drawer

4 Injector resistance test

5 Full test for low resistance injectors

6 Side feed injectors support (Optional)

parameter

Main unit power supply	AC220V±10%50Hz/60Hz
Input power	230W
Ultrasonic cleaner power	100W
Simulated RPM range	100~9900rpm,step:10rpm
Time range	5~300s,step:5s
Pulse width	0.1~25ms,step:0.1ms
Fuel tank capacity	2000ml
Work pressure	0～10bar
