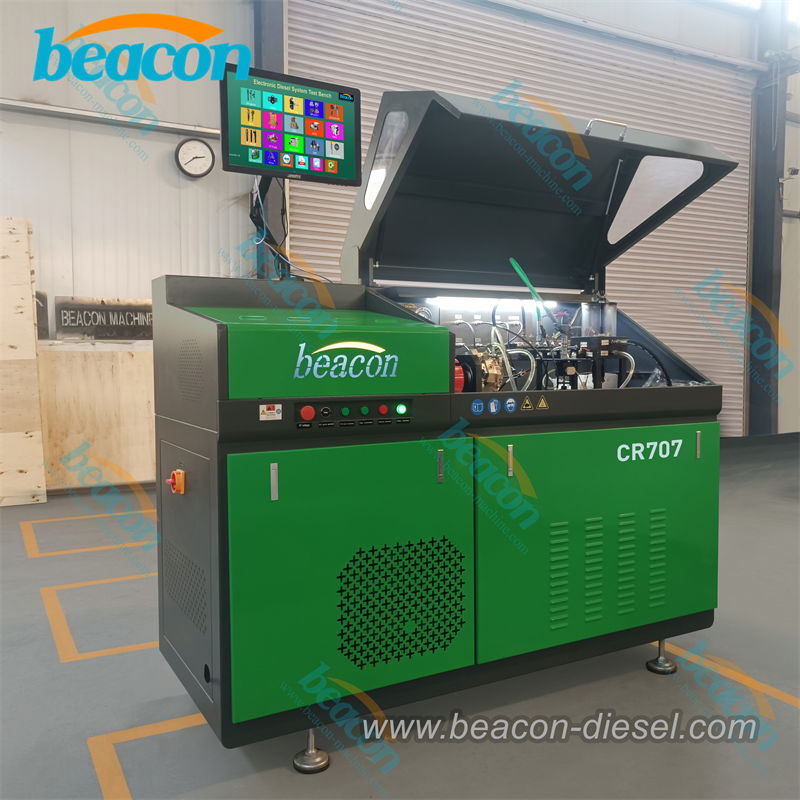

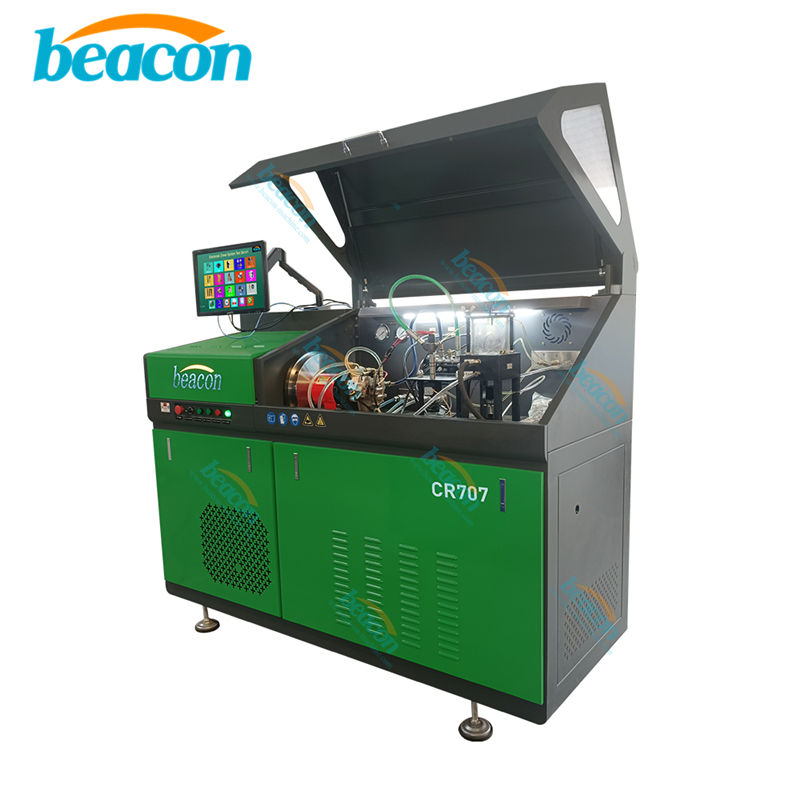

Vehicle Calibration Machine Cr707 Heui Common Rail Diesel Fuel Injection Pump Test Bench With Eui Eup Cambox

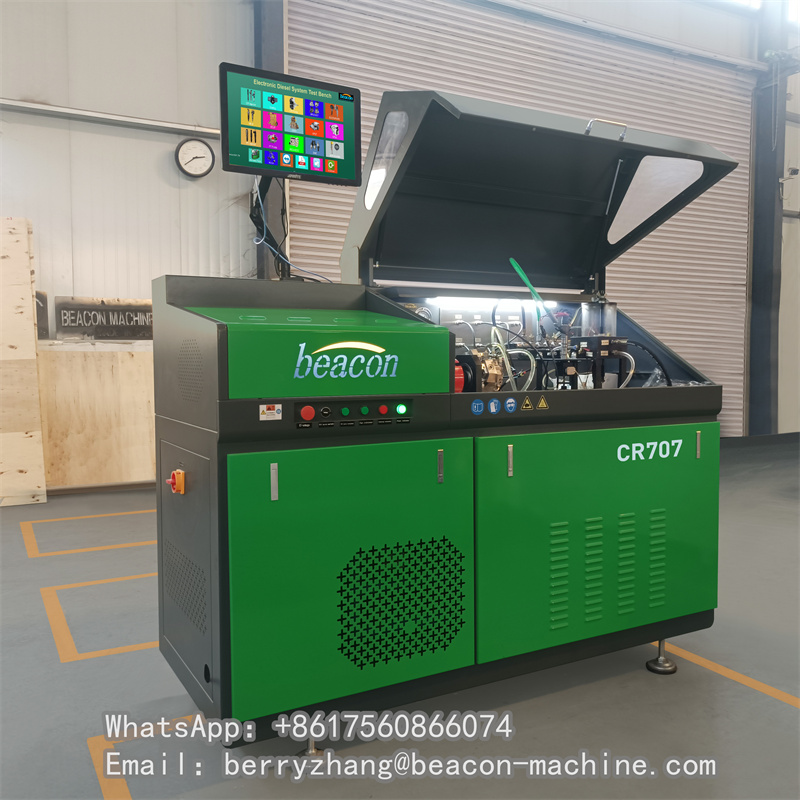

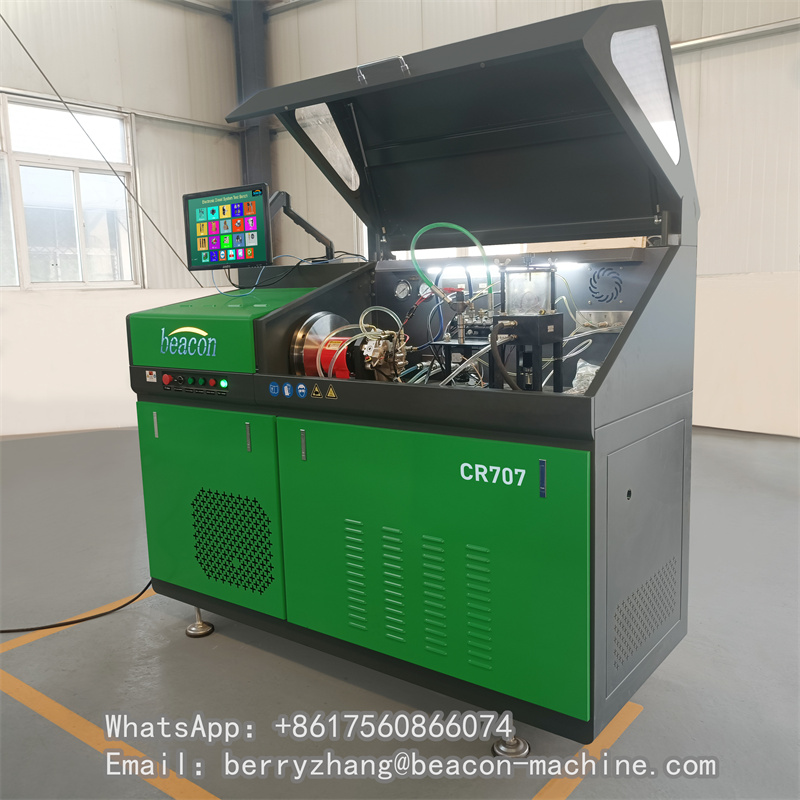

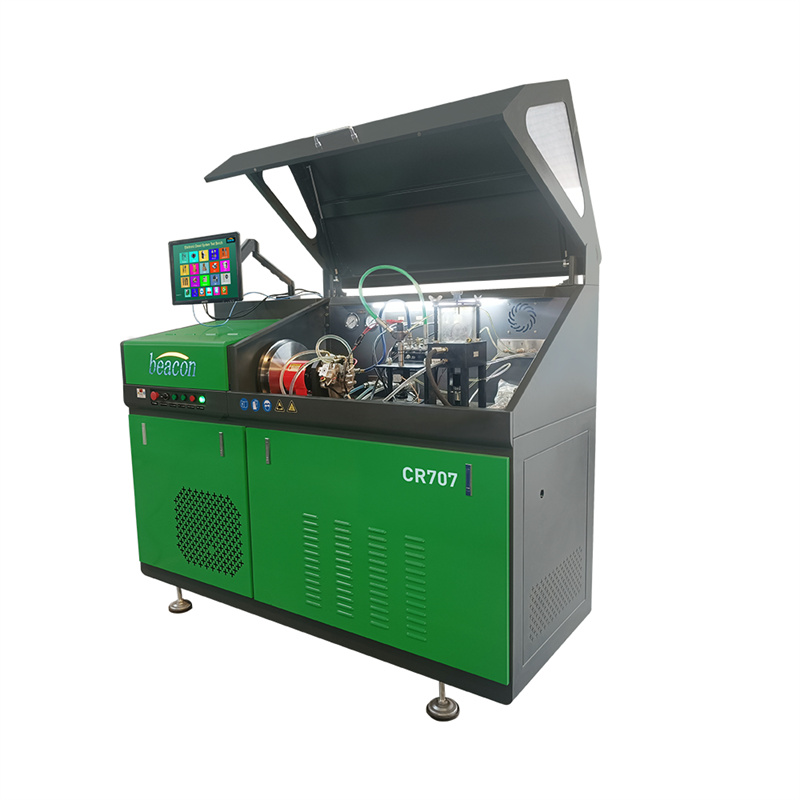

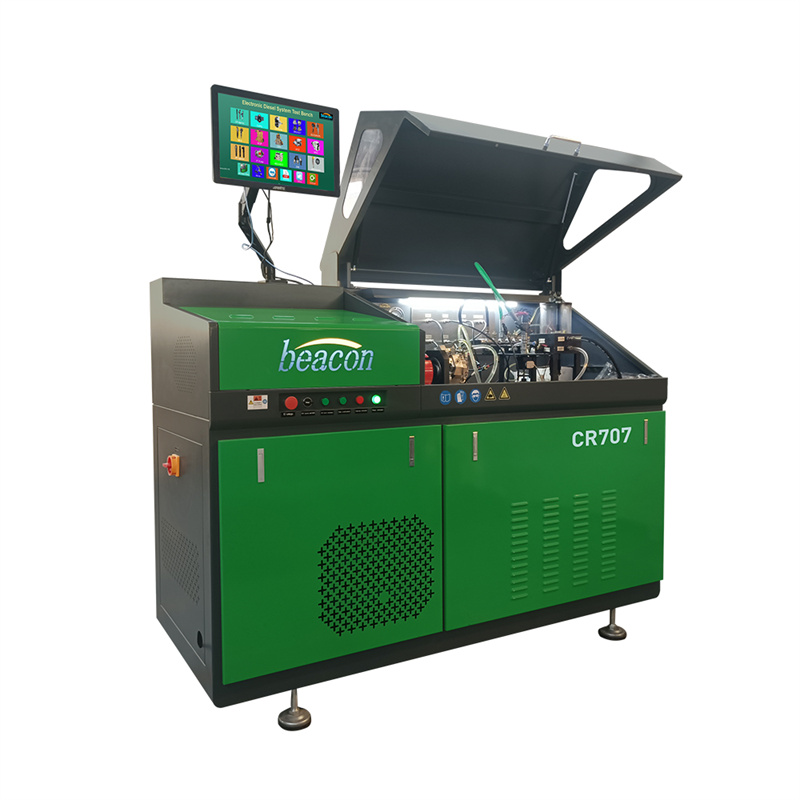

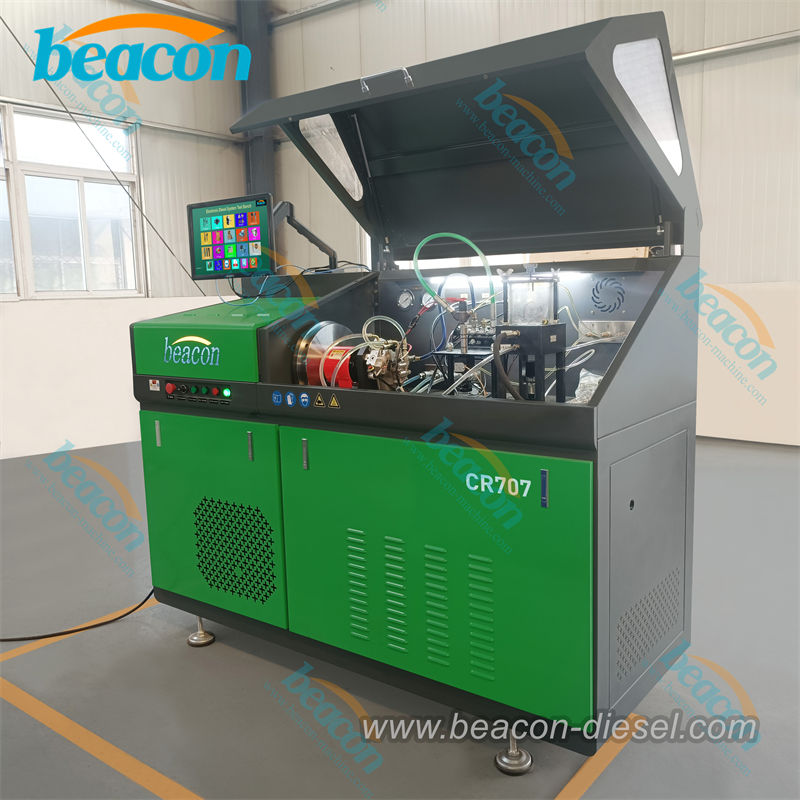

CR707 common rail test bench is mainly test for common rail pump and Injector

Introduction

Vehicle Calibration Machine Cr707 Heui Common Rail Diesel Fuel Injection Pump Test Bench With Eui Eup Cambox

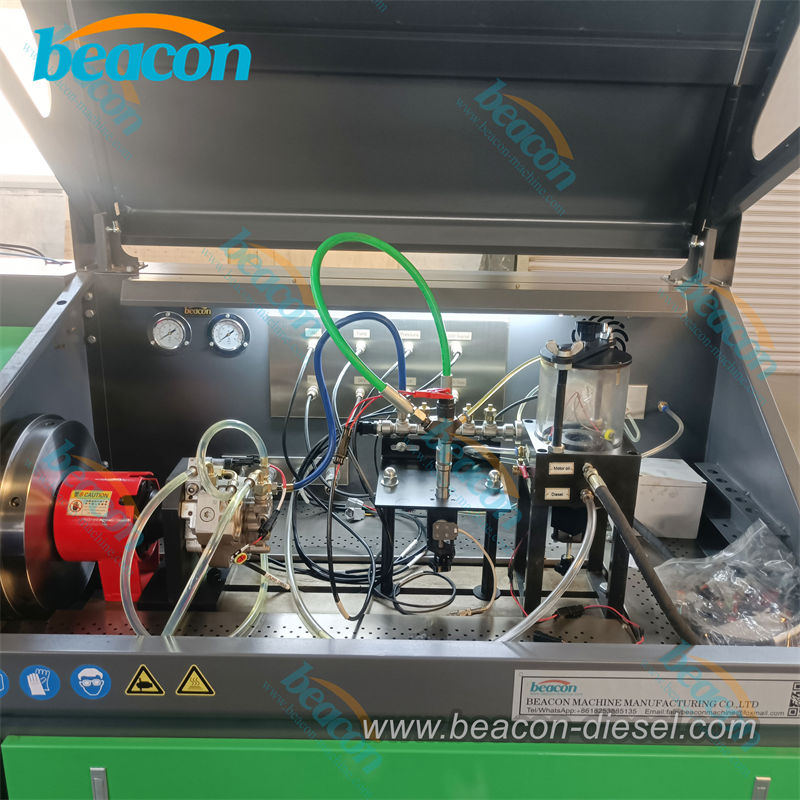

CR707 common rail test bench is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value. Now our the machine is our newest system , the system include huei ,eui eup function.

System application
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors, It also can test 6 common rail injectors in one time.

Main features
1、 Basic model 11kw 380v 3-phase
2、 Test common rail and piezoelectric injectors

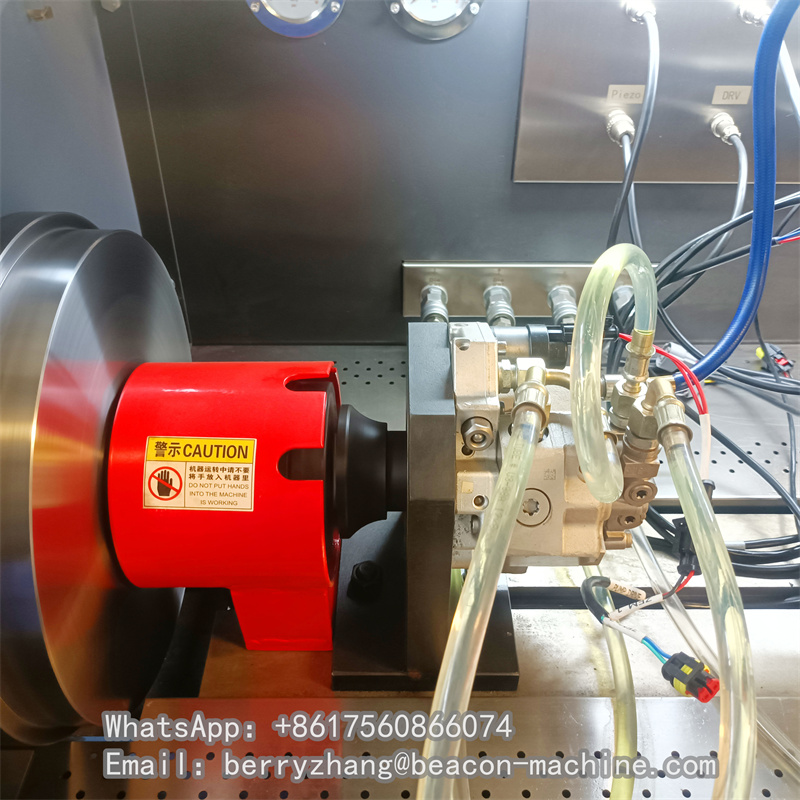

3、 Test the common rail pump
4、 Denso HP0 pump function
5、 Delphi Bosch Denso Siemens injector code

Optional function：

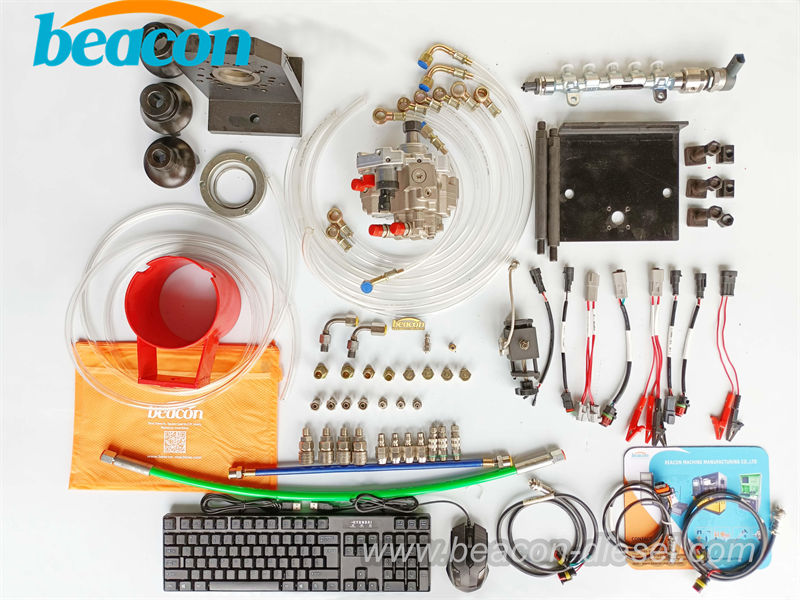

1、 EUI EUP (10 adapters)
2 、EUI EUP (19 adapters)
3、 EUI EUP with gear scale cam box

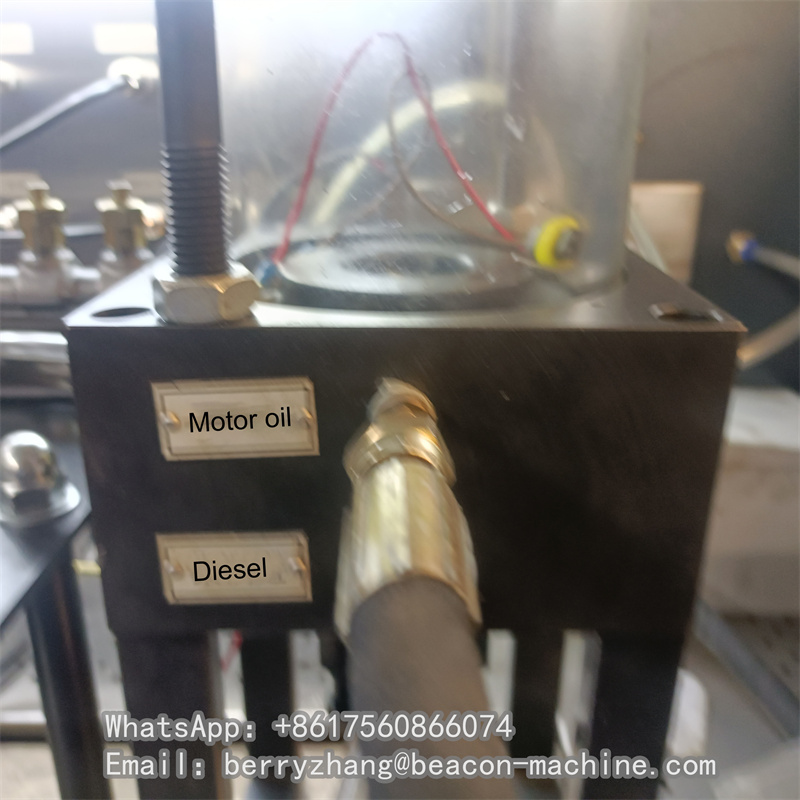

4、 HEUI (single oil circuit, split holder)
5、 HEUI (oil + diesel dual oil circuit, conjoined gripper)
6 、HEUI 3412 ISUZU function
7、 FORD6.0 Injector Carter 3408
8、 Measure six at the same time (without additional flow sensor)
9 、Measure four at the same time (without additional flow sensor)
10 、Measure two at the same time (without additional flow sensor)
11 、Simultaneous measurement of six (additional flow sensor)
12 、Simultaneous measurement of four (additional flow sensor)
13、 Simultaneous measurement of two (additional flow sensor)
14 、Delphi, Denso, Bosch, Siemens coding

parameter

Main motor speed: 0-4000 r / min can be adjustable
Motor power: 11KW, 15KW, 18.5KW optional
Fuel Injector open: 12V, 80V, 150V Control accuracy
voltage Control range: phase adjustment
Injector opening: 0-1000HZ Control accuracy: 1HZ
frequency Control: 0-65535us
Fuel Injector Hold Time Control: 0-1000 times
Delivery Oil Count Control accuracy: 1 times
Fuel pressure control: 0-2400bar
Control accuracy: 1bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size: 1.9*0.78*1.56M
Weight: 770KG(Contains cam box)
*Test data from Beacon laboratory
