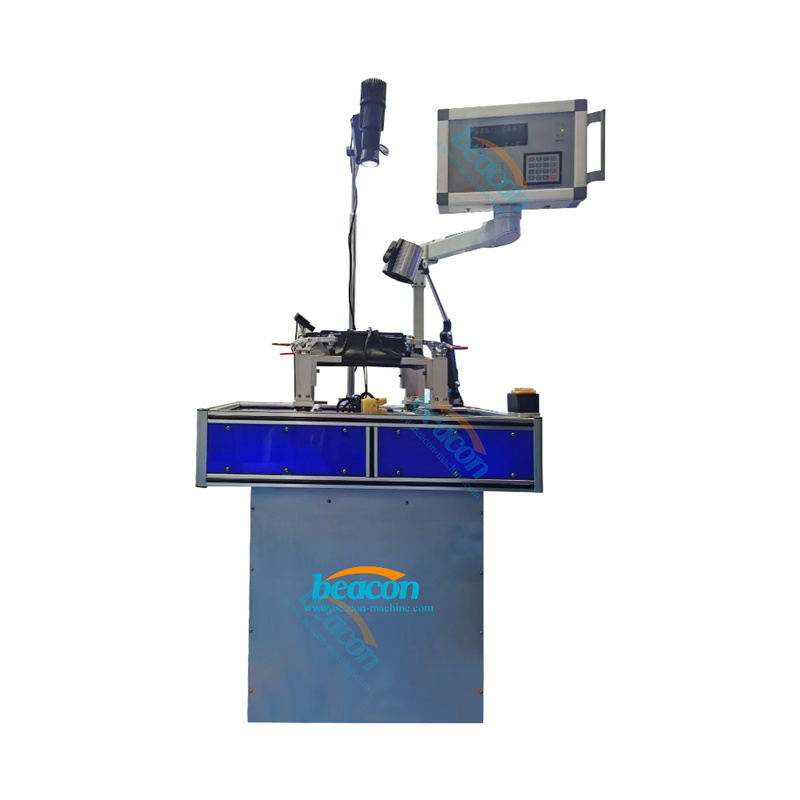

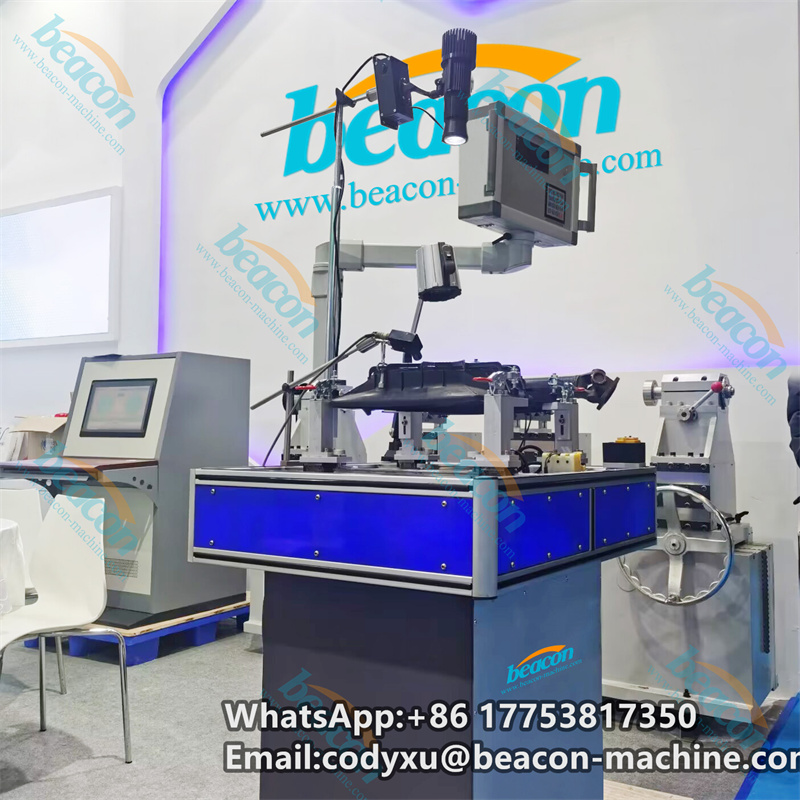

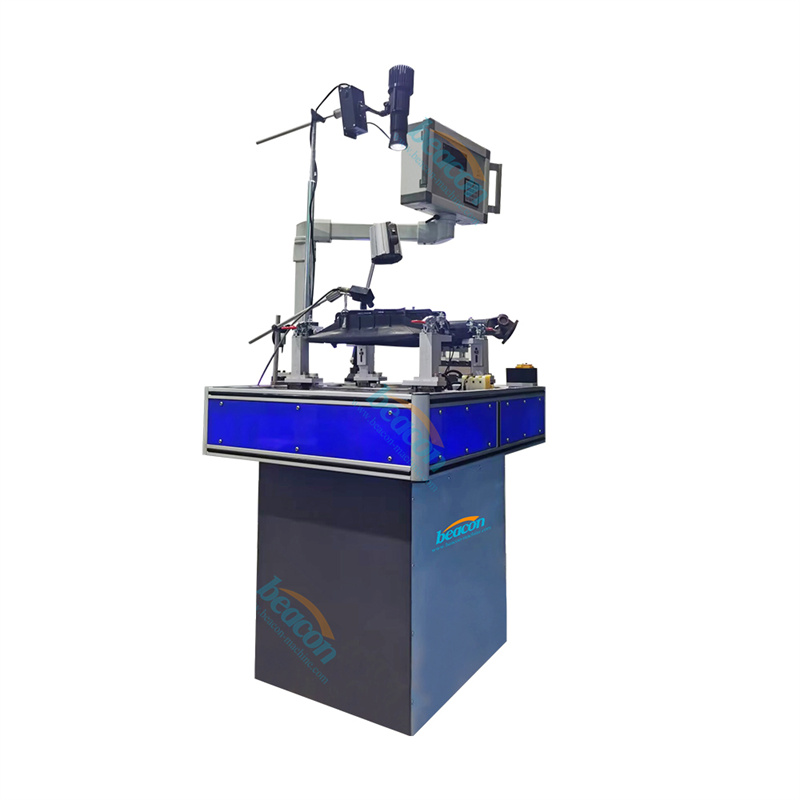

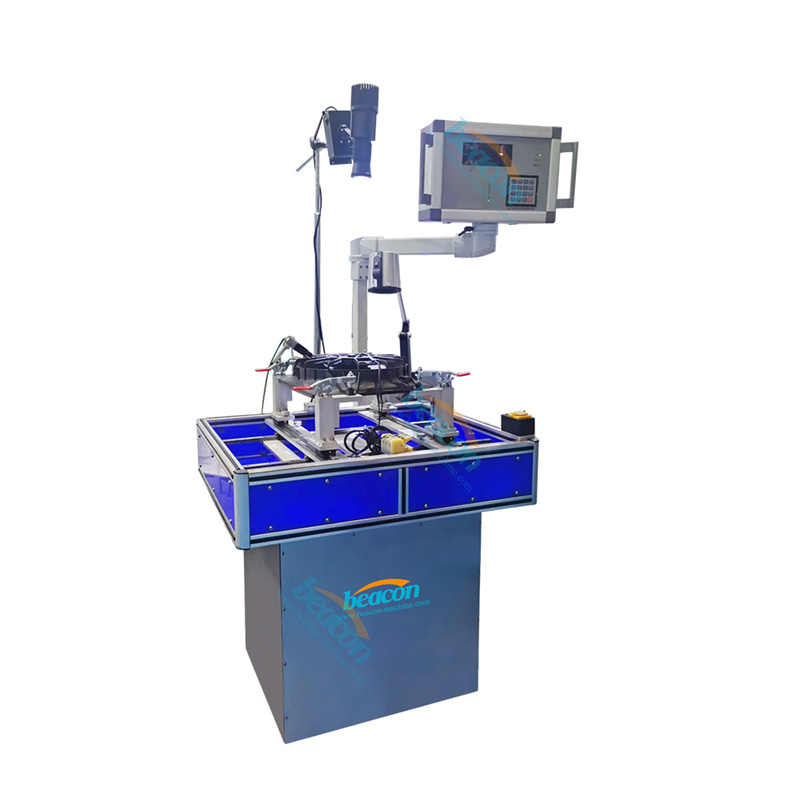

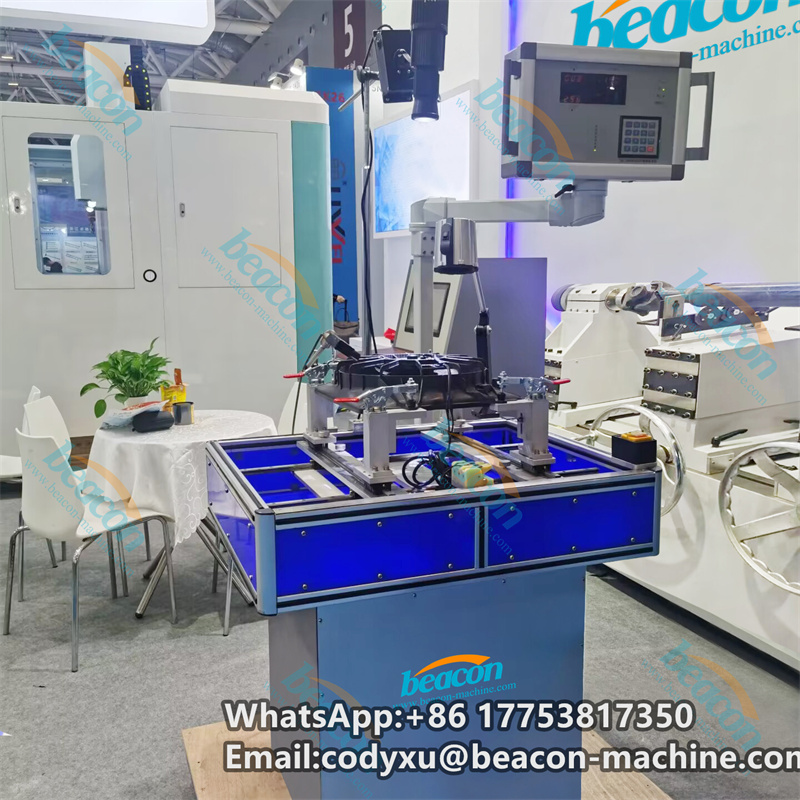

YF-5 Single-Sided Vertical Balance Machine Soft Bearing Belt Driven Rotor Dynamic Turbo Shaft Balancing Equipment

Introduction

1.Product introduction:
Use steel plate welding machine seat, Machining after annealing. Integrated design of machinery, measurement system and strong power control switch, Occupying a small area(Special requirements can be separated and installed). Suitable for single -sided balance measurement，Such as car accessories, etc., high -precision workpieces with special requirements.

2.Product structure:
(1)Single -sided vertical braking function
(2)Using the most universal figures and simulated integrated electrical appliances

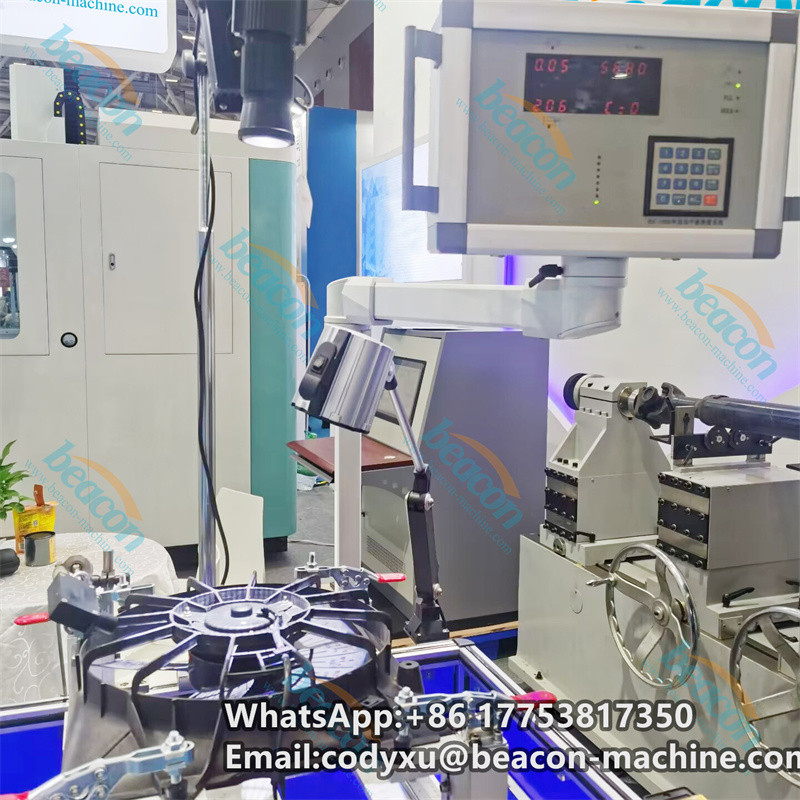

(3)The amount, speed, and phase are displayed in numbers

3.Application range:

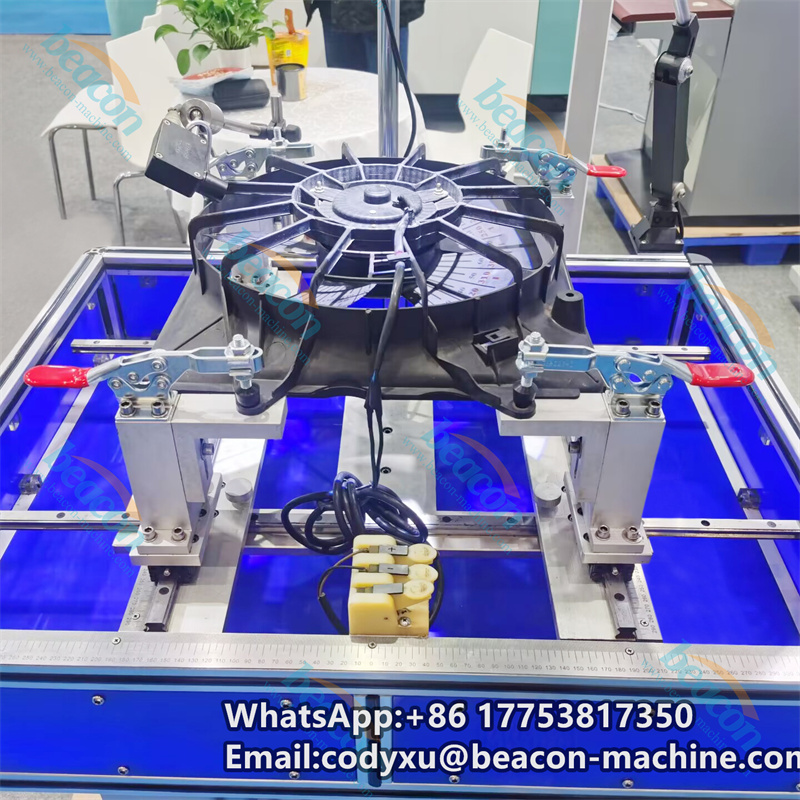

for fans.extraction fans,brakes.juice blenders range hoods ,blowers

4.Product advantages:
(1) with memory function
(2) Easy to operate
(3) easy installation
(4) instant results printing

parameter

Type：YF-5
Mass of work（KG）：5
Max.dia of works（MM）：500
Balancing speed（R/MIN）：300-3500
Motor power（KW）：0.37
Min.achieveable unbalance：≤5
Unbalance reduction ratio（%）：≥90%
Machine tool length（MM）：1100
Net machine net weight（约KG）：120
Size LxWxH（MM）：1100x800x850

*Test data from Beacon laboratory
