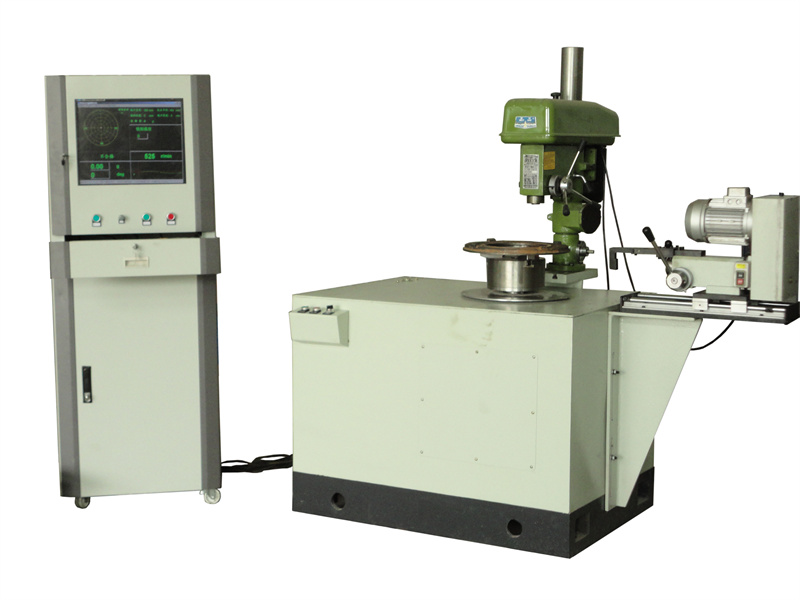

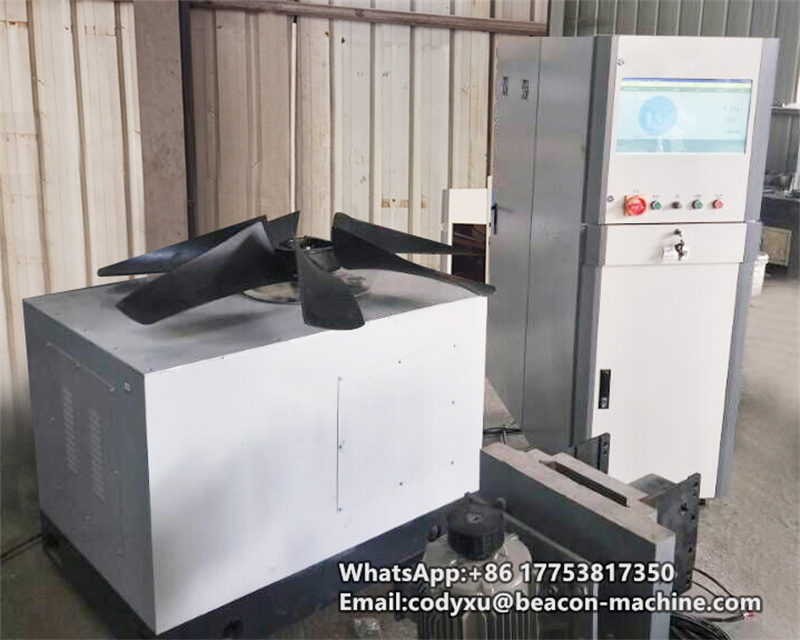

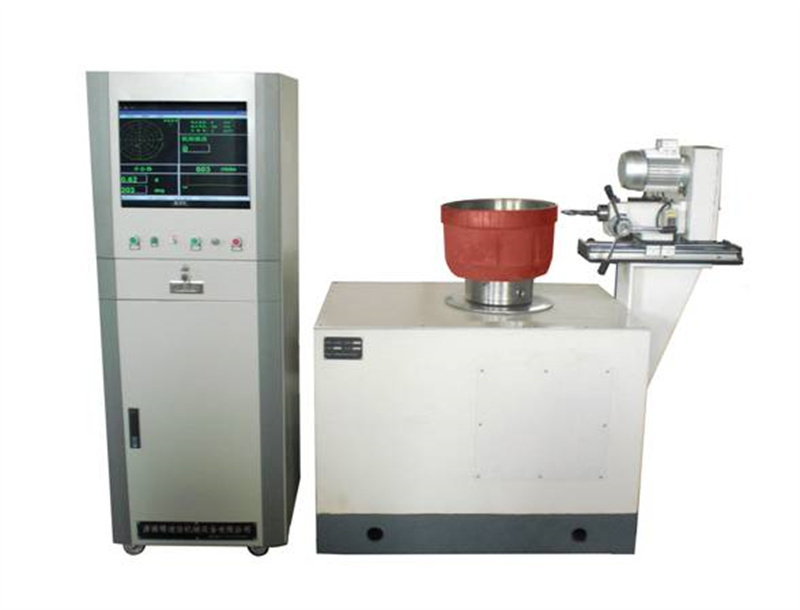

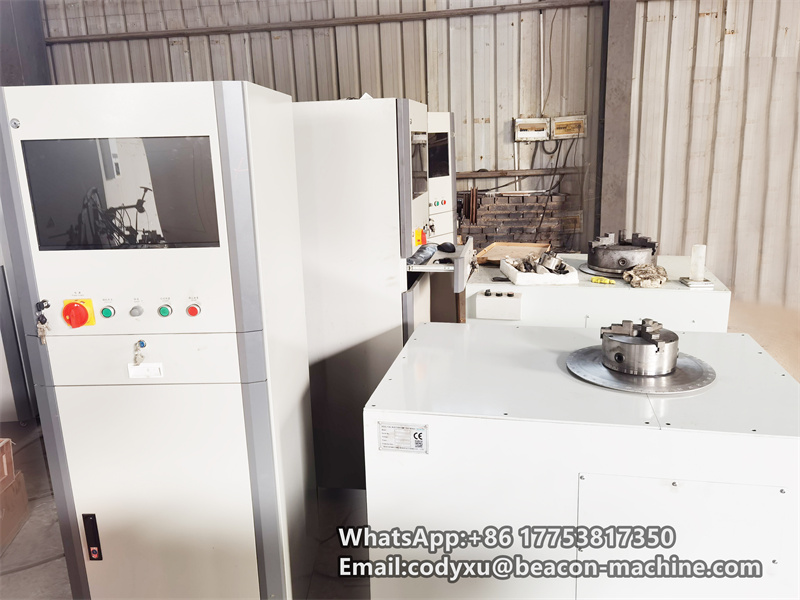

YLD-800A Vertical Drive Shaft Fan Blade Pump Impeller Vertical Dynamic Balancing Machine

Fits for balancing adjustment for parts with disc shape such as fan,pressure plate,flywheel, brake disc, ring blower, impeller, arrester, saw blade, pulley. Adopt industrial computer (SCM) in measuring system. Digital displays for rotate speed, measured value and phase, and unbalanced amount shows in “g” directly. The system can correctly display the unbalance amount (“g”) of workpiece and its phase and also can display its memory after you input various parameters through the keyboard according to the geometric dimension of different kinds of workpiece.

Working piece quantity range:kg：30-800
Working piece diameter:mm：Φ1200
Balancing speed:r/min：250-1500
Min. achievable residual unbalance:gmm/kg：≤3
Unbalance reduction rate%： ≥90
Driver power:KW：7.5

*Test data from Beacon laboratory
