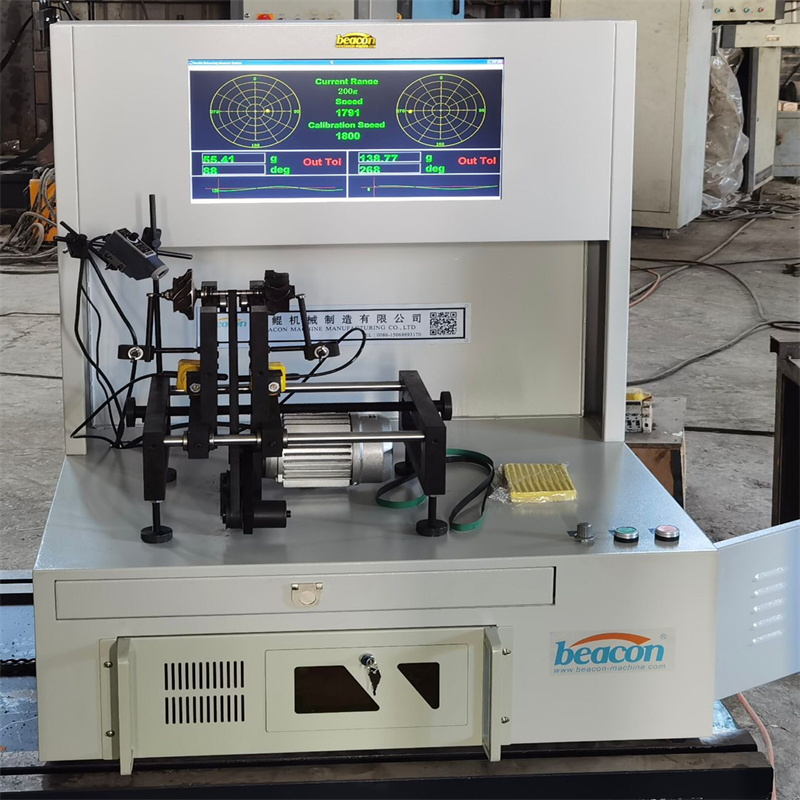

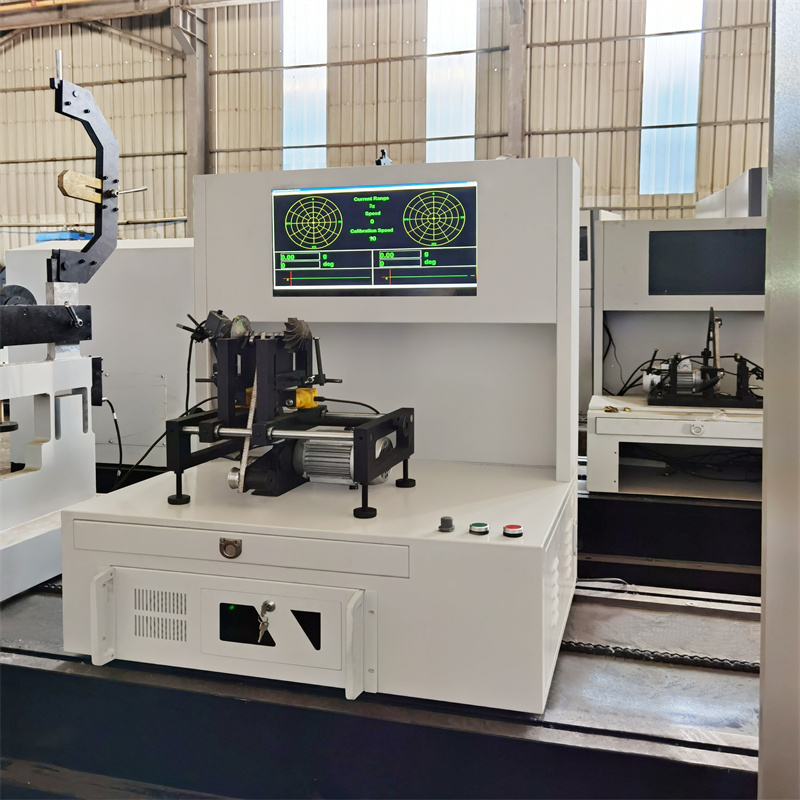

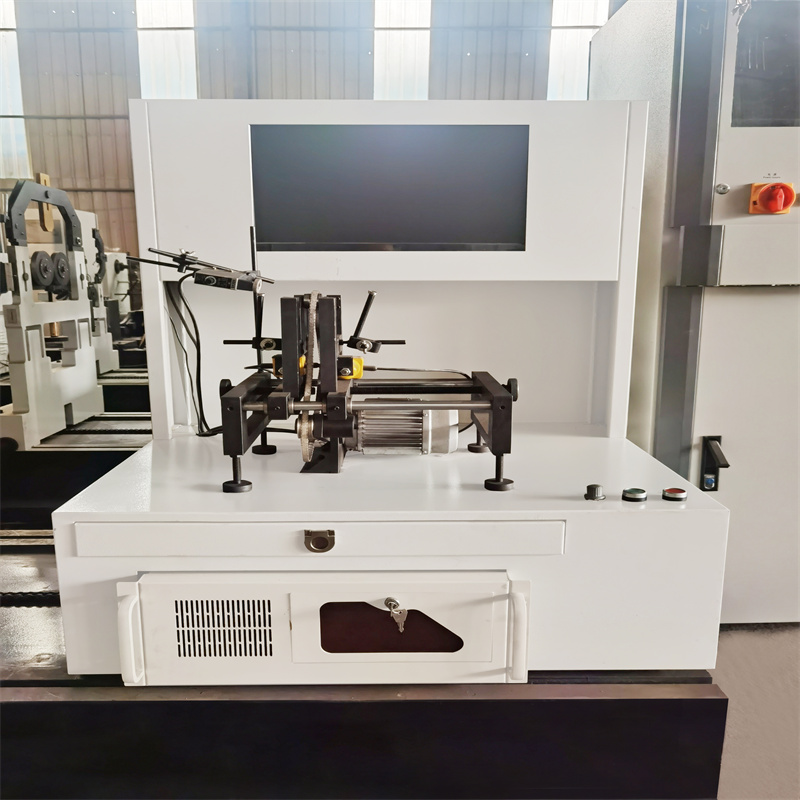

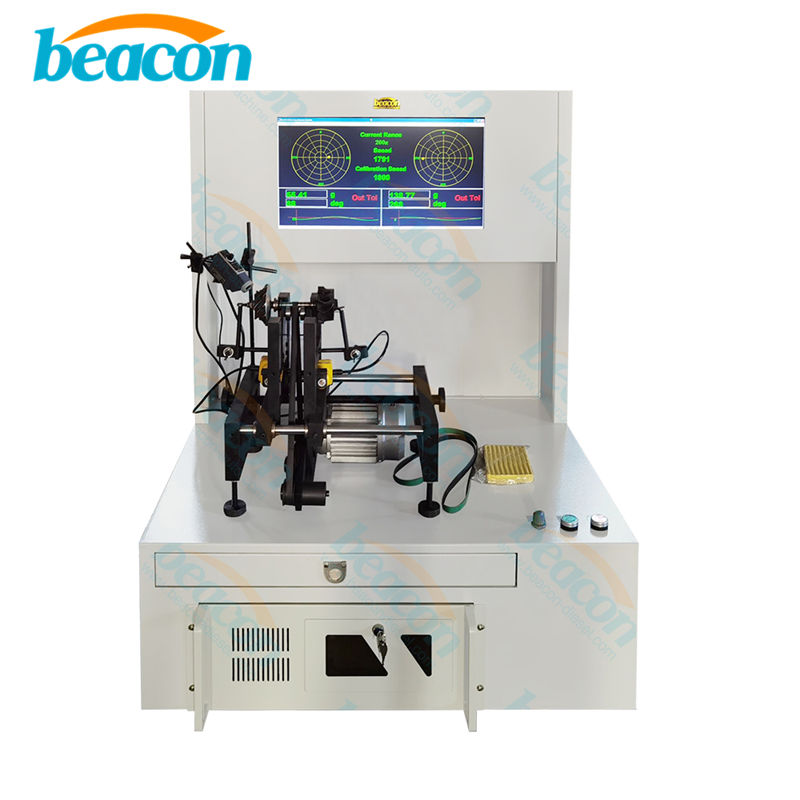

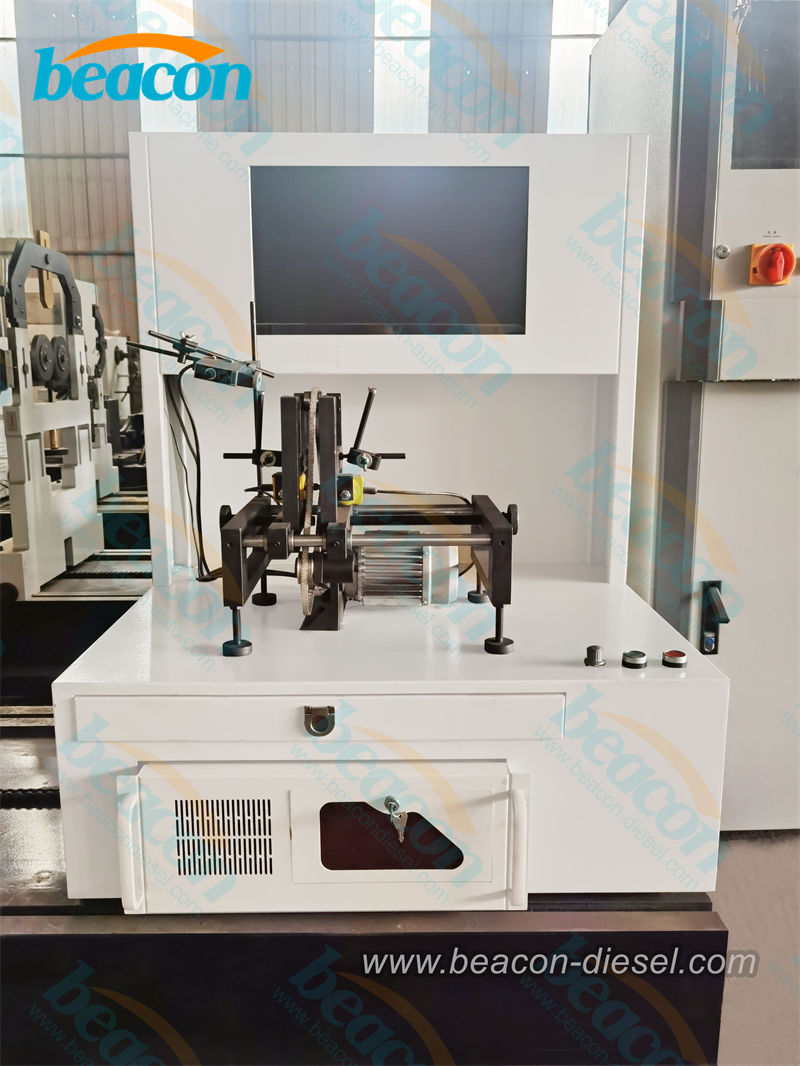

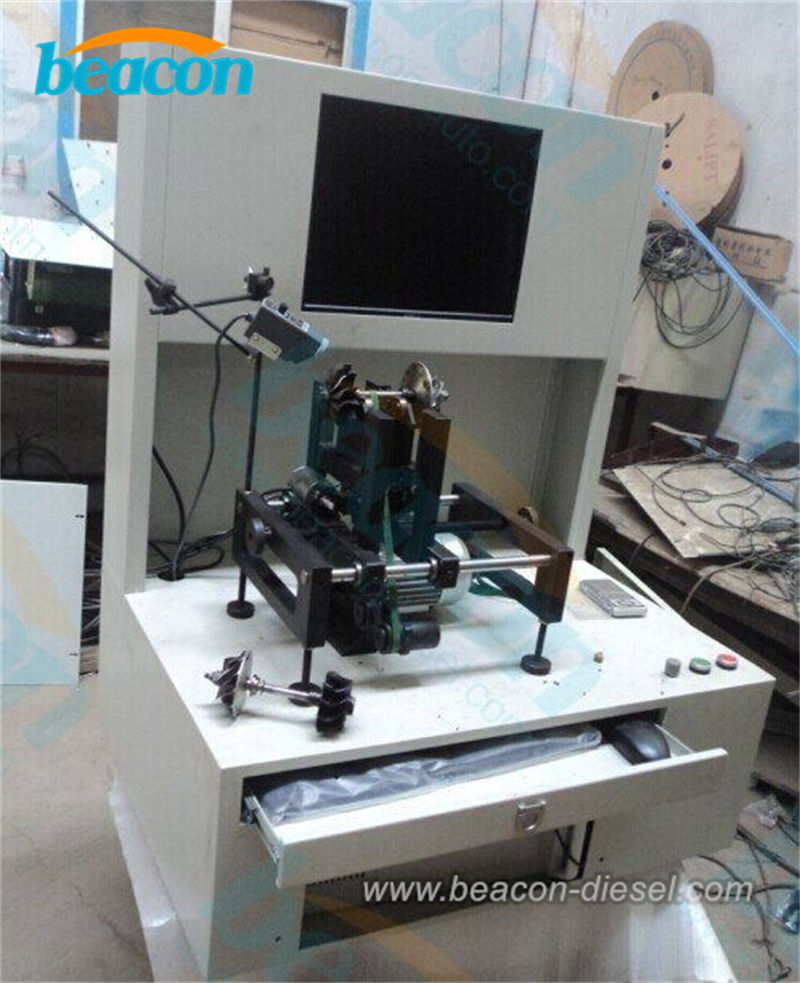

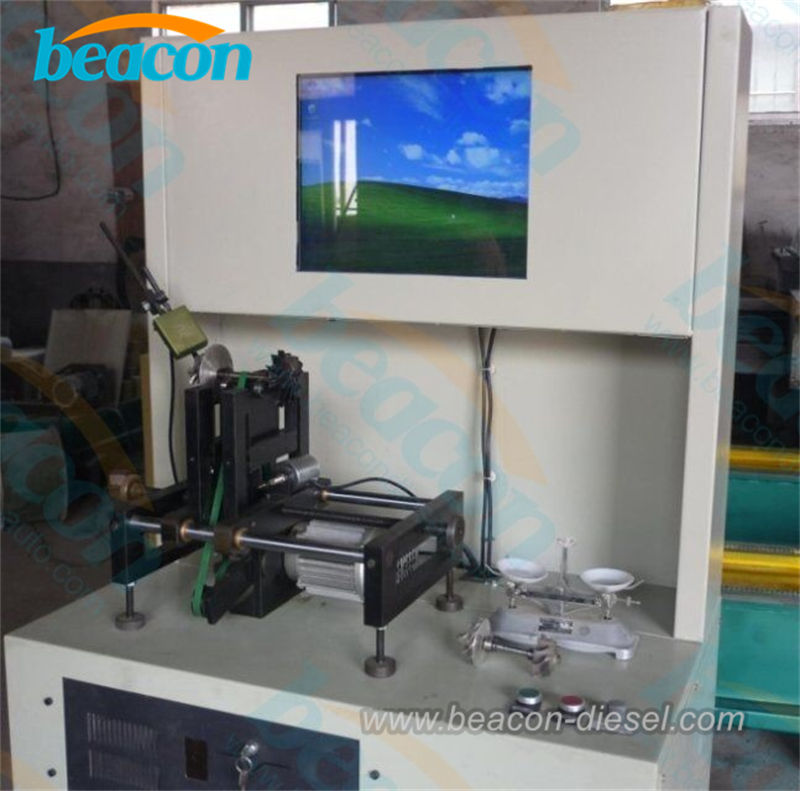

The RYQ-10A Belt Drive Balancing Machine is the ideal solution for manufacturers seeking high precision and efficiency in balancing small to medium-sized rotating bodies.

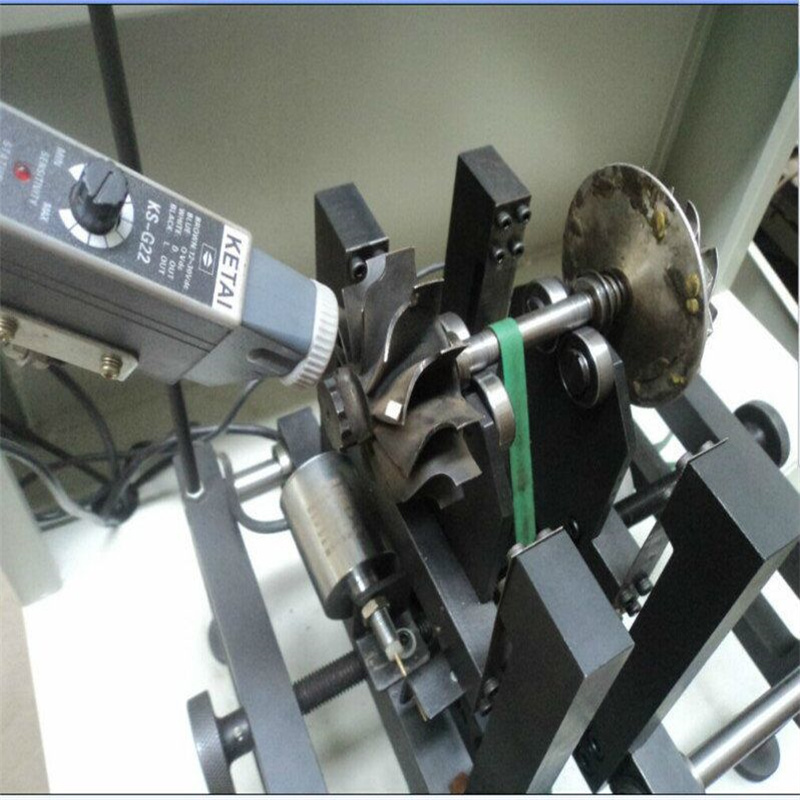

Specifically engineered for workpieces weighing between 0.3kg and 10kg, this machine is perfect for electric motor armatures, small fans, and turbocharger rotors.

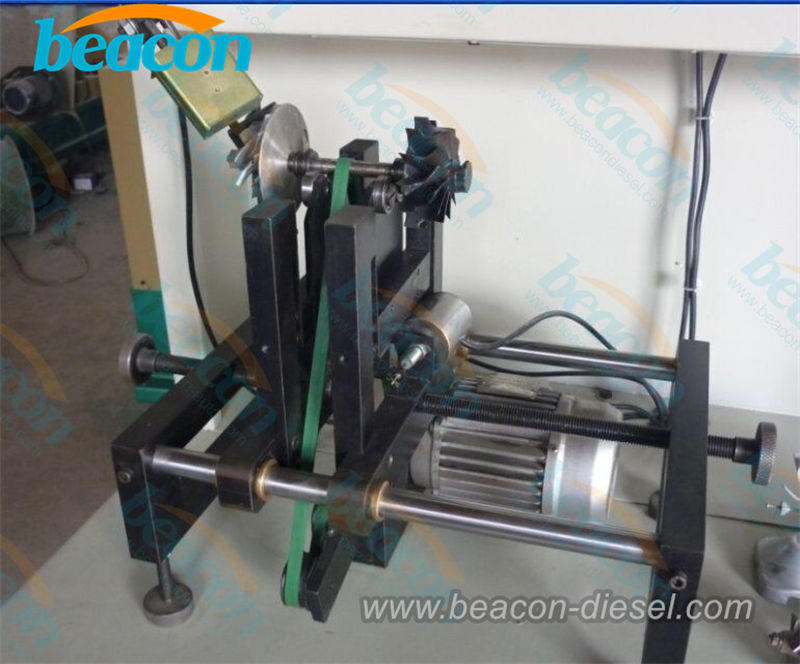

Unlike universal joint drives, our belt drive system ensures higher measurement accuracy by eliminating error interference from coupling fixtures.

Equipped with a 0.18 kW motor and Variable Frequency Speed Regulation, the RYQ-10A allows for smooth speed adjustments between 400-3000 r/min.

With a residual unbalance of ≤0.5 g·mm/kg, this machine guarantees your products meet the strictest quality standards for noise and vibration.

Parameter	Value
Model	RYQ-10A
Mass Range	0.3 - 10 kg
Max Workpiece Diameter	Φ350 mm
Distance Between Supports	30 - 450 mm
Journal Diameter Range	Φ4 - 17 mm
Belt Drive Diameter Range	≤Φ150 mm
Balancing Speed	400-3000 r/min (at 50mm drive dia.)
Min Residual Unbalance	≤0.5 g·mm/kg
Unbalance Reduction Ratio	≥90%
Motor Power	0.18 kW
Speed Regulation	Variable Frequency (Inverter)
