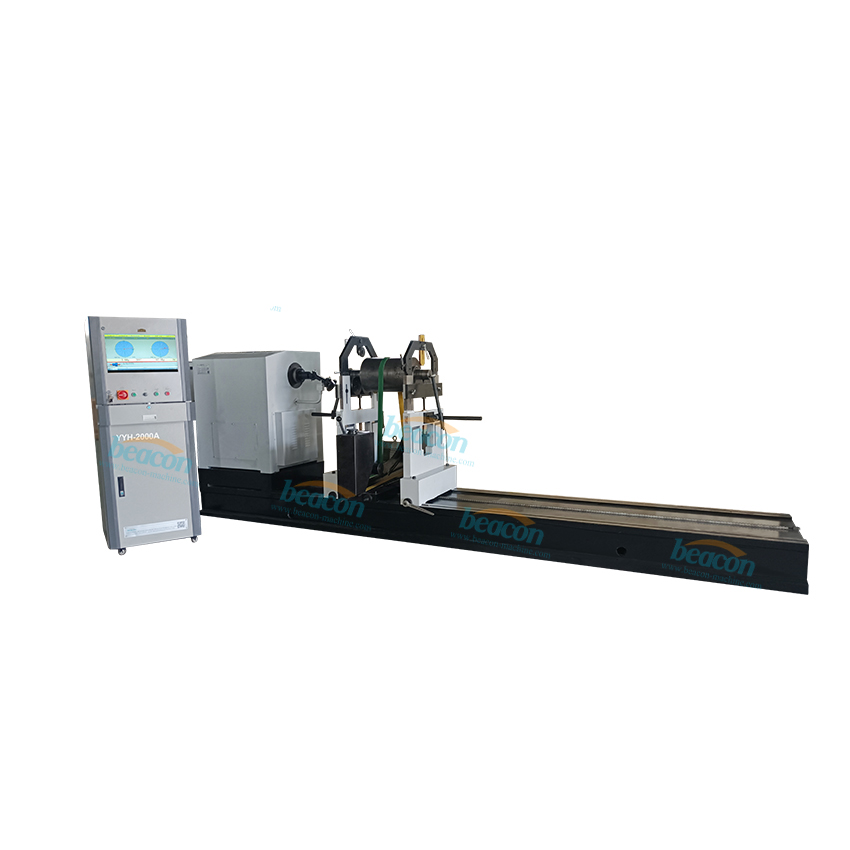

YYH-2000A dual drive rotor Balancing Machine YYW-2000A balancing machine

Introduction

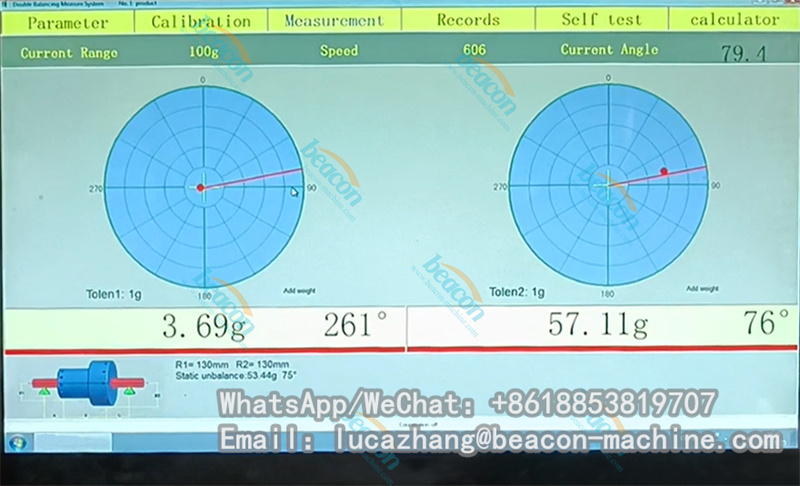

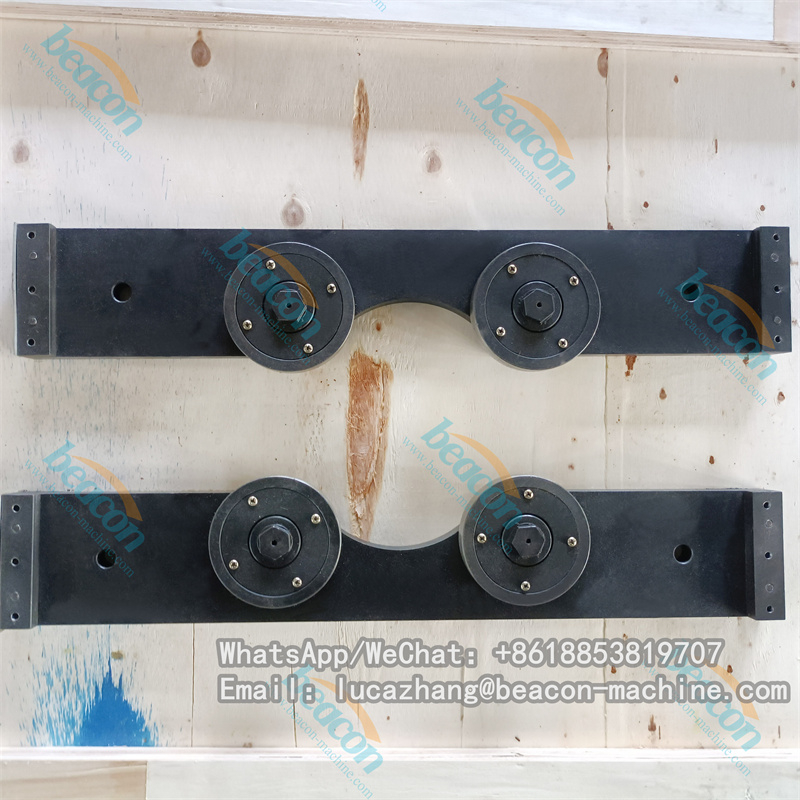

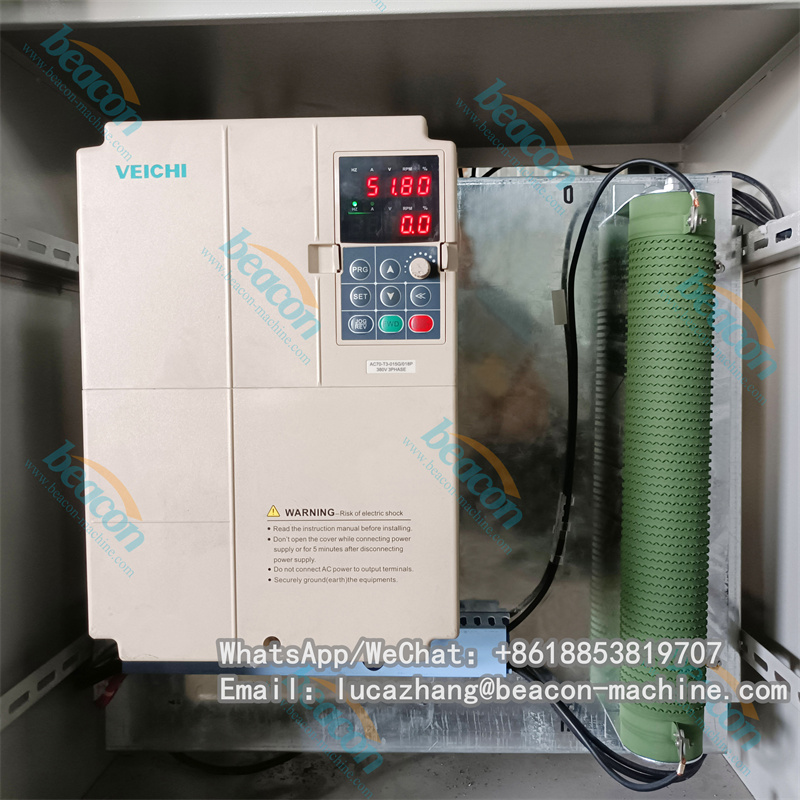

This series of equipment is a hard-supported horizontal dynamic balancing machine. It adopts roller support and is driven by a universal coupling. The ordinary type is driven by a two-speed motor, and the "A" type is a frequency conversion speed regulation system. Data processing is performed by an industrial control computer and an LCD display. The unbalance value, phase angle and real-time rotation speed are displayed in real time, and the machine bed is cast as a whole. It is widely used in motors, blowers, diesel engines, agricultural machinery, textile machinery and other industries. It can perform balance measurement on single side, double side and multiple correction surfaces. Suitable for shafts, discs and rotors with extended center of gravity. It has the characteristics of high efficiency, accurate precision, intuitive display, reliable quality and convenient maintenance.

parameter

Speed range: 100 rpm-5000 rpm
Phase error: Measured with standard signal < 0.3º
Amplitude error: Measurement error with standard signal < 1/1000
Storage rotor number: 255
Number of angle decompositions: 60
Maximum power consumption of the whole machine: 200W
*Test data from Beacon laboratory

product video

YYH-2000A dual drive rotor Balancing Machine YYW-2000A balancing machine

Usage environment
1.) Room temperature: 0-50℃
2.) Relative humidity <85%
3.) The power supply voltage fluctuation value of the industrial computer is 190-240V (the user must prepare his own regulated power supply if necessary), and the power supply voltage fluctuation value is 370-400V.
4.) The machine should be installed on a stable foundation, and the installation level should be within 0.5/1000.
5.) Prevent electromagnetic interference and stay away from interference sources.
6.) Prevent oil, salt, acid and corrosive gases from entering.
7.) Prevent the intrusion of water droplets, steam, dust, cotton wool, and metal fine powder.
8.) It is prohibited to be used in hazardous environments with flammable, combustible, explosive gases, liquids or solids.
