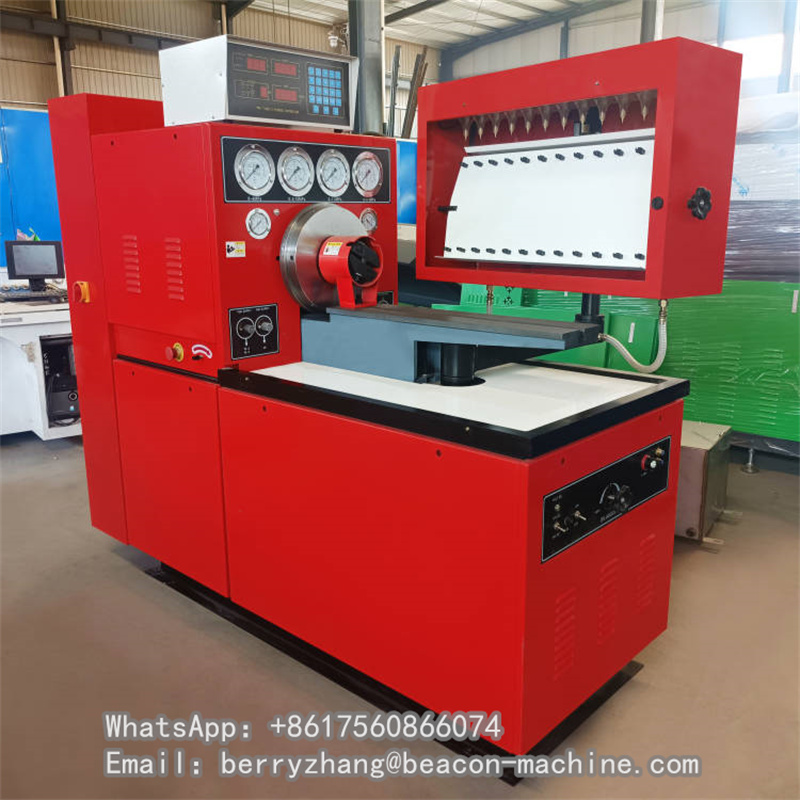

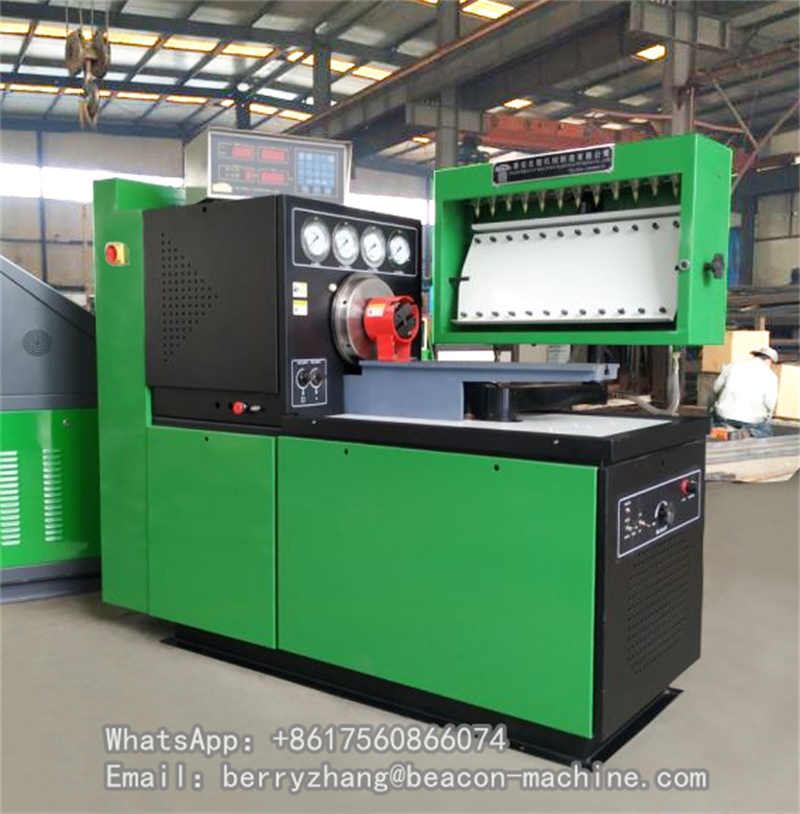

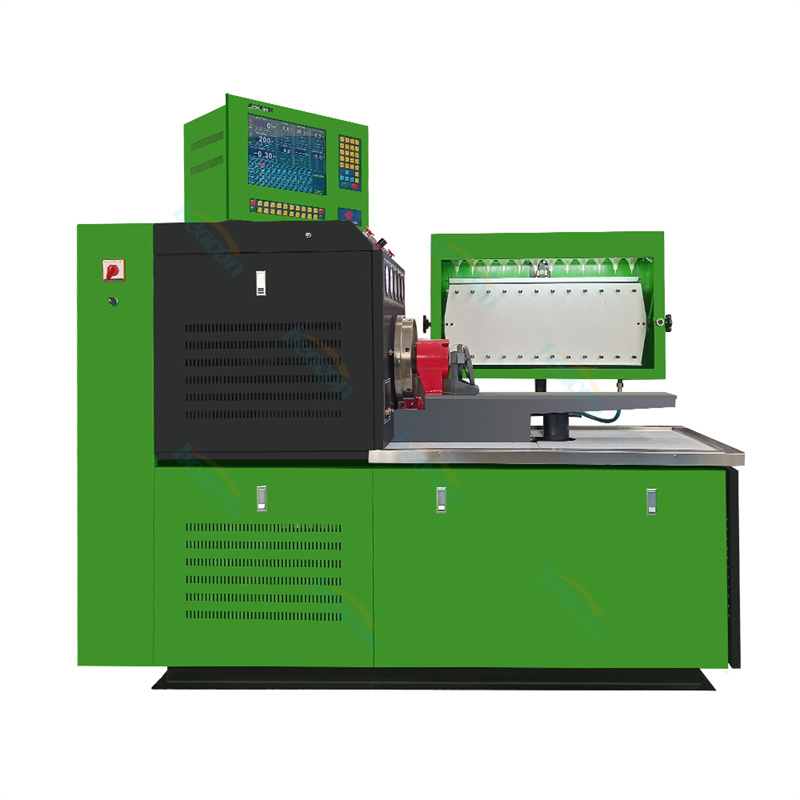

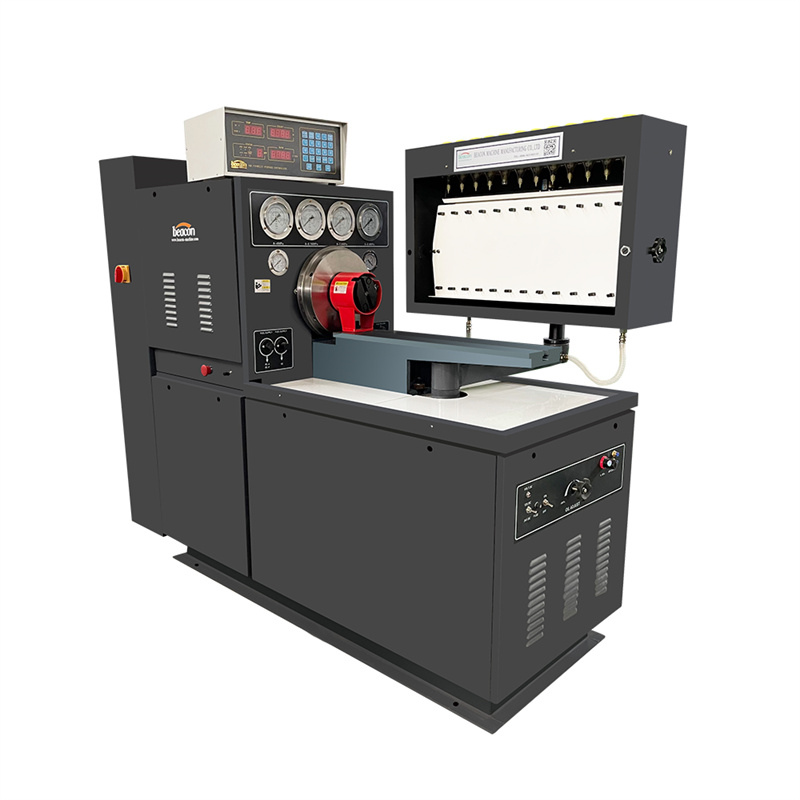

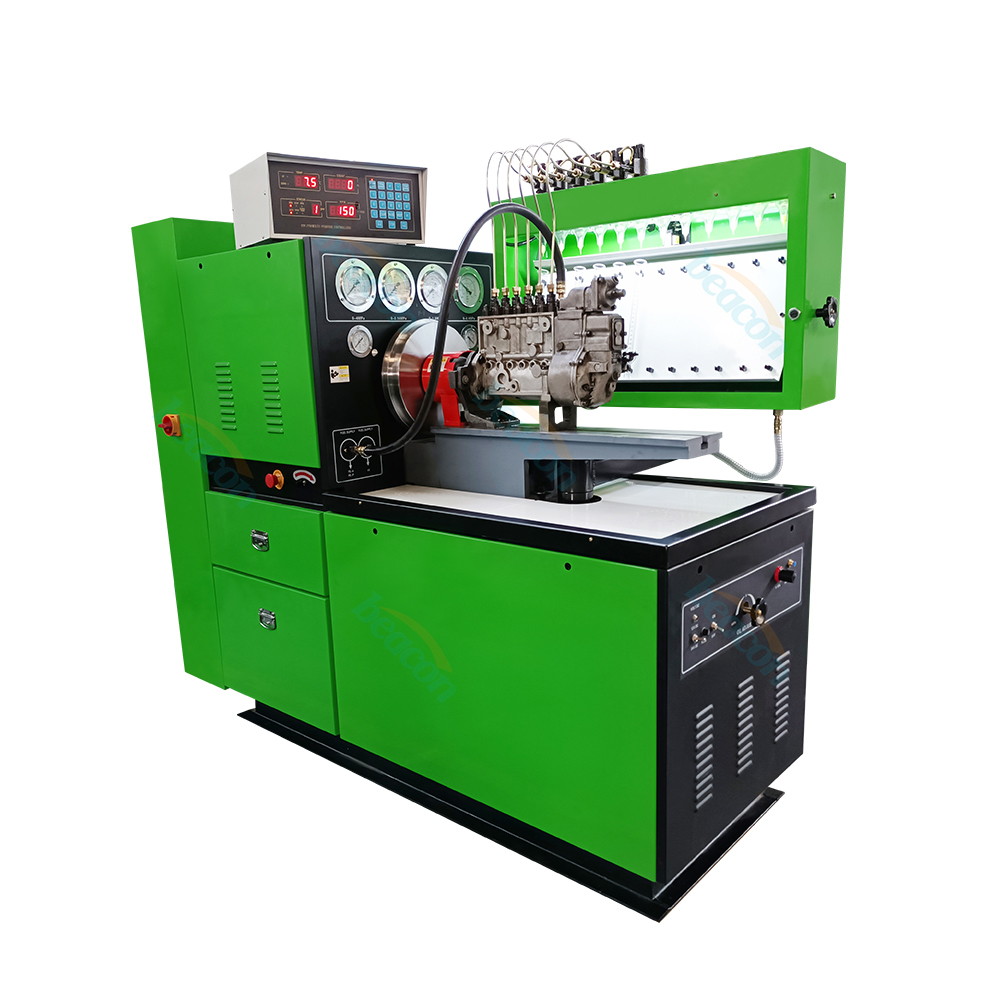

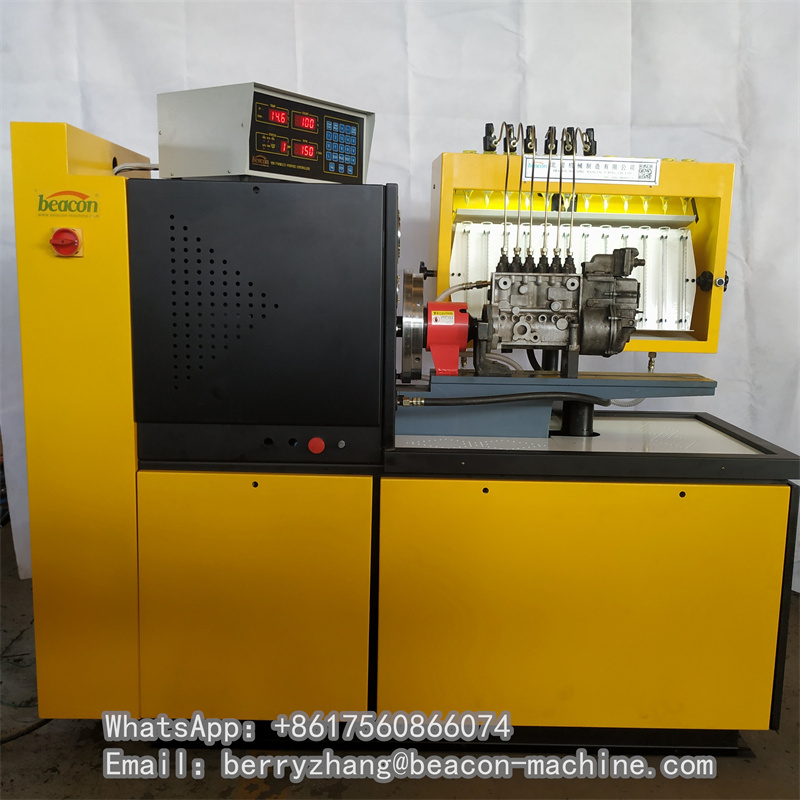

12PSB Diesel Fuel Injection Pump Test Bench 12 Cylinder Mechanical Injection Repair Diagnostic Test Stand

12psb has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.

WhatsApp: +8618661335350

Tel / Wechat: +8618661335350

Email: beacondiesel@beacon-machine.com

Quick Order

Introduction

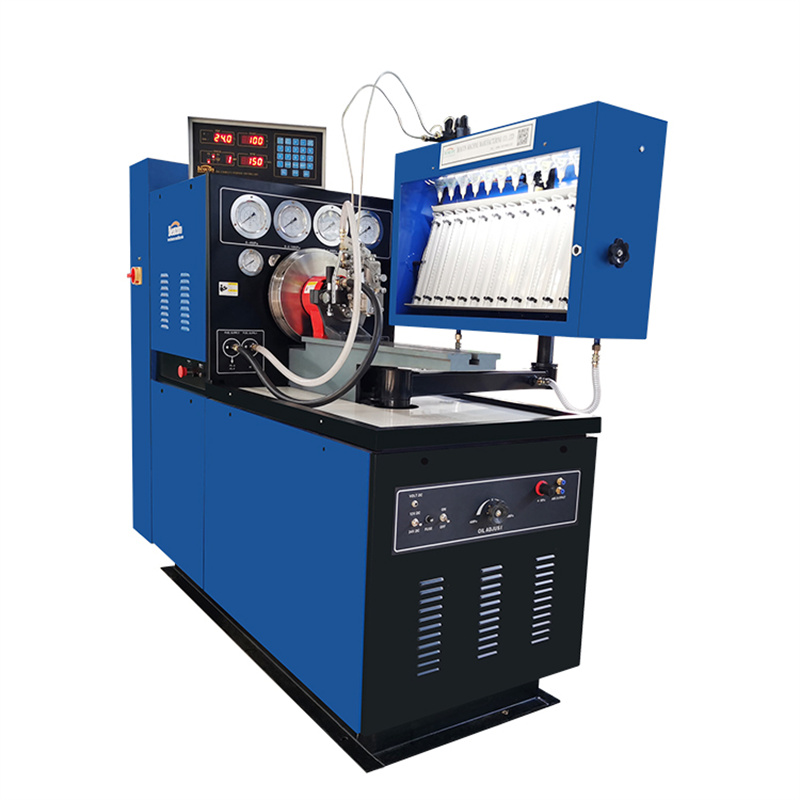

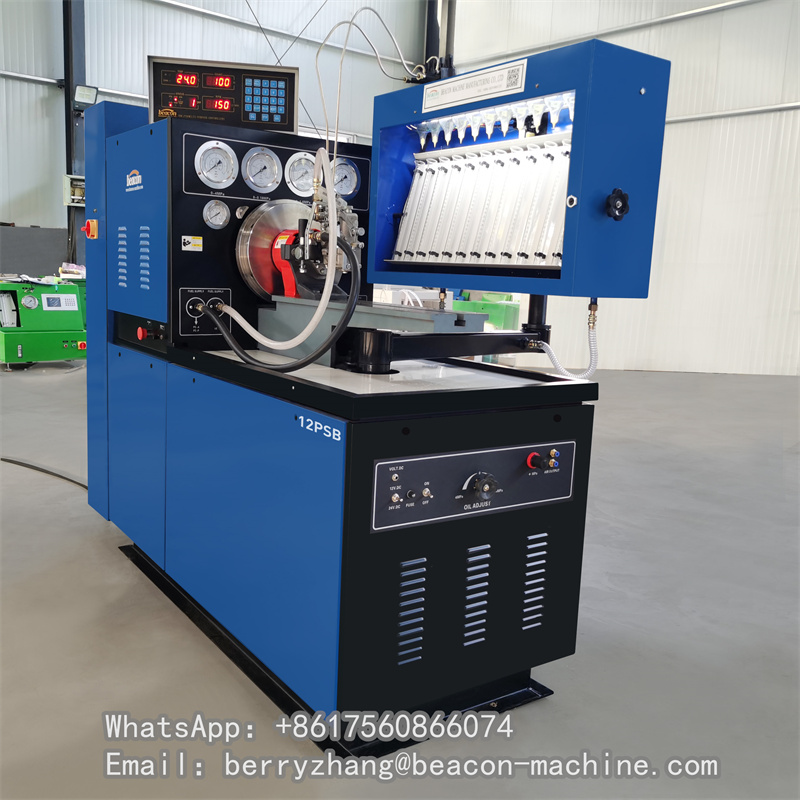

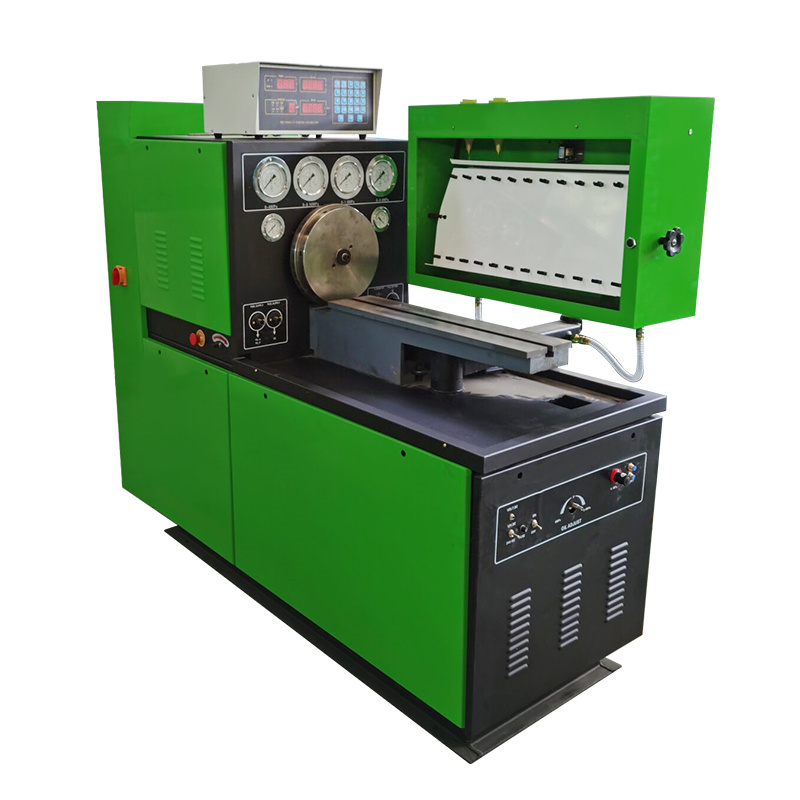

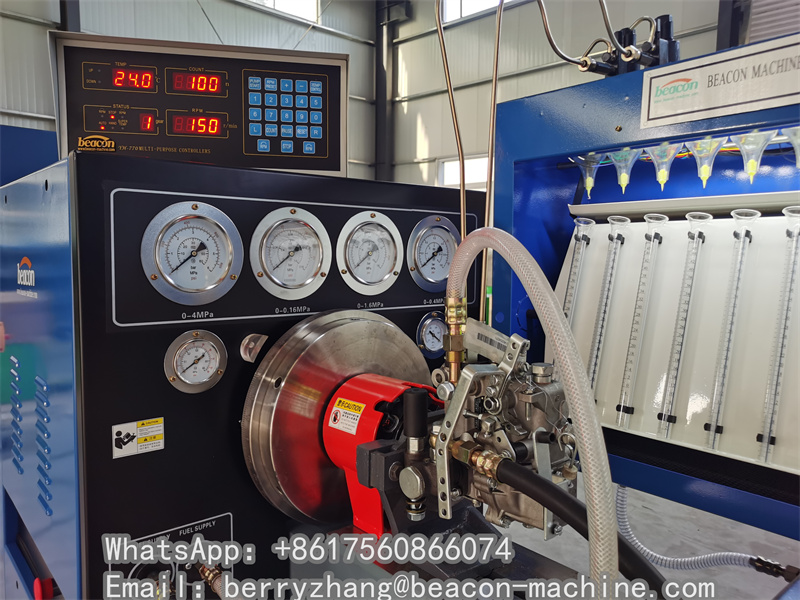

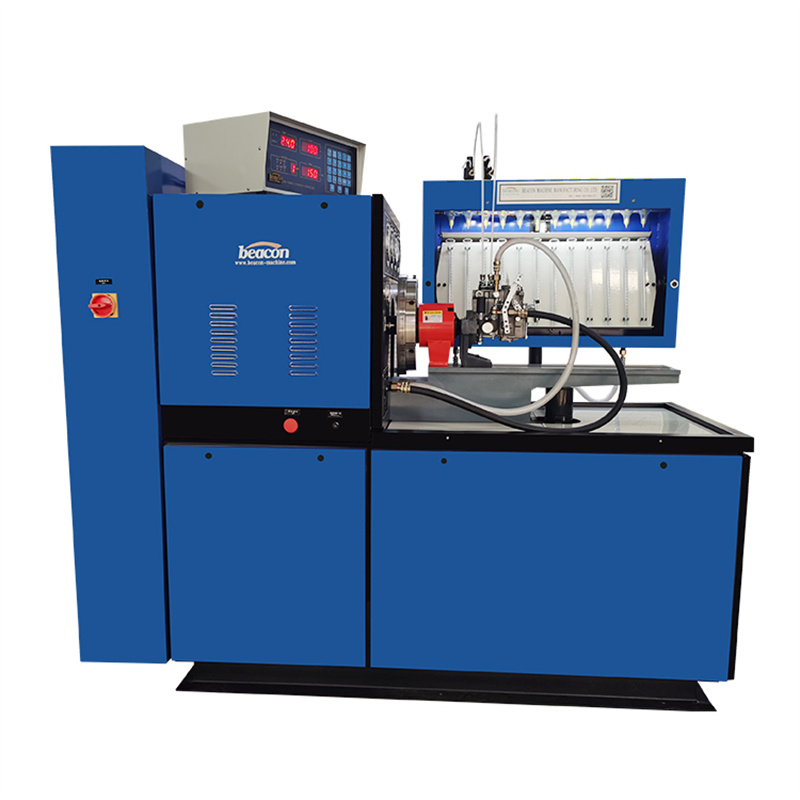

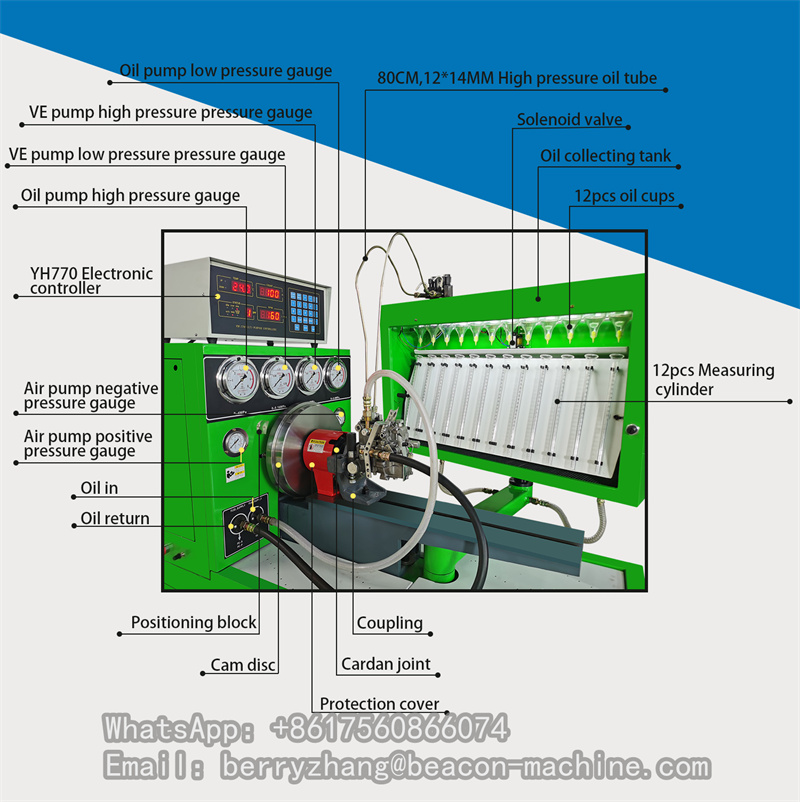

12PSB Diesel Fuel Injection Pump Test Bench 12 Cylinder Mechanical Injection Repair Diagnostic Test Stand

Introduction
12PSB series diesel fuel injection test machine is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.

Main Function
1.Measurement of each cylinder delivery at any speed.
2.Test point and interval angle of oil supply of injection pump. 3.Checking and adjust the mechanical governor.
4.Checking and adjusting the distributor pump.
5..Experiment and adjusting of behavior of supercharging and compensatory device.
6.Measurement of oil return of distributing pump
7.Testing of the electromagnetic valve of distributor pump.(12V/24V)
8.Measurement of the internal pressure of distributor pump. 9.Checking of the advance angle of advance device.(on request)
10.Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

ALSO WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:
1.TRAVEL OF TOOTH BAR
2.OIL LUBRICATE
3.FORCED COLLING
4.Checking of the advance angle of advance device

parameter

NO	Items	11KW	15KW
1	Votage	380V/50Hz 3 phase (or on request)	380V/50Hz 3 phase (or on request)
2	Power outo put	11Kw	15Kw
3	Motor	AC motor	AC motor
4	Transmisson	Converter	Converter
5	Speed rage(rpm)	0~4000	0~4000
6	Shaft high(mm)	125	125
7	Number of cylinders	12	12
8	Number of prestting programmer for speed	10	10
9	Test oil temperature	40±2	40±2
10	Strokes counting	50~9999	50~9999
11	Feeding pumps motor	1.1Kw	1.1Kw
12	Standard injector	ZS12SJ1	ZS12SJ1
13	Volume of test oil tank (L)	40	40
14	Small graduated cylinder(ml)	45	45
15	Large graduated cylinder(ml)	150	150
16	Flower meter	LZB-10	LZB-10
17	DC power supply	12/24V	12/24V
18	High pressure of feeding test oil	＞4Mpa	＞4Mpa
19	Low pressure of feeding test oil	＞0.4Mpa	＞0.4Mpa
20	Pressure gague for VE pump	0~1.6Mpa	0~1.6Mpa
21	Pressure gague for VE pump	0~0.16Mpa	0~0.16Mpa
22	Dimentsion of test Bench(m)
23	Dimentsion of packing(m)
24	Wight of testing bench(Kg)	700	700
