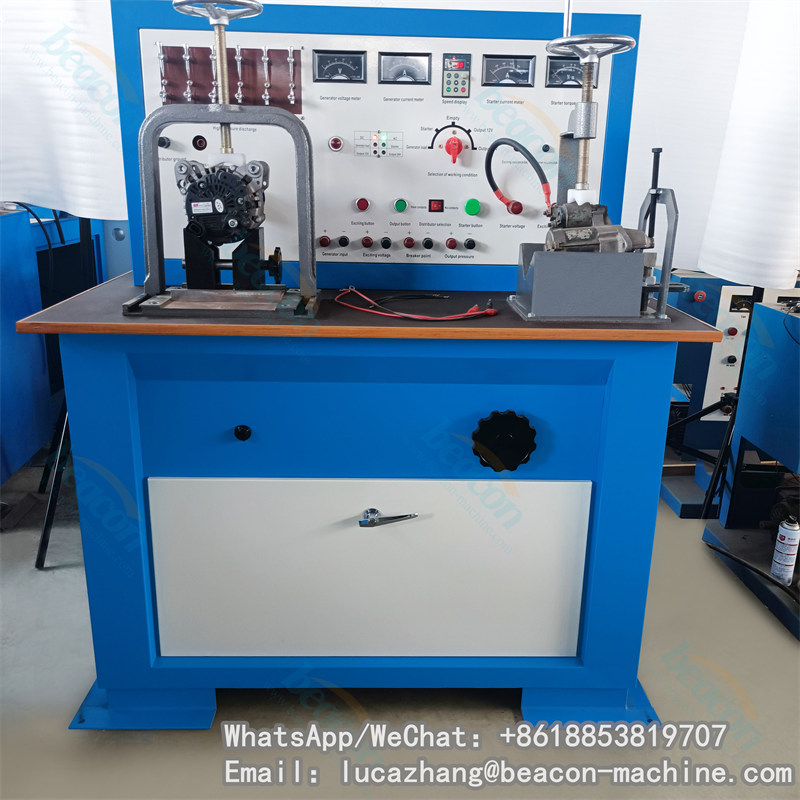

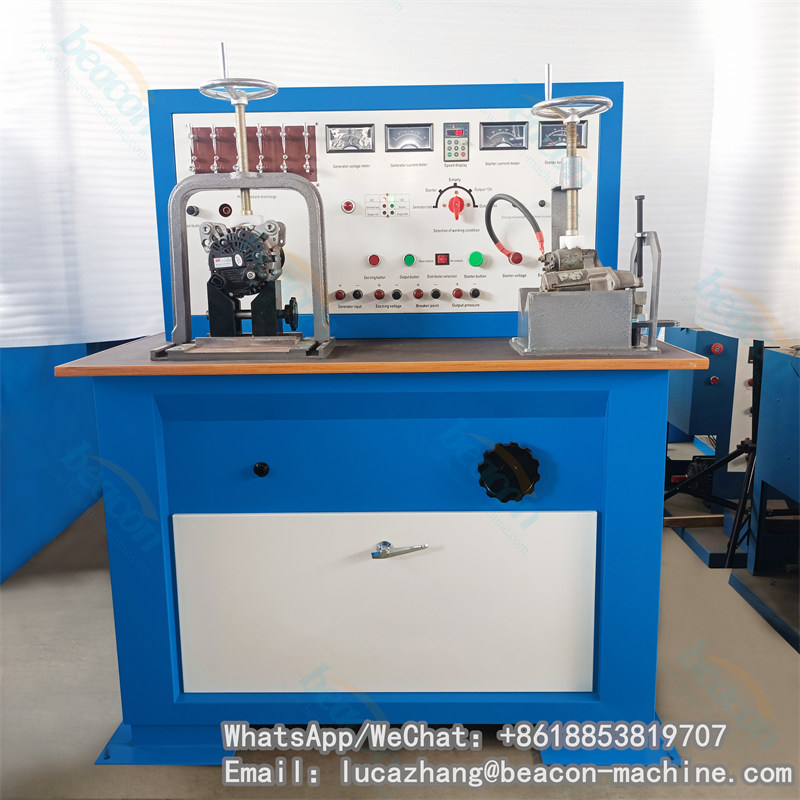

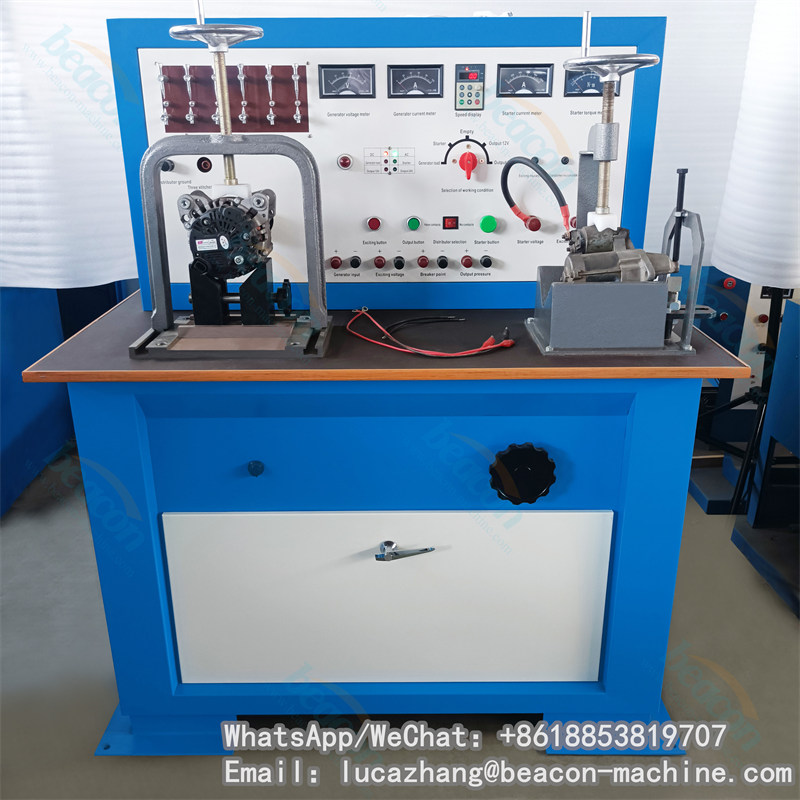

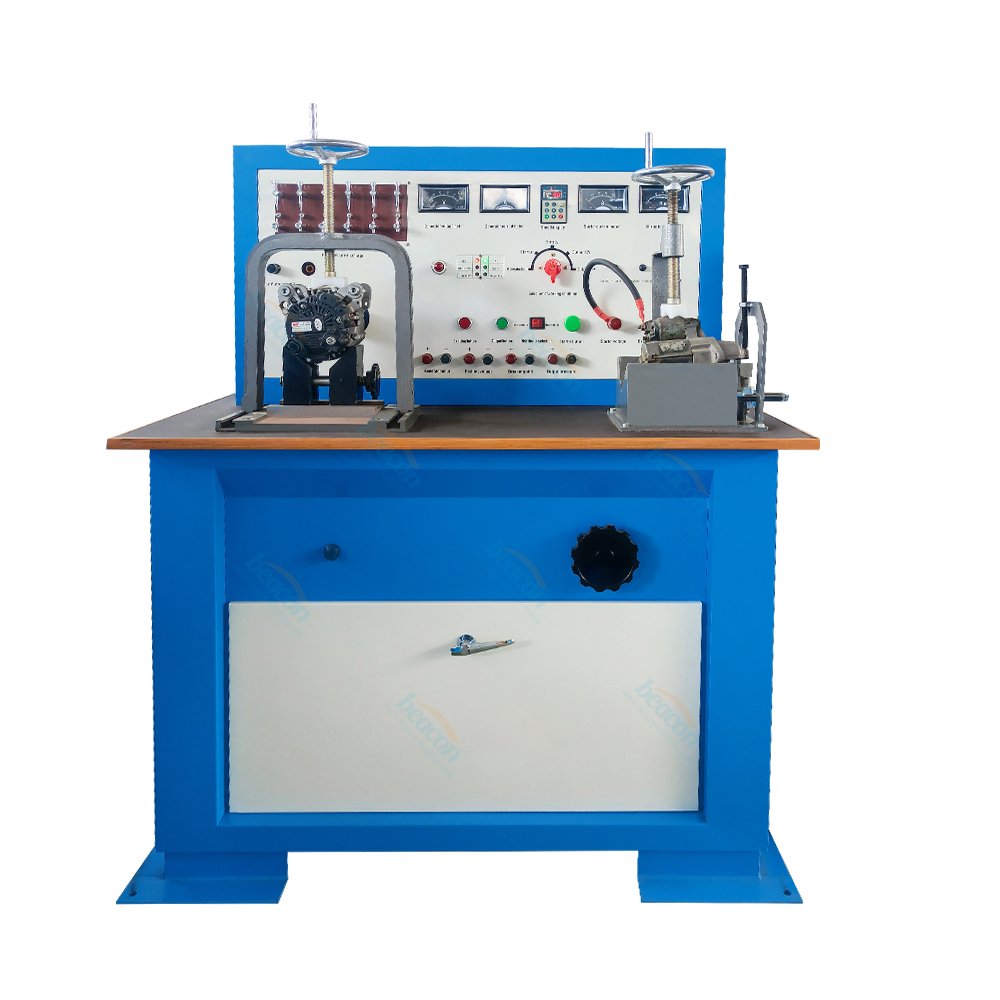

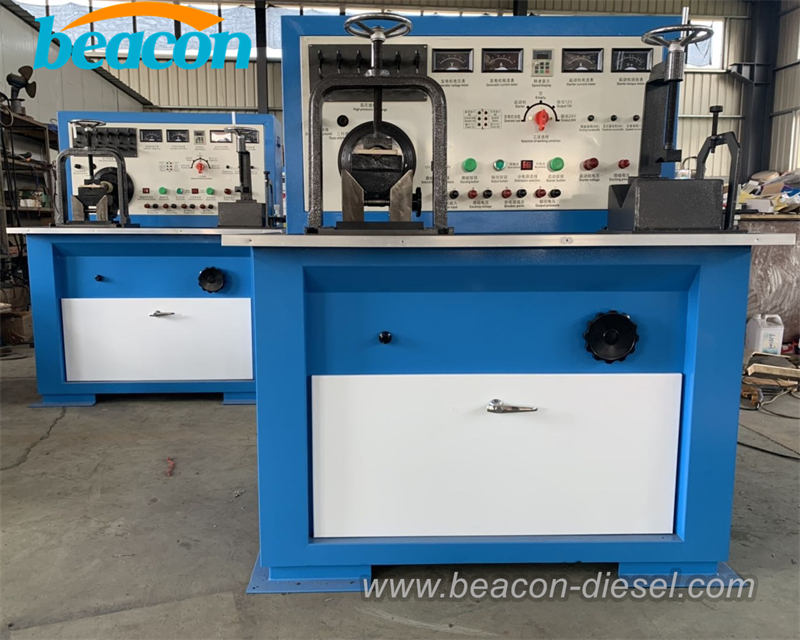

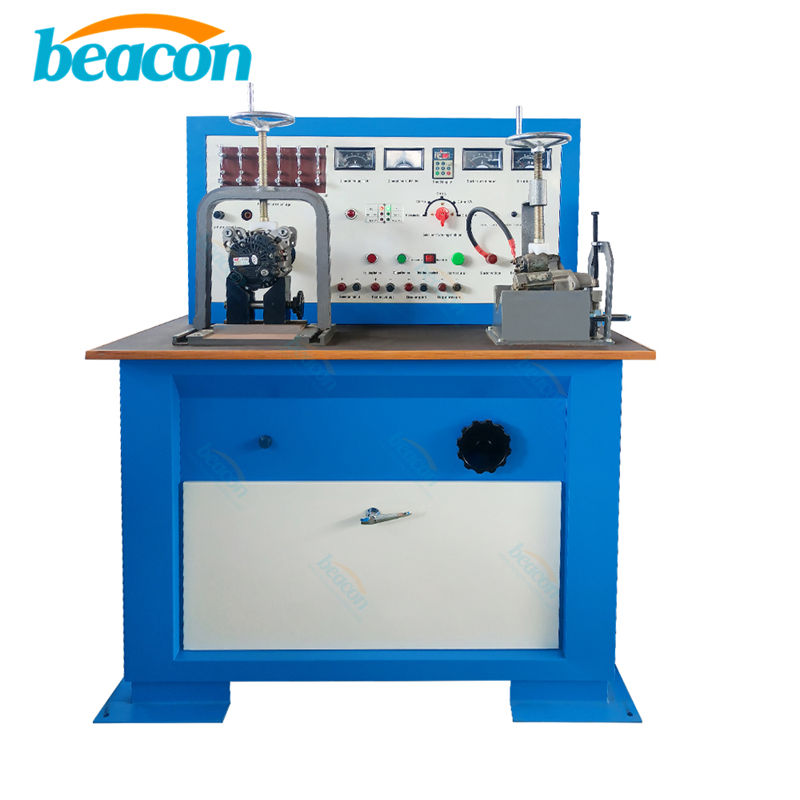

Auto Electrical Starter And Alternator Test Machine BCQZ-2B for Testing Generator Current and Output Voltage

Introduction

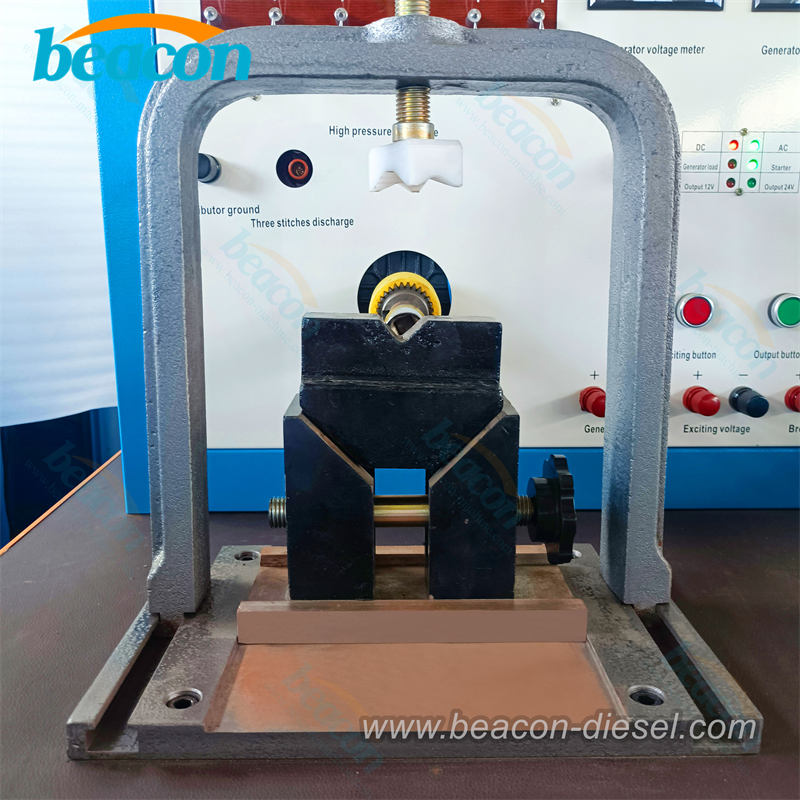

It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.
This test bench uses variable frequency speed regulation ,pointer instrument display.

parameter

Model no： BCQZ-2B
Language： English/Spanish, etc
It can detect generator voltage： 12V generator and 24v generator
It can detect the generator speed： no-load0-3000 RPM, load0-1500 RPM
It can detect generator current： 0-40A
It can detect the starter current； 0-1000A
It can detect starter voltage: 0-50V
It can detect the starter torque: 0
Its motor power: 1.5kw
Inverter power: 1.5kw
Voltage： 20V/380v thee phase
Generator load： resistance
Starter load： NO

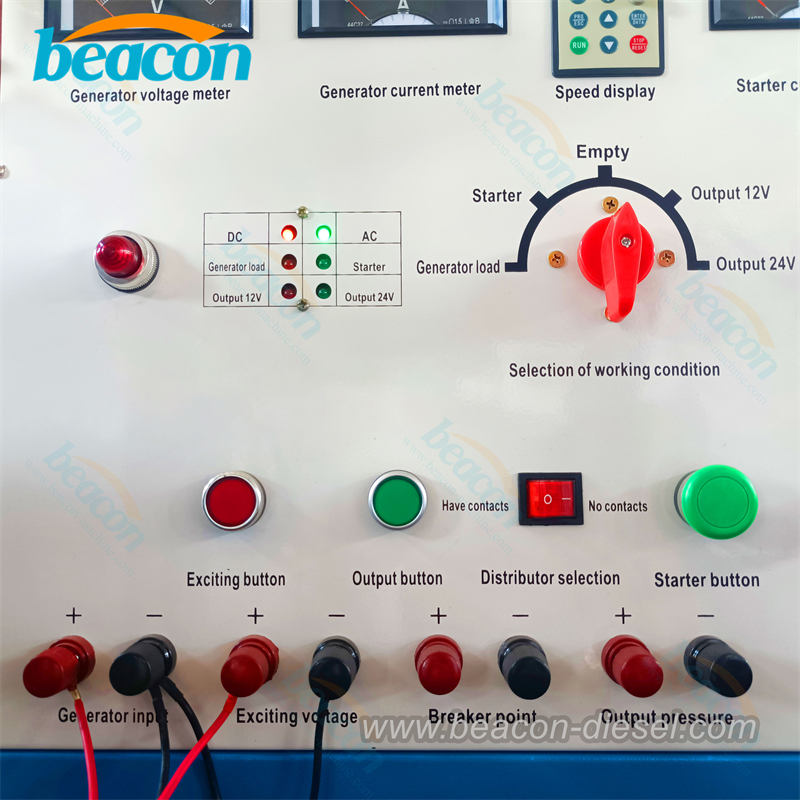

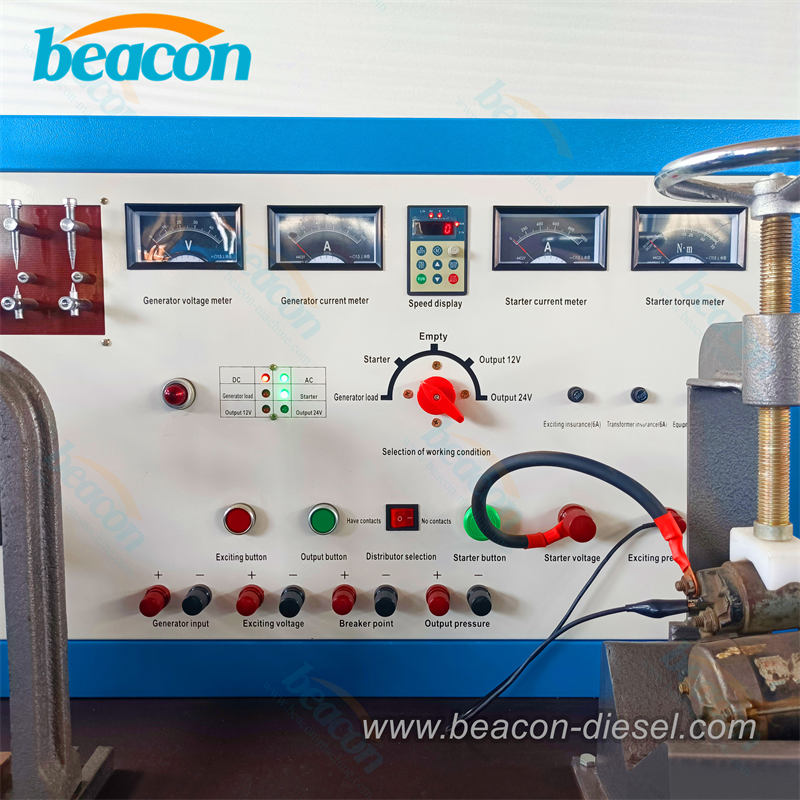

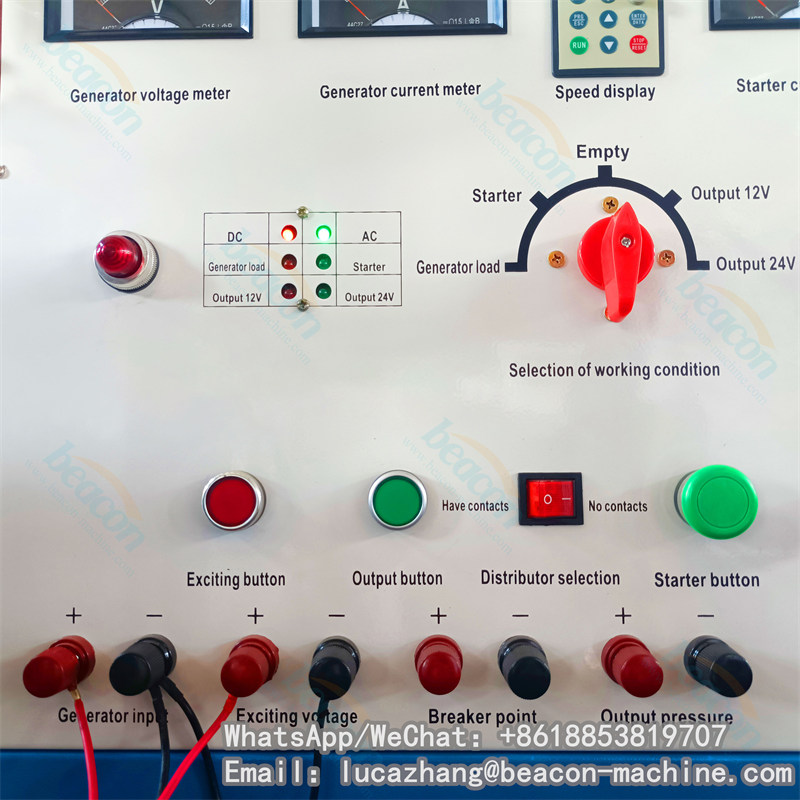

Display mode： Digital meter display
Operation method： Manual
Overall dimensions： 1.2*1*1.48=1.78CBM
Weight: 200KG
*Test data from Beacon laboratory

Auto Electrical Starter And Alternator Test Machine BCQZ-2B for Testing Generator Current and Output Voltage

Advantages
1.It uses variable frequency speed regulation

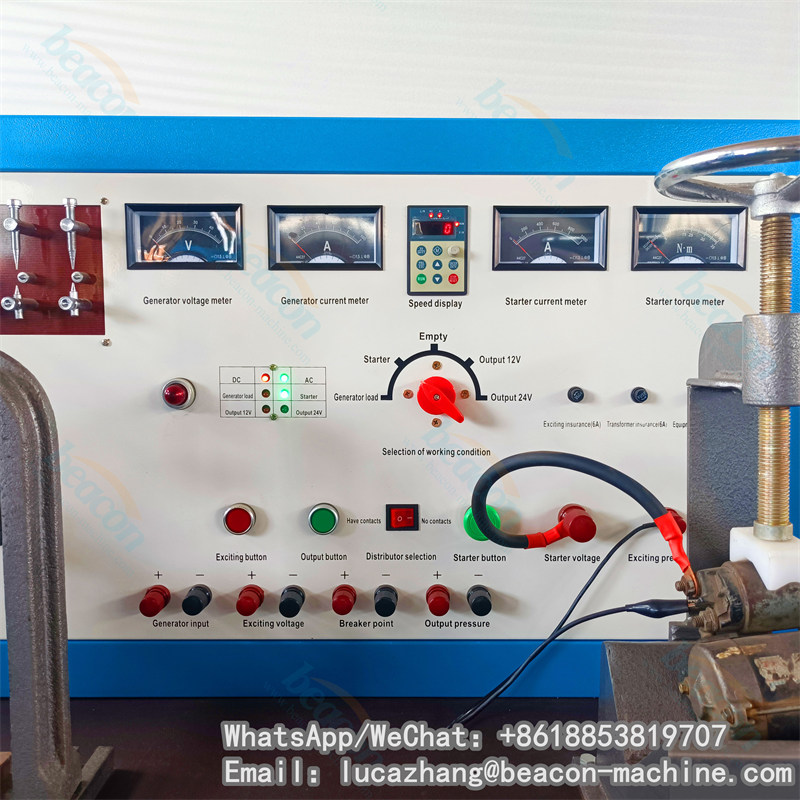

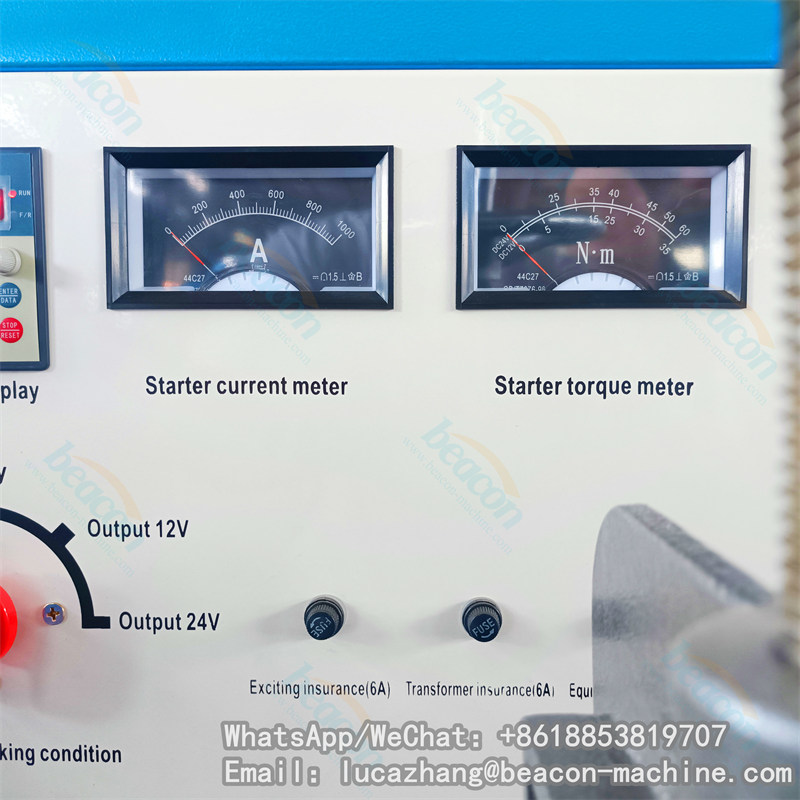

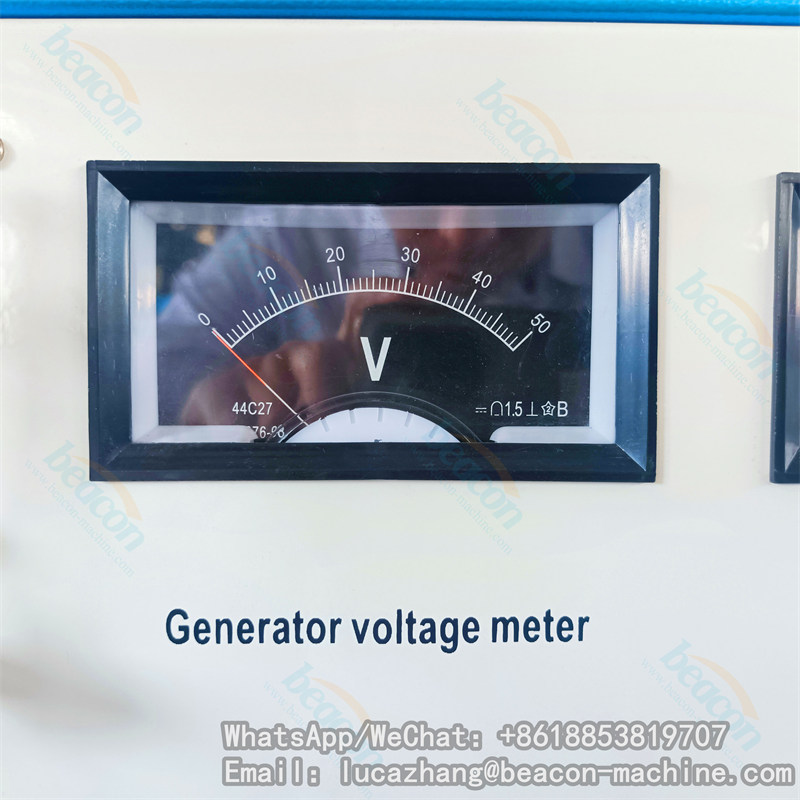

2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction

Test items
Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM

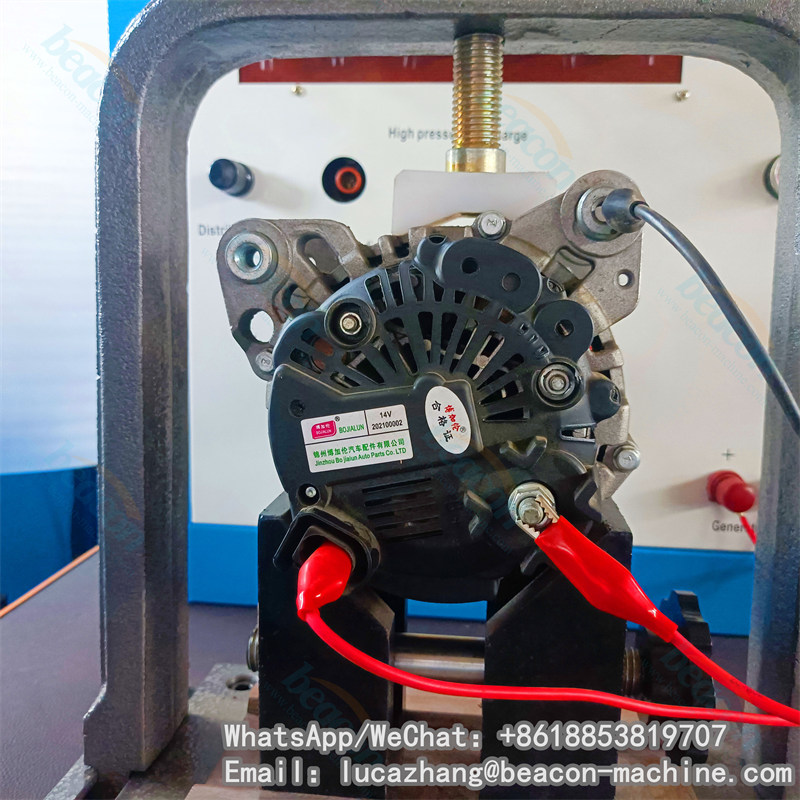

Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
