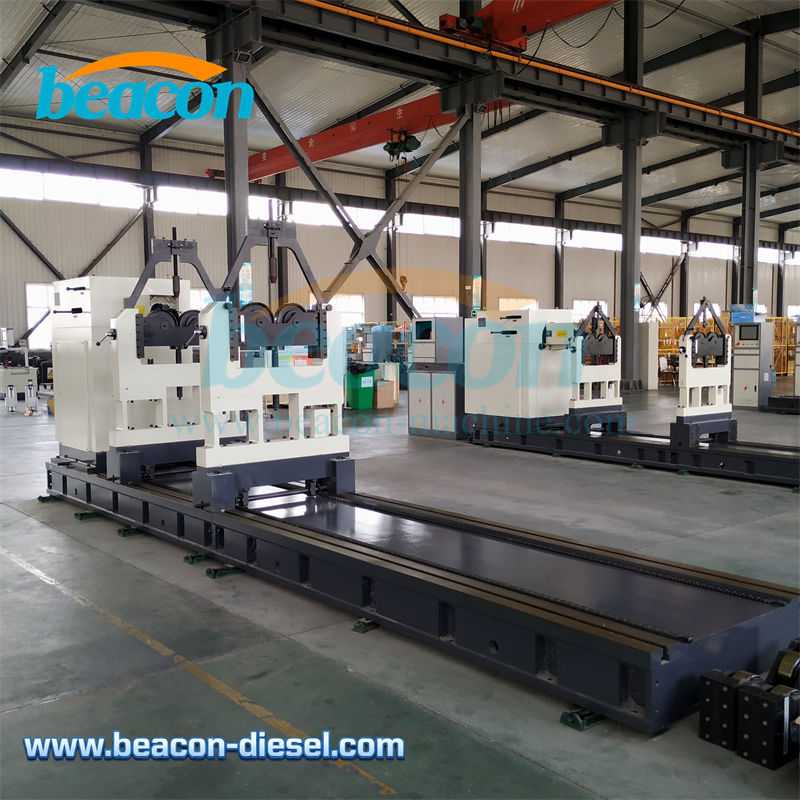

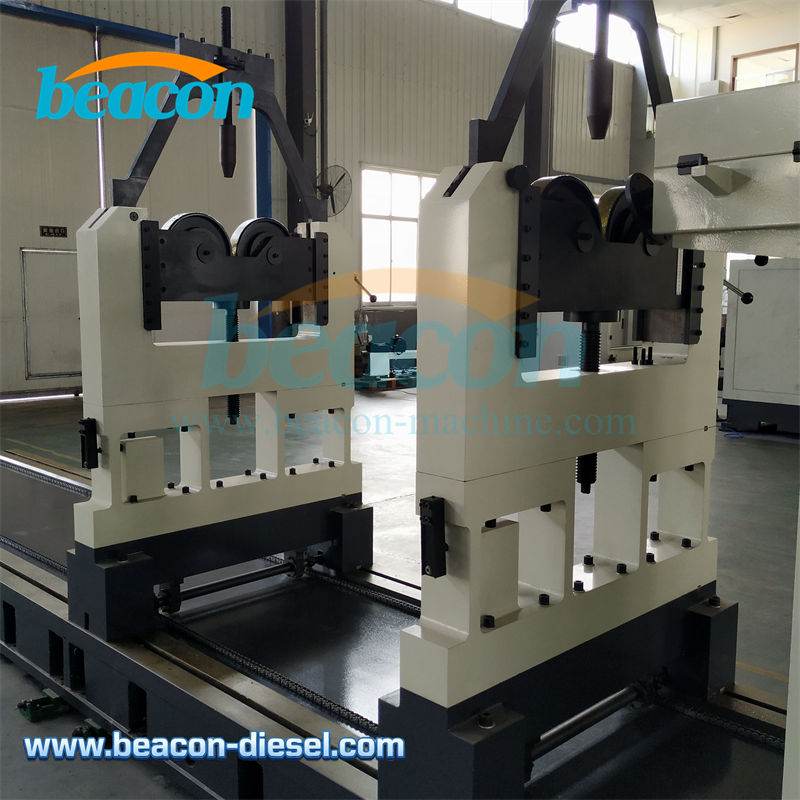

  • Beacon Balancing Machine YYW-K30S High Speed Armature Rotor Universal Joint Driven Balancing Machine

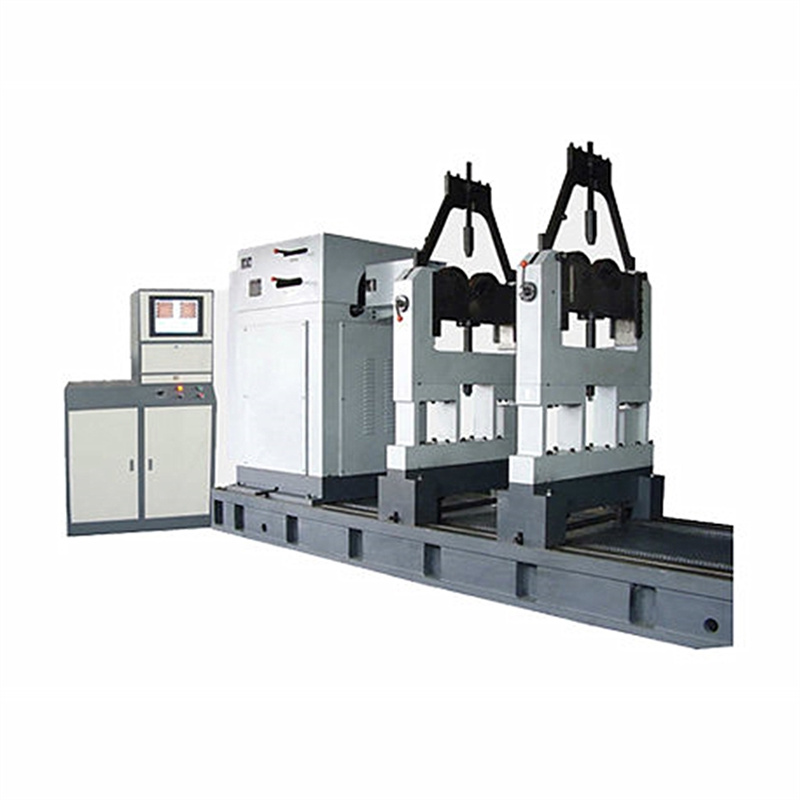

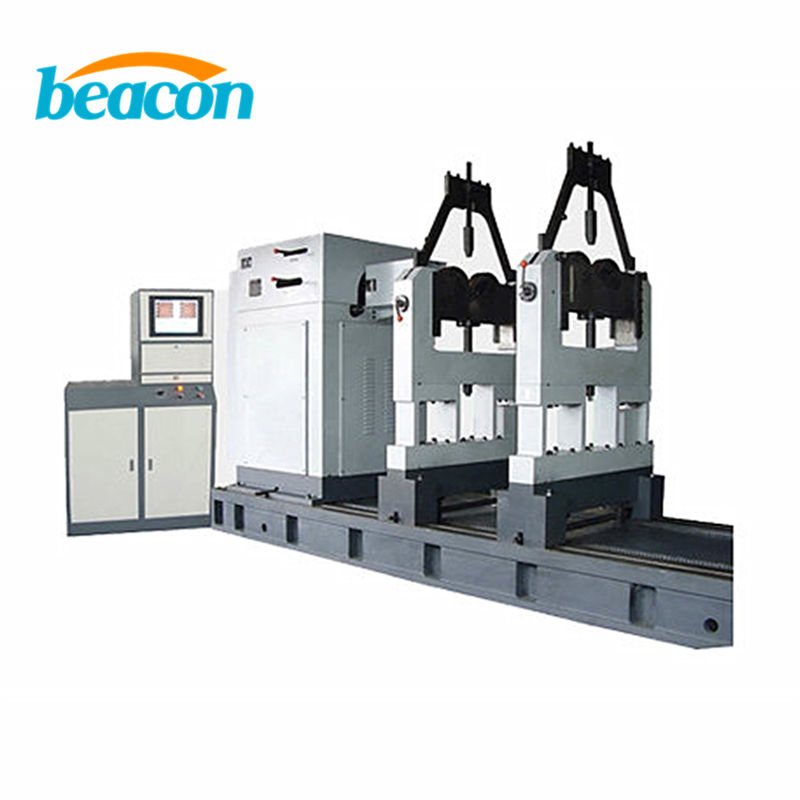

Beacon Balancing Machine YYW-K30S High Speed Armature Rotor Universal Joint Driven Balancing Machine

General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using roller bearing, universal joint driven, screen display structure, industrial control computer processing the data.

Quick Order

Introduction

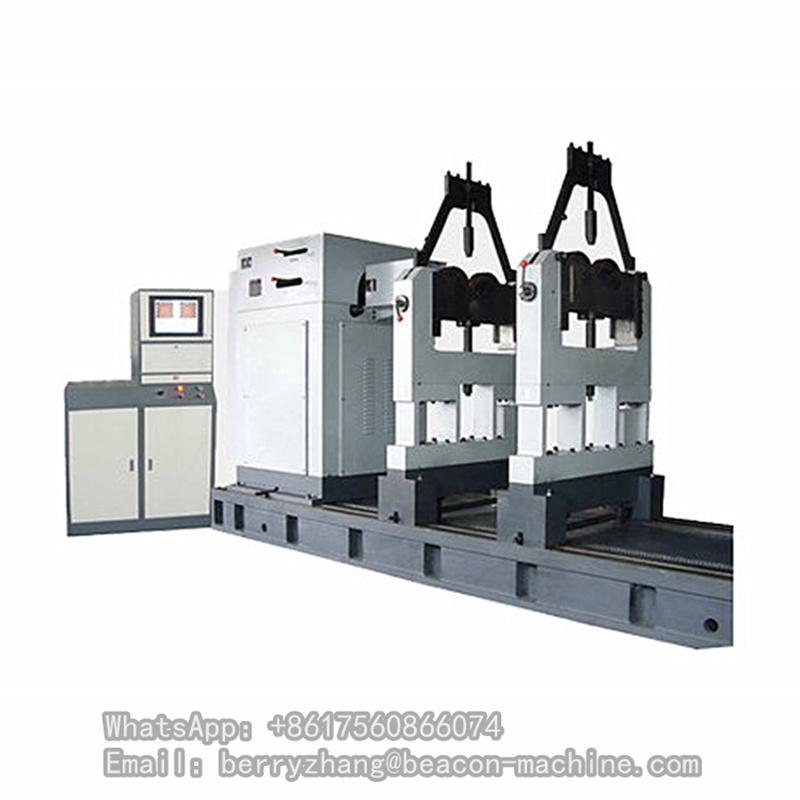

Beacon Balancing Machine YYW-K30S High Speed Armature Rotor Universal Joint Driven Balancing Machine


1. Features:
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using roller bearing, universal joint driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single, double, multifaceted interface, suited for large axle, plate, center of gravity overhung rotor.

2. Main technical index

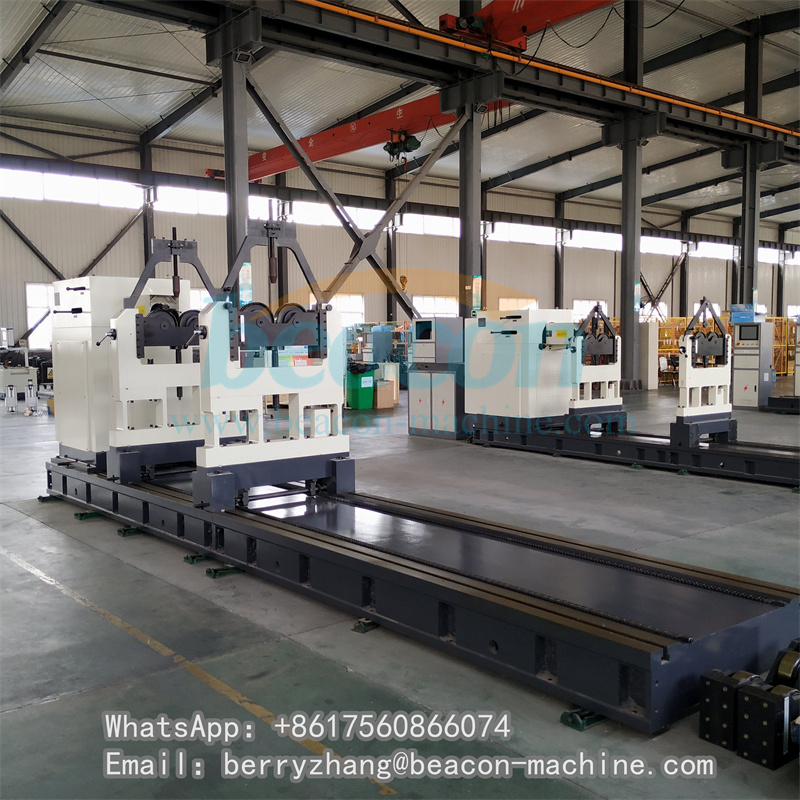

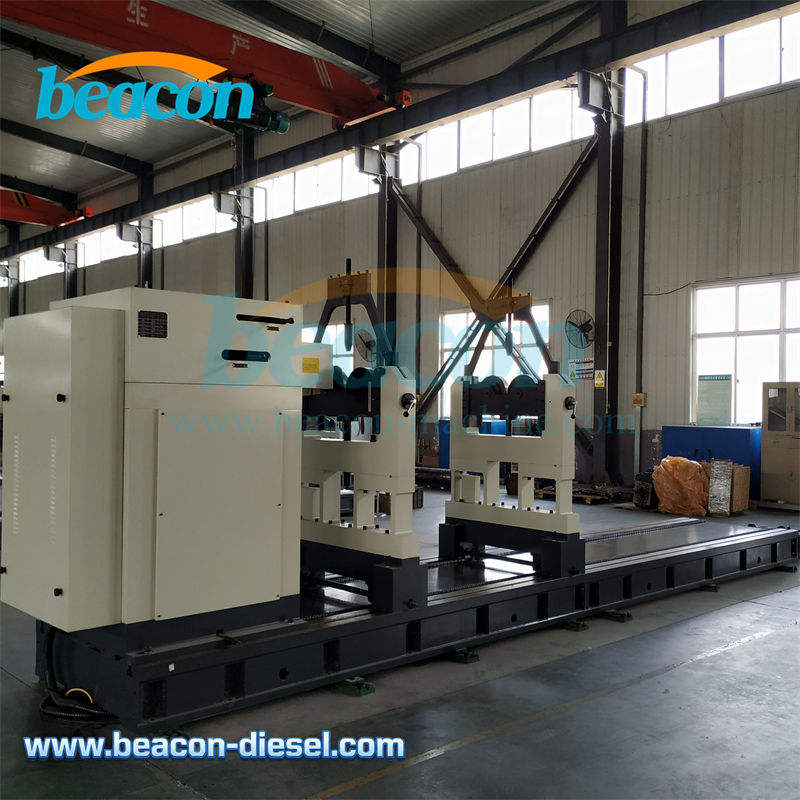

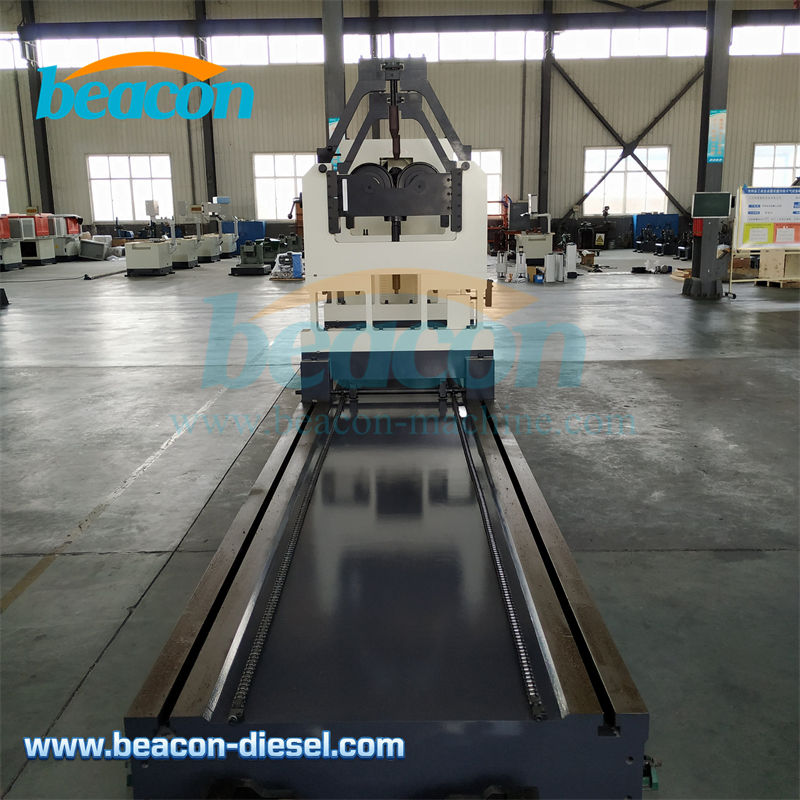

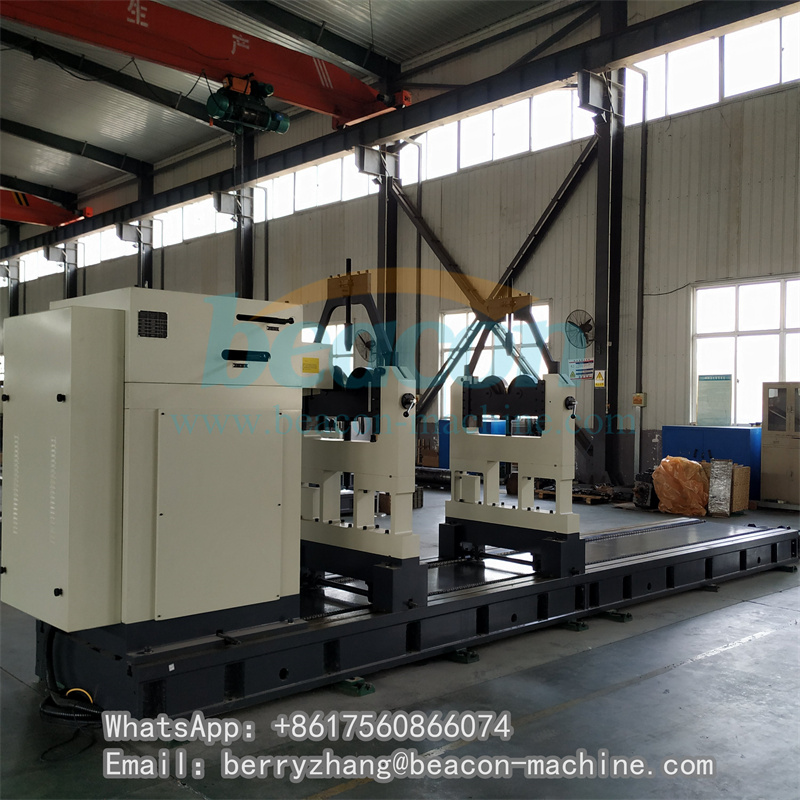

Way of driving: universal joint driven, 75 kw motor and Shaanxi FAST five speed gearbox

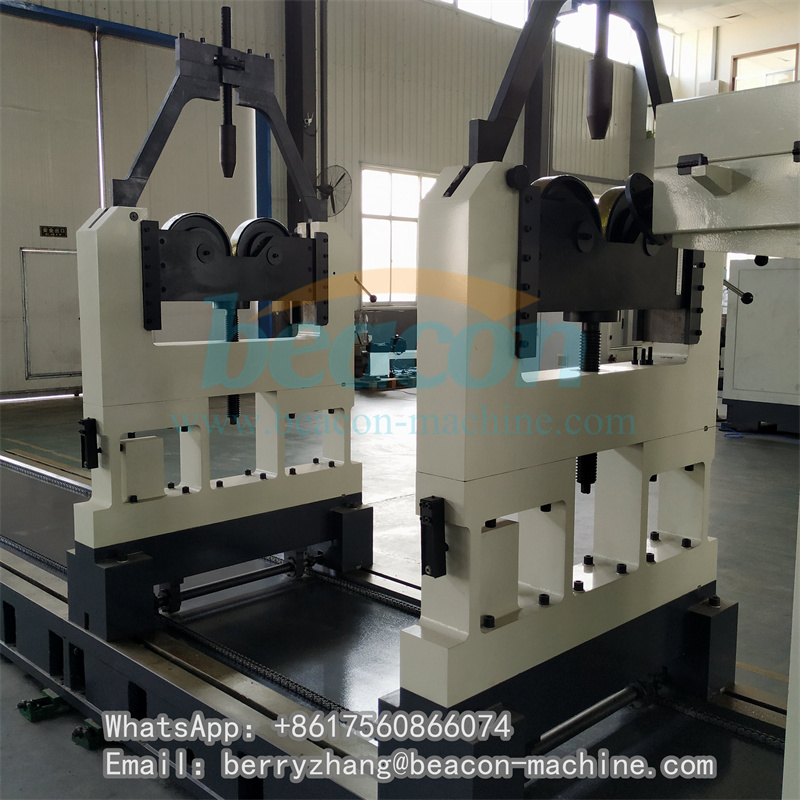

For convenient to place and adjust large work-piece rotor, gearbox can fine tune about 40cm on head stock, and whole head stock can free move on lathe bed, in case of breaking universal joint when installing, and realized fast connecting.
Measuring system: independent developed dynamic balancing machine special measuring software.

parameter

1)weight of work-piece universal joint driven(kg):            500-30000
2)Max diameter of work-piece universal joint driven(mm):    φ2800
3)Length of lathe bed :(mm)                                       4300*2
   Width of lathe bed:(mm)                                         1200
4)Journal diameter scope of work-piece(mm):   φ50-260, φ240-500(2 sets rotor)
5)Min achievable residual unbalance amount(gmm/kg):      ≤1
6)Unbalance reduction ratio(%):                           ≥90
7) Rotating speed(r/min):         180/330/540/850/1350 Step less speed regulation
8) Motor power(kw):                                     75
9) Drive mode:                     universal spindle coupling+five speed gearbox
10) Work environment:                   temperature: -5---45℃; humidity: 0-85%

*Test data from Beacon laboratory
