Introduction:

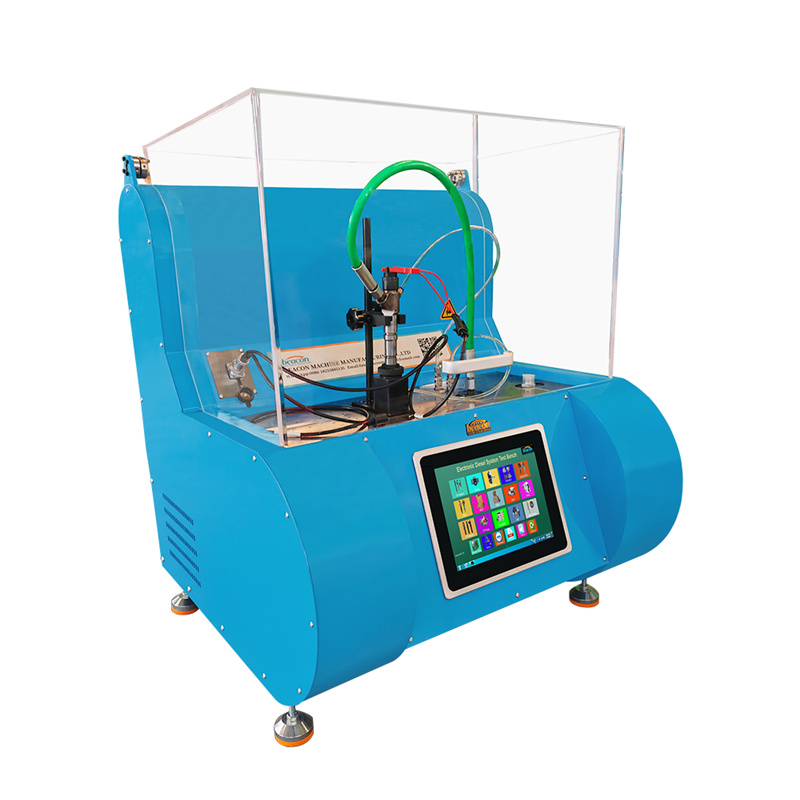

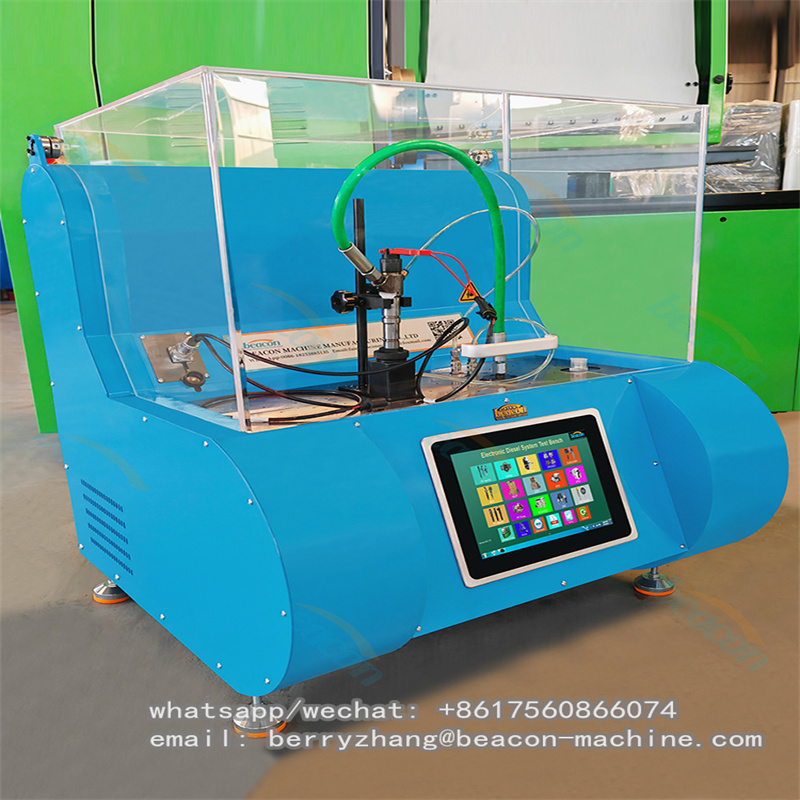

EPS209 Type high pressure common rail test bench, it provides the control signal of Bosch, Denso, Delphi and Siemens to drive the high-voltage common rail injector for work.
The system is equipped with standard drive signal parameters, and users can also adjust the parameters according to their actual situation and save them. Such as pressure, time, speed and other parameters, all LCD screen display, reliable work, high control accuracy. It is the ideal equipment for diesel automobile, internal locomotive maintenance, production and testing.

Main Features
(1) Integrated automatic operation, including test bench speed, oil rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, north oil, heavy oil and other manufacturers of solenoid valve type or piezoelectric crystal oil injectors
(3) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(4) The database is fully open for operation, and the part number can be added.
(5) Automatic network upgrade, and keep the test data and functions up to date;
(6) Test oil injection response time; (optional)

Major Dispositions
1, industrial computer real-time control, windows system

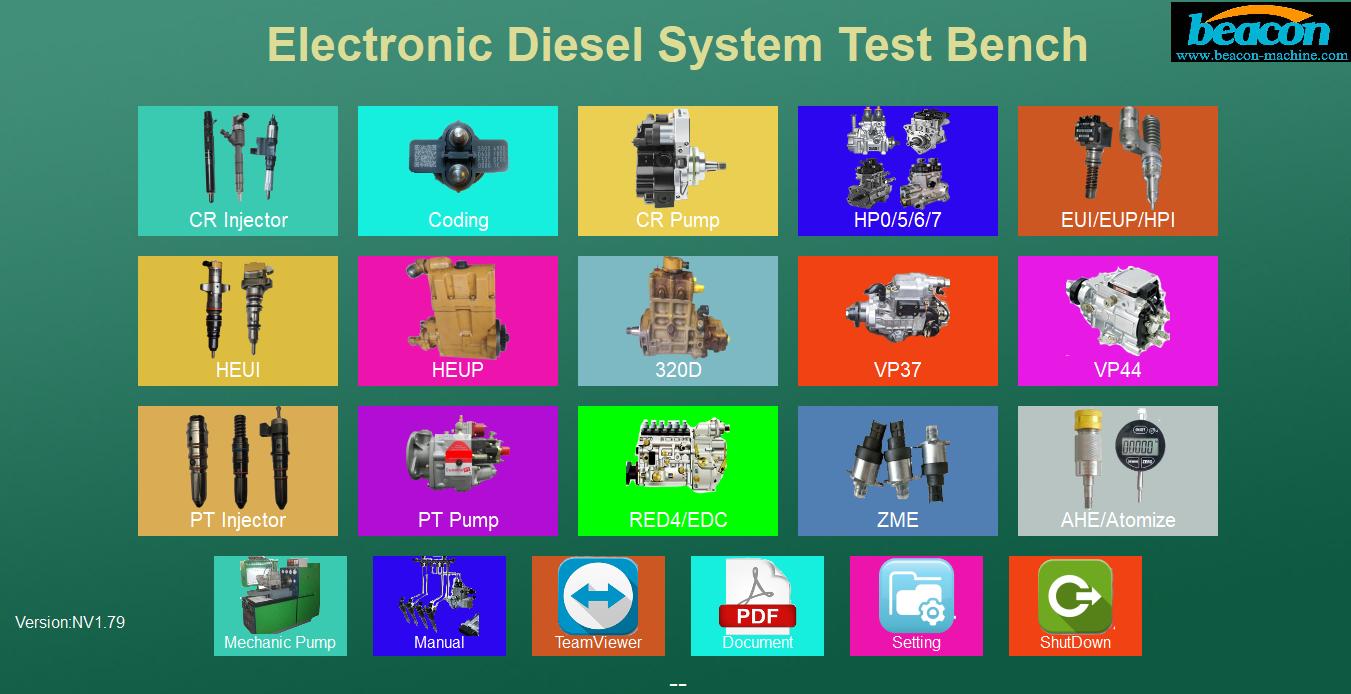

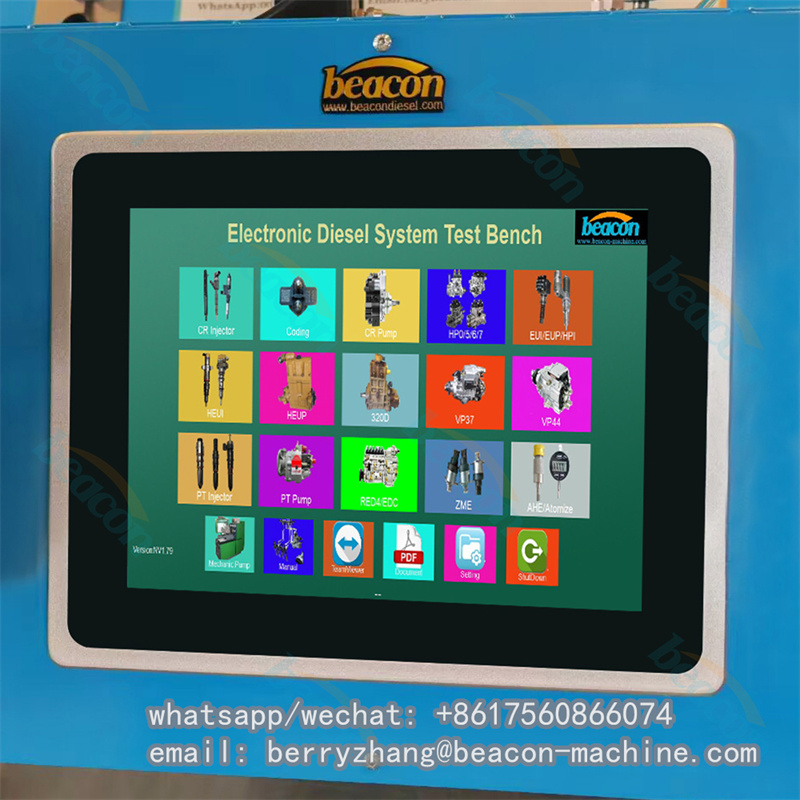

2, sensor measurement, LCD screen display
3.The original BOSCH high-pressure common rail oil pump is used to generate 0~200MPa rail pressure
4, real-time measurement of pressure, speed, temperature, oil volume, etc
5, with over voltage, under voltage, short circuit and other protection functions
6.The pulse width and frequency can be adjustable, and the injection times can be set freely
7, can test the solenoid valve type fuel injector and piezoelectric type fuel injector
8, thousands of fuel injector data, can be query, input, storage
9.Accurate measurement, easy operation, low noise and energy saving

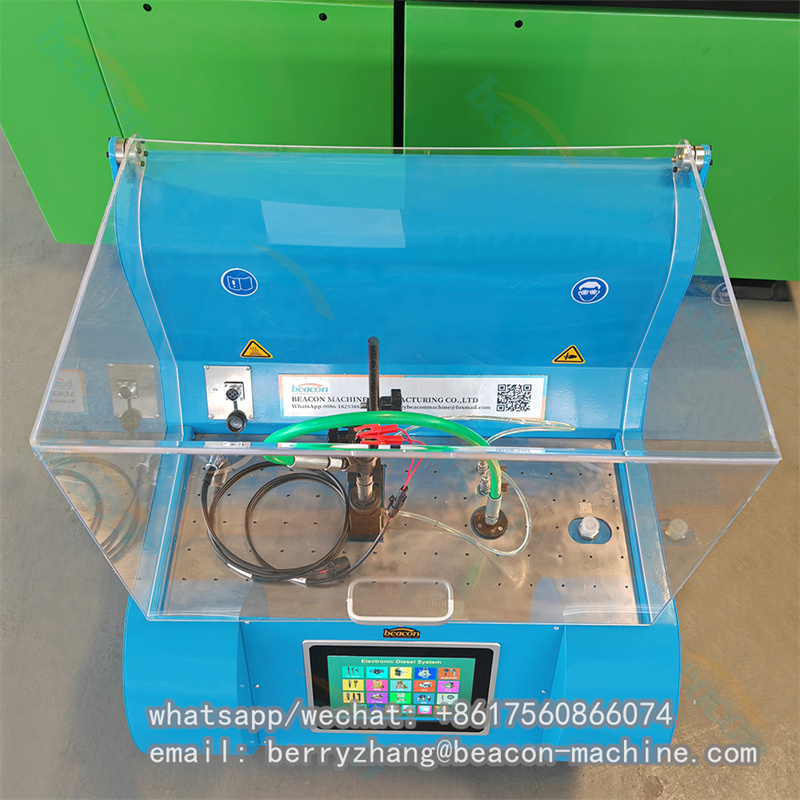

10, organic glass protective door, safe, easy to observe


Use of test bench:
(1)Test the sealing performance of the common rail fuel injector
(2)Test the full load performance of the common rail injector
(3)Test the medium-load performance of the common rail injector
(4)Test the idle performance of the common rail injector
(5)Test the pre-injection performance of the common rail fuel injector
