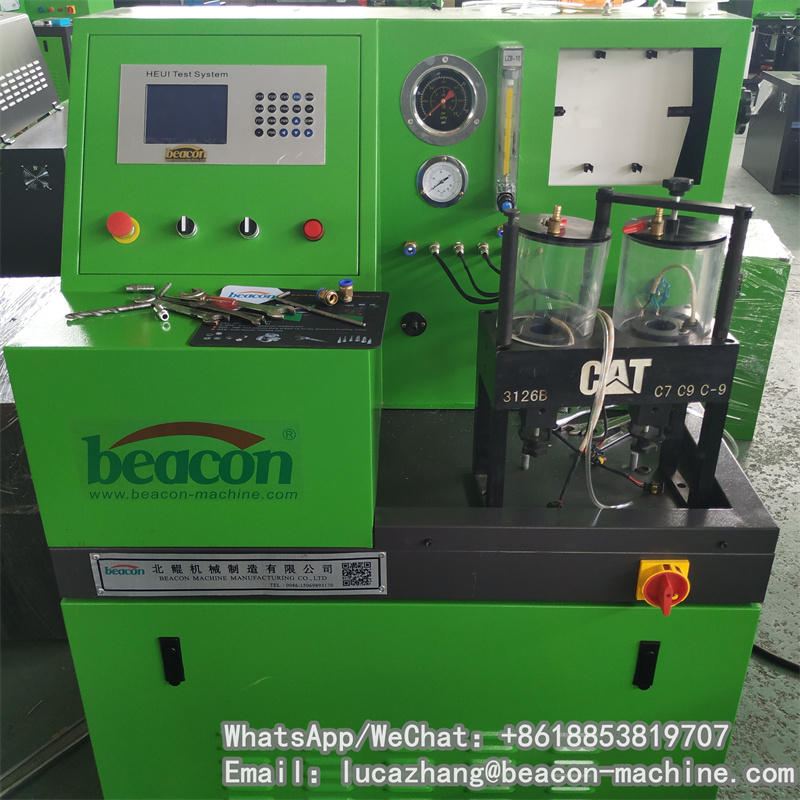

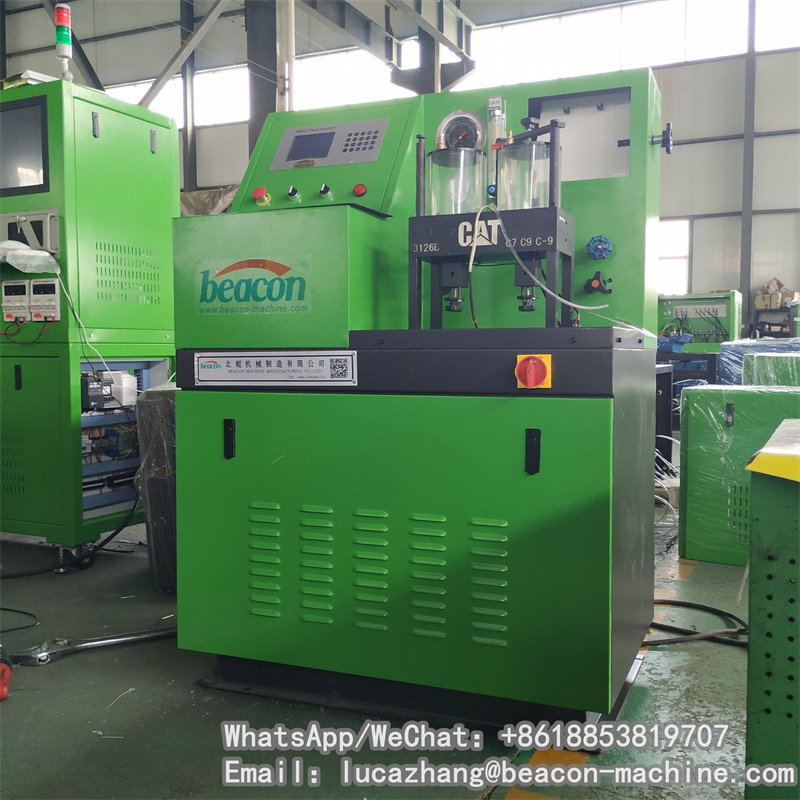

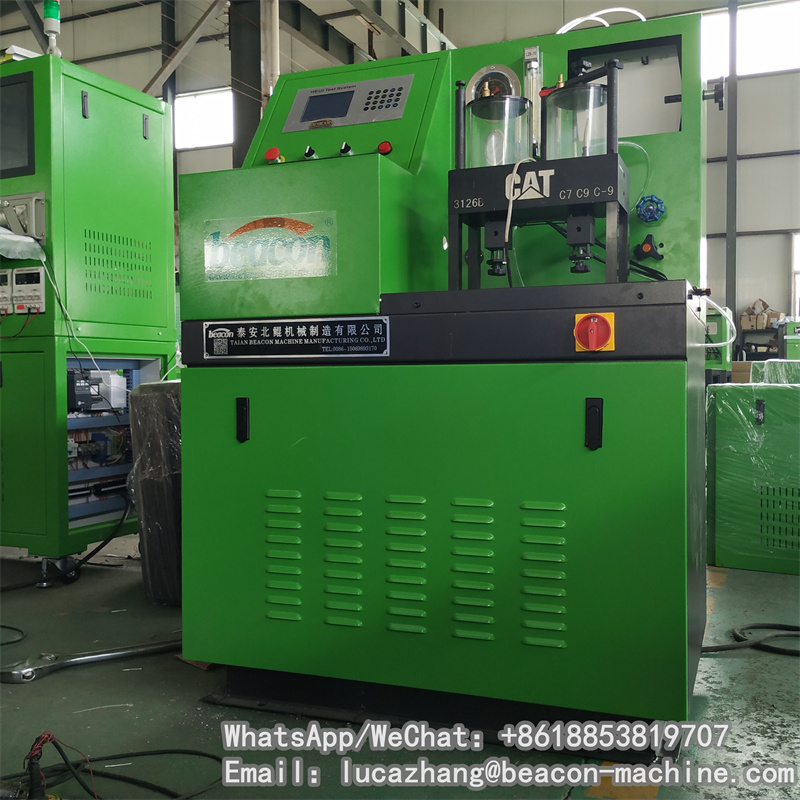

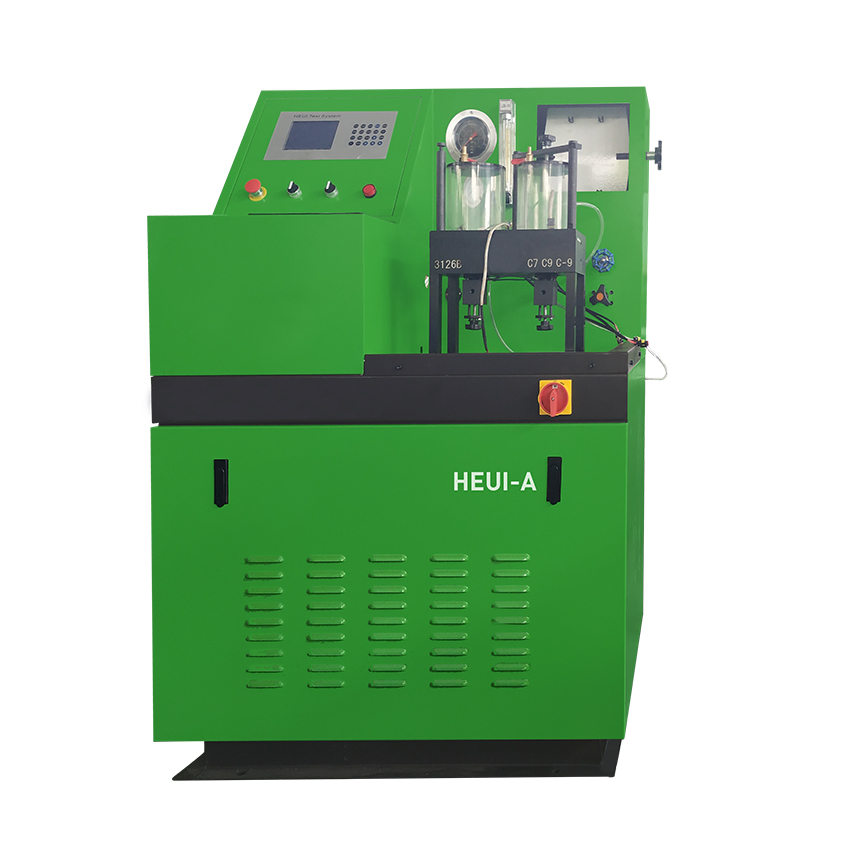

Beacon Machine Common Rail C7 And C9 Injector Nozzle Tools HEUI-A 3126 Cat Engine Injectors Calibration Test Bench

Graduated cylinder display flow testing equipment HEUI-A heui c7 c9 injector nozzle tools test bench

Introduction

Graduated cylinder display flow testing equipment HEUI-A heui c7 c9 injector nozzle tools test bench

parameter

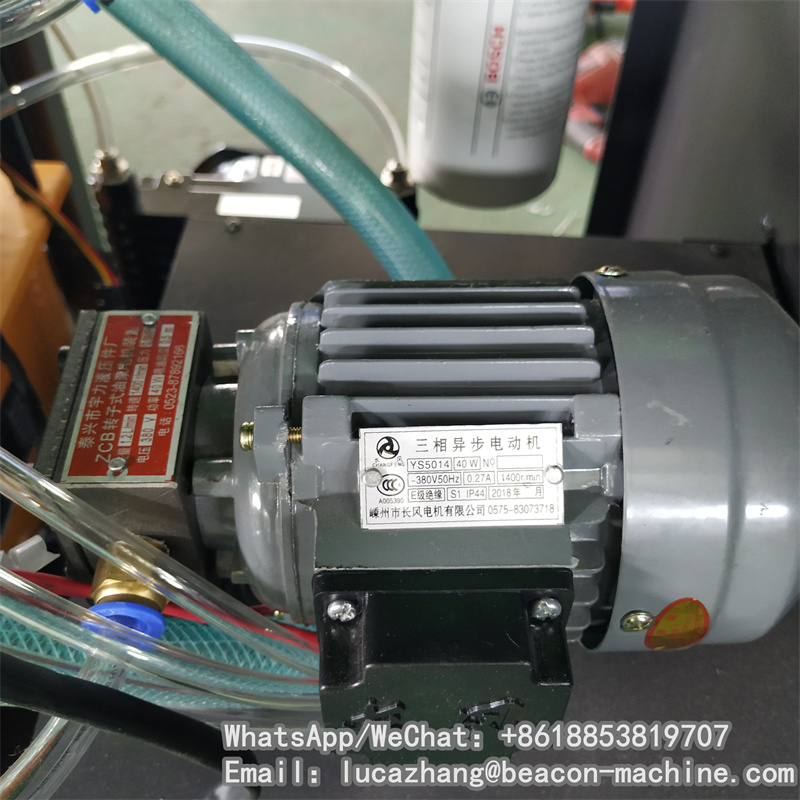

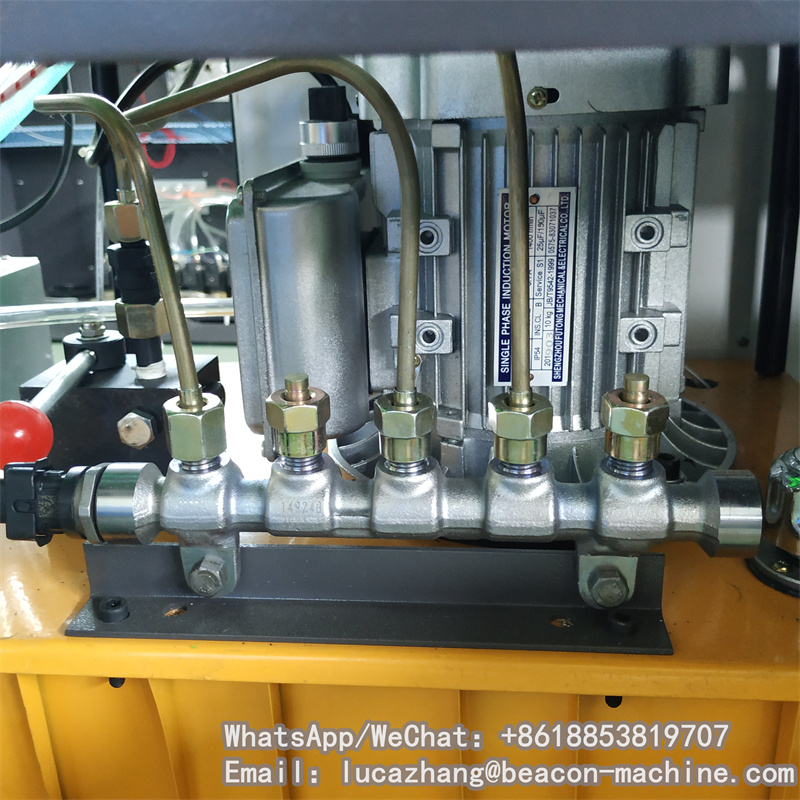

Motor： 10HP motor
Actuation Oil system： 0-300bar
Test Oil Supply： 0-4bar
Test Oil Tank Capacity: 40L

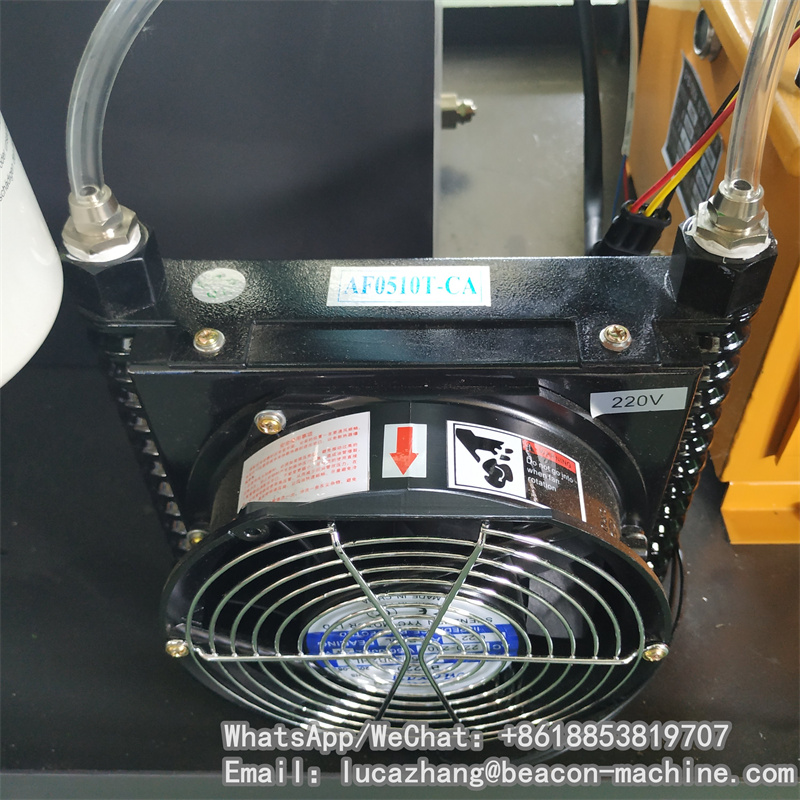

Temperature control： Range: 10~50
Accuracy: +/- 1
Digital Display
Injection Quantity Measurement： 150ML glass tube

*Test data from Beacon laboratory

product video

Beacon Machine Common Rail C7 And C9 Injector Nozzle Tools HEUI-B 3126 Cat Engine Injectors Calibration Test Bench

The test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
Navistar T444E, as Ford 7.3L Power Stroke Engines
Navistar DT466E
Navistar I530E
Caterpillar 3126B laboratory test bench

Function
China HEU Itest bench Measurement fuel delivery of HEUI injectors
Sealing test for injector upper seat of the solenoid control valve HEUI test bench
