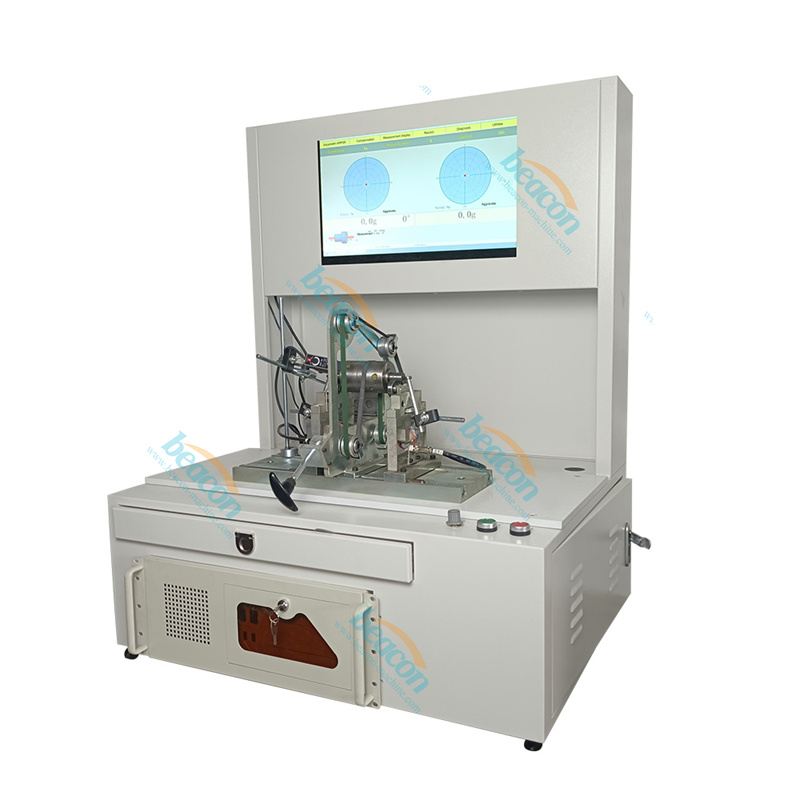

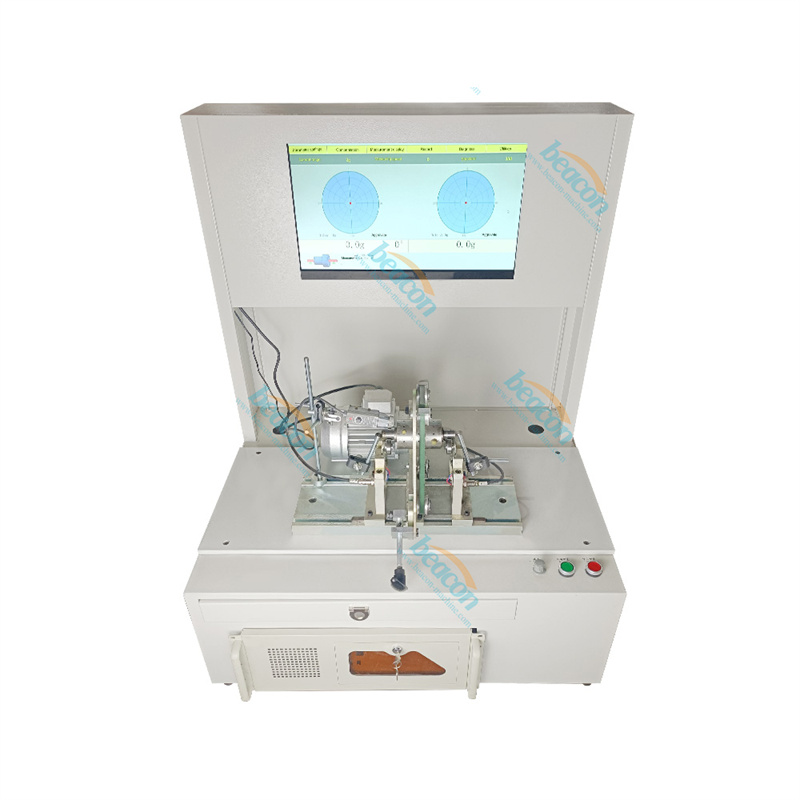

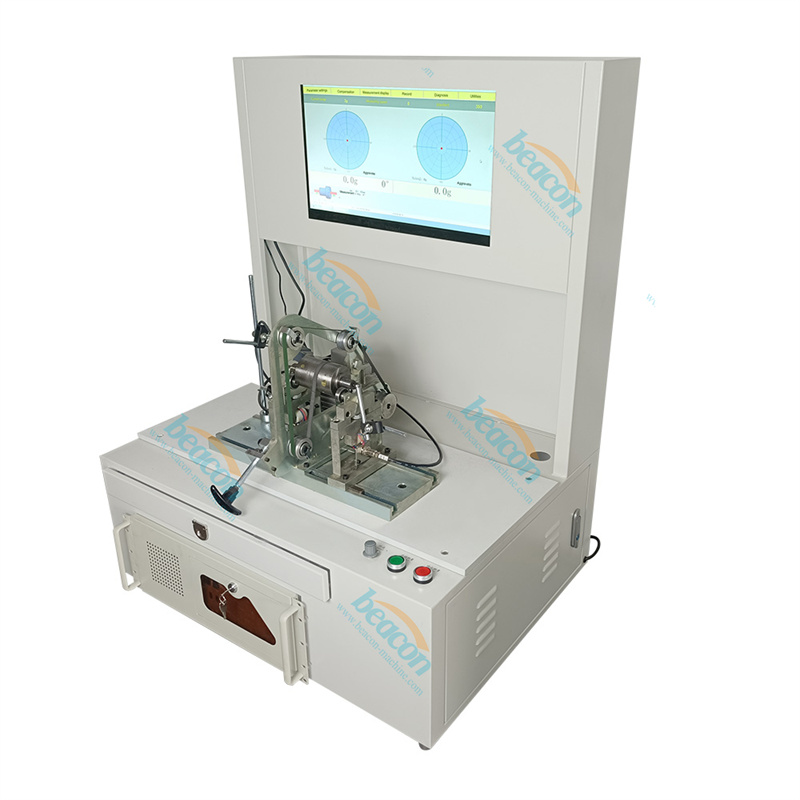

YYQ-10A Small Motor Rotor Turbocharger Dynamic Balancing Machine
YYQ-10A Small Motor Rotor Turbocharger Dynamic Balancing Machine
Introduction
Features (1)The fully automatic program control amplification module is simple and easy to use. (2)Vector graphics, wave type and imbalance at the same time. (3)High efficiency, accurate accuracy, accuracy, intuitive, reliable quality, convenient maintenanceand other characteristics.
parameter
Model RYQ-10A
Mass scope of work piece kg 0.1-10
Biggest diameter work piece mm 500
Two span of supports mm 30-600
With a diameter circle in drag (mm) ≤150
Trunnion support mm 4-17
Balancing speed r/min 400-10000
Min achievable residual unbalance amount ≤0.5gmm/kg
Unbalance reduction ratio % ≥90%
Motor power kW 0.09 0.18
mode of speed regulation micro-motor
Transmission model Circle with
*Test data from Beacon laboratory
Mass scope of work piece kg 0.1-10
Biggest diameter work piece mm 500
Two span of supports mm 30-600
With a diameter circle in drag (mm) ≤150
Trunnion support mm 4-17
Balancing speed r/min 400-10000
Min achievable residual unbalance amount ≤0.5gmm/kg
Unbalance reduction ratio % ≥90%
Motor power kW 0.09 0.18
mode of speed regulation micro-motor
Transmission model Circle with
*Test data from Beacon laboratory
