product DETAILS

  • Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine
  • Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine
  • Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine

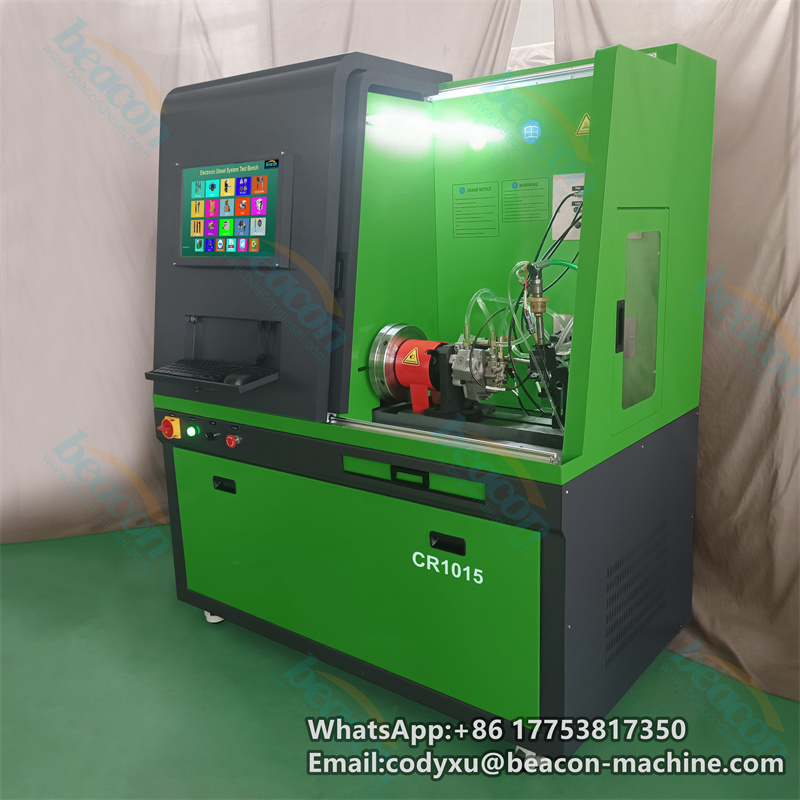

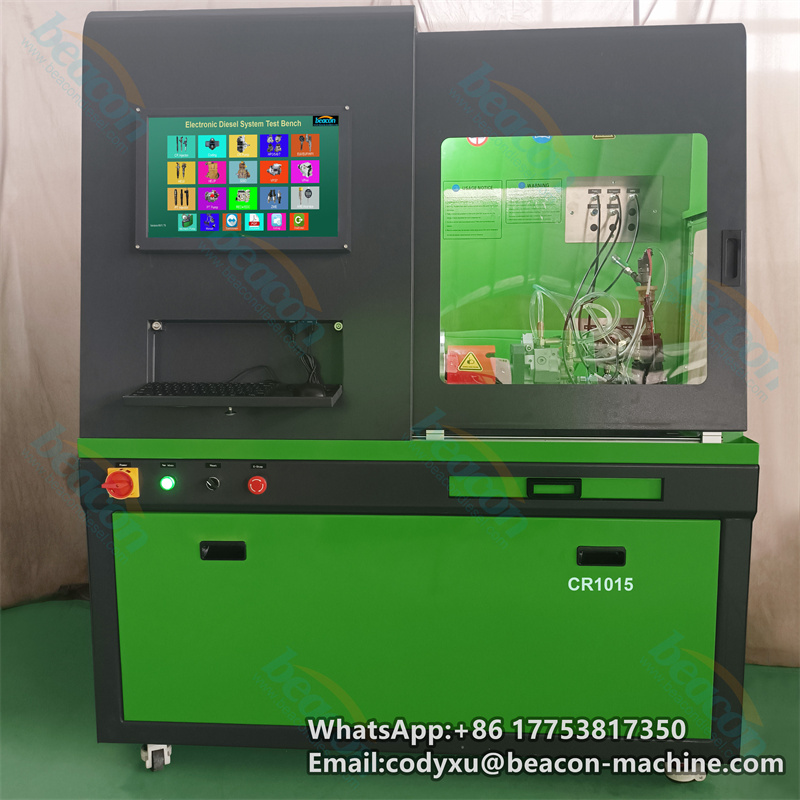

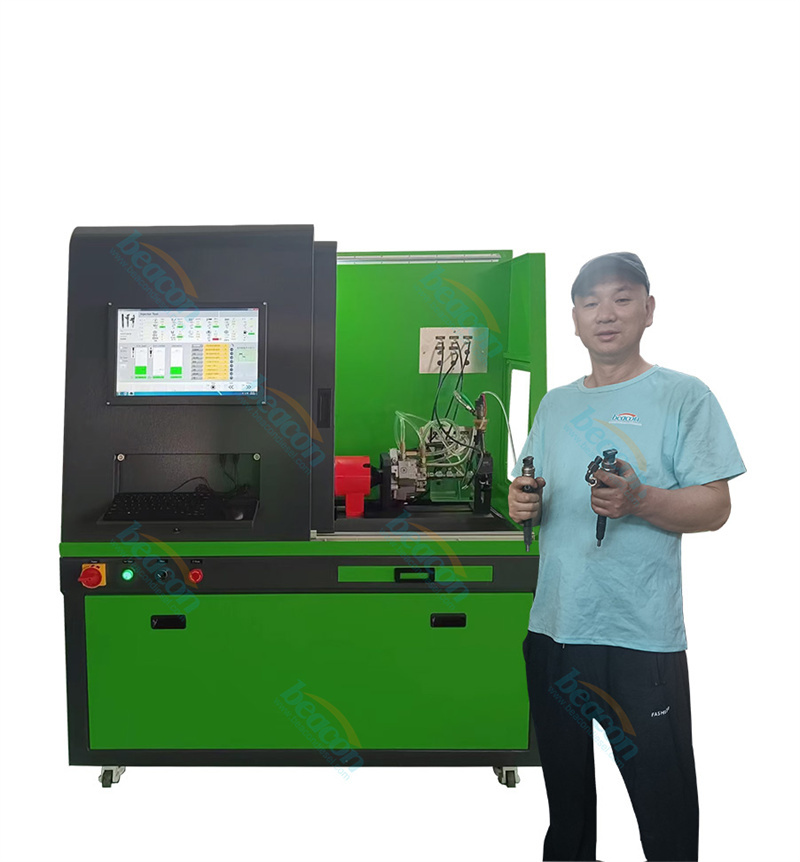

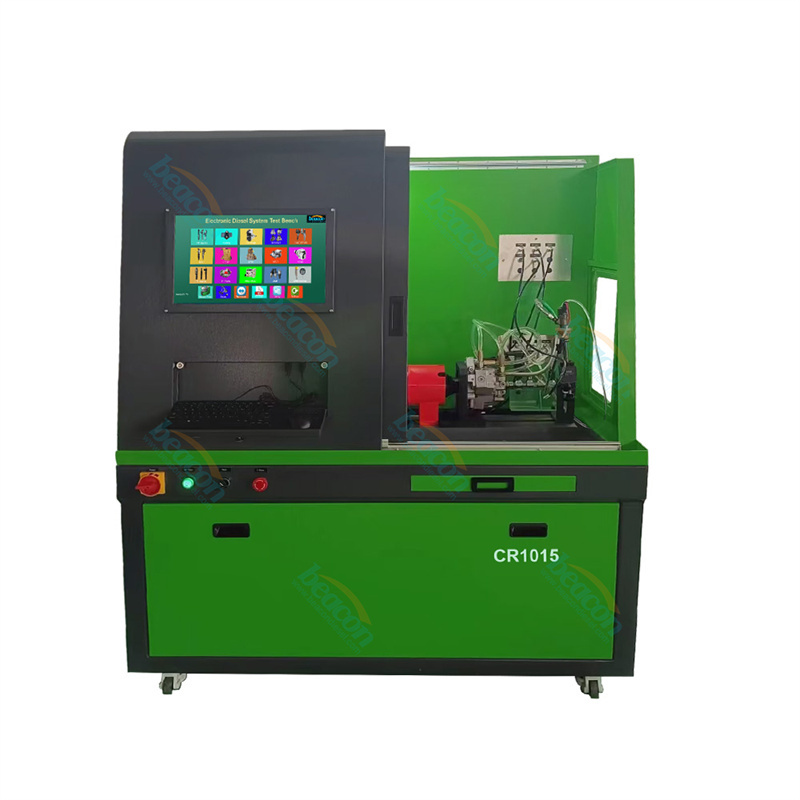

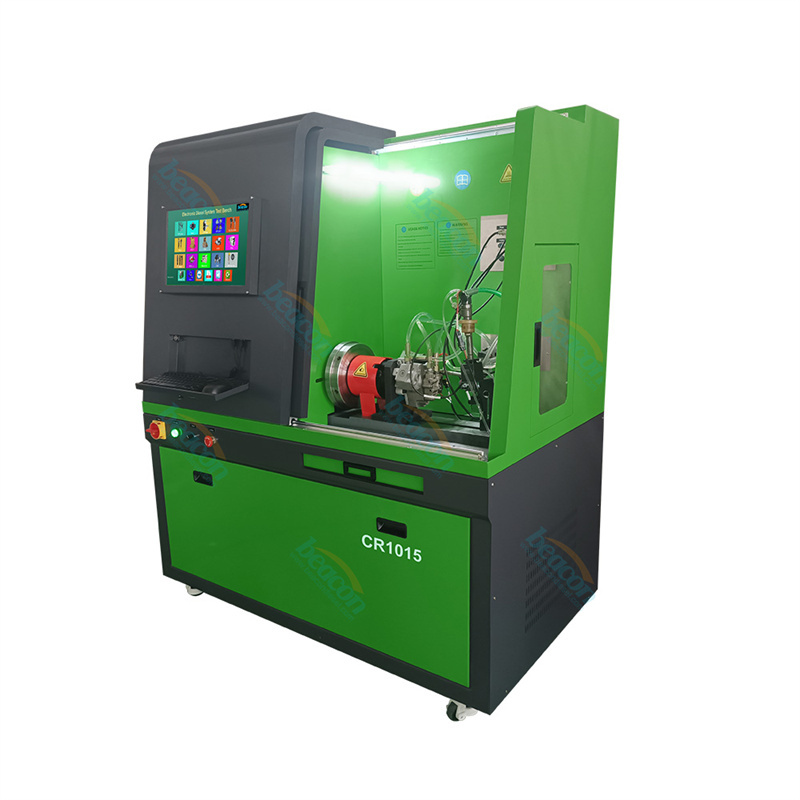

Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine

CR1015 Diesel fuel injector pump test bench is mainly used to test injectors and pumps and common rail injection HP0 pump calibration.

Quick Order

Introduction

Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine

The function of CR1015 high-pressure common rail electronic control comprehensive performance test bench is to imitate the working conditions of diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch and Delphi, driving high-pressure common-rail fuel pumps and high-pressure common-rail injectors. Work; the drive signal parameters can be set and saved by the user according to their actual conditions, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail system.


(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional)
(3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional);
(4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional);
(5) Caterpillar 320D high pressure pump can be tested (optional);
(6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional);
(7) HPI injector and PT pump (optional) can be tested;
(8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(9) The database is fully open, and the part number can be increased.

parameter

Product Name:CR1015 common rail test bench
Warranty:1 Years and life support
Function 1:common rail injector
Function 2:common rail pump
Function 3:HP0 pump
Language:Multiple Languages
Weight:494kg
Size:145*90*176
Support System:Beijing system

*Test data from Beacon laboratory
