Introduction

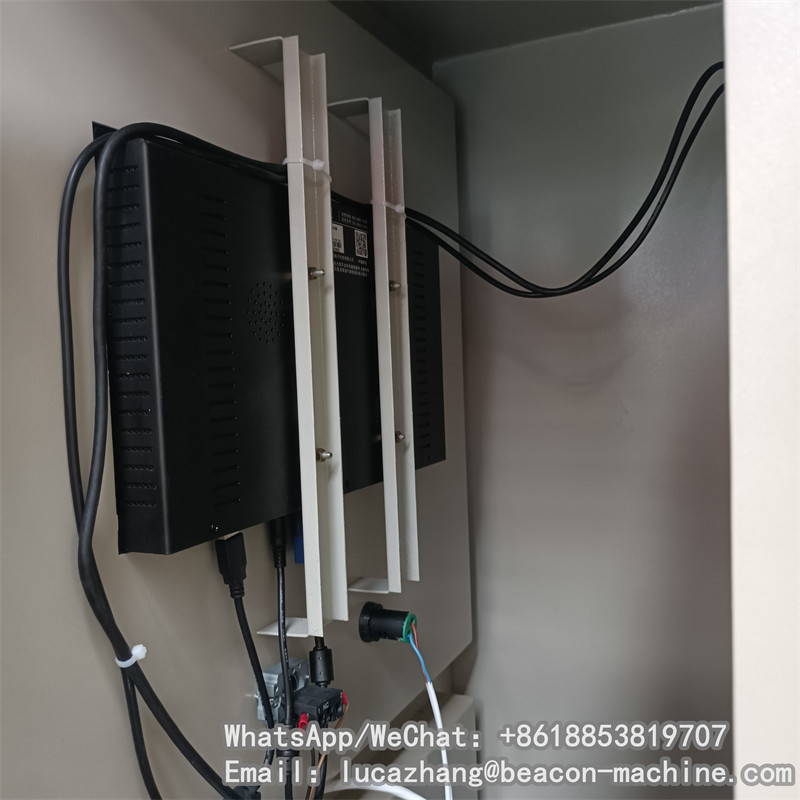

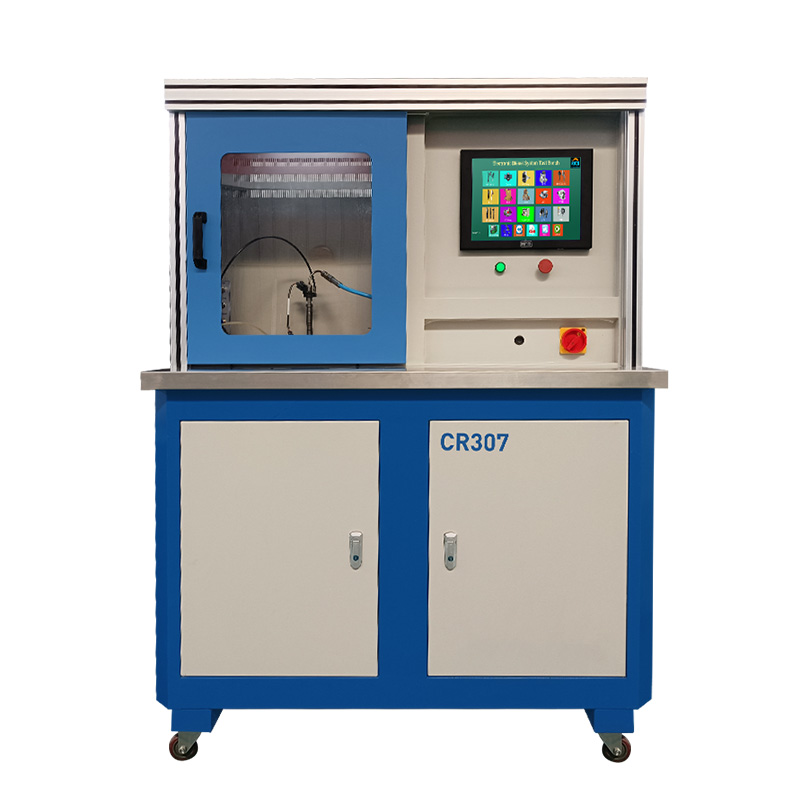

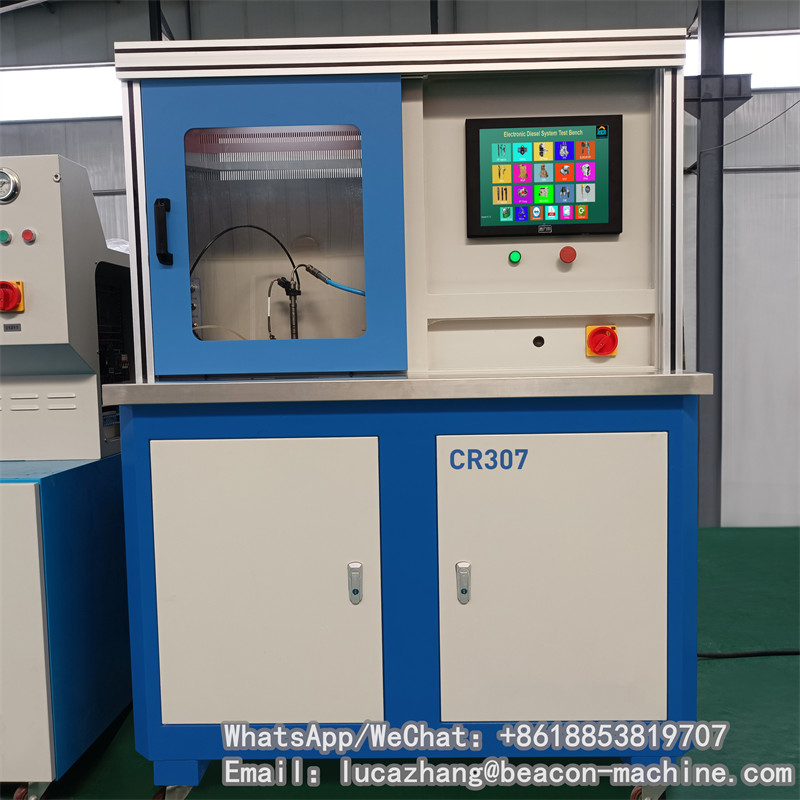

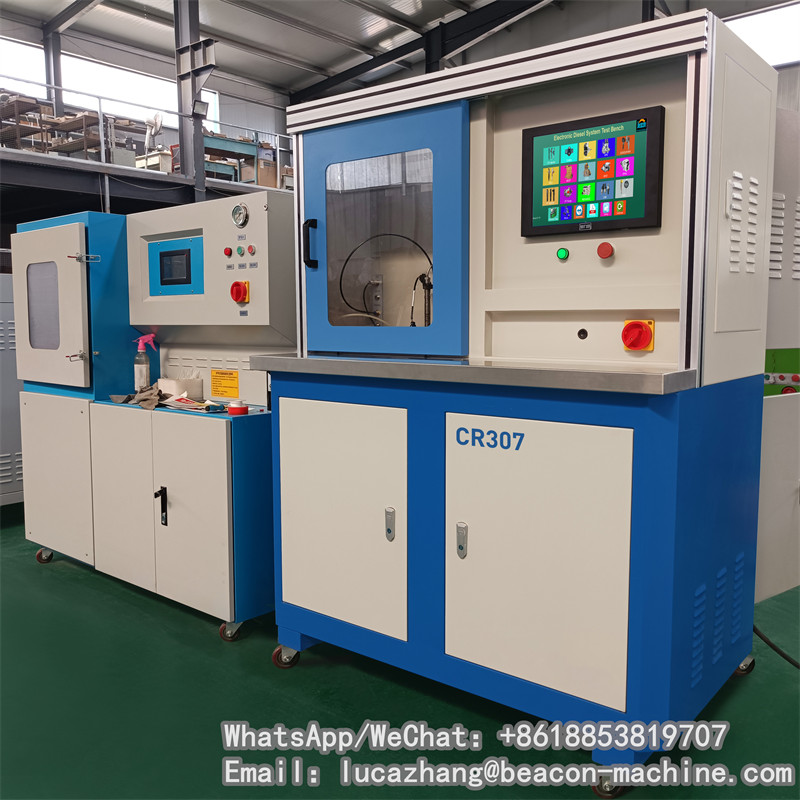

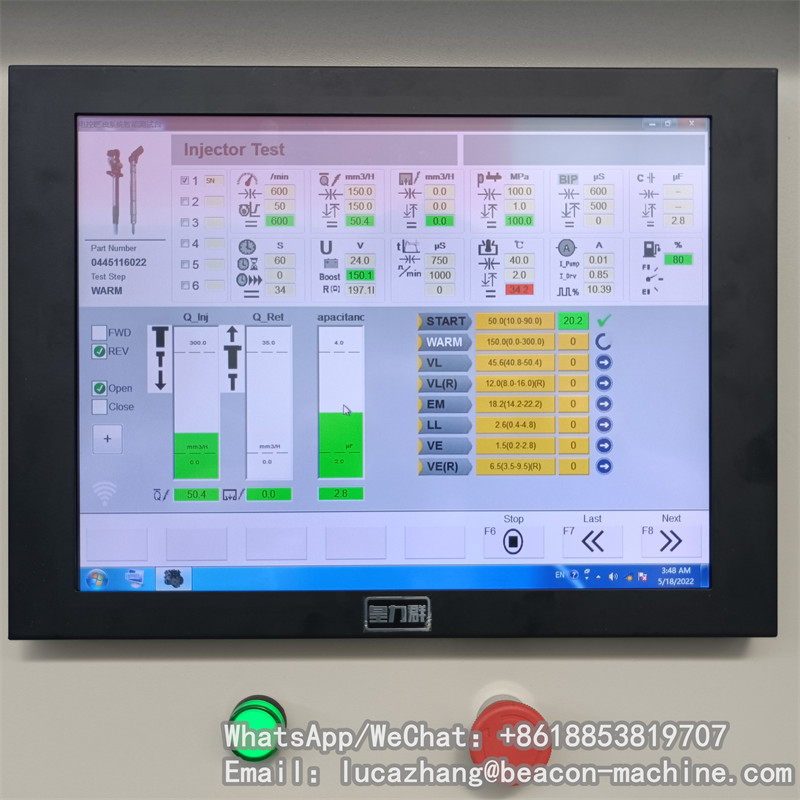

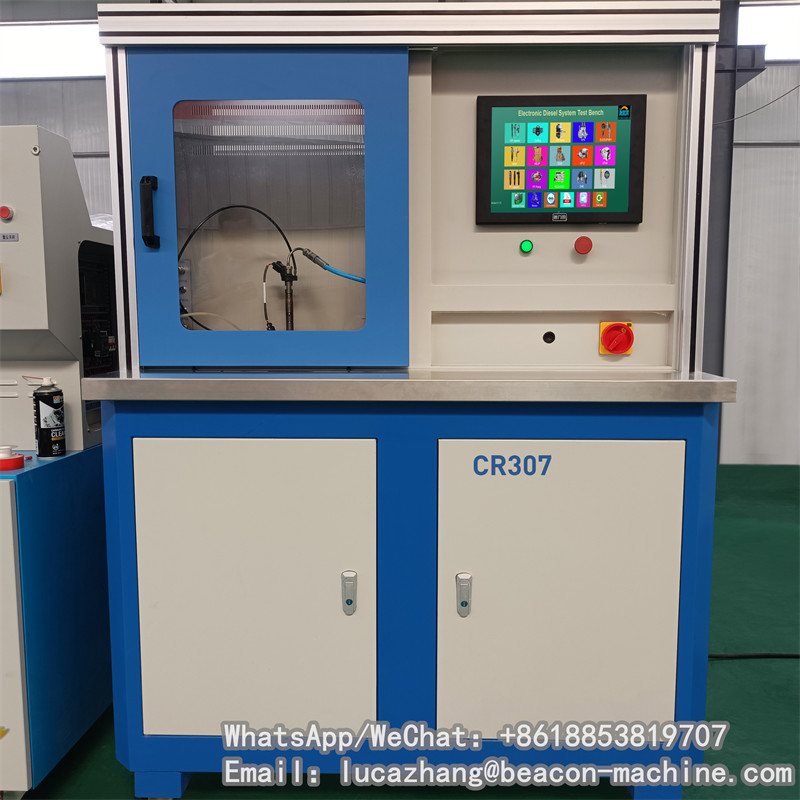

CR307 COMMON RAIL DIESEL INJECTOR TEST BENCH is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system).

parameter

Injector opening: 0-1000HZ Control accuracy: 1HZ
frequency control: 0-65535us
Fuel Injector Hold Time Control: 0-1000 times
Delivery Oil Count Control accuracy: 1 times
Fuel pressure control: 0-2400bar
Control accuracy: 1 bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size: 135*80*1.61CM
Weight: 360KG
*Test data from Beacon laboratory

product video

Beacon Machine Common Rail Diesel Fuel Injector Test Bench With Flow Sensor Test CR Piezo Injector CR307

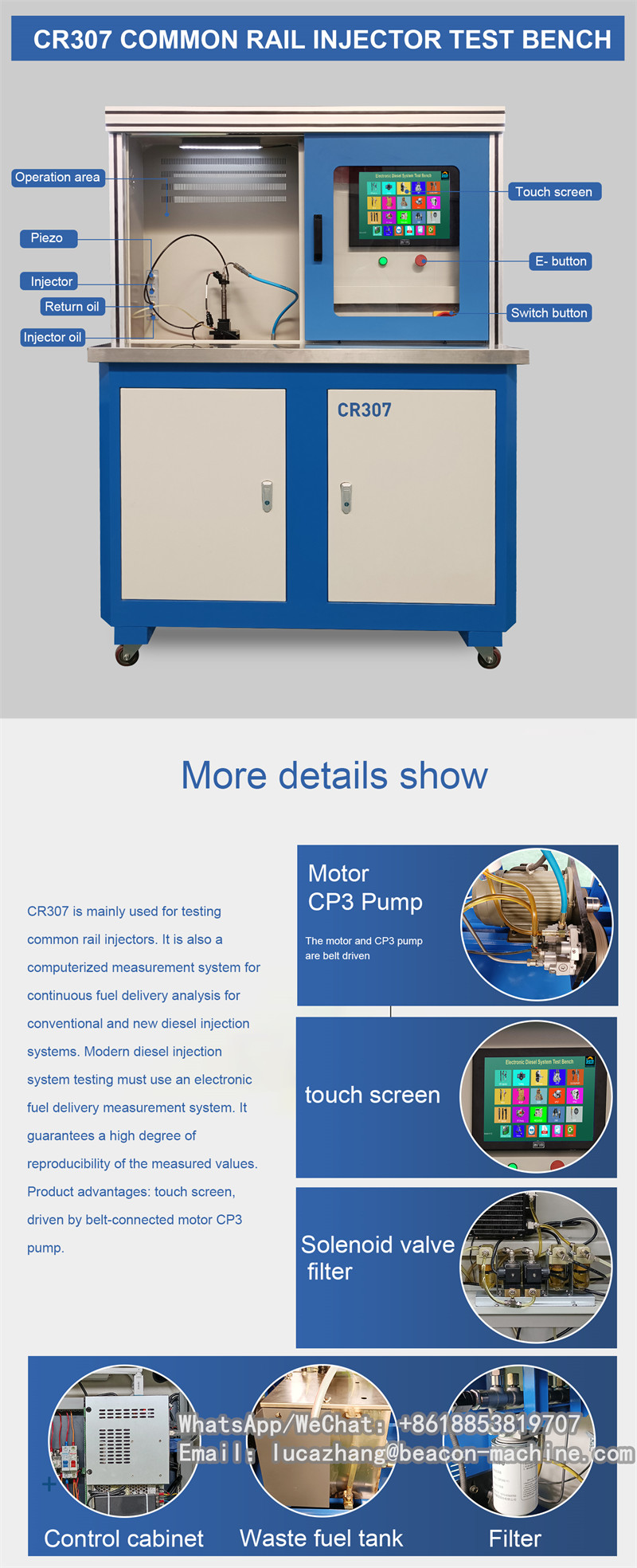

CR307 COMMON RAIL DIESEL INJECTOR TEST BENCH is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system).

Main Features
1. Basic model 4kw 380v 3-phase
2. Test common rail and piezoelectric injectors
3. Delphi Bosch Denso Siemens injector code

Optional function:
1. Measure six at the same time (without additional flow sensor)
2. Measure four at the same time (without additional flow sensor)
3. Measure two at the same time (without additional flow sensor)
4. Simultaneous measurement of six (additional flow sensor)
5. Simultaneous measurement of four (additional flow sensor)
6. Simultaneous measurement of two (additional flow sensor)
7. Delphi, Denso, Bosch, Siemens coding

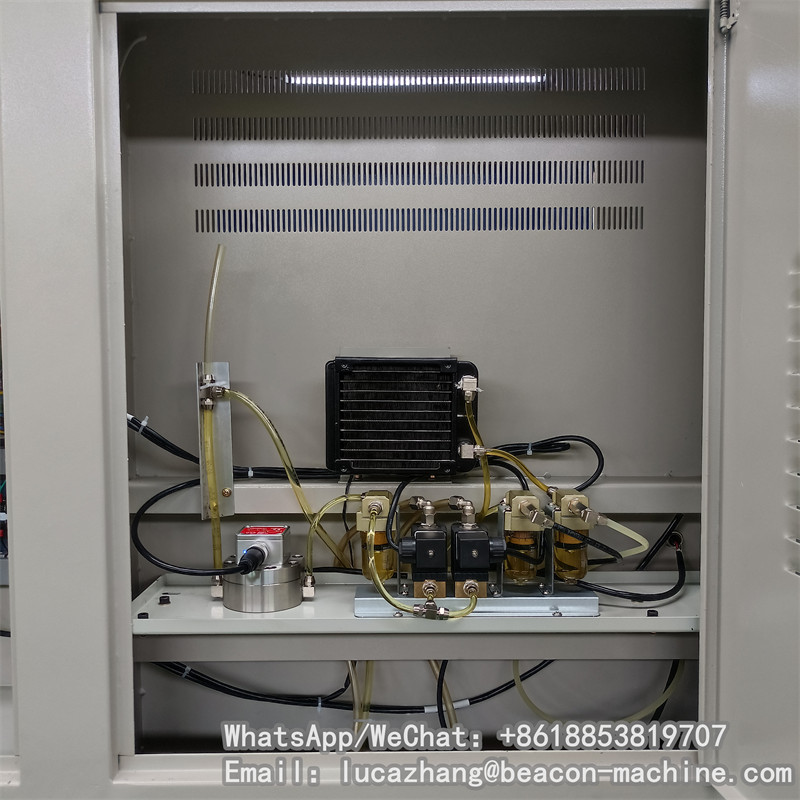

Product details
