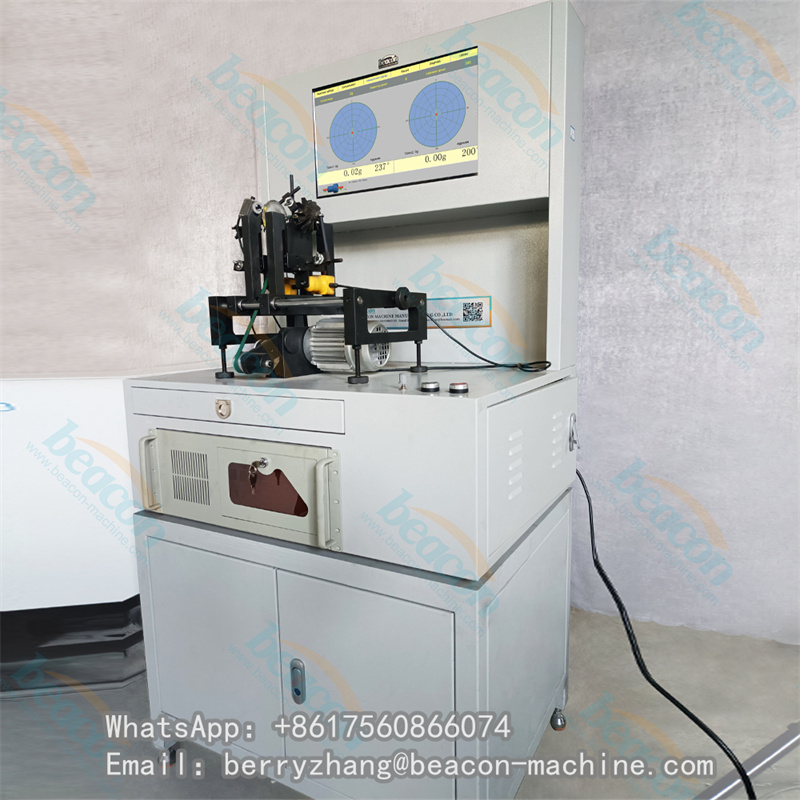

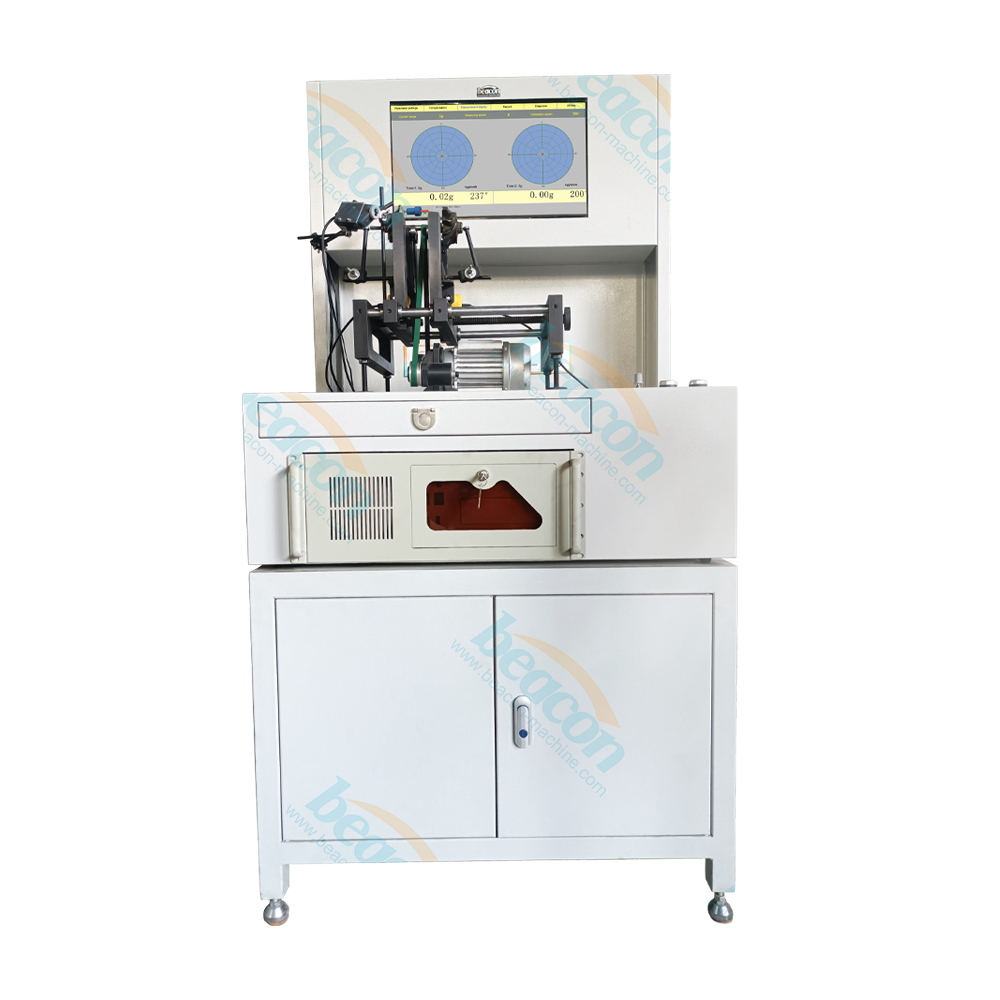

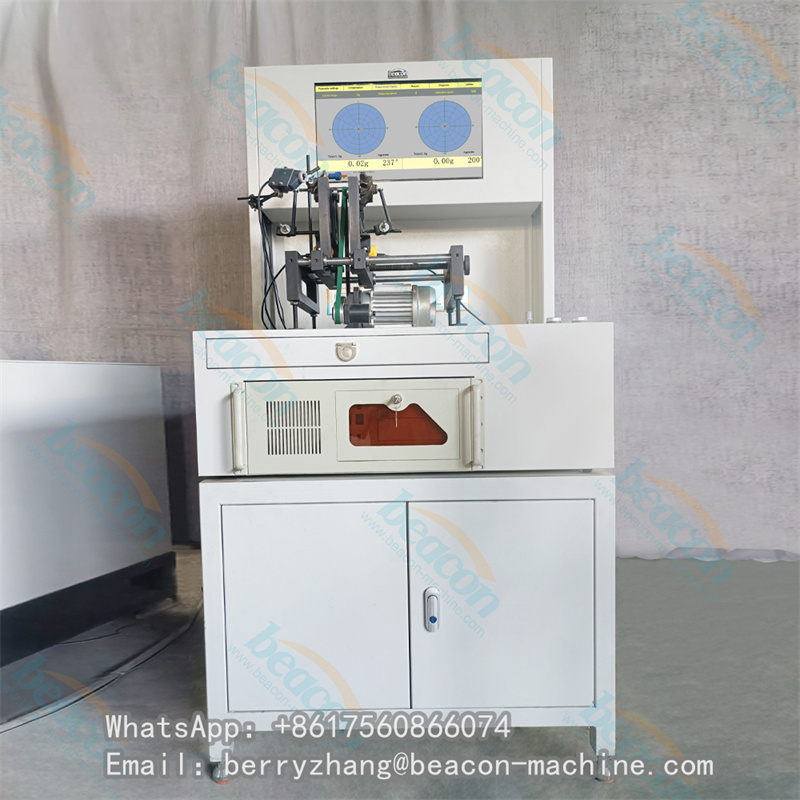

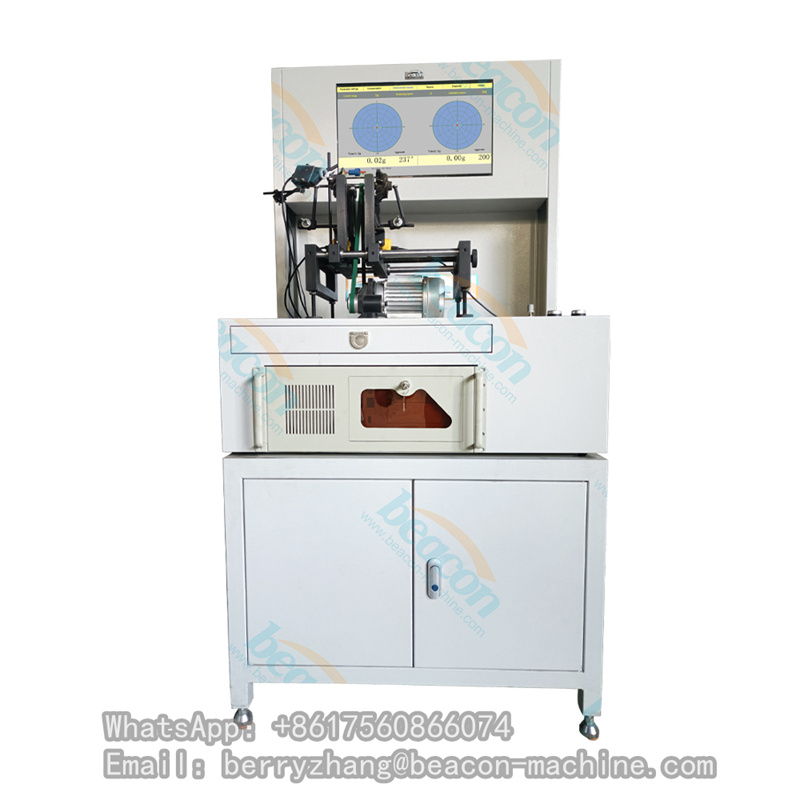

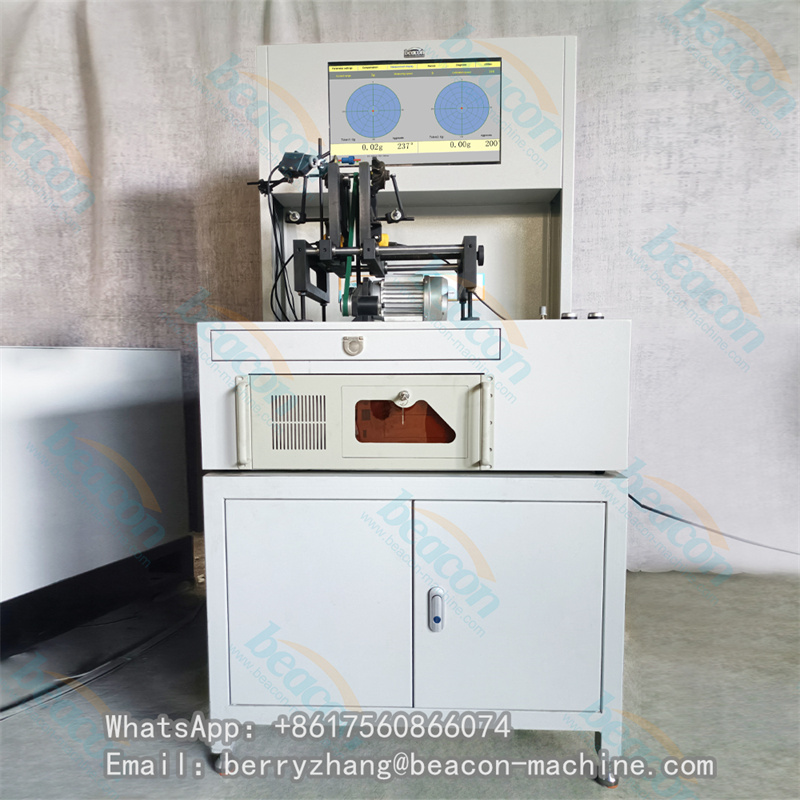

Electronic High Speed Turbo Testing Equipment RYQ-5A(DESK) Armature Turbo Soft Bearing Shaft Balancer Machine

Electronic High Speed Turbo Testing Equipment RYQ-5A(DESK)  Armature Turbo Soft Bearing Shaft Balancer Machine

Introduction:

1.Industrial control computer 19 "LCD color screens
2.Windows Chinese and English system double choice
3.With AM-2000 general microcomputer balance measuring system
4.Automatic program-controlled amplifier module
5.Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
6.Qualified quantity showed that adjustment function measurement cycle
7.Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis

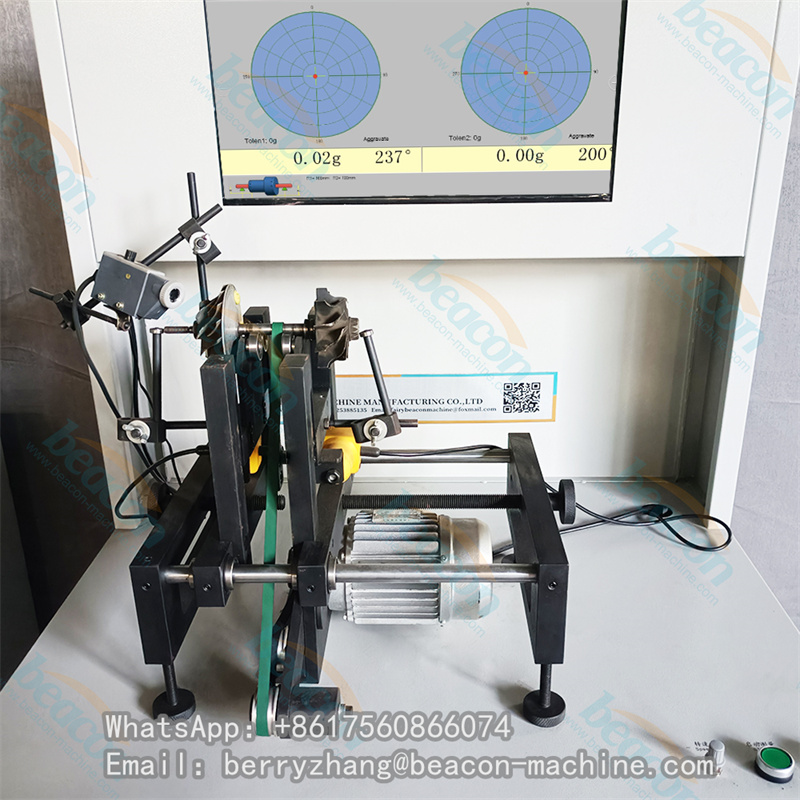

8.Vector graphics, waveform and out of balance, shows at the same time

9.Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display

Feature:

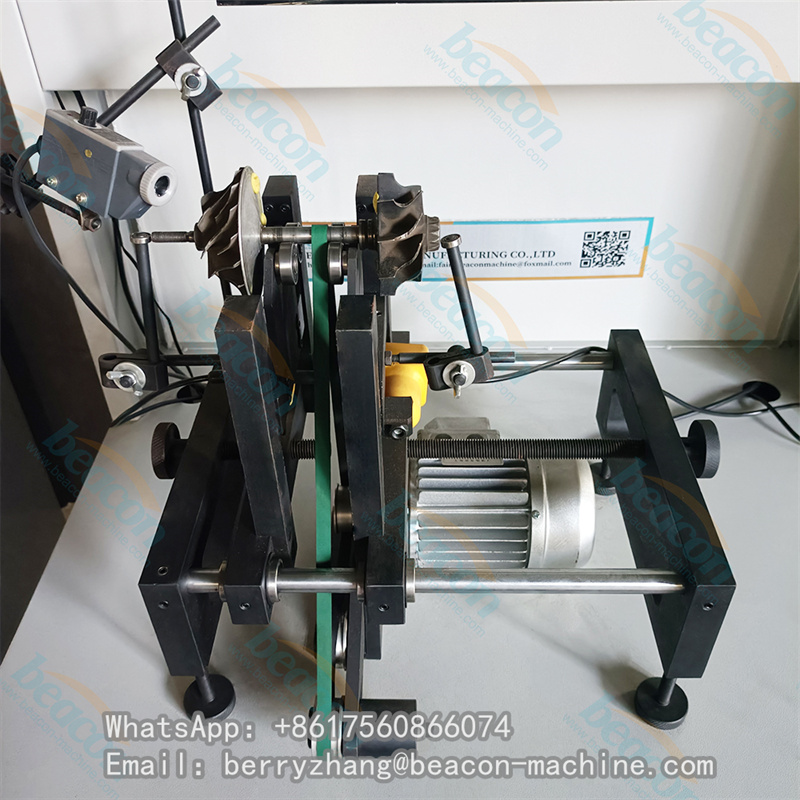

The series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is twospeed electric - driven,“A” is variable- frequency electromotor  plus inverter speed, industrial control computer data processing, color screen real- time shows the value  of the amount of unbalance ,phase and real- time rotational speed, bases have adopted the overall foundry,stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out stretching roller.  It has characterstics of high efficency, correct precision, direct display,    convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non- automatically for customers who use other hard  support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man- machine conversation, auto prompting.

Model:  RYQ-5A

Mass of Workpiece (kg) : 0.1-5
Max.diameter of workpiece (mm): Φ350
Distance between two support bearing(mm) : 30-450
Range of Journal Diameter(mm): φ3-22
Balancing speed(r/mm): 400-10000
Min. Achievable residual Unbalance (g.mm/kg): ≤0.5
Unbalance reduction ratio(%): ≥90
Drive power (kw): 0.09
