T8018D cylinder boring machine
Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for
Introduction

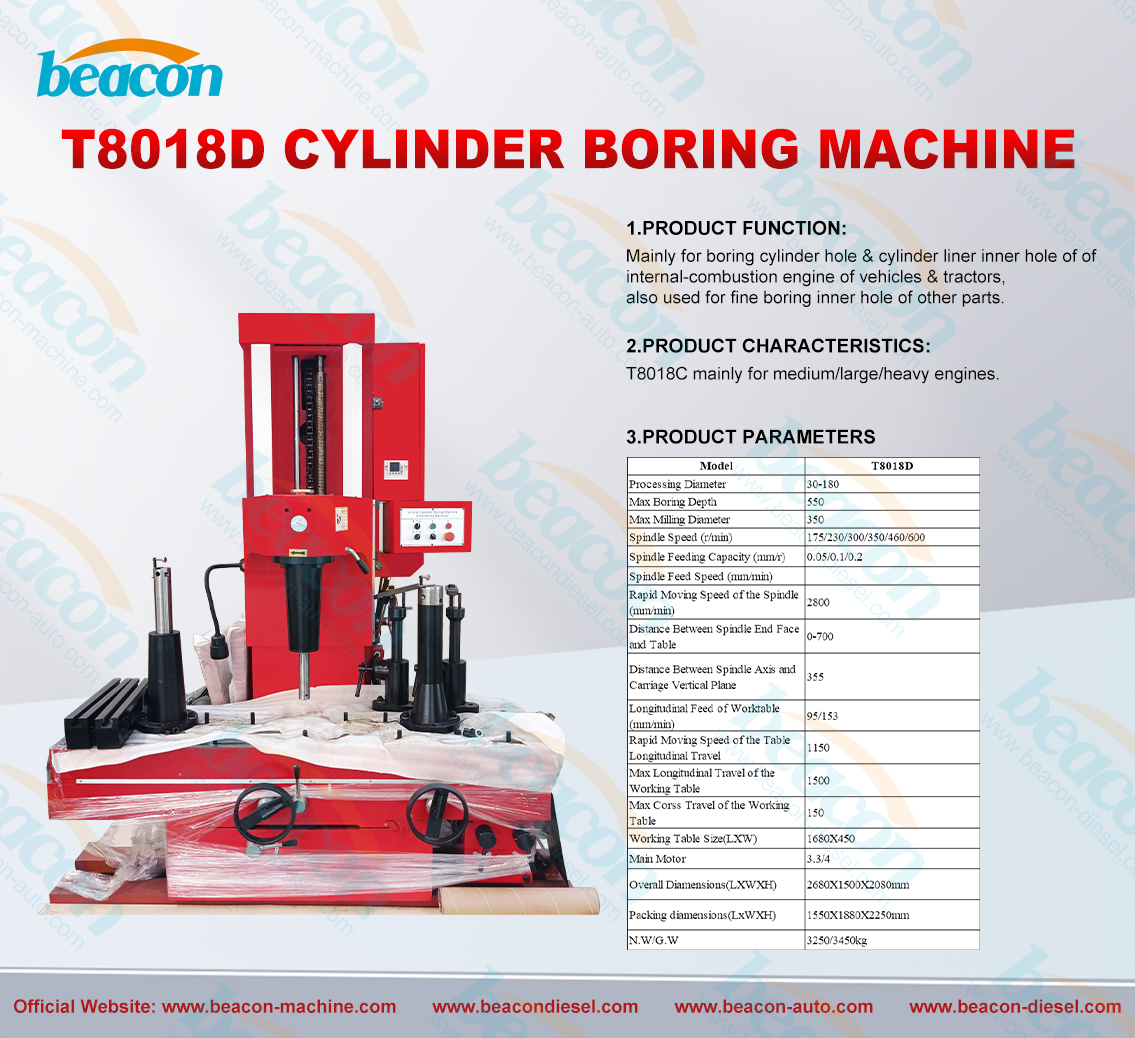

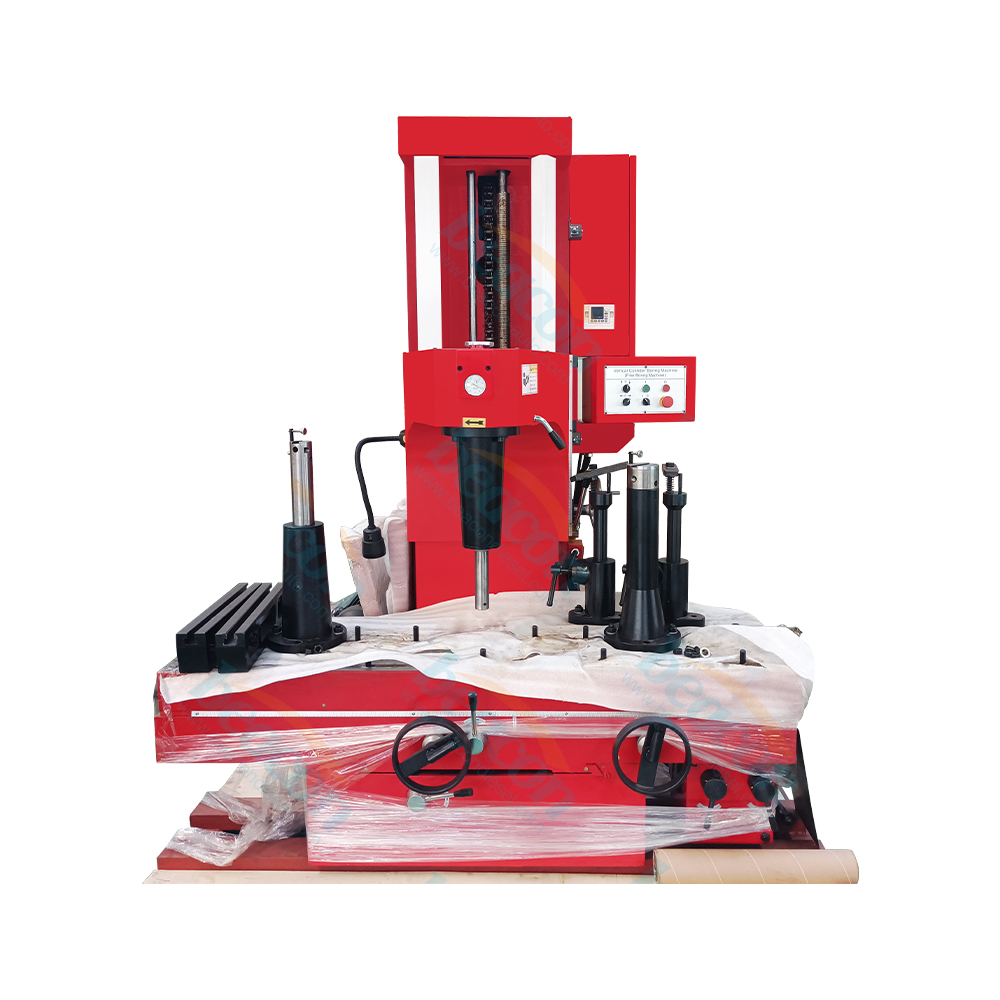

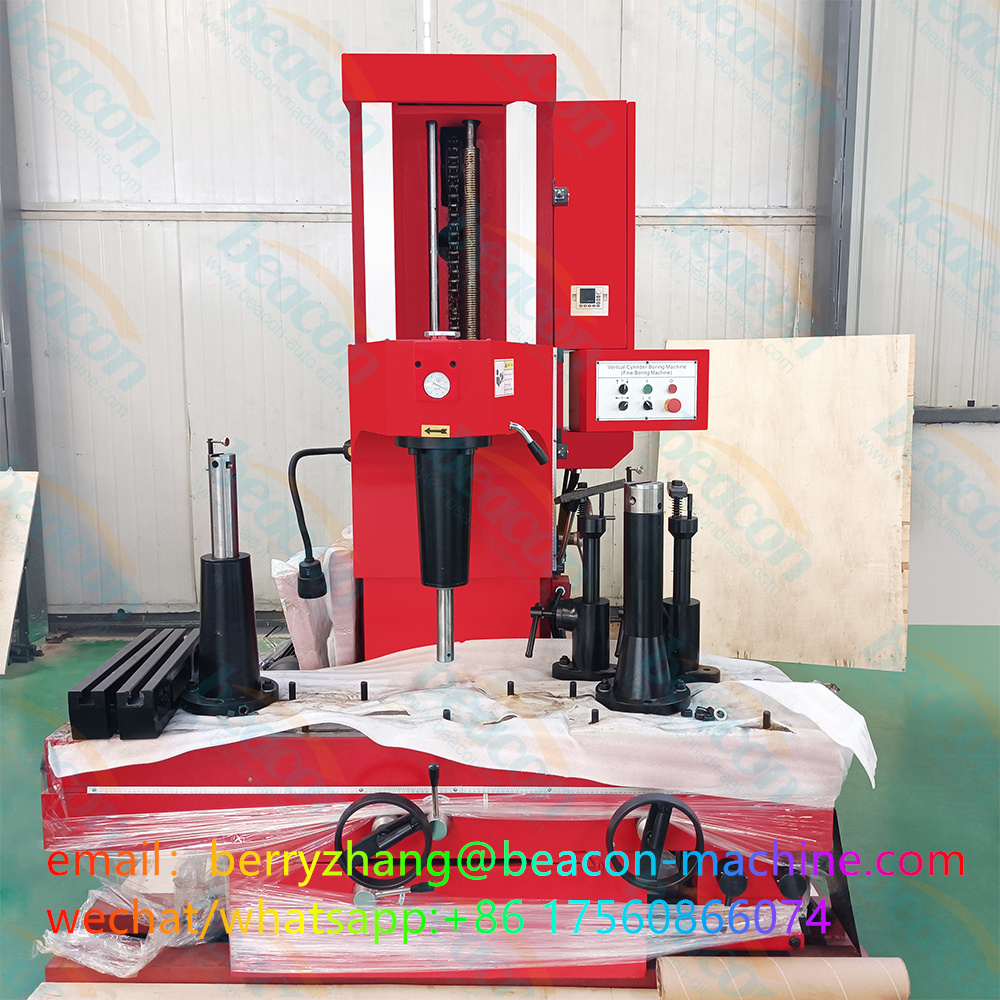

T8018D cylinder boring machine

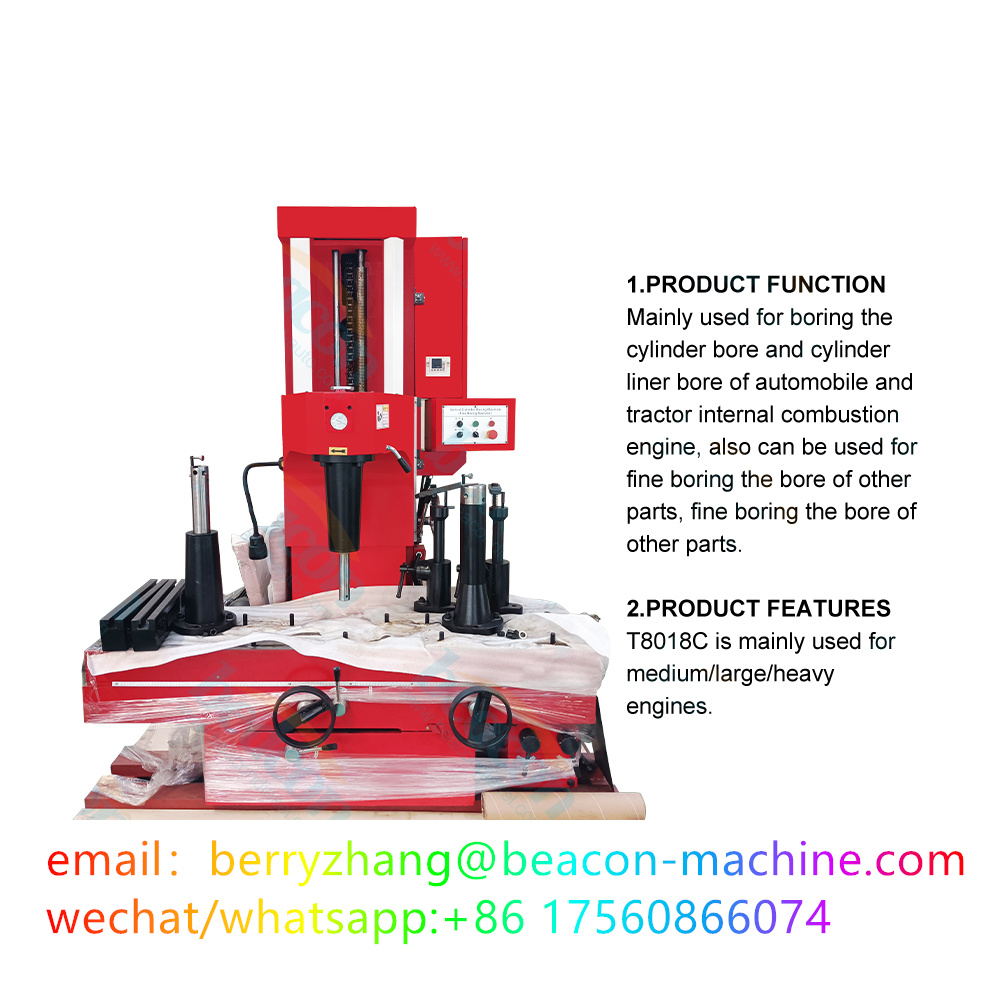

1. Product function:
Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for
fine boring inner hole of other parts.
2. Product characteristics:
T8018C mainly for medium/large/heavy engines

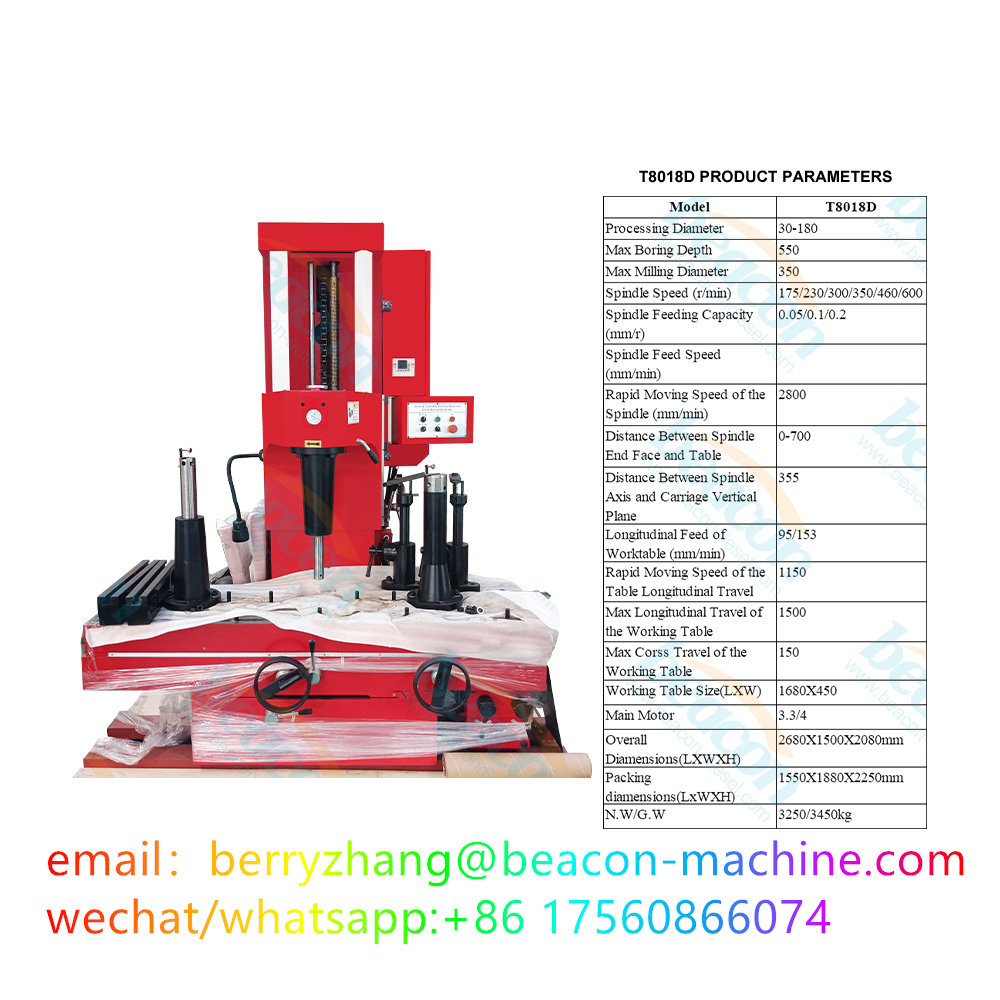

3. Product parameters:
|
model |
T8018A |
T8018B |
T8018C |
T8018D |
|
Processing Diameter |
30-180 |
30-180 |
30-180 |
30-180 |
|
Max Boring Depth |
450 |
450 |
650 |
550 |
|
Max Milling Diameter |
|
|
350 |
350 |
|
Spindle Speed (r/min) |
Infinitely variable |
175/230/300/350/460/600 |
175/230/300/350/460/600 |
175/230/300/350/460/600 |
|
Spindle Feeding Capacity (mm/r) |
0.05/0.1/0.2 |
0.05/0.1/0.2 |
0.05/0.1/0.2 |
0.05/0.1/0.2 |
|
Spindle Feed Speed (mm/min) |
|
|
|
|
|
Rapid Moving Speed of the Spindle (mm/min) |
2650
|
2650
|
2800
|
2800
|
|
Distance Between Spindle End Face and Table |
0-500
|
0-500
|
0-800
|
0-700
|
|
Distance Between Spindle Axis and Carriage Vertical Plane |
320
|
320
|
355
|
355
|
|
Longitudinal Feed of Worktable (mm/min) |
|
|
95/153 |
95/153 |
|
Rapid Moving Speed of the Table Longitudinal Travel |
|
|
1150 |
1150 |
|
Max Longitudinal Travel of the Working Table |
800 |
800 |
1500 |
1500 |
|
Max Corss Travel of the Working Table |
100 |
100 |
150 |
150 |
|
Working Table Size(LXW) |
1200X500 |
1200X500 |
1680X450 |
1680X450 |
|
Main Motor |
3.3/4 |
3.3/4 |
3.3/4 |
3.3/4 |
|
Overall Diamensions(LXWXH) |
2000X1230X1920
|
2000X1230X1920
|
2680X1500X2325 |
2680X1500X2080 |
|
Packing diamensions(LxWXH) |
1370X1370X2250 |
1370X1370X2250 |
1550X1880X2490 |
1550X1880X2250 |
|
N.W/G.W |
2000/2200 |
2000/2200 |
3500/3700 |
3250/3450 |
