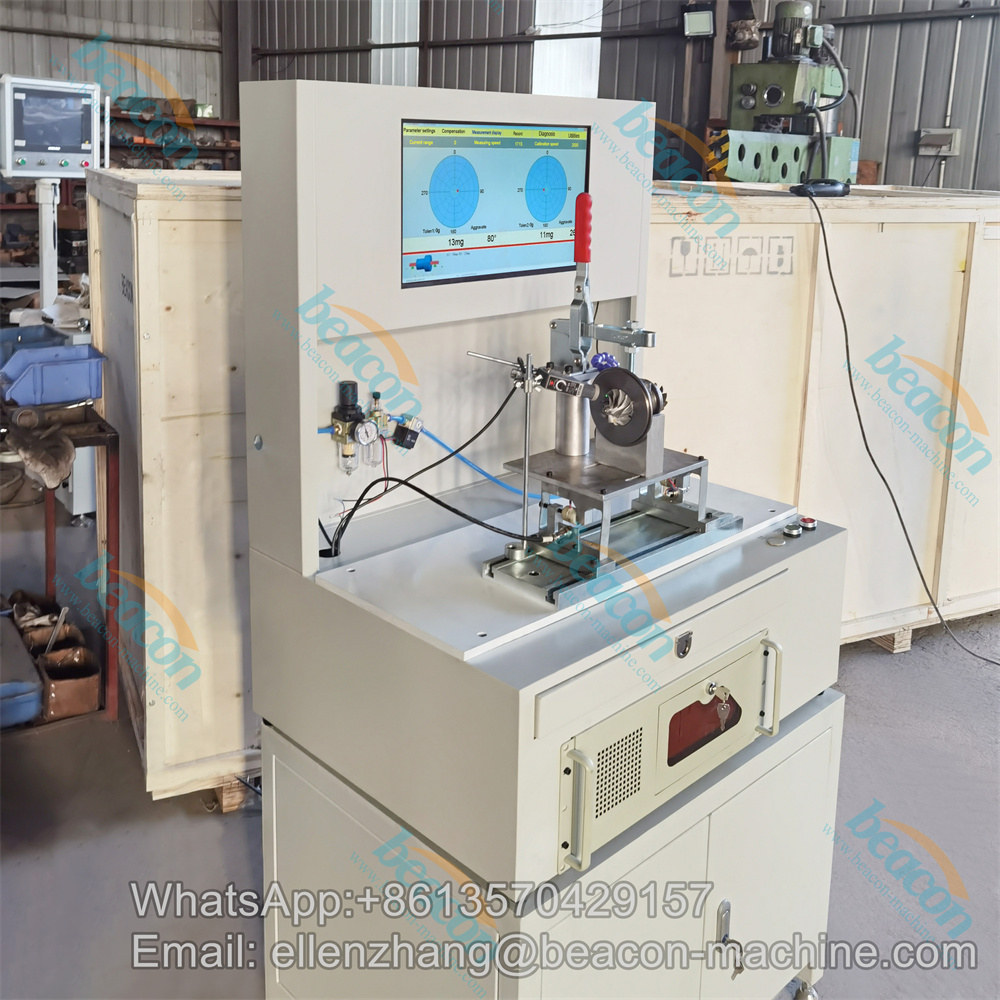

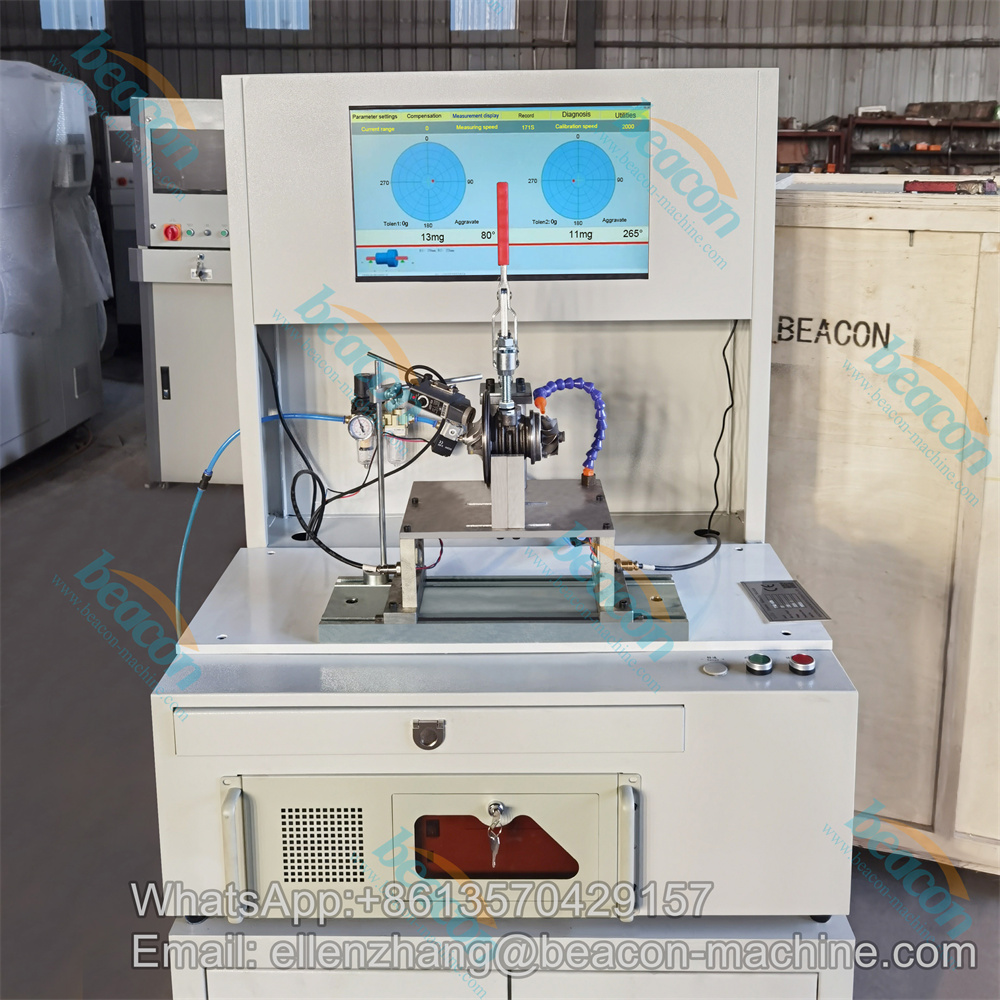

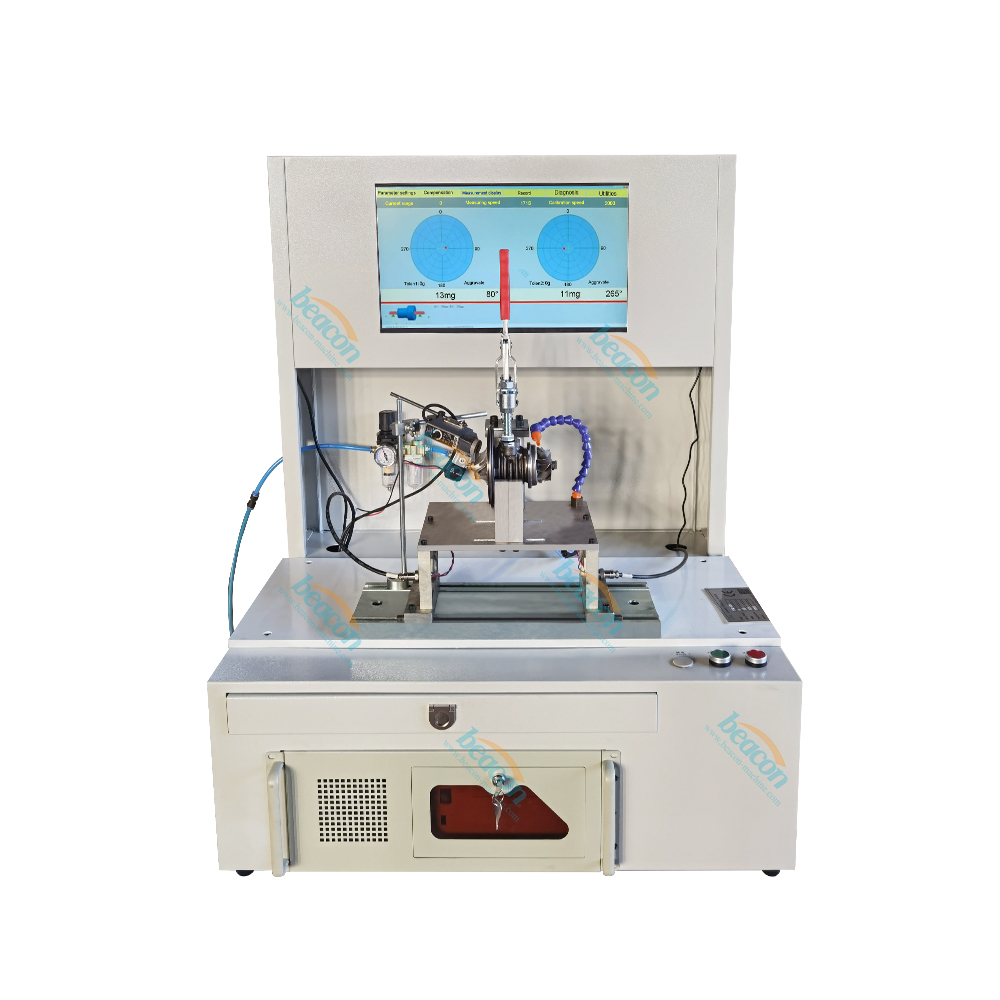

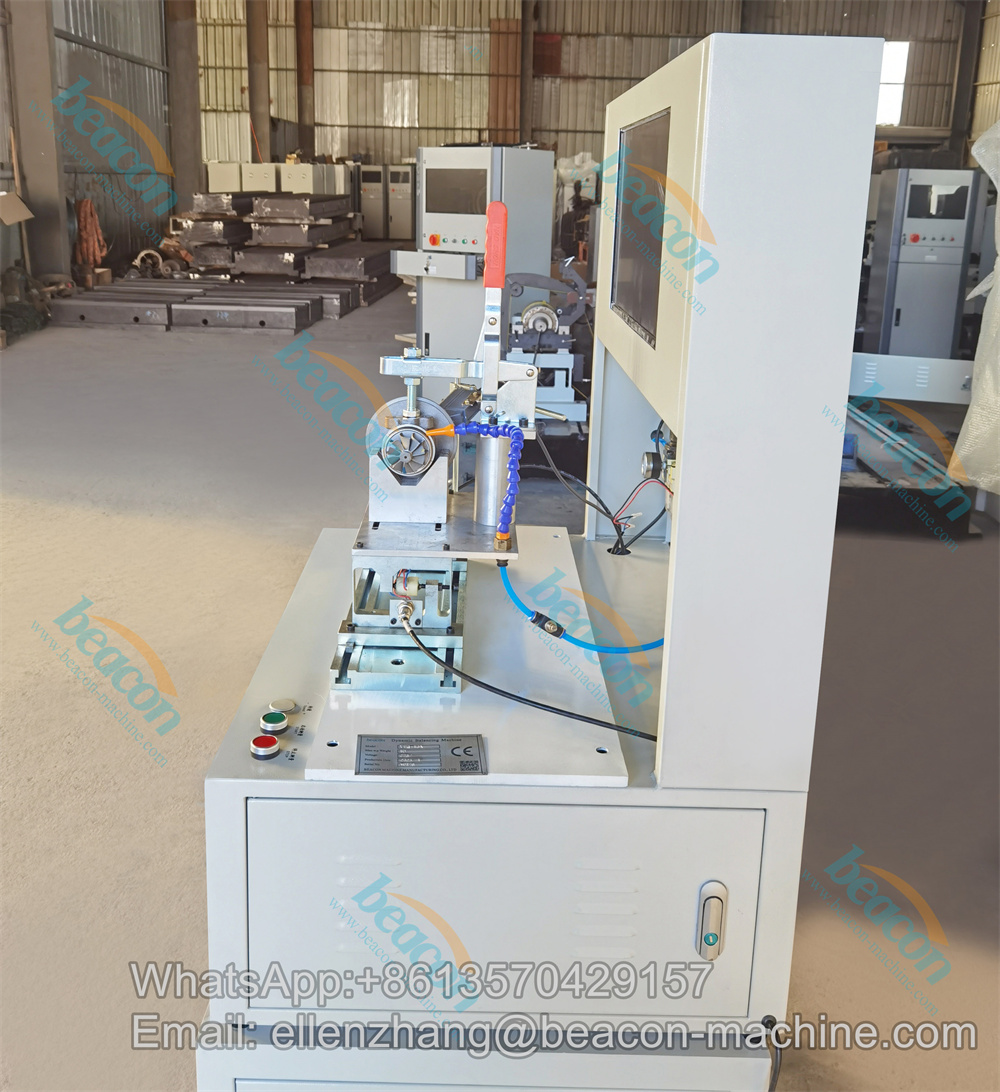

YYQ-10A Dynamic balancing machine Used for Mini Turbo,Fan, drive shafts, etc.

Device model

YYQ-10A

Workers quality range  kg

0.3-10

Diameter range at the dragging position of the coil belt  mm

15-200

The maximum diameter of workpiece

500

Two support spacing mm

60-550

Bed size (long*width*height) mm

450*150*25

Pose structure

Overall, roller cantilever support

Roller support shaft diameter mm

5-36

Balancing speed R/min

Drag the diameter of 50mm 400-1400 Ueadatta speed adjustment

Minimum remaining unsatisfactory measurement

≤0.3gmm/kg

Unexpected reduction reduction rate%

≥95%

Motor power

0.18KW

Speed mode

frequency control

transfer method

Loop drag

Overall size  (length * width * height)

800*600*995
