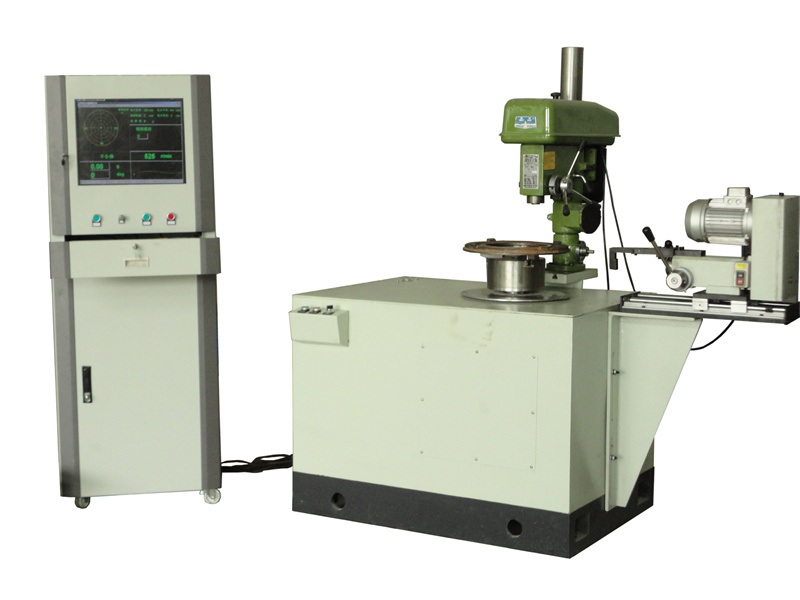

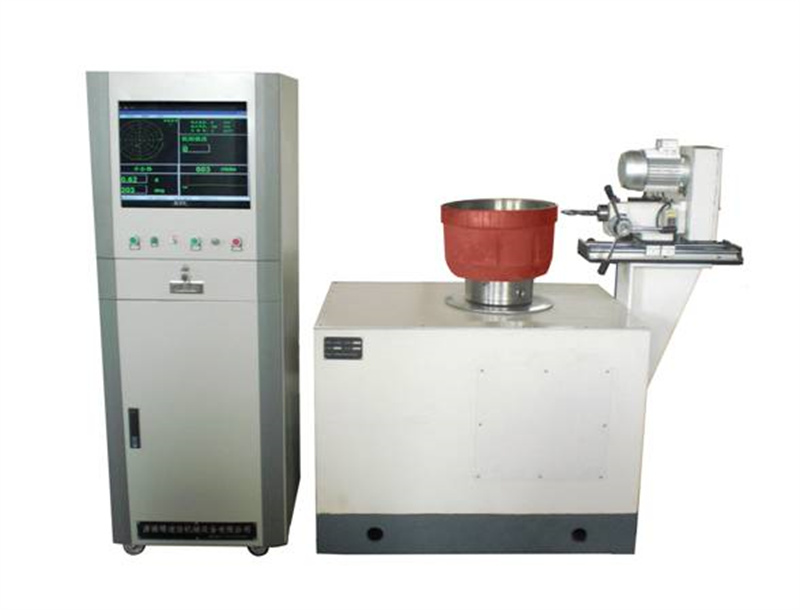

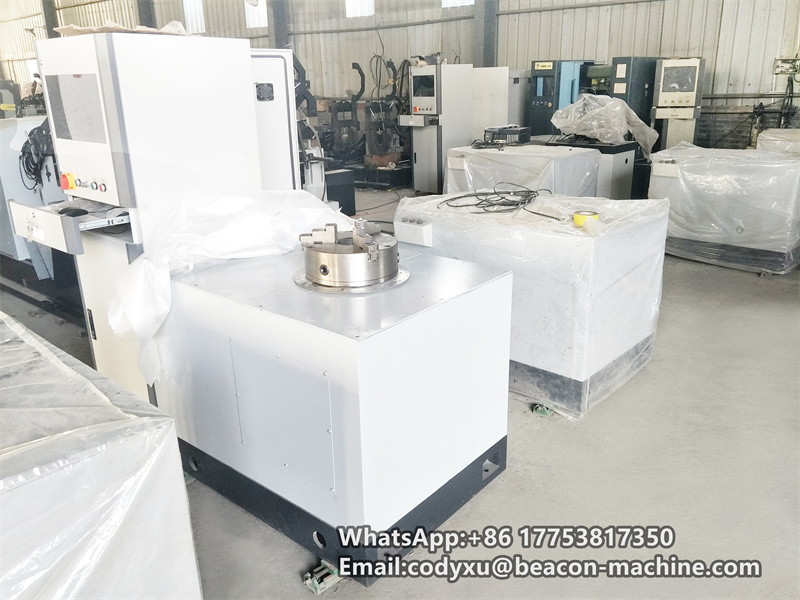

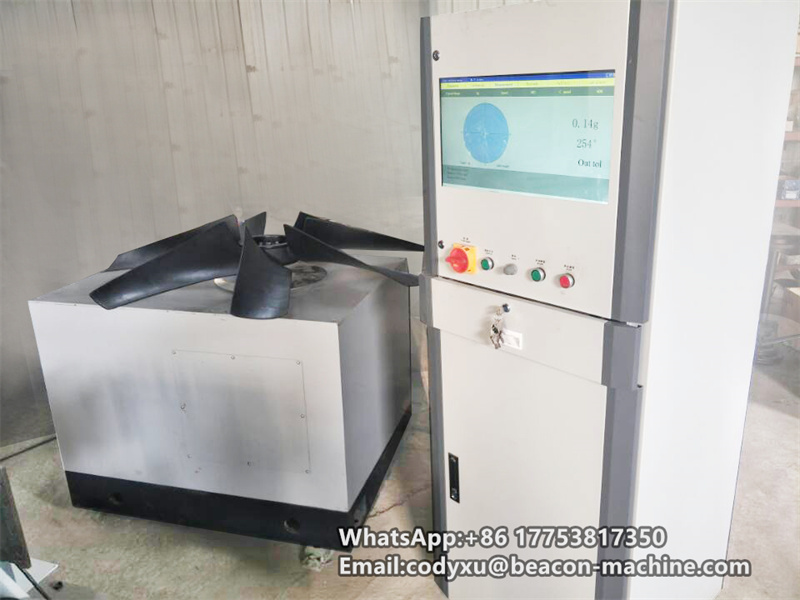

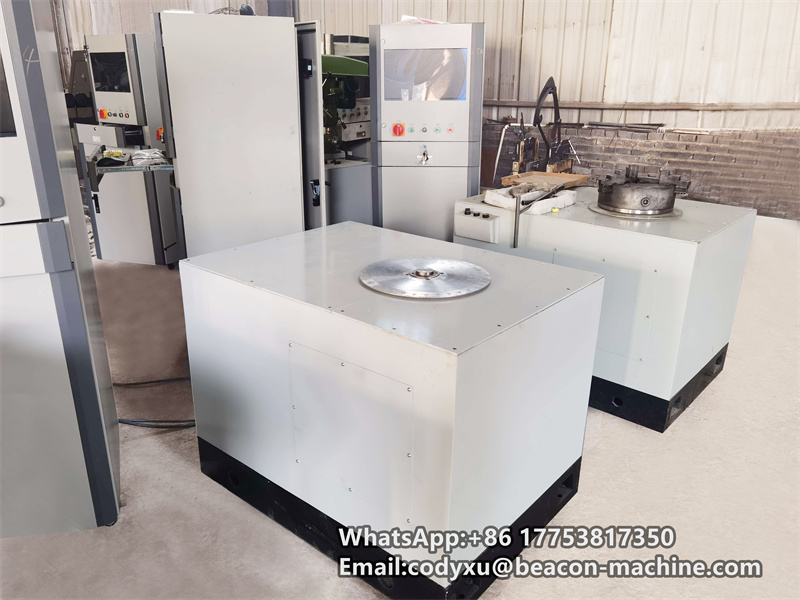

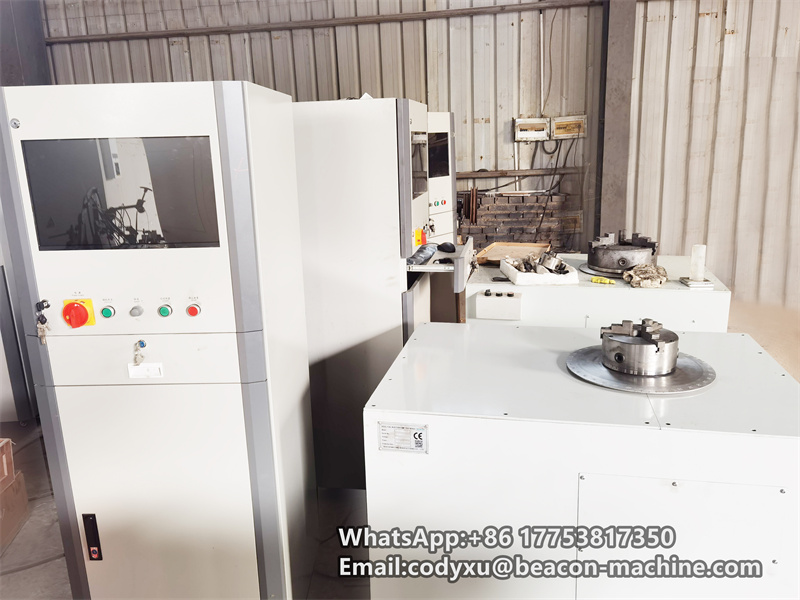

Beacon Industrial Dynamic Balance YLD-100A Vertical Single Plane Rotor Engine Balancing Machine

This series is a single-sided vertical balancing machine. This machine is suitable for dynamic balance verification of disc-shaped rotating parts on one side. The ideal equipment for dynamic balance verification of torque converters, fluid couplings and other parts. You only need to replace the furniture where the workpiece is installed to perform balance verification. The ordinary type of this machine is driven by a two-speed motor, and the "A" type is a variable frequency speed regulation system. The data is processed by an industrial control computer. The liquid crystal display displays the imbalance value, phase angle and real-time speed in real time, and is equipped with industrial cabinets and machinery. Part of the balance machine system is easy to save and print the parameters. The system has high test accuracy, reliable use and convenient maintenance. It is more advanced than other test systems. It can be equipped with special fixtures such as general-purpose fixtures and torque converters, and can also be equipped with side weight-removing drilling machines, vertical weight-removing drilling machines and dust suction devices.
The GB-2000 universal microcomputer balance measurement system is the latest universal microcomputer balance measurement system under the Windows XP operating system. The operating environment of this system must be at least the Windows 95 operating system. The hardware of the system is composed of multiple single-chip microprocessors (CPUs), using dual high-speed A/D converters, with program-controlled tracking amplification, program-controlled tracking filtering, real-time speed measurement, real-time data transmission, analog reference signals, and analog vibration signals And other functions. It makes full use of the advantages of Windows, making the measurement system extremely powerful. From the operation interface, data processing, report printing, data graphic display, file graphic printout, all of them reflect the charming style of Windows. Concentrated design makes the balance measurement system suitable for soft support, hard support, static balance, dynamic balance, and other types of balance equipment. And can realize a measuring system to measure multiple balance equipment at the same time. Realize the full dynamic uninterrupted measurement of the size, phase and speed of the unbalance, and the measurement accuracy is greatly improved.

Use environment
(1) Room temperature: 0-50℃
(2) Relative humidity <85%
(3) The fluctuation value of the power supply voltage of the industrial computer is 190-240V (when necessary, the user shall prepare a regulated power supply), and the fluctuation value of the power supply voltage is 370-400V.
(4) The machine should be installed on a stable foundation, and the installation level should be within 0.2/1000.
(5) Prevent electromagnetic interference and stay away from the source of interference.
(6) Prevent oil, salt, acid and corrosive gas from entering.
(7) Prevent the intrusion of water droplets, steam, dust, cotton wool, and fine metal powder.
(8) It is forbidden to use in the hazardous environment of flammable, flammable, explosive gas, liquid or solid.

Model：YLD-100A
Measure time：10s (The measurement period can be set arbitrarily)
Software version：Windows XP
Display method：19 inch LCD monitor
Power supply：Three-phase four-wire AC 380V 50/60HZ
Way of working：continuous
Workpiece quality range (Kg)：5-100
Workpiece diameter (mm)：800
Balance speed (r/min)：250-1000 frequency conversion speed regulation
Motor power (KW)：4
Unbalance reduction rate%：≥90
The smallest achievable residual unbalance (emar) ：≤3g・mm/kg
